1-1/2" Bore Round Double Acting Air Cylinder 6" Stroke in Saudi Arabia

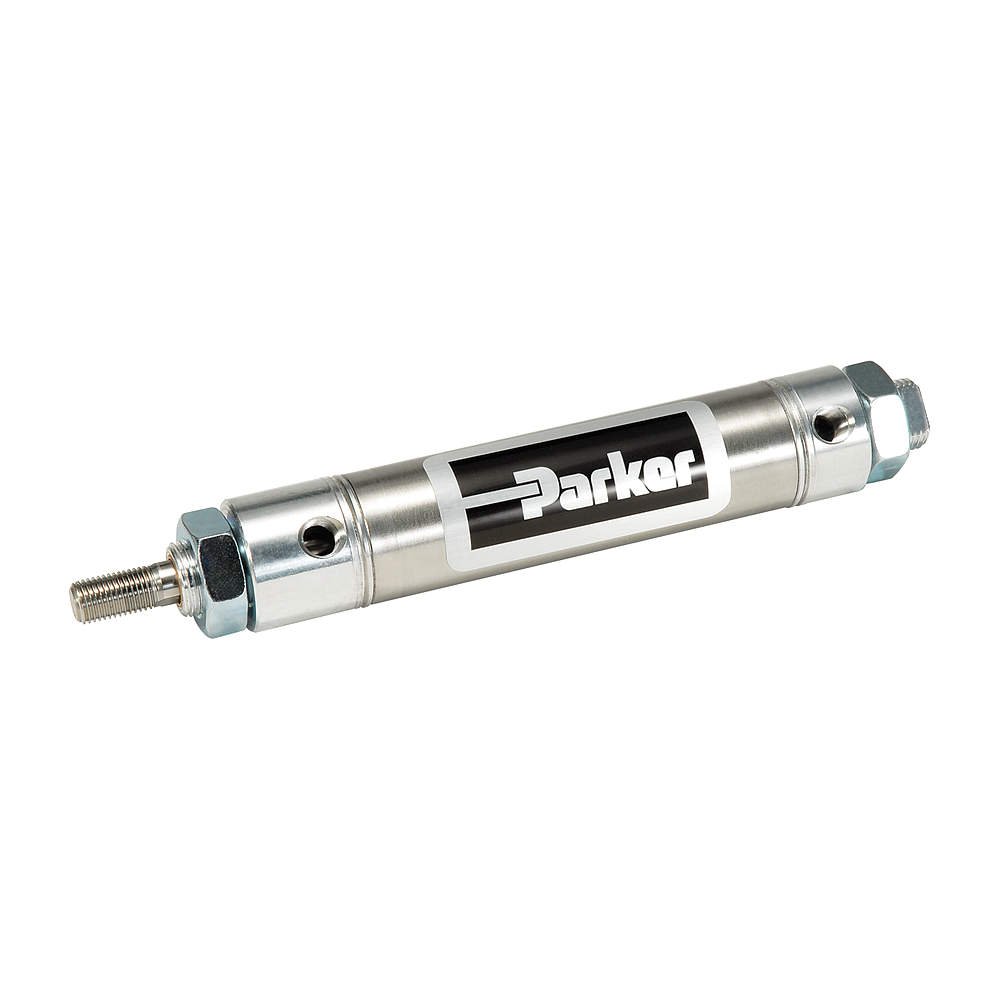

1-1/2" Bore Round Double Acting Air Cylinder 6" Stroke

SAR 488
Brand
Parker
Weight
0.6 kg
– 1 +

Special Features

  • <b>Price For:</b> Each <b>Item</b>: Air Cylinder <b>Bore Dia.</b>: 1-1/2" <b>Rod Dia.</b>: 0.437" <b>Dimension Kk</b>: 7/16"-20 UNF <b>Piston Rod Material</b>: Stainless Steel <b>Dimension A</b>: 0.75" <b>Dimension Cc</b>: 0.437" <b>Max. Pressure</b>: 250 psi <b>Piston Material</b>: Aluminum <b>Rod Thread Size</b>: 7/16-20 UNF <b>Tube Material</b>: Stainless Steel <b>Body Material</b>: Stainless steel <b>Finish</b>: Silver
  • <b>Single Acting/Double Acting</b>: Double Acting <b>End Cap Material</b>: Aluminum <b>Cylinder Type</b>: Round Non-Repairable <b>Dimension B</b>: 0.749" <b>Dimension D</b>: 0.38" <b>Cushion Type</b>: None <b>Dimension N1</b>: 3/4"-16 <b>Rod Thread Length</b>: 0.75" <b>Port Size</b>: 1/8" FNPT <b>Nose Mount Thread</b>: 3/4"-16 <b>Dimension Cb</b>: 0.62" <b>Dimension L</b>: 0.50" <b>Dimension E</b>: 0.62" <b>Stroke</b>: 6" <b>Overall Length</b>: 11.8" <b>Mount</b>: Nose and Pivot
  • <b>Temp. Range</b>: 14 Degrees to 140 Degrees F <b>Features</b>: Switch Ready <b>Magnetic Piston</b>: Yes <b>Pivot Hole Dia.</b>: 0.376" <b>Dimension Cd</b>: 0.376" <b>Country of Origin (subject to change)</b>: United States

Description

'Air Cylinder, Double Acting, Round Non-Repairable, Bore Dia. 1-1/2 In., 6 In. Stroke, Nose and Pivot Mount, 1/8 In. FNPT Port Size, 250 psi Max. Pressure, Cushion Type None, 14 Degrees to 140 Degrees F Temp. Range, 11.8 In. Overall Length, Aluminum Piston Material, Stainless Steel Body Material, Silver Finish, Aluminum End Cap Material, Stainless Steel Piston Rod Material, Magnetic Piston Yes, Tube Material Stainless Steel, Nose Mount Thread 3/4 In.-16, 0.437 In. Rod Dia.'
