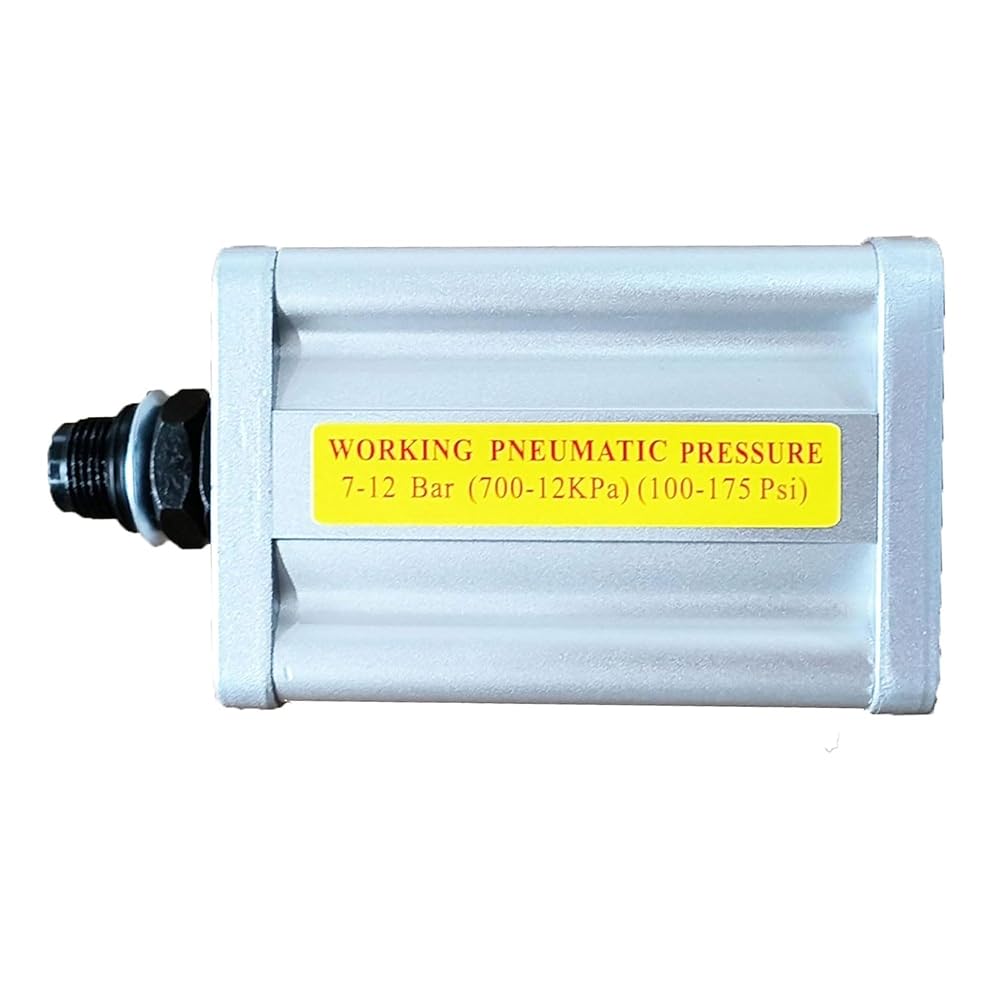

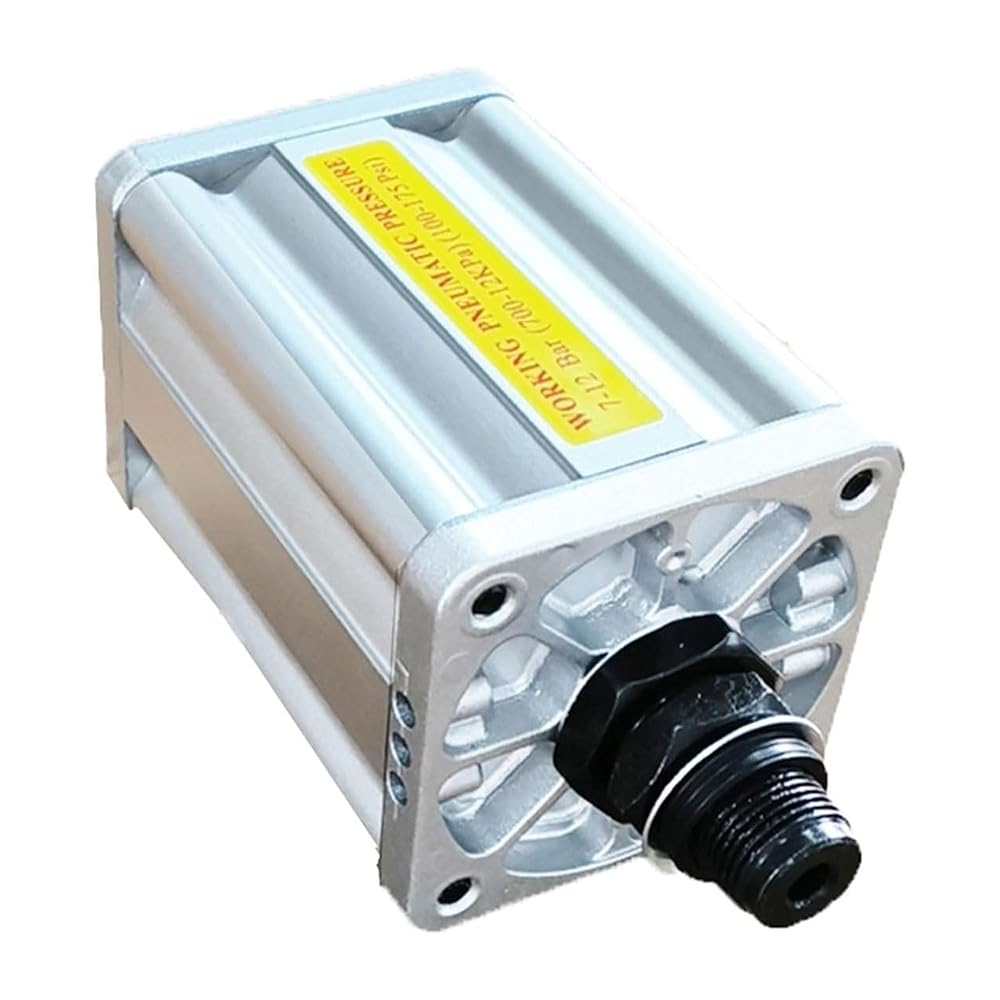

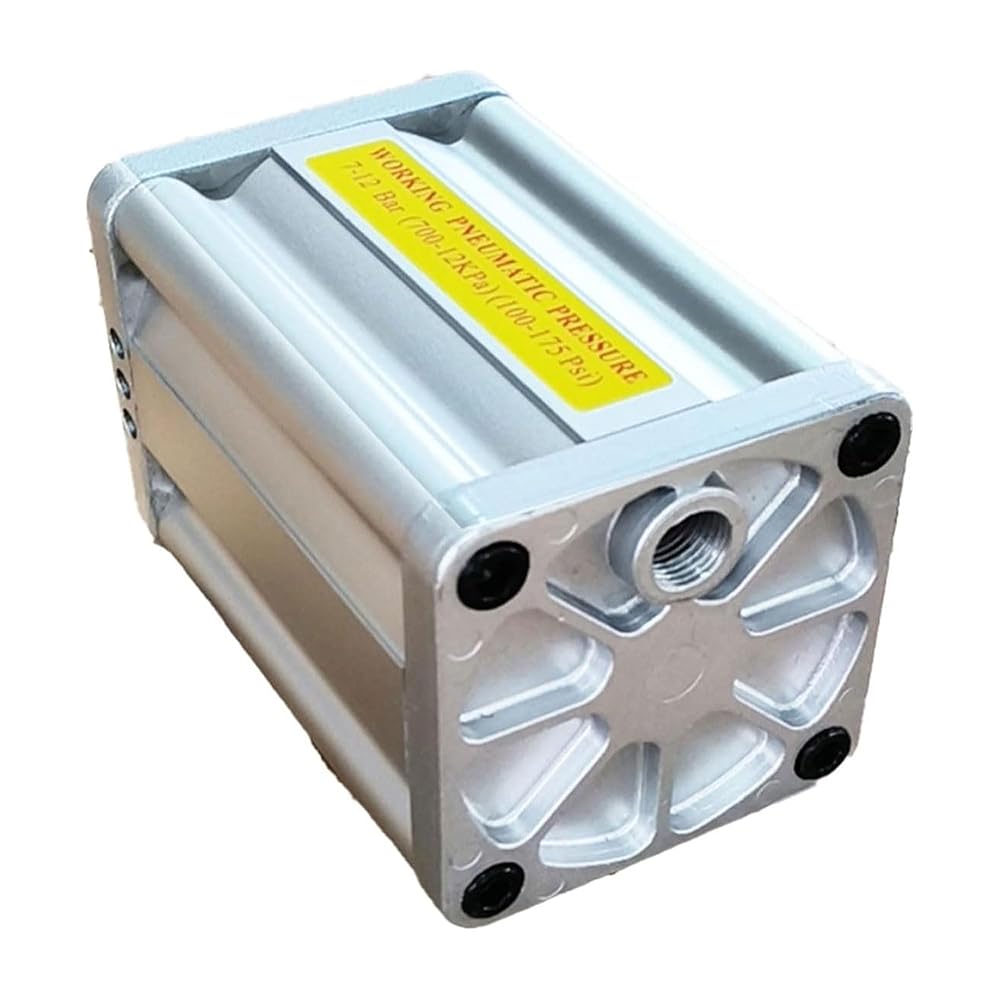

Xingehyd AP1003 Square Compressed Air Motor for Pneumatic Hydraulic Pumps in Saudi Arabia Xingehyd AP1003 Square Compressed Air Motor for Pneumatic Hydraulic Pumps in Saudi Arabia Xingehyd AP1003 Square Compressed Air Motor for Pneumatic Hydraulic Pumps in Saudi Arabia

Xingehyd AP1003 Square Compressed Air Motor for Pneumatic Hydraulic Pumps

SAR 230
– 1 +

Special Features

  • AIR PRESSURE IS 108-120 PSl, Max. Hydraulic Pressure is 10000 PSI
  • Air consumption（under 100psi/6.9bar）: 11 SCFM（0.31 cu.m/min)
  • Max. Output Flow Rate NO LOAD: 850ml/min（52cu.in）,Max. Output Flow Rate (in3/min) LOAD: 170ml/min（10cu.in）
  • The air over hydraulic pump features a user-friendly, foot-actuated design that allows for easy control and operation, saving time and effort with its powerful and adjustable pressure.
  • The air actuated hydraulic treadle pump is an excellent choice for single-acting ram applications in industrial and construction settings.

Description

Working pressure: 0.7-1.0 Mpa
Max hydraulic pressure: 70 Mpa
Input port thread: 1/4 "(NPT)
Output port thread: M20X1.5
External dimension: 95 * 95 * 175 mm
Cylinder inner diameter: 70 mm
Pump core outer diameter: 6 mm
