Pneumatic Motors
Specification:
1. Brand: MOTOR

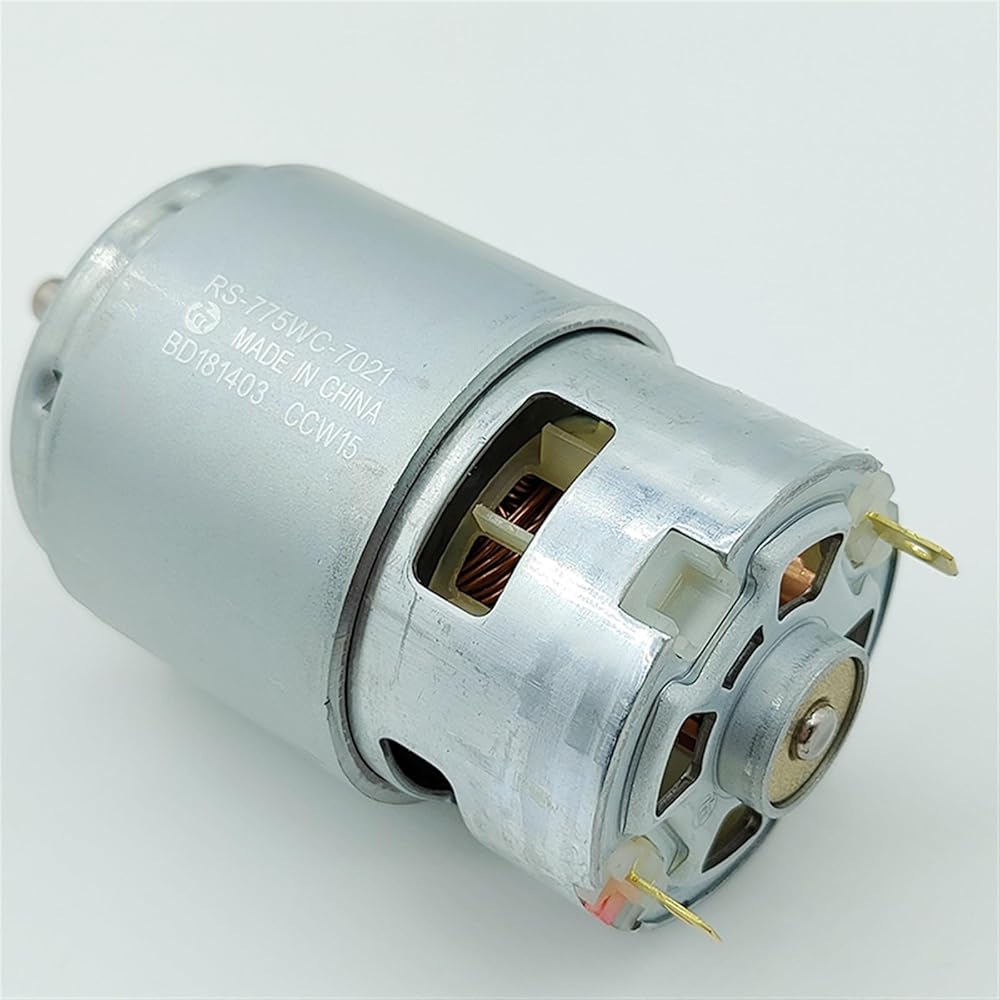

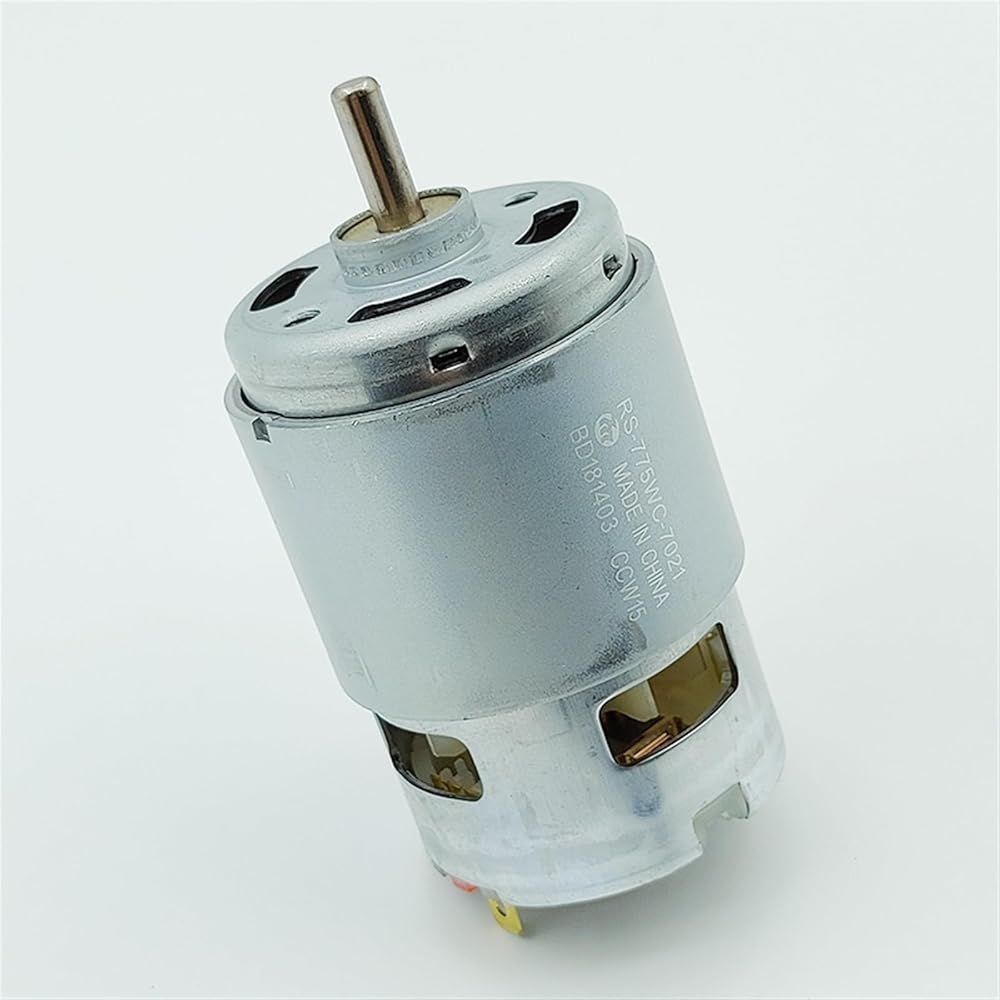

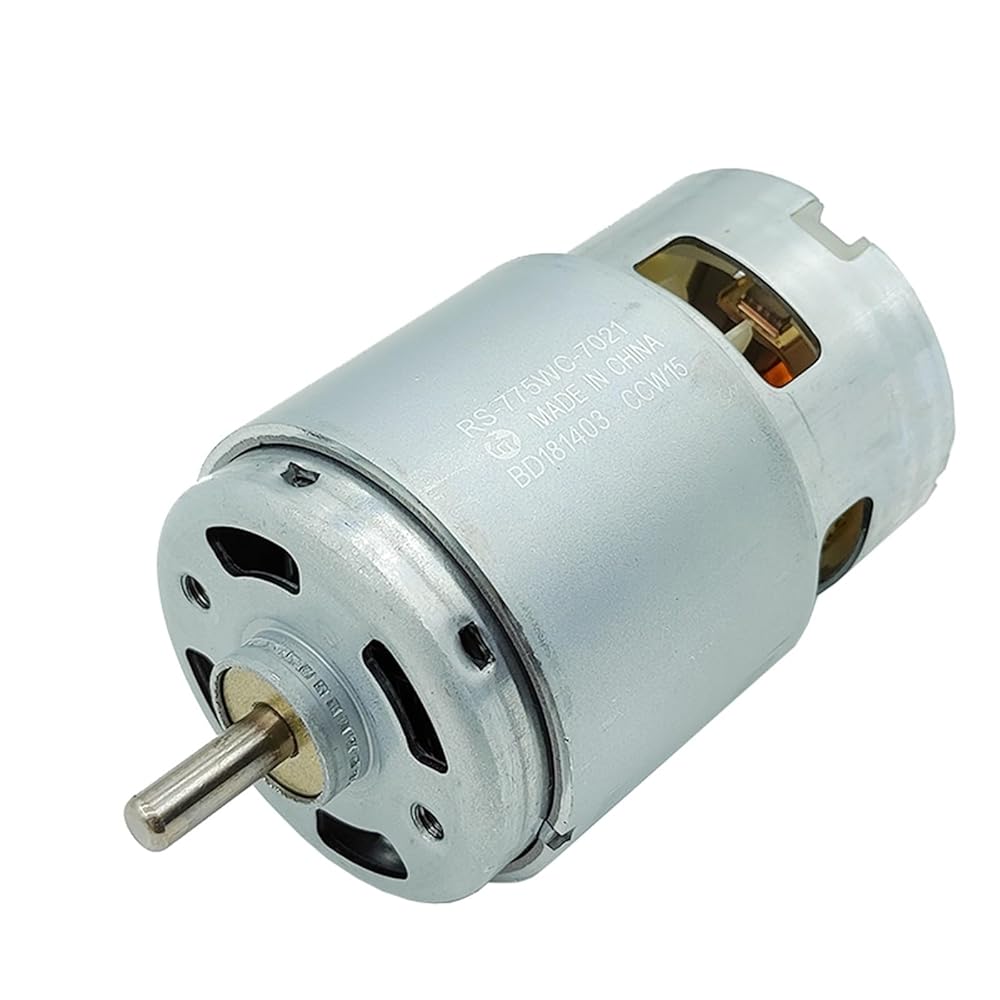

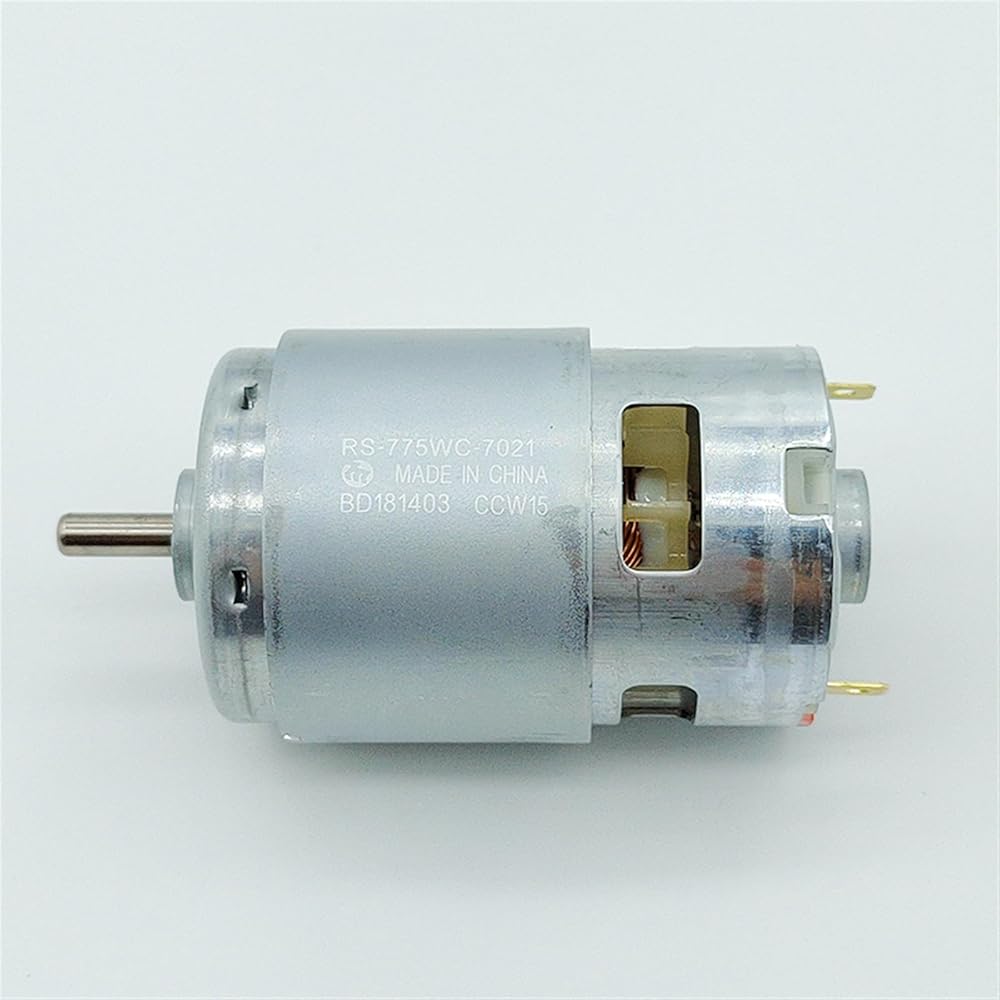

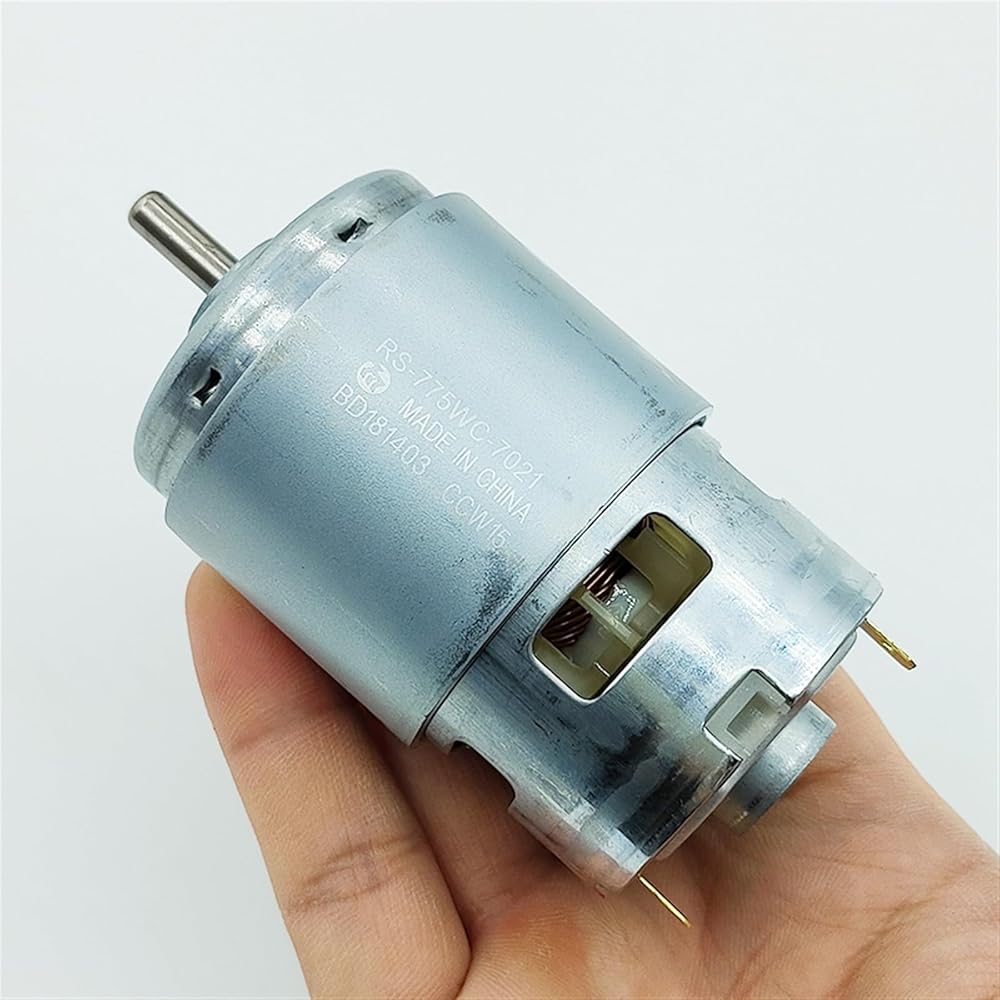

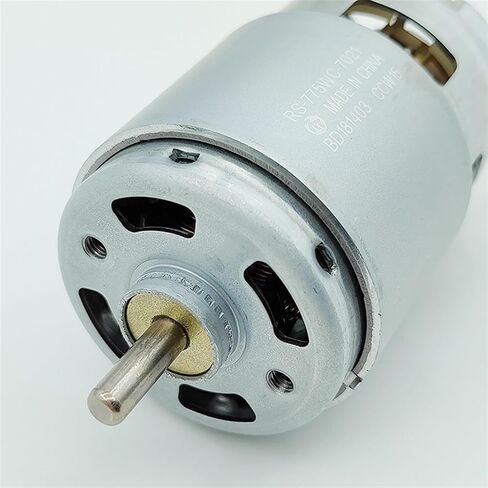

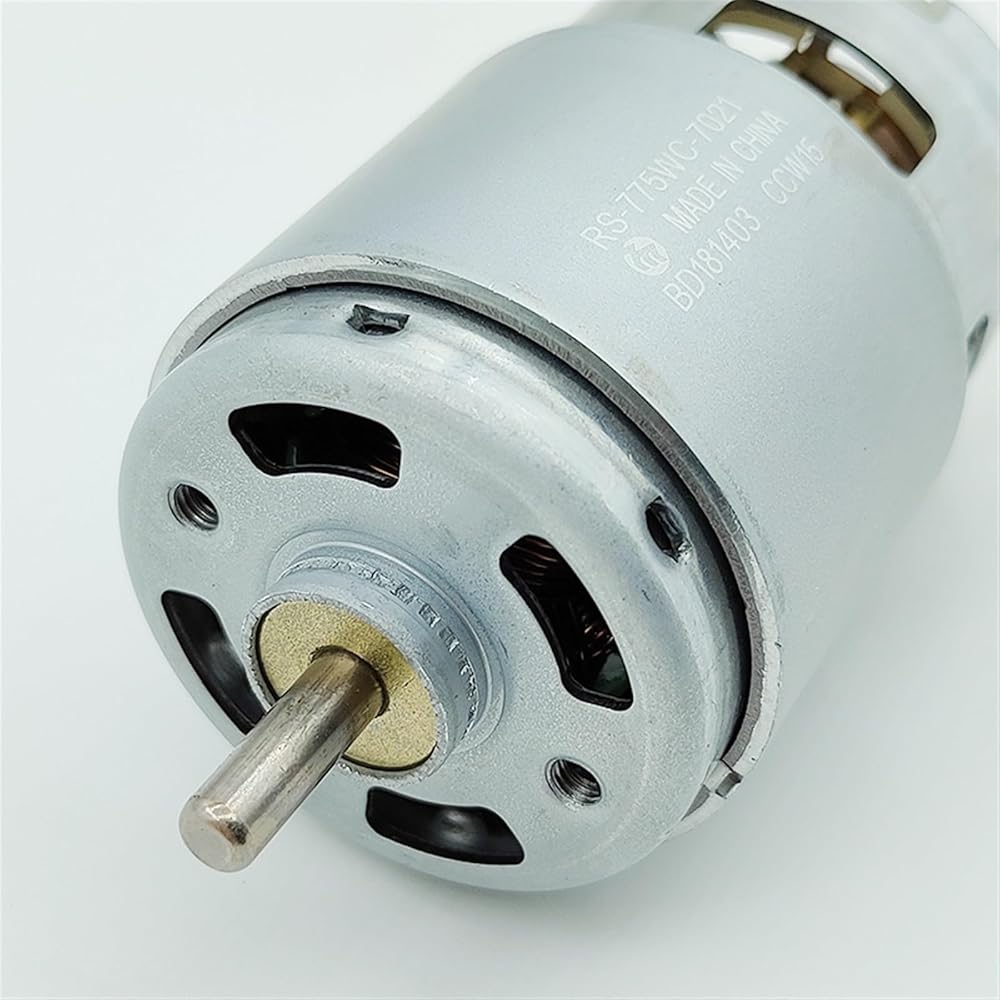

2. Model: RS-775WC-7021
3. Motor body diameter: 42mm(with ring is 46.2mm)
4. Motor height: 67mm
5. Output shaft diameter: 5.0mm
6. Output shaft length: 14.2mm
7. Screw hole diameter: 4.0mm
8. Screw hole spacing: 28.5mm
9. Weight: 384g
10. Voltage range: DC 12V-24V
11. Test data:
Voltage: 12.0V No-load current: 0.51A No-load speed: 8300RPM
Voltage: 14.4V No-load current: 0.56A No-load speed: 10100RPM
Voltage: 18.0V No-load current: 0.60A No-load speed: 12800RPM
Voltage: 24.0V No-load current: 0.61A No-load speed: 17000RPM
=============================================================================
Package List:
Motor x 1pcs
