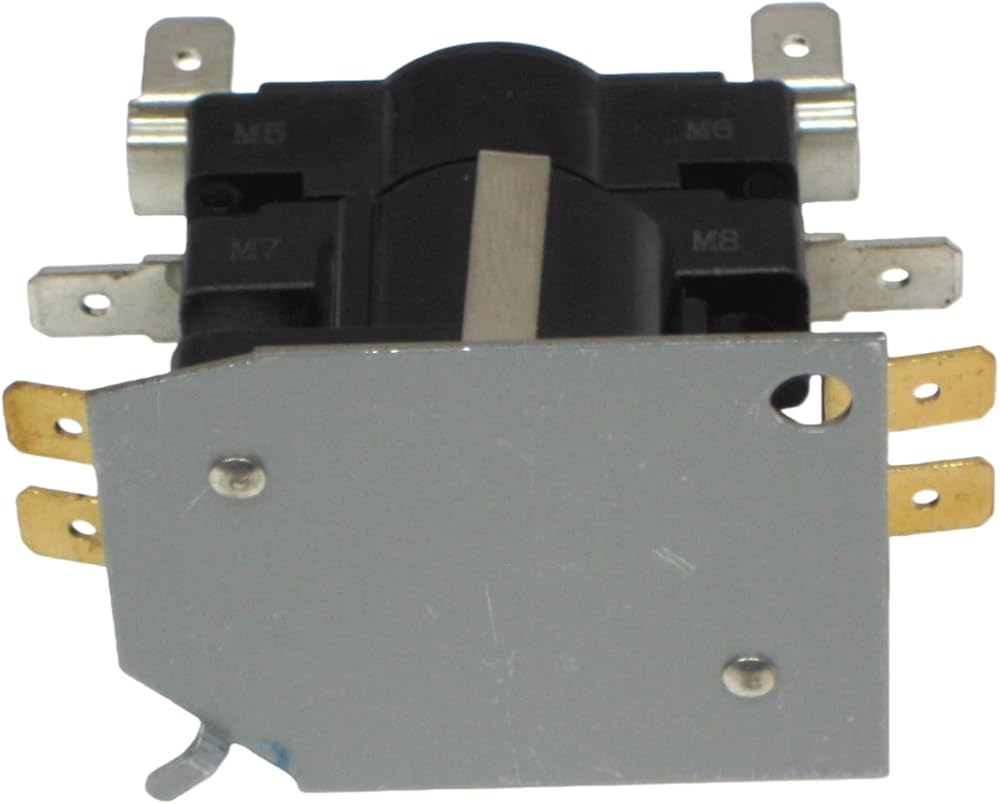

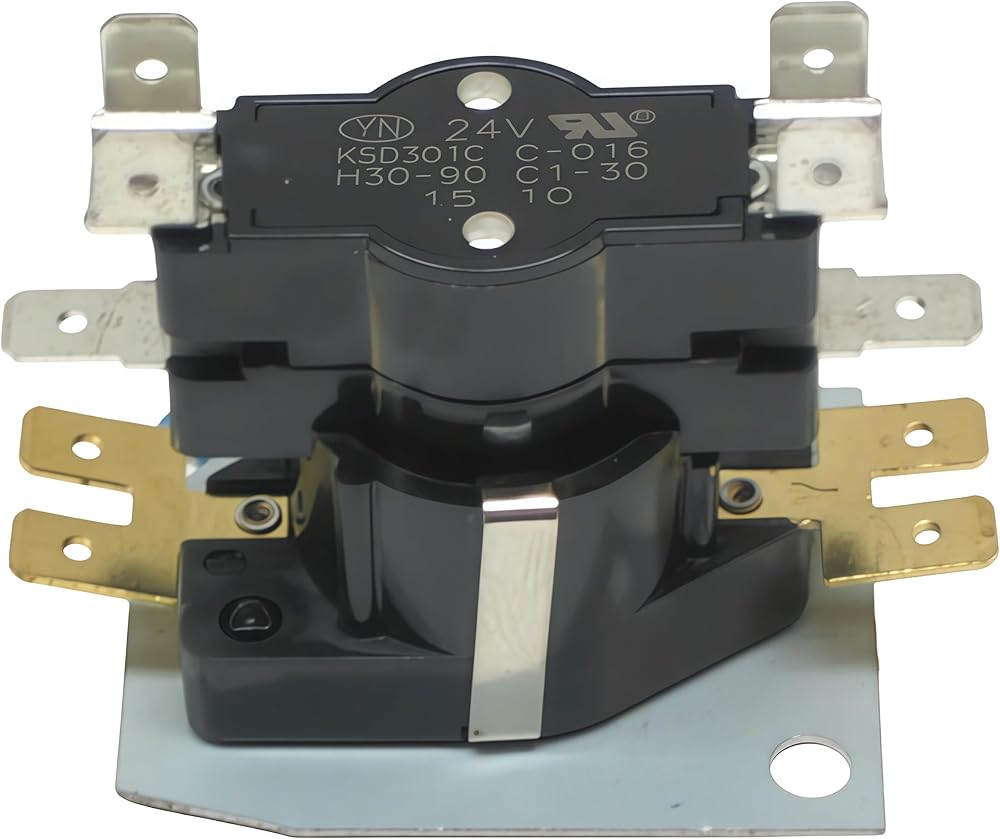

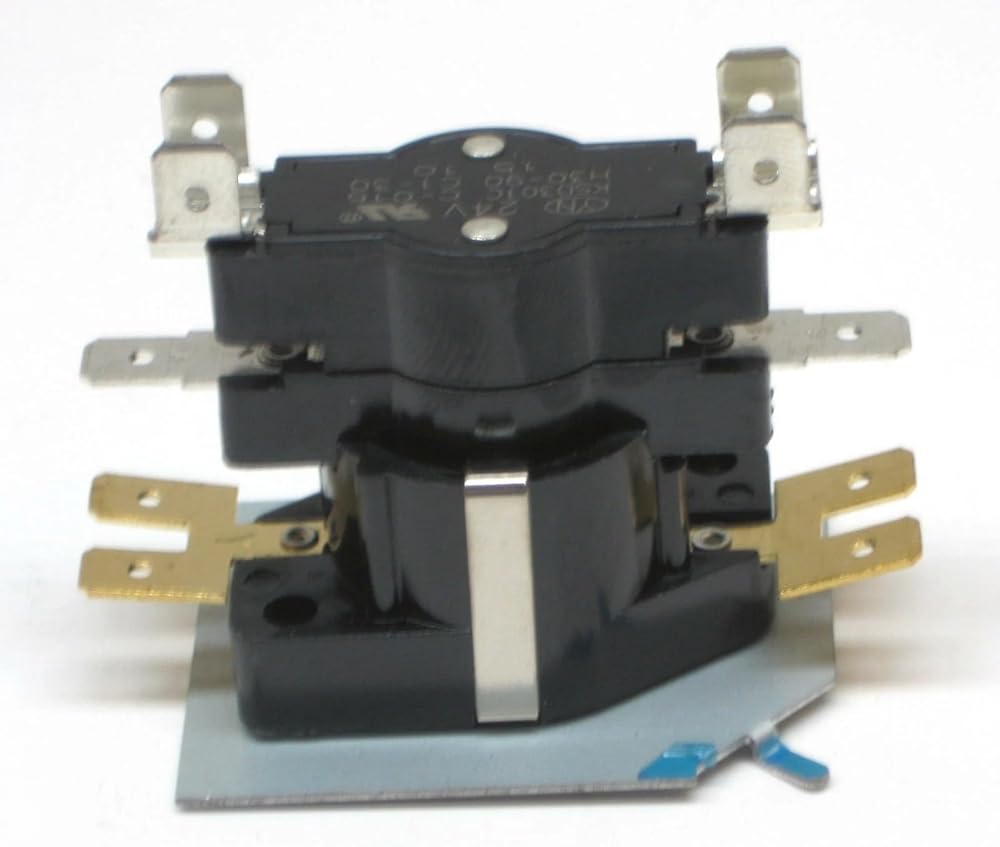

Q104 Compatible with Electric Heat Sequencer Control DPST 24 Volt / 24A34-4 / 525-37325-000
Parts Connect Sequencer part number PCQ104.
24 Volts. DPST. 1 Timing / 2 Switch. Off 1-30 Seconds. On 30-90 Seconds.
PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions.
Terminal Markings are Equivalent to Competitive Types.
Replacement for Numbers: HN67QC006, DGS104, 51172-22, 33244, 33845, Napco NS104, Q104, 24A34-4, TDR25, 525-37325-000.
COMBINED LOAD RATING TABLE. (ALL MODELS). 30A @ 240 VAC TOTAL, 23A Non-Inductive + 7 FLA. / 42 LRA
ON Time: Elapsed time to make contacts after. heater is energized (min. to max.). OFF Time: Elapsed time to break contacts after. heater is de-energized (min. to max.). M1-M2 and M3-M4 are always first switches. to turn ON and last to turn OFF. All other. switches are random ON and random OFF.
NOTE. fan interlock circuit to insure the blower. remains operating whenever more than one. sequencer is used. The fan interlock should. be the M1/ M2
contacts of the second or third sequencer. All M1/ M2. contacts are wired to the blower. motor so that any sequencer that is energized. will keep the blower ON.
