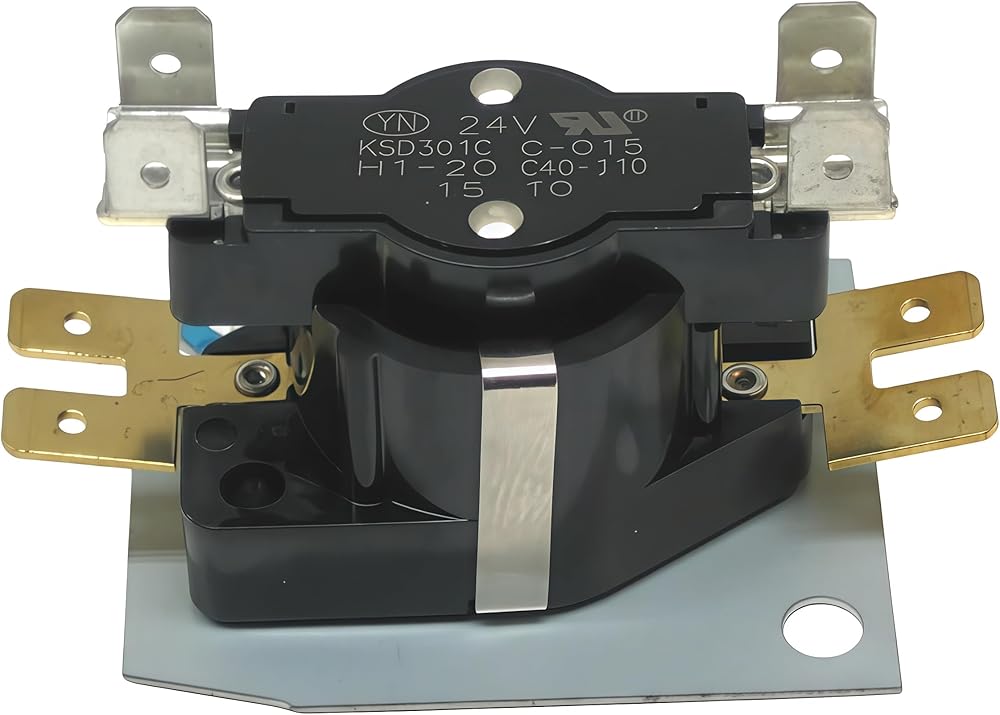

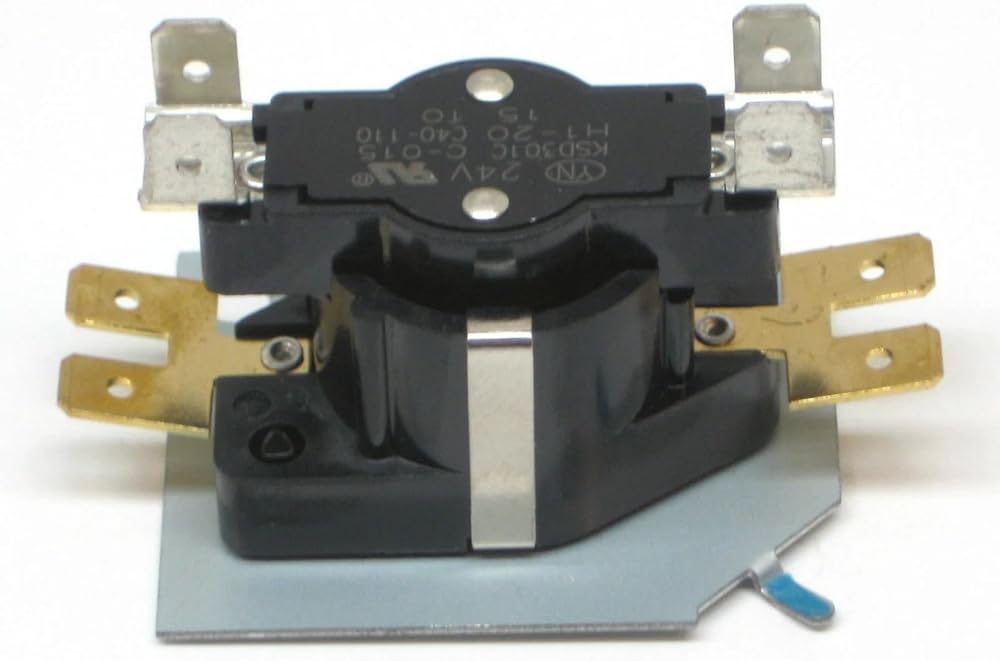

Electric Heat Sequencer Control SPST 24 Volt for Q101 / 24A34-1 / B1290906
Parts Connect Sequencer part number PCQ101. 24 Volts. SPST. 1 Timing / 1 Switch. Off 40-110 Seconds. On 1-20 Seconds
PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions. Terminal Markings are Equivalent to Competitive Types.
Replacement for Brands and Numbers: B1290906, DGS101, 60000AO-64, 60000A0-64, 60000AOM, 12F20, 58C7901, 33241, NS101, Q101, 24A34-1. TDR10
COMBINED LOAD RATING TABLE (ALL MODELS). 30A @ 240 VAC TOTAL. 23A Non-Inductive + 7 FLA. 42 LRA. Inductive. ON Time: Elapsed time to make contacts after
heater is energized (min. to max.). OFF Time: Elapsed time to break contacts after
heater is de-energized (min. to max.). M1-M2 and M3-M4 are always first switches to turn ON and last to turn OFF. All other switches are random ON and random OFF.
