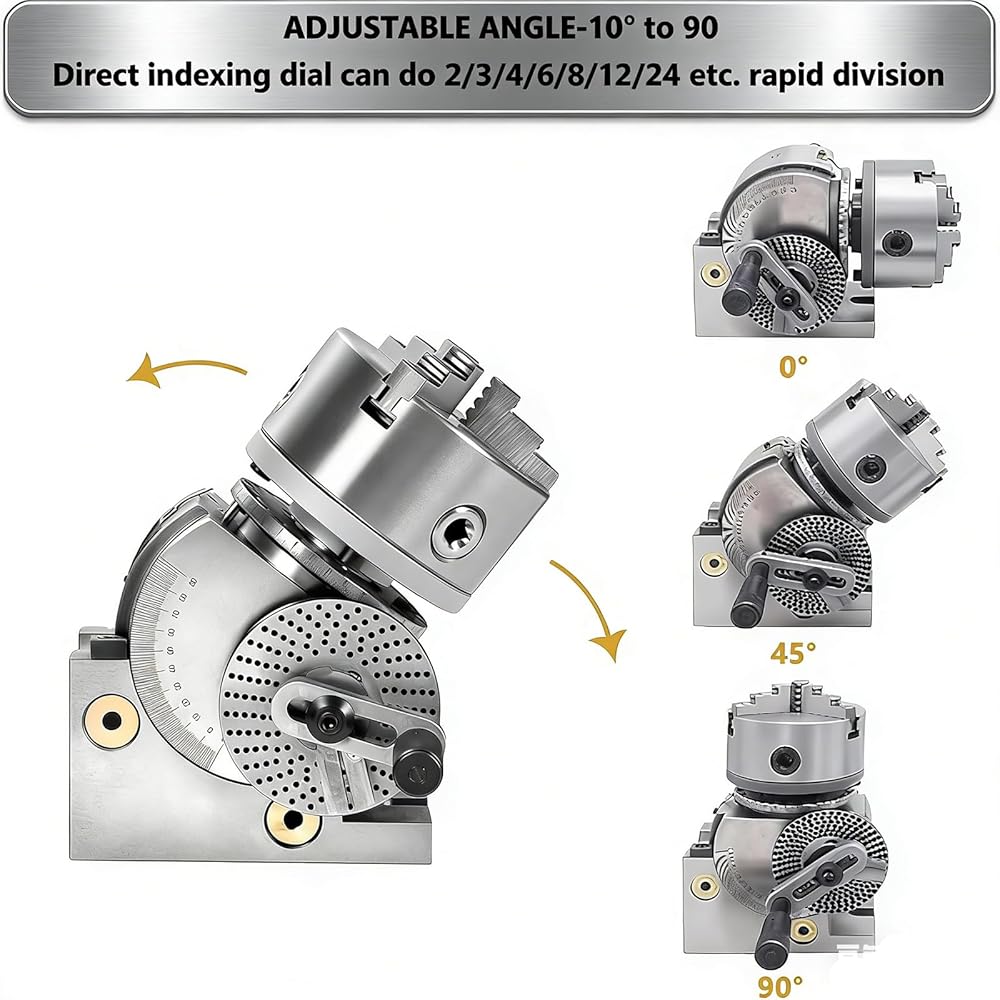

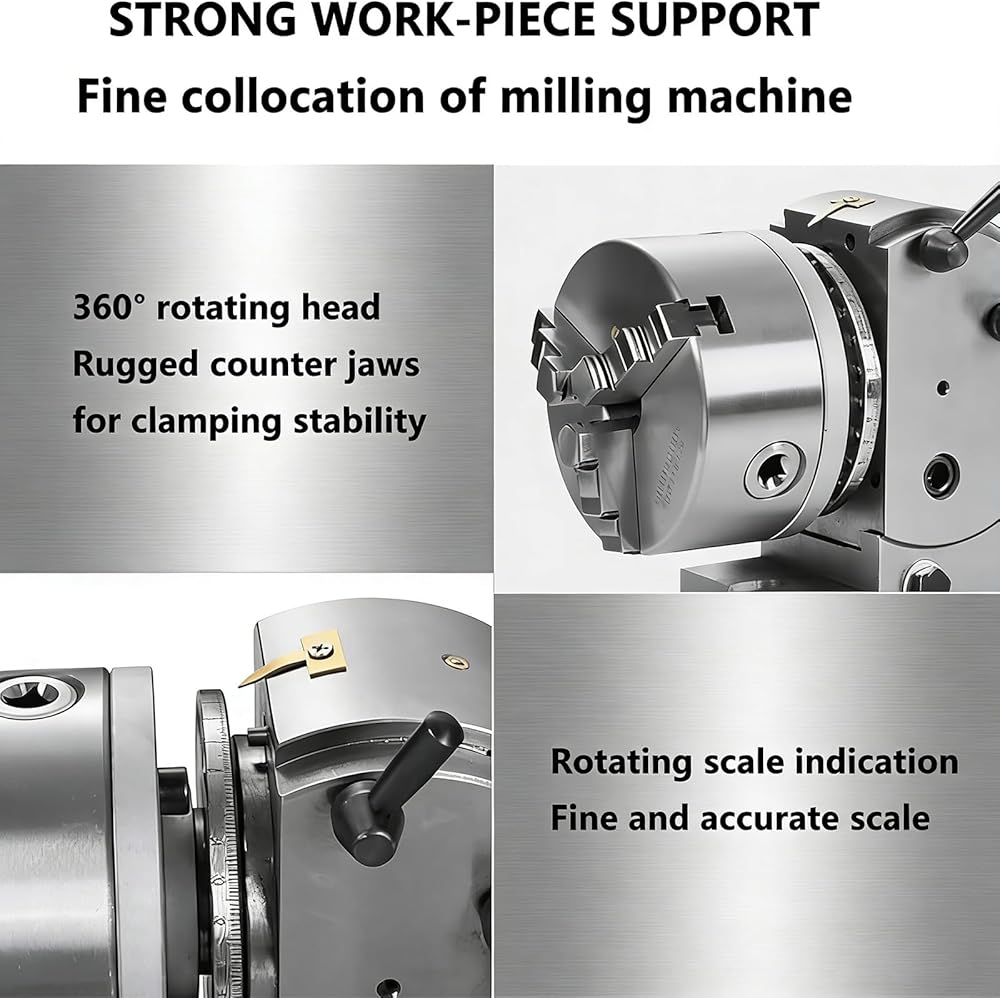

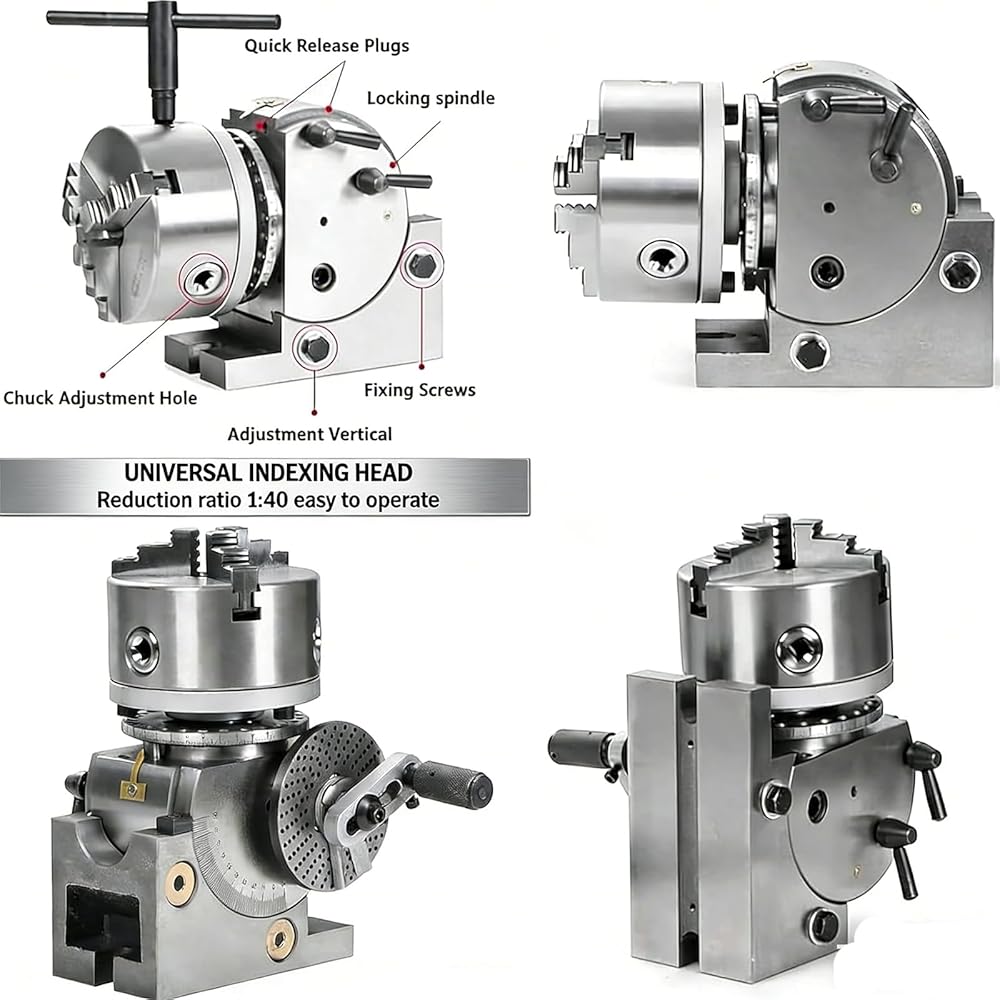

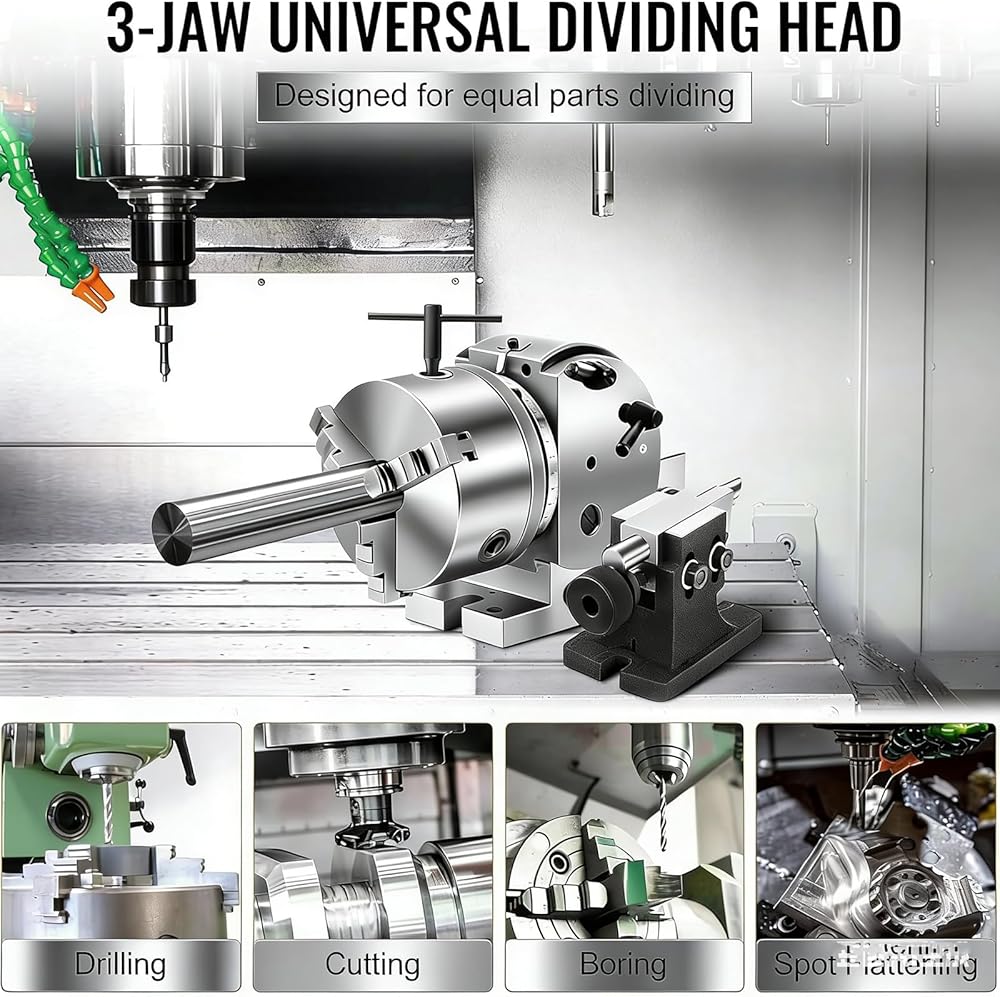

The indexing head is an essential accessory for milling machines, designed to divide workpieces into equal parts with precision. This versatile tool allows users to easily position and index workpieces for machining a variety of shapes, including grooves, spur gears, helical gears, and cams. Whether you're a professional machinist or a DIY enthusiast, the indexing head enhances your milling capabilities, ensuring accurate and efficient results. **Key Advantages:** - **360° Rotating Head:** Features a robust counter-jaw clamping system for enhanced stability during operation. - **Precise Scale Indicator:** With 1° fine divisions, the rotating scale allows for meticulous angle adjustments. - **Honeycomb Plate Positioning:** Ensures accurate indexing and setup for a variety of machining tasks. - **Adjustable Angle for Quick Splitting:** Easily set angles between -10° to 90° for flexible machining options. - **Universal Indexing Capabilities:** Offers spindle accuracy of 0.03mm and indexing accuracy of 120 seconds for reliable performance. - **Durable Construction:** Built from high-quality FC30 cast iron, this indexing head is designed to index workpieces like hexagonal parts, gears, and splines around their axis. **Product Specifications:** - **Chuck Type:** 3-jaw chuck - **Gear Ratio:** 1:40 - **Sizes Available:** 4 inches, 5 inches, 6 inches - **Graduation Accuracy:** 0.04° - **Center Height:** 100 mm (4" & 5"), 130 mm (6") - **Chuck Diameter:** 100 mm (4"), 125 mm (5"), 160 mm (6") - **Clamping Range:** 2-80 mm (4"), 2-110 mm (5"), 3-145 mm (6") - **Overall Height (Upright):** 240 mm (4"), 250 mm (5"), 300 mm (6") - **Overall Height (Lying):** 170 mm (4" & 5"), 220 mm (6") - **Chuck Bore Sizes:** 20/30/40 - **Weight:** 21 kg (4"), 22 kg (5"), 29 kg (6") **Package Contents:** - 1 * Indexing Head - 3 * Honeycomb Plates - 1 * Tailstock - 3 * Counter Jaws - 4 * Spacers - 1 * Chuck Wrench - 1 * Tail Head - 1 * Rotator - 1 * Protective Nut **Customer Service:** ...
