Portable Sur-face Roughness Tester, LED Display High Accuracy 0.01μm with 4 Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm Digital Surf-ace Gauge for Industrial and Laboratory Use in Saudi Arabia Portable Sur-face Roughness Tester, LED Display High Accuracy 0.01μm with 4 Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm Digital Surf-ace Gauge for Industrial and Laboratory Use in Saudi Arabia Portable Sur-face Roughness Tester, LED Display High Accuracy 0.01μm with 4 Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm Digital Surf-ace Gauge for Industrial and Laboratory Use in Saudi Arabia Portable Sur-face Roughness Tester, LED Display High Accuracy 0.01μm with 4 Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm Digital Surf-ace Gauge for Industrial and Laboratory Use in Saudi Arabia Portable Sur-face Roughness Tester, LED Display High Accuracy 0.01μm with 4 Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm Digital Surf-ace Gauge for Industrial and Laboratory Use in Saudi Arabia Portable Sur-face Roughness Tester, LED Display High Accuracy 0.01μm with 4 Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm Digital Surf-ace Gauge for Industrial and Laboratory Use in Saudi Arabia

Portable Sur-face Roughness Tester, LED Display High Accuracy 0.01μm with 4 Parameters Ra/Rq 0.05~15.0μm Rz/Rt 0.1~50.0μm Digital Surf-ace Gauge for Industrial and Laboratory Use

SAR 1,897
– 1 +

Special Features

  • Smart Digital Roughness Tester：This portable roughness tester is equipped with an advanced inductive sensor, enabling fast and high-precision measurement of sur-face textures. It can measure a variety of surf-ace roughness parameters, including Ra, Rz, Rq, and Rt.
  • Product Parameters：Ra/Rq: 0.05-15.0 μm,Rz/Rt: 0.1-50 μm,Measurement Accuracy: 0.01 μm,Sampling Lengths: 0.25/0.8/2.5 mm. Sensor Skid Force: ≤ 0.5 N,Dimensions: 106mm × 70mm × 24mm,Weight: 200g.
  • Ultra-High Precision：Adopting a high-precision sensor with a measurement accuracy up to 0.01 μm and a wide measuring range. Supplied with a calibration block, stand, instrument case, and full set of accessories, it meets strict inspection requirements and is ready to use out of the boxs.

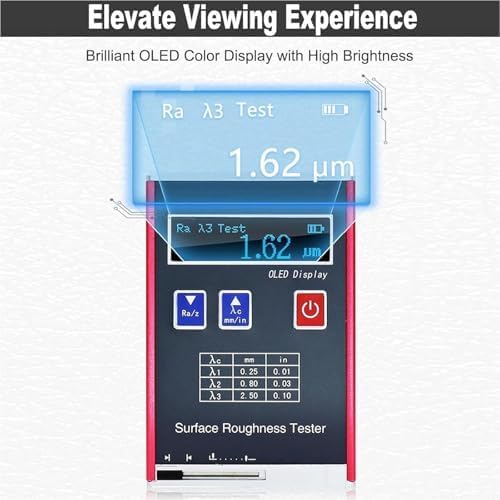

  • Smart & Efficient：Equipped with a high-speed DSP processor, the surf-ace roughness gauge achieves millisecond-level data processing. The dot matrix LED screen displays battery level and measurement results in real time, facilitating intuitive analysis of measurement data and error alerts for users.

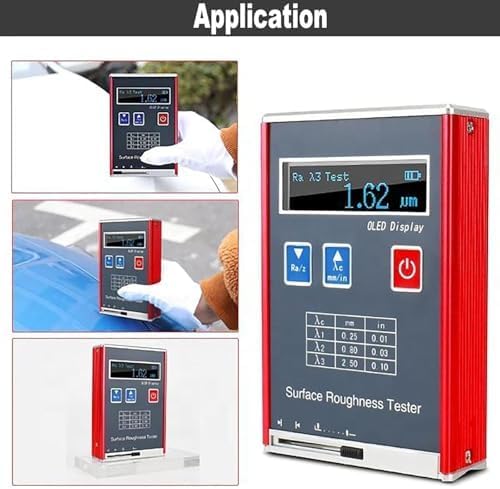

  • Wide Applications：This surf-ace roughness tester is widely used in industries such as aerospace, automotive parts supply, parts processing, energy, electronics, and professional inspection. It is designed to analyze various part features—from flat sur-faces to complex inner bores, grooves, and curved sur-faces.

Description

Specifications :

Product Name: Surf-ace Roughness Tester

Display: LED

Power Supply: Built-in Lithium Battery

Sensor Principle: Inductive

Measurement Parameters: Ra, Rz, Rq, Rt

Resolution: 0.01μm

Tip Radius: 10 μm

Stick Angle: 90°

Ra/Rq: 0.05-15.0 μm

Rz/Rt: 0.1-50 μm

Sampling Length: 0.25mm, 0.8mm, 2.5mm

Dimensions: 106mm×70mm×24mm

Weight: 200g

Package List:

1 X Surf-ace Roughness Meter Kit
