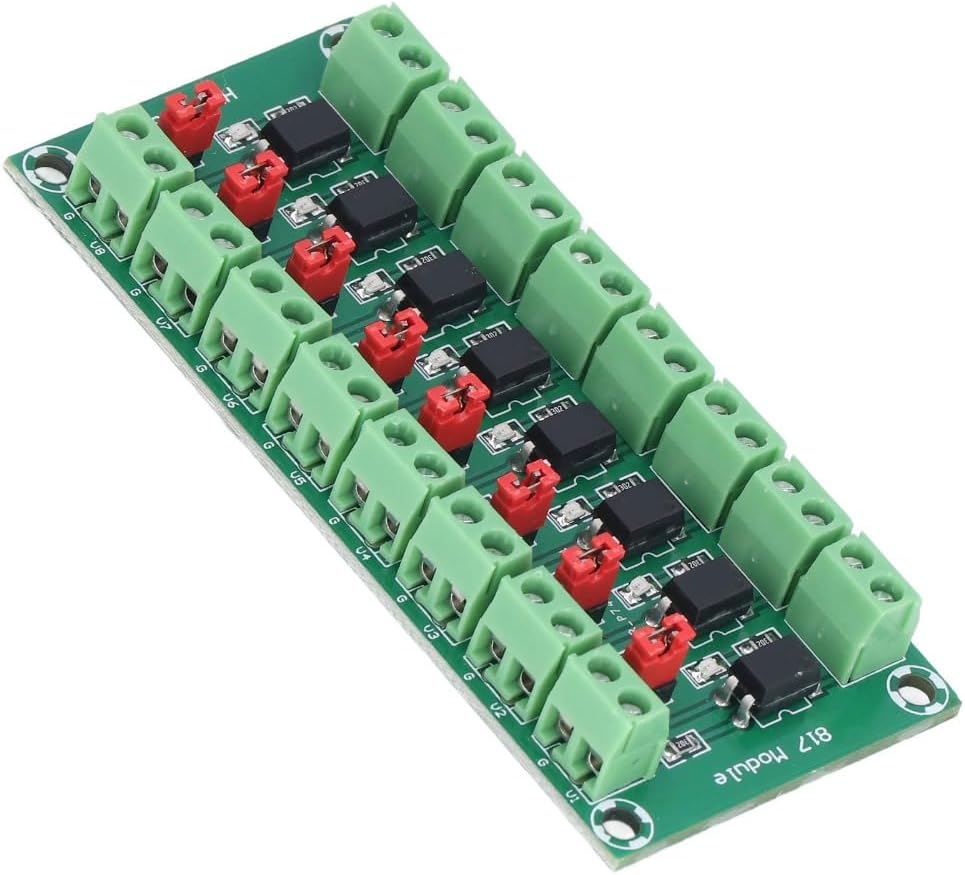

Optocoupler Isolation Converter Board 8 Channel - 3.6-30V Photoelectric Isolated Module for PLC and Motor Drive, High/Low Level Output Selectable

SAR 47
– 1 +

Special Features

  • High Level or Pull Down Output: Achieve flexible signal control with jumper cap configuration for both high level and pull down output modes

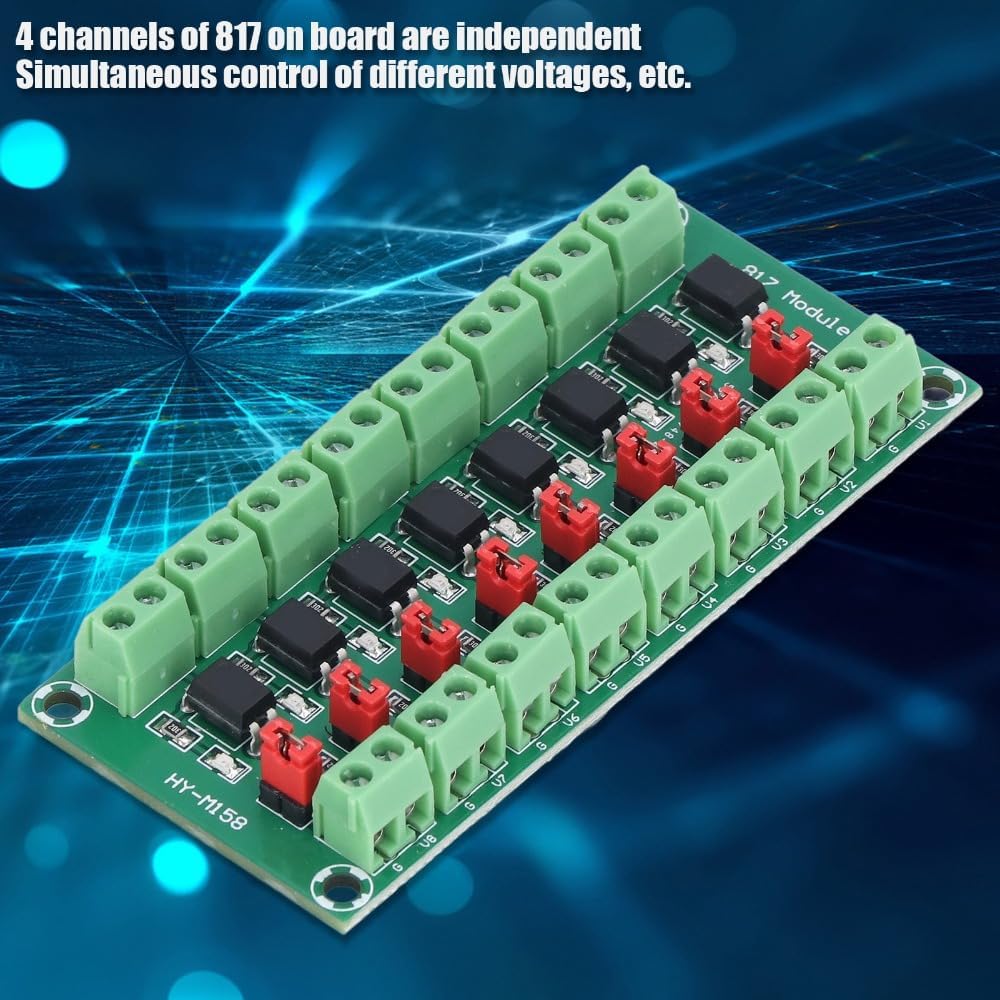

  • Simultaneous Voltage Control: Independently operate 4 channels to manage different voltage requirements from 3.6V to 30V simultaneously
  • Wide Voltage Compatibility: Interface with 3.3V or 5V control systems while driving loads up to 24V with reliable isolation performance
  • Strong Interference Resistance: Optical isolation technology ensures stable run in high noise environments for power transistors and MOS tubes

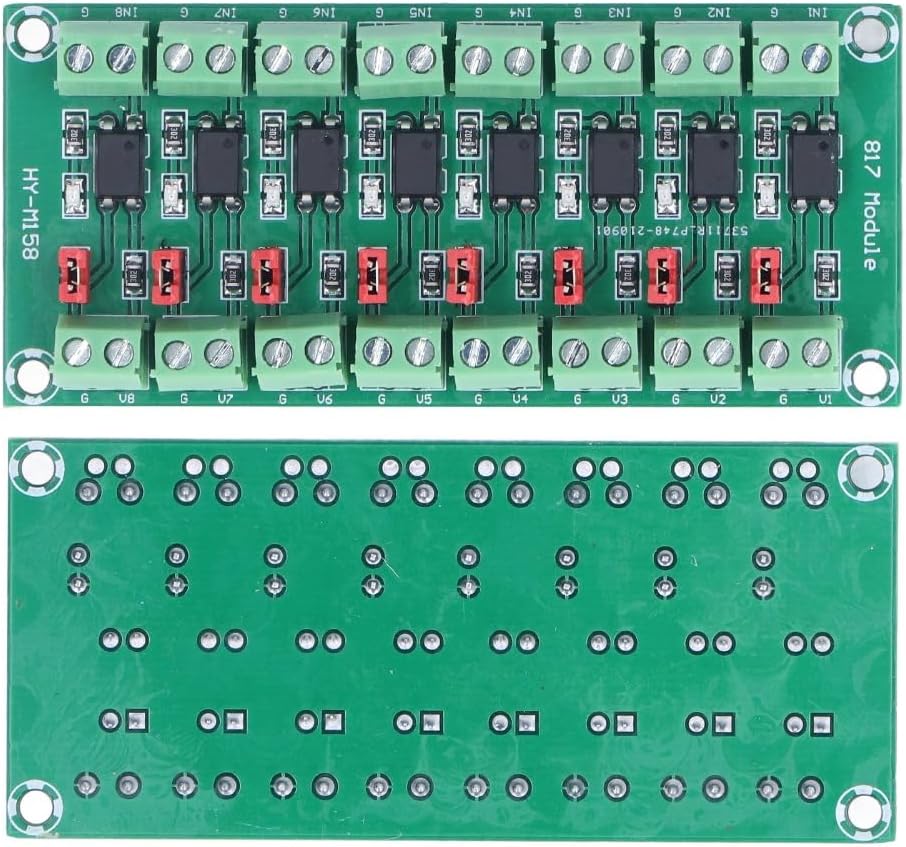

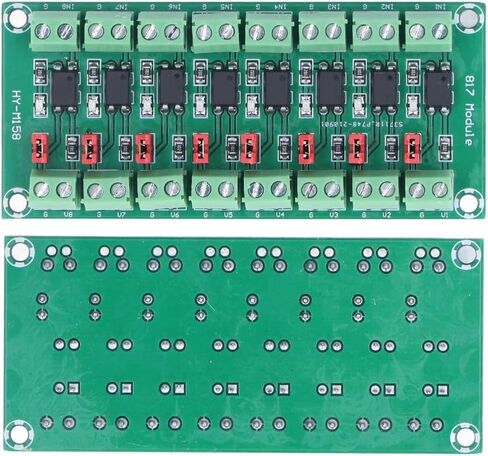

  • Compact PCB Design: You wll get 2pcs optocoupler isolation board, features 84x38mm dimension with premium PCB material for enhanced reliability and easy maintenance

Description

This 8 channel optocoupler isolation board provides reliable signal isolation and voltage conversion for various electronic control applications. It effectively avoids electrical interference between control circuits and high-power loads, ensuring stable system use

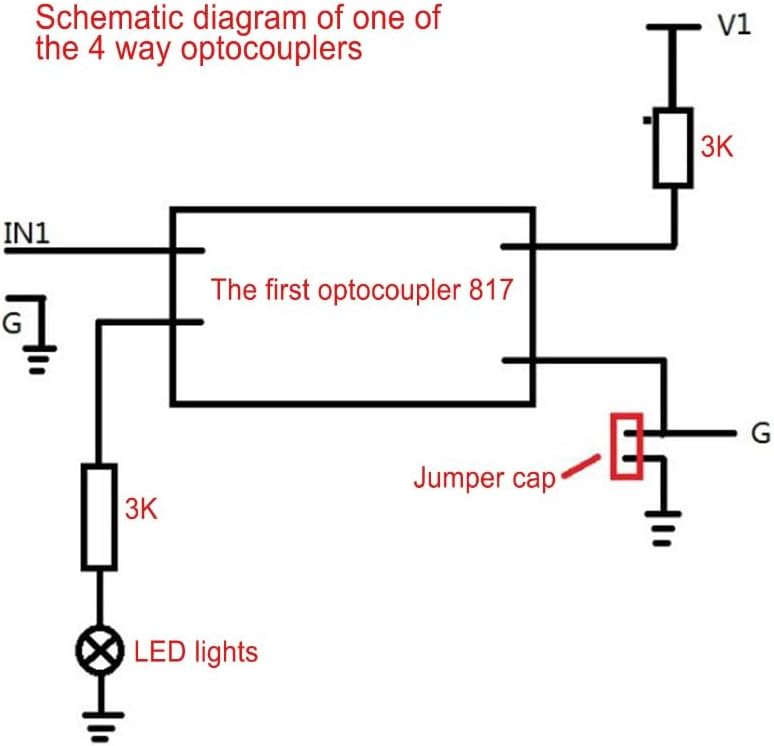

Connect your 3.3V or 5V control signals to the input terminals. The photoelectric isolation circuitry transmits signals without electrical connection to the output side. Use the jumper cap to select either high level or pull down output mode according to your application requirements. The independent channels allow simultaneous control of different voltage devices up to 30V. This module is ideal for driving MOSFETs, power transistors, and low-power 24V relays in industrial automation and electronic projects
Specification
Item Type: Optocoupler Isolation Board
Material: PCB
Driver Signal Voltage: 3.6-24V
Output Voltage Range: 3.6-30V (output current depends on the specific situation, but the maximum power is not exceed 10MA, the total power is constant, the voltage and current are inversely proportional)
Maximum Output Current: 10mA per channel
Operating Frequency: Below 4kHz

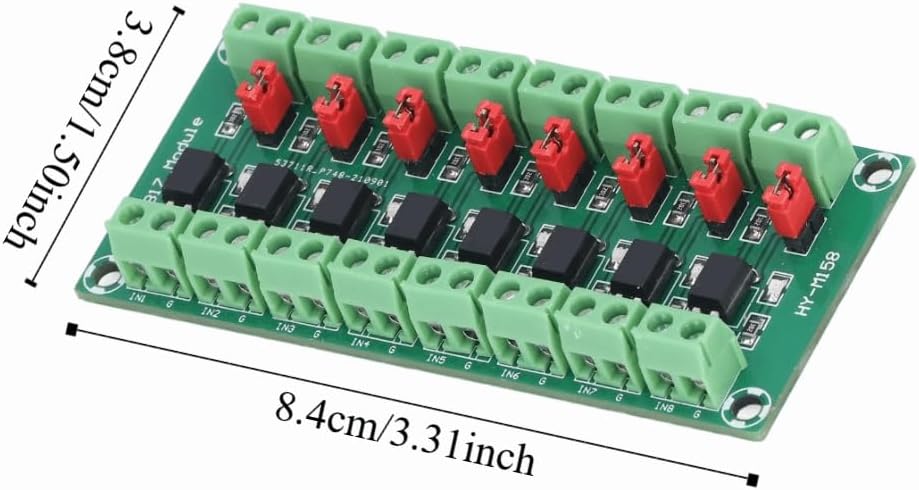

Size: 84*38mm(3.31*1.50in)
Color: Green
Package List

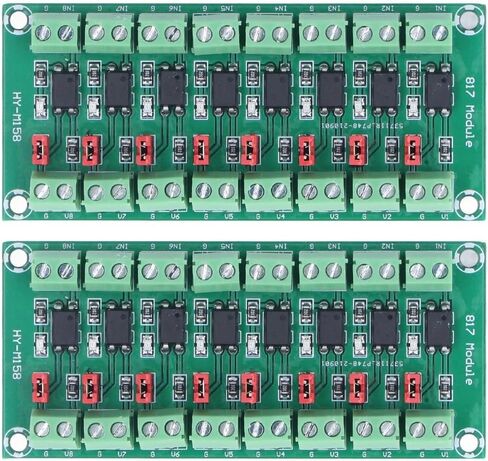

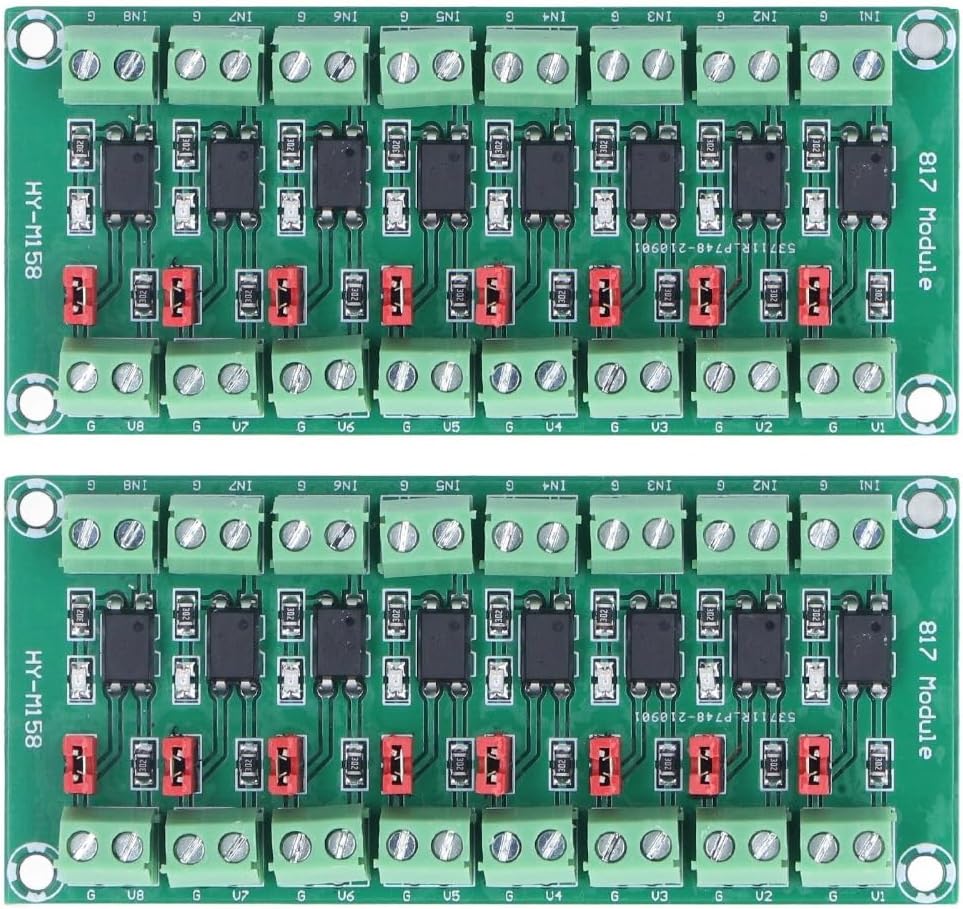

2 x Optocoupler Isolation Board
Note
If it is a pulse signal, please note that the limit of 817 is below 4KHZ, please do not use this module for control signals greater than 4KHZ, which will not work properly
