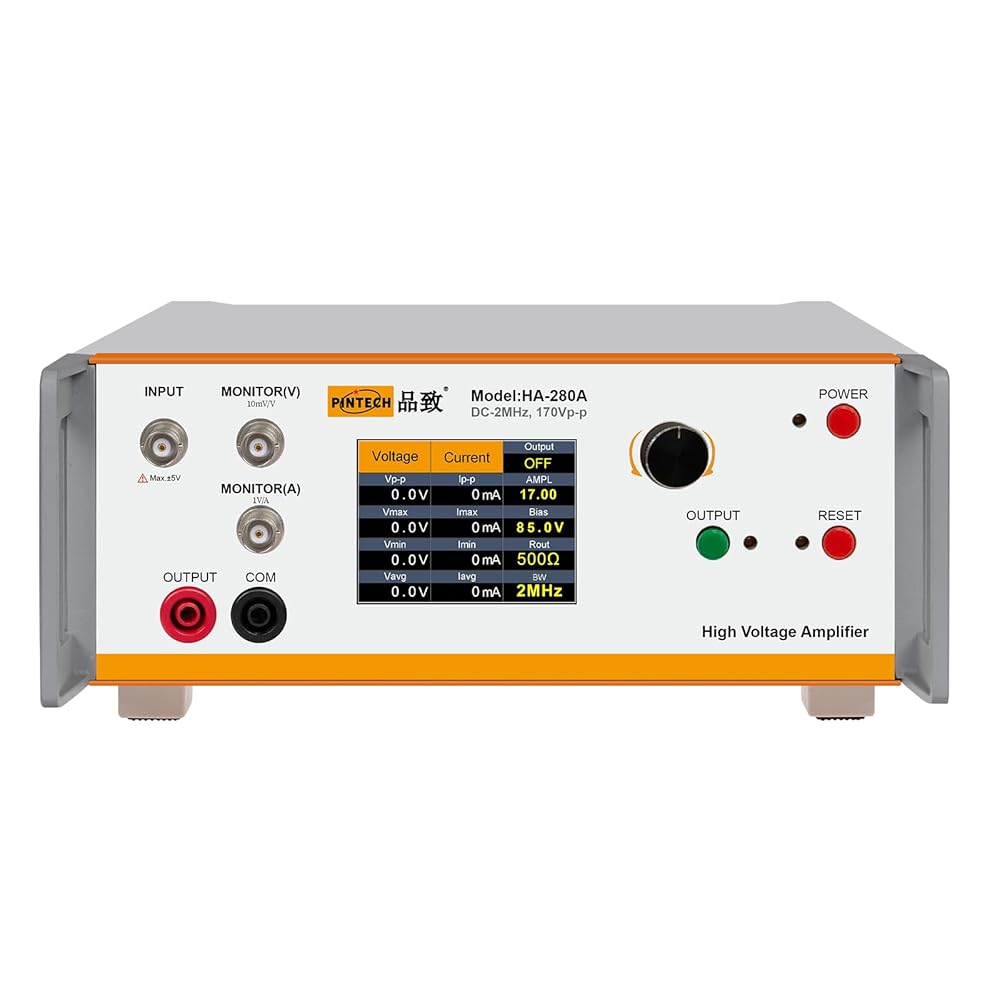

PINTECH HA-280A High Voltage Amplifier, 2MHz, 170Vp-p, 0.5Ap-p, Voltage Magnification with Output Protection Switch, Function Waveform Generator

SAR 15,590
– 1 +

Special Features

  • Output Voltage: Max. 170Vp-p AC, 85V DC.

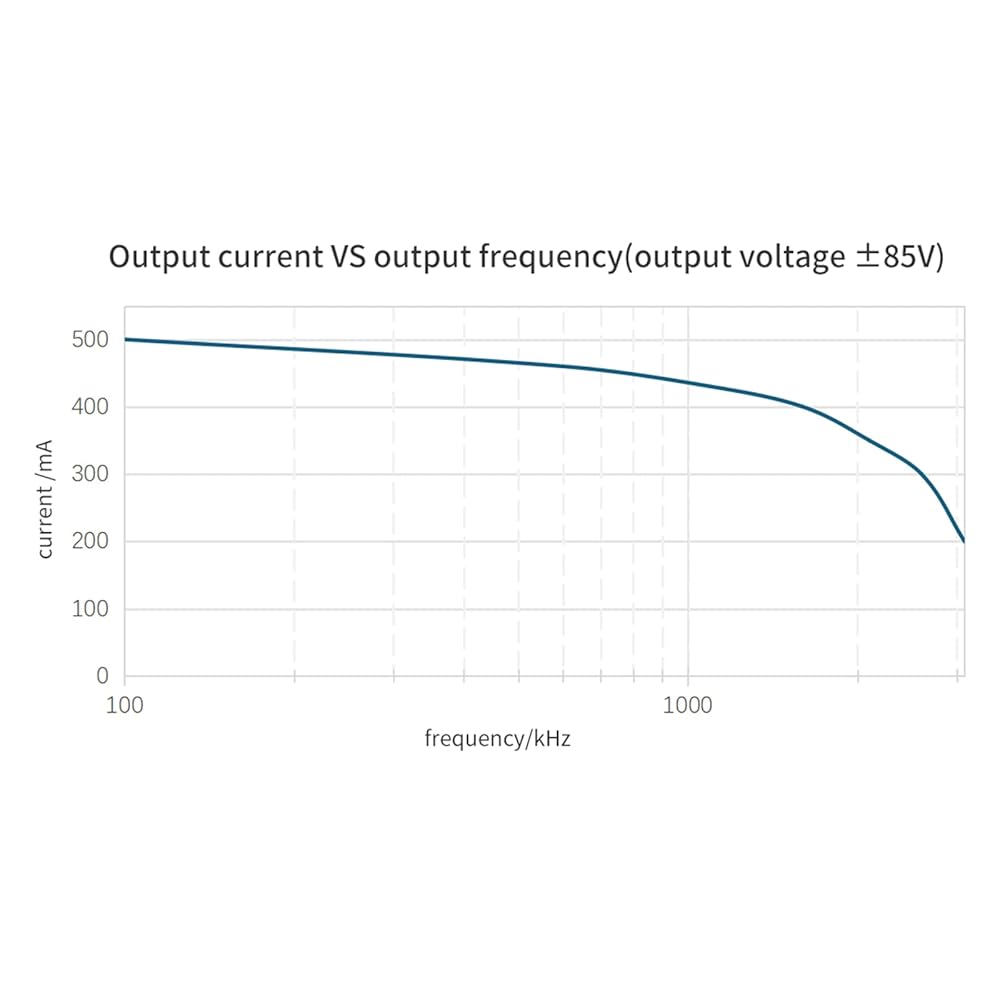

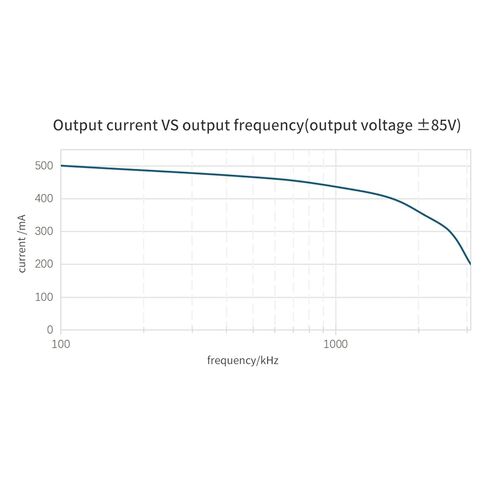

  • Output Current: Max. 1Ap-p AC, 500mA DC.
  • The high voltage amplifier has an output protection switch to ensure that the amplifier will not be damaged by external short-circuit or external voltage feedback.
  • High Performance: Voltage amplification up to 17 times, output from 0V-170Vp-p, 2MHz frequency bandwidth.
  • Widely Use: The signal amplifiers can also be used as an audio signal generator or function waveform generator.

Description

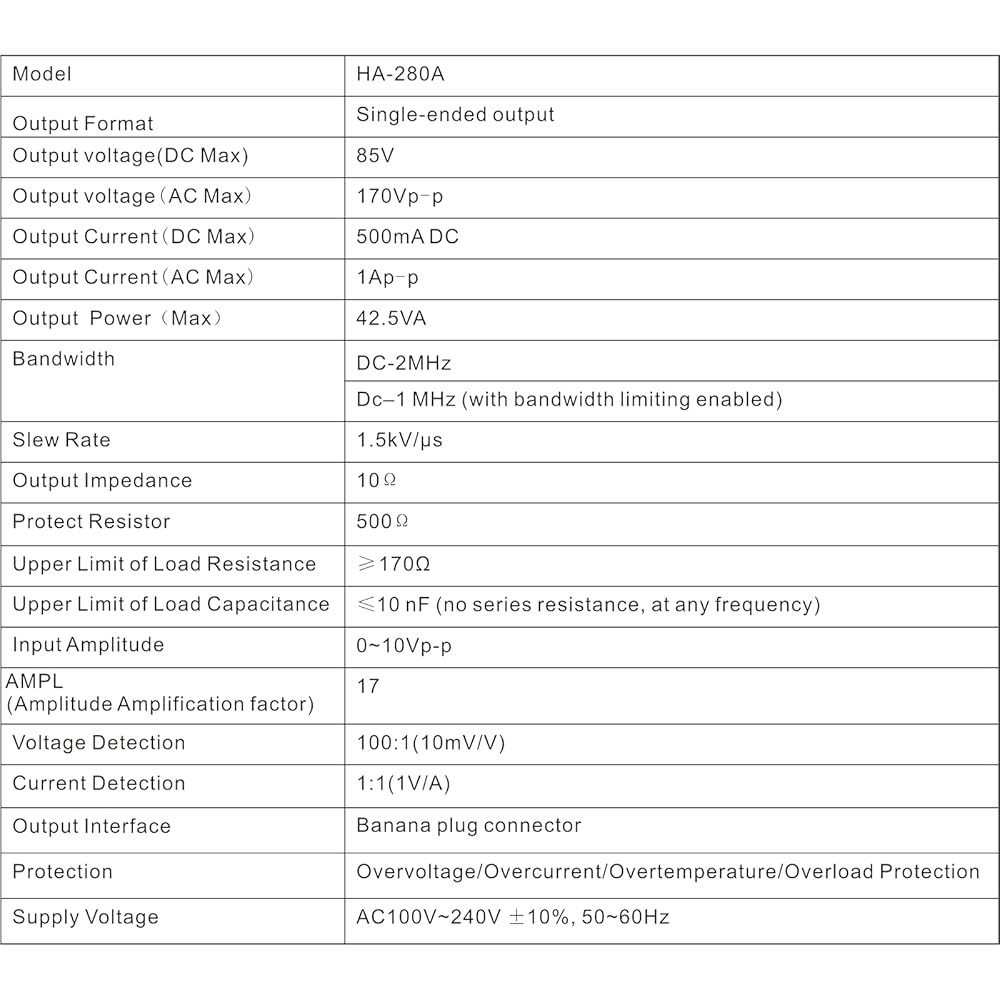

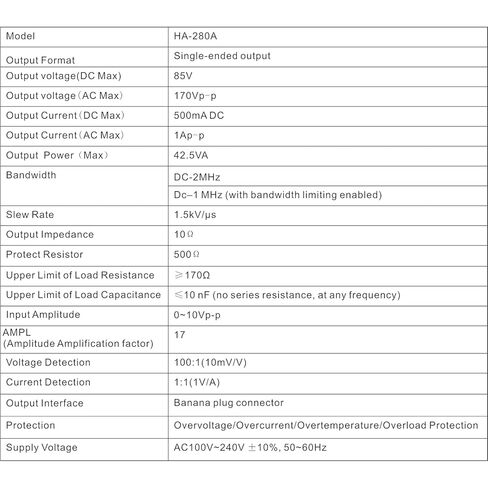

MODEL: HA-280A

Max. DC Output Voltage: 85V

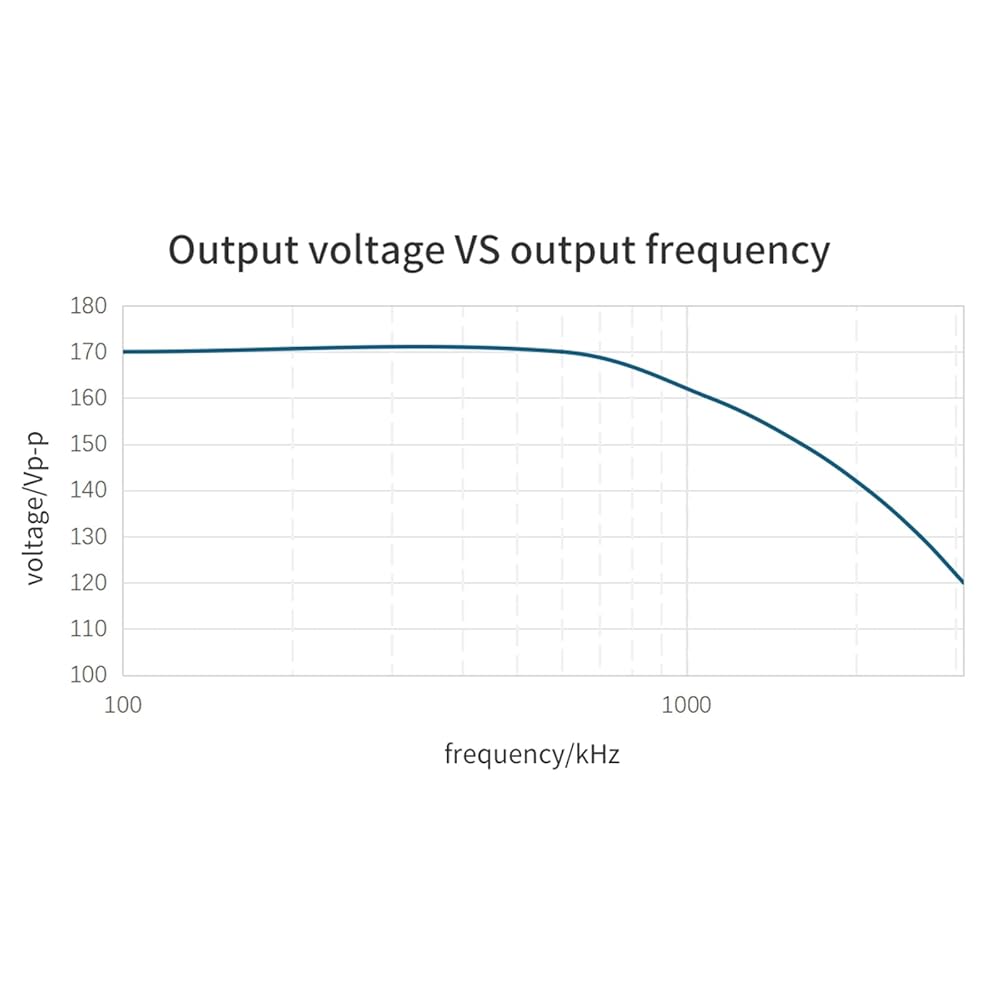

Max. AC Output Voltage:170Vp-p

Max. DC Output Current: 500mA

Max. AC Output Current:1Ap-p

Max. Output Power: 42.5 VA

Frequency Response (Bandwidth):DC-2MHz, DC–1MHz (with bandwidth limiting enabled)

Slew Rate:1.5kV/μs

Output Impedance: 10Ω

Resistors for Output Protection: 500Ω

Input Amplitude: 0V~10Vp-p

Output Method: Single End

Safe Load Value: ≥2.8kΩ/500Vp-p

AMPL: 17
