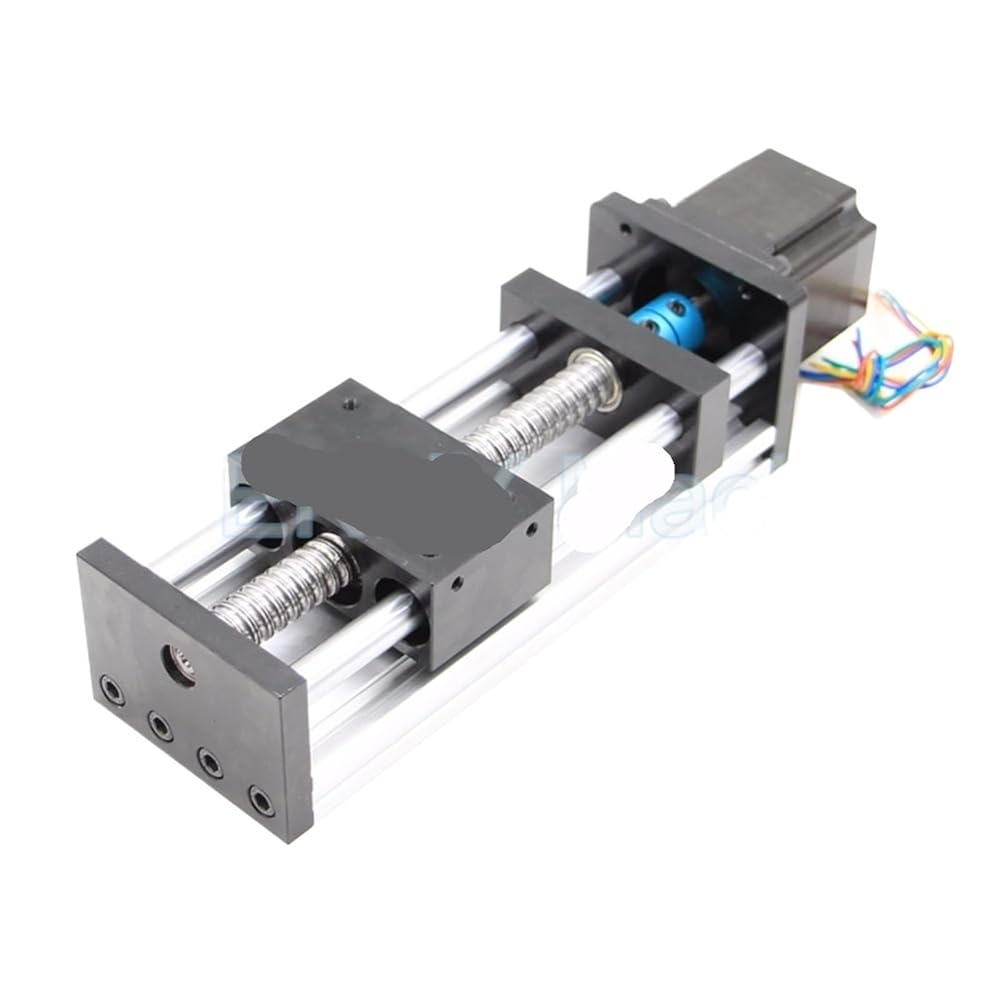

1PCS -- GGP Sliding table with NEMA23 stepper motor
(we also have sliding length 200mm, 300mm,400mm, 500mm, 600mm...., if you like them, please tell us. )
PS: Sliding length is not total length, please kindly to know.
Introduction:
The sliding table is used of linear guide rail 20mm, theprecision is higher thanordinary round rails , withgoodstability, low noise , long life.
Parameters:
Type: GGP
Guide Rail: 12mm
Stepper Motor: NEMA23 57X56
Horizontal Load: 30kgs
Vertical Load : 15kgs
Bottom table material : Aluminium Profiles
Ball screw:diameter 16mm, pitch 05mm.
Repeat positioning accuracy:±0.05 (mm)
Drawing:
This drawing size is for sliding length 100mm, and 10mm reserved distance. for sliding length 200mm, the total length need add 100mm, for 300mm, need add 200mm. and so on.
Model Number : GGP
Certification : CE
Origin : Mainland China
Guide Rail : D20
Ball Screw : SFU1605(1204/1610)
Bottom Materail : Aluminum profiles
Motor : NEMA23 57X56
Accuracy : 0.05mm
Horizontal Load : under 40kgs
Vertical load : under 15kgs
