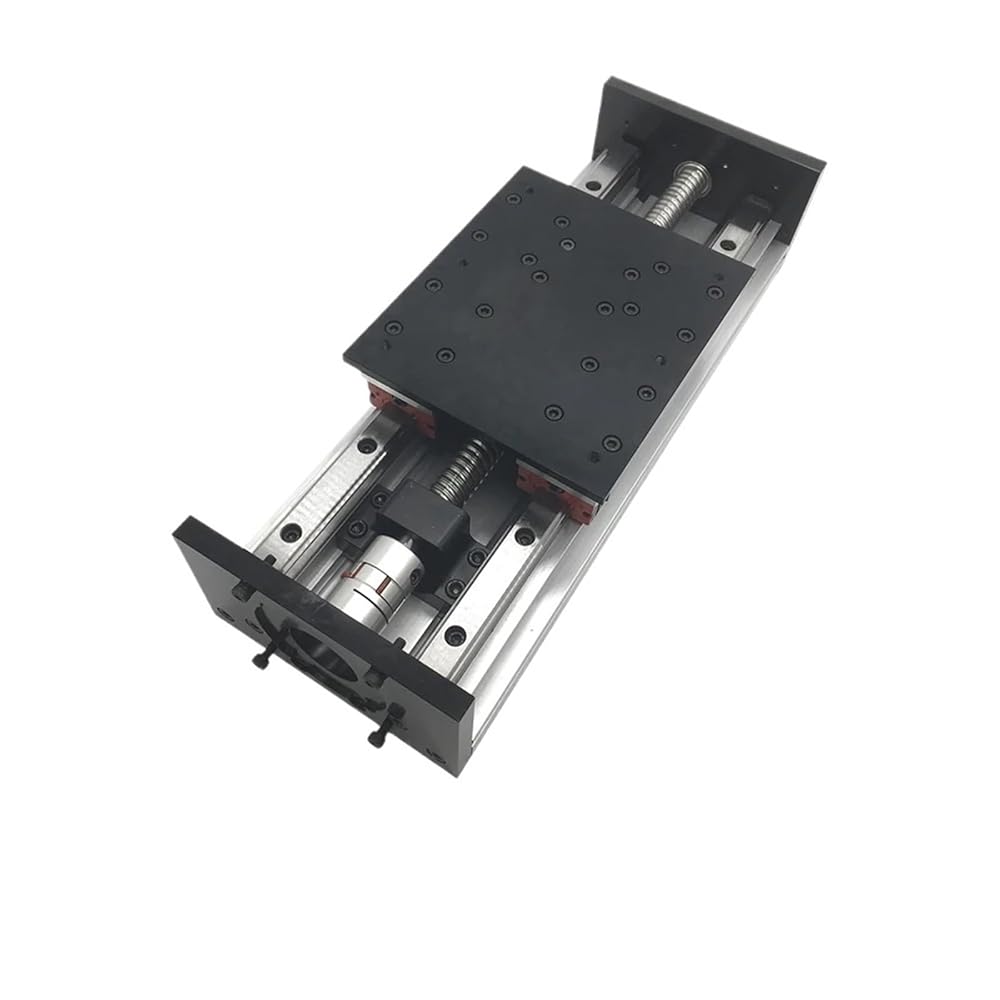

1* Sliding Table
1* 14mm Coupling for Nema34 Stepper Motor
(If you need 8mm couping forNema23Stepper Motor, please tell us)
Model: SXG150*170
Rail width:20MM
Guide model:2*HGR20Blockmodel:4*HGH20
BallscrewPrecision:C7
Maximum speed:100mm/s
Horizontal load:250KG (Max)
Vertical load:100KG(Max)
Effective stroke:100mm-1000mm
Mobile panel size:150mm*170mm
Repeat positioning accuracy:0.02mm
Slide Material:Industrial aluminum profiles
Total length of Sliding Table(L):Effective stroke+217MM
Ballscrew Model:SFU1605/SFU1610/SFU2005/SFU2010 (Customizable SFU2020/SFU2505/SFU2510)
Motor:Not included (The motor bracket is compatible with Nema23 and Nema34 stepper motors. If you need to customize the servo motor bracket, )
Customizable:Ballscrewmodel, motor bracket, front and back tooth screw rods,multi axis combination
Model Number : SXG150*170
Guide Width or Diameter : 20mm
Origin : Mainland China
Certification : CE
Slide Material : Industrial aluminum profiles
Effective stroke : 100mm-2000mm
Horizontal load : 250KG (Max)
Vertical load : 100KG(Max)
Mobile panel size : 150mm*170mm
Total length of Sliding Table : Effective stroke+217MM
Repeat positioning accuracy : 0.02mm
Maximum speed : 100mm/s
Guide model : 2*HGR20
Block model : 4*HGH20
Rail width : 20MM
Screw Precision : C7
Ballscrew : SFU2010/SFU1605/SFU1610/SFU2005
Product attributes : cnc slide table 1000mm,double rail slide table,heav duty slide table,CNC heav load table
