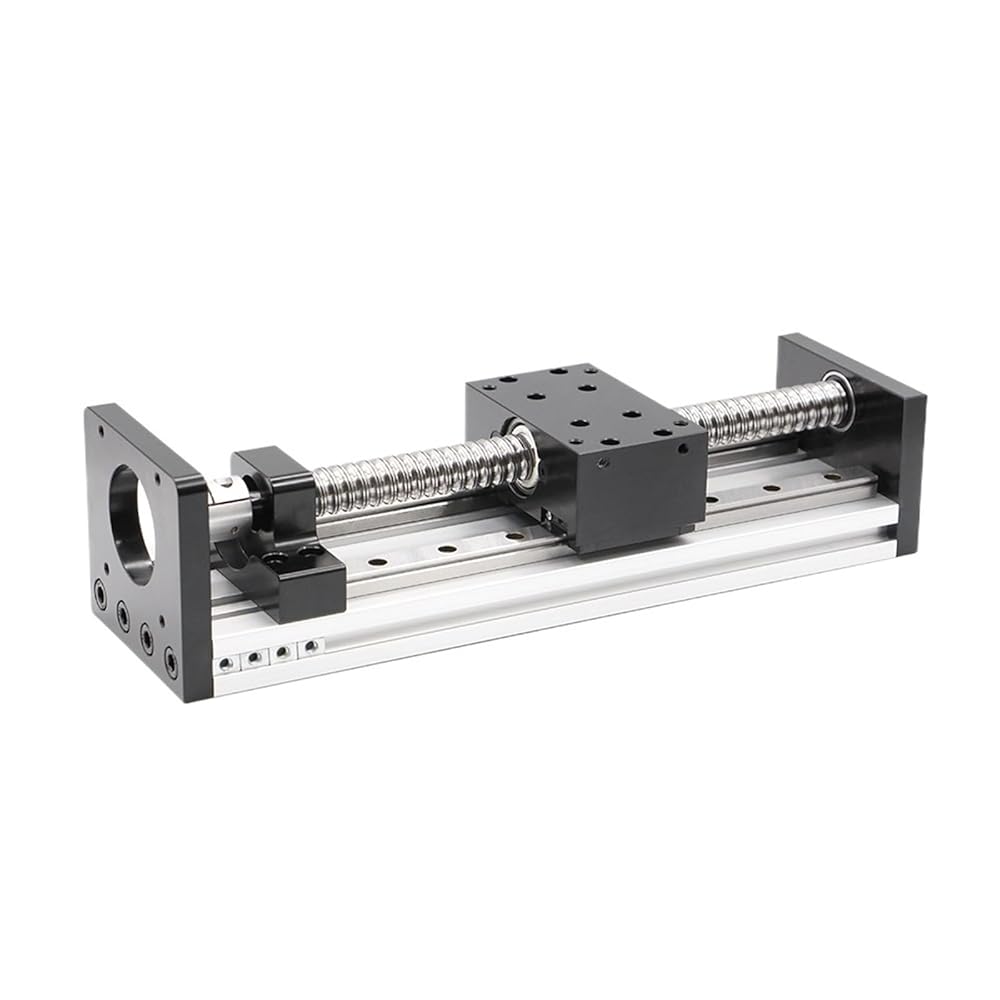

1PCS -- Nema23 Sliding Table Z Axis Ball Screw 1204 / 1605 / 1610 & 12mm Square Rail 100150-200-250-300mm)
Product Name: Nema23 Ball Screw Slide Table
Product Material: Aluminum alloy/bearing steel
Screw Type: Ball screw rod
Screw Specifications: 1204/1605/1610
Guide Rail: 12mm Square Double Guide Rail
Speed Range: 0-100mm/s
Positioning Accuracy: ±0.03mm
Adapter Motor:Nema 23 Stepper Motor
Product Diameter: Wedth:80mm Hight:68mm Length:Custom
Maximum Load: Level:40KG Vertiacl:15KG
The dimension drawing is that the stroke is 100mm, the reserved distance is 10mm, the stroke length of 200mm is +100mm, the stroke length of 300mm is +200mm, and so on.
Linear Guides
The sliding table is equipped with two 12 linear guide rails for larger and more stable weighing.
Ball screw rod
Three ball screw specifications are available, with an accuracy of up to ±0.03mm
Stabilizing Bearing
Upgraded stable bearing, stable screw, stable and smooth operation of the module.
Active nut
The movable nut can be placed on the side and the base of the slide table, the M4 nut can be placed on the side to install the limit, and the M6 nut on the base, which is flexible, convenient and easy to install.
Matters needing attention:
1. This product contains a double-track ball screw slide table by default, excluding Nema23 stepper motor and driver and control parts, if necessary, please contact the customer to purchase.
2. The slide table is equipped with a Nema23 stepper motor mounting flange by default, and the rigid coupling has an internal control diameter of 8mm. Nema23 motor shaft diameter of 8mm can be installed directly. Other types of motors need to be customized with mounting flanges. Please consult customer service for prices.
Model Number : GX80
Certification : None
Origin : Mainland China
Product Name : Ball Screw Slide Table
Product Material : Aluminum alloy/bearing steel
Screw Type : Ball Screw Rod
Screw Specifications : 1204/1605/1610
Speed Range : 0-100mm/s
Positioning Accuracy : ±0.03mm
Adapter Motor : Nema23 Stepper Motor
Product Diameter : Weight:80mm High:68mm Length:Custom
Maximum Load : Level:40KG Vertical:15KG
