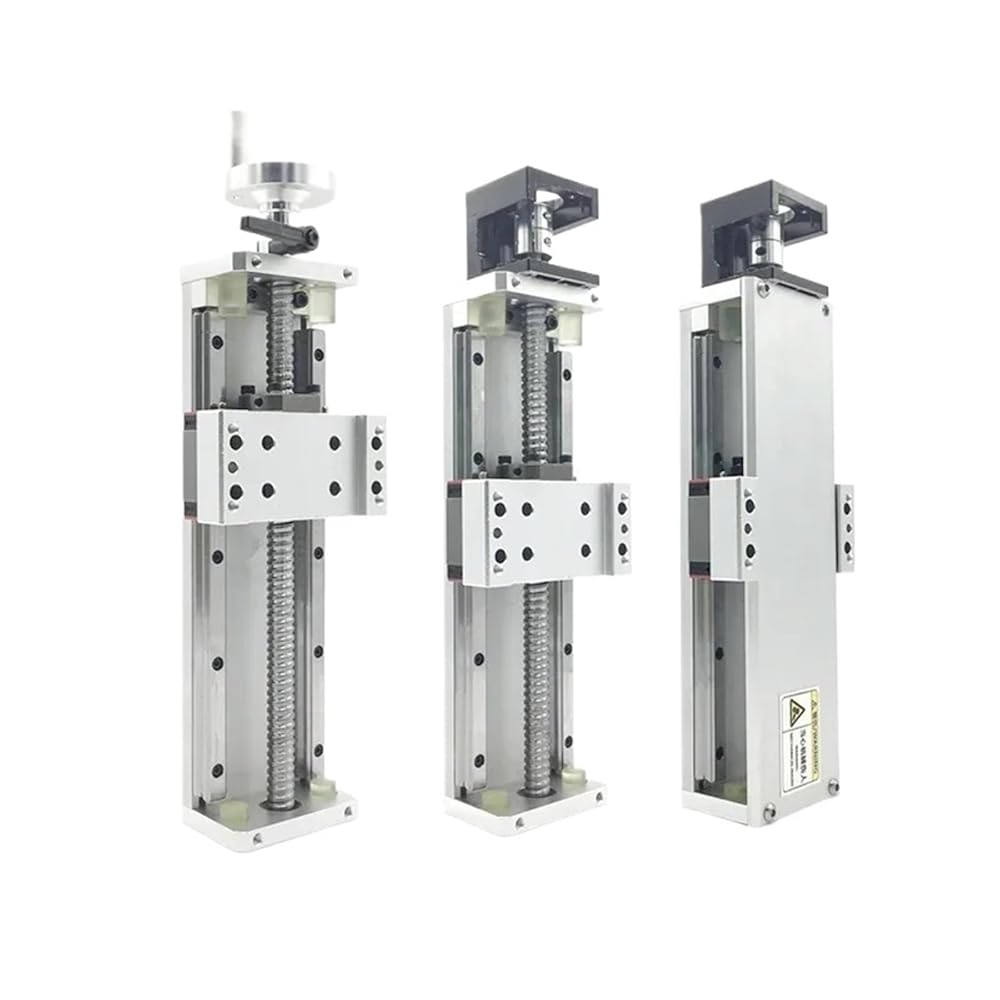

With Nema 23 57mm Motor Bracket:
1* Sliding Table
1* 8mm to 8mm Coupling
1* Nema 23 stepper motor bracket
With Nema 3486mm Motor Bracket:1* Sliding Table
1* 8mm to 14mm Coupling
1* Nema 34stepper motor bracket
(If you need 60mm/80mm servo motor bracket, please choose"86 Motor Bracket" to place an order and leave a message :)
With Handwheel:
1* Sliding Table
1* Handwheel
Model: KR60
Material: Industrial Aluminum ProfileBallscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610Ballscrew accuracy: C7 level
Mobile panelsize: 60mm*120mm
Slide table width: 90mmSlider type: HGH15CA*2Guide Type: 15mmGuiderail*2Horizontal load: 70KG (Max)Vertical load: 35KG (Max)Motor bracket type:
For stepper motor:57mm/86mm Optional
For servomotor:60mm/80mmOptionalEffective stroke: 100mm-1000mm OptionalTotal slide table length:
Electric version: Effective stroke+183mmManual version: Effective stroke+207mmMaximum speed: 500mm/sBallscrew Repeat positioning accuracy: 0.02-0.03mm
Model Number : KR60XG
Guide Width or Diameter : 15mm
Origin : Mainland China
Certification : CE
Ballscrew type : SFU1605/SFU1610
Ballscrew accuracy : C7 level
Effective stroke : 100mm-1000mm Optional
Maximum speed : 200mm/s
Horizontal load : 70KG (Max)
Vertical load : 35KG(Max)
Slide Material : Industrial Aluminum Profile
Type 1 : sliding table
Type 2 : linear guide stage
Type 3 : CNC Motion stage
Type 4 : Semi enclosed module
Type 5 : aluminum profile slide
Type 6 : Single Rail Mobile Module
Type 7 : x y axis table cnc
Type 8 : linear guide system
Type 10 : xy table
Type 11 : linear stage
Type 13 : linear table with dust cover
Type 14 : linear motion stage
Type 15 : linear slide
Type 16 : linear module
Type 17 : xyz stage
Type 18 : cnc axis
Type 20 : sliding linear table
Type 21 : Dust cover slide
Type 22 : Electric slide
Type 23 : Manual slide
