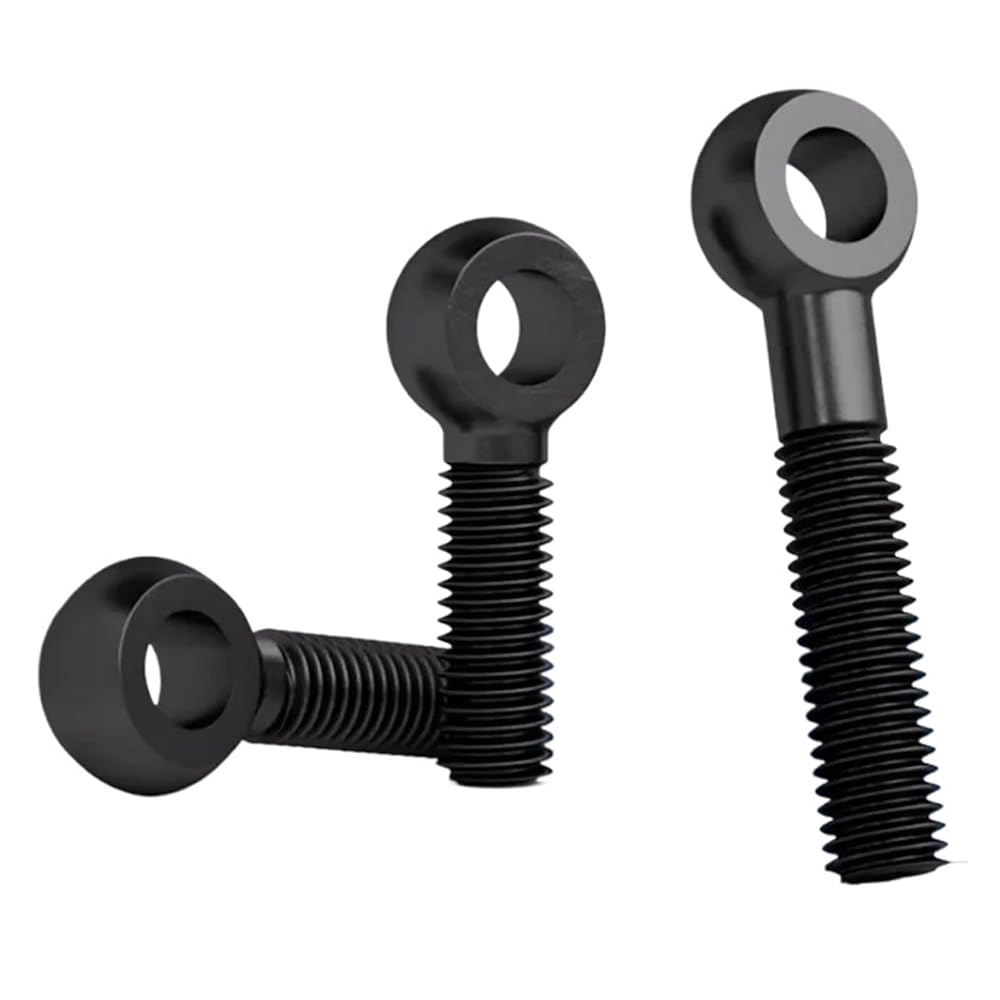

Name: Eye Bolts
Material: Carbon Steel
Finish: Blackened
Standard: GB798
Grade: 4.8
FT - Fully threaded
HT - Half threaded
Size: Thread Diameter x Thread Bottom To Centre Length
e.g.: M6x20mm (Thread diameter 6mm, Thread Bottom To Centre Length 20mm)
Thread Diameter:
M6 (6mm) / M8 (8mm) / M10 (10mm) / M12 (12mm) / M14 (14mm) / M16 (16mm) / M18 (18mm) / M20 (20mm) / M24 (24mm)
Thread Bottom To Centre Length:
20mm /25mm /30mm /35mm /40mm /50mm /60mm/45mm /55mm /65mm /70mm /80mm /90mm /100mm /110mm /120mm /130mm /140mm /150mm /160mm /
180mm /200mm
Pitch:
M6 - Thread Pitch 1mm
M8 - Thread Pitch 1.25mm
M10 - Thread Pitch 1.5mm
M12 - Thread Pitch 1.75mm
M14 - Thread Pitch 2mm
M16 - Thread Pitch 2mm
M18 - Thread Pitch 2.5mm
2. Due To Differences In Monitors, The Color Of The Images May Vary Slightly. Please Refer To The Actual Product For Accuracy.
Material : Carbon Steel
is_customized : Yes
Model Number : M6 M8 M10 M12 M14 M16 M18 GB798
DIY Supplies : Metalworking
