مميزات خاصة

KB045AR0 can replacement for these common bearing part numbers LKB045AR0, KB045AR0, KB045AR0*RBC, CSEB045, NBA11407, RB045AR0, SB045AR0
Industrial Machinery: Used in equipment where space-saving bearings are required without compromising on load capacity.Aerospace Industry: In components where uniform cross-sections are essential for design integrity while maintaining weight and space efficiency.
Robotics and Automation: Its precision and compact size make it well-suited for robotic and automated machinery.Medical Equipment: In devices where precision and compact design are crucial, like in advanced imaging equipment.
Space-Saving Design: The constant, slim cross-section makes this bearing ideal for compact designs where space is limited.Lightweight: Its design reduces material usage, thus lowering the weight, which is crucial in aerospace and other weight-sensitive applications.
Load Handling Capabilities: Despite its thin section, this bearing can handle a significant amount of radial, axial, and moment loads, making it versatile in various mechanical setups.Low Friction: It maintains low friction, which enhances the overall efficiency of the applications in which it is used.

وصف

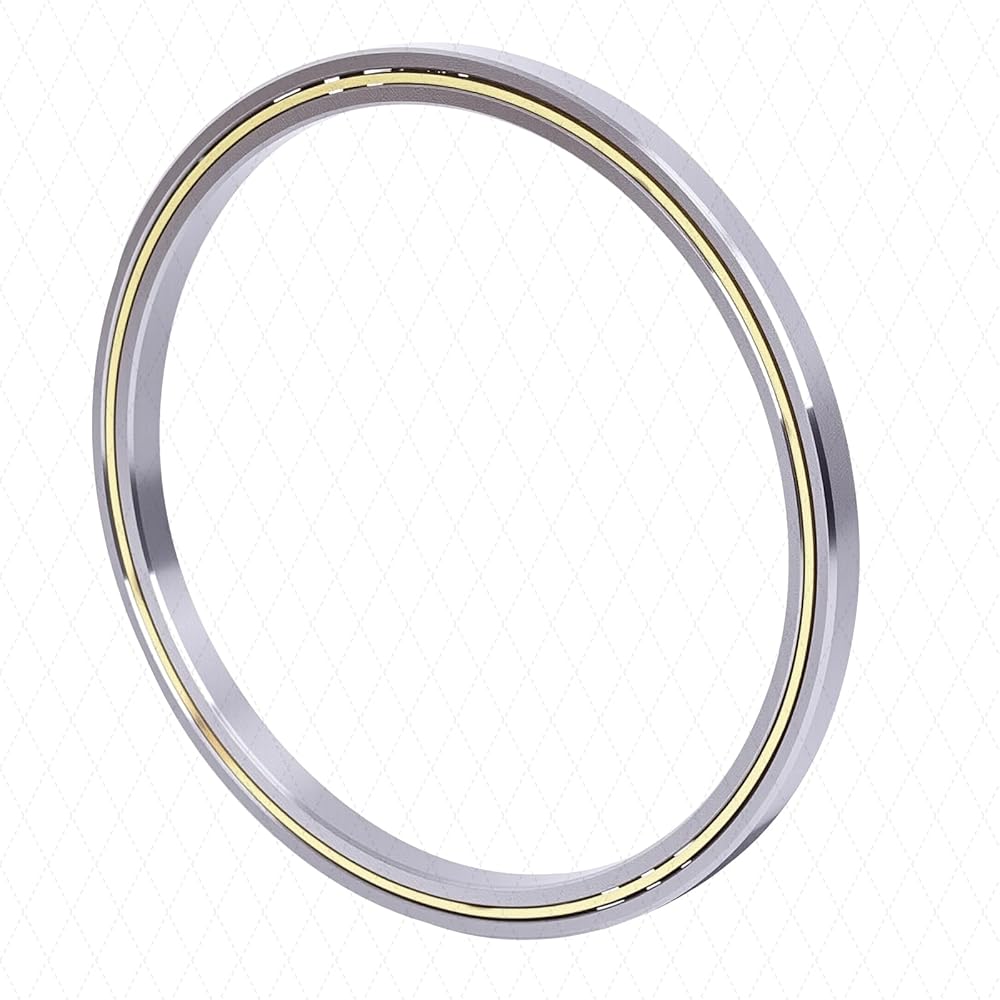

Part Number KB045AR0
Brand: LILY Brand: LILY
Characteristics
System of Measurement Inch
Bearing Type Ball
For Load Direction Angular Contact
Construction Single Row
Seal Type Open
Thin Section Bearings Type Reali-Slim Open Bearings
Series KB 5/16" x 5/16"
Tolerance Class ABEC-1
Radial Clearance 0.0000 – 0.0005"
Dimensions
Contact Angle 30 °
Bore Dia 4.5"
Bore Dia Tolerance -0.0008"– 0"
Outer Dia 5.125000"
Outer Dia Tolerance -0.0008"– 0"
Width 0.312500"
Width Tolerance +.000 –.005"
External Diameter On Inner Ring 4.731000"
Internal Diameter On Outer Ring (Small Side Face) 4.893000"
Internal Diameter On Outer Ring (Large Side Face) 4.96"
Material
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Brass
Performance
Dynamic Radial Load 917 lbf
Static Radial Load 2250 lbf
Static Thrust Load 2240 lbf
Static Moment 6500 lbf
Temperature Range -30°C to 110 °C
Properties
ISO Radial 2000 lbf
Lubrication Lubricated
RoHS Compliant
Weight 0.34 lbs
