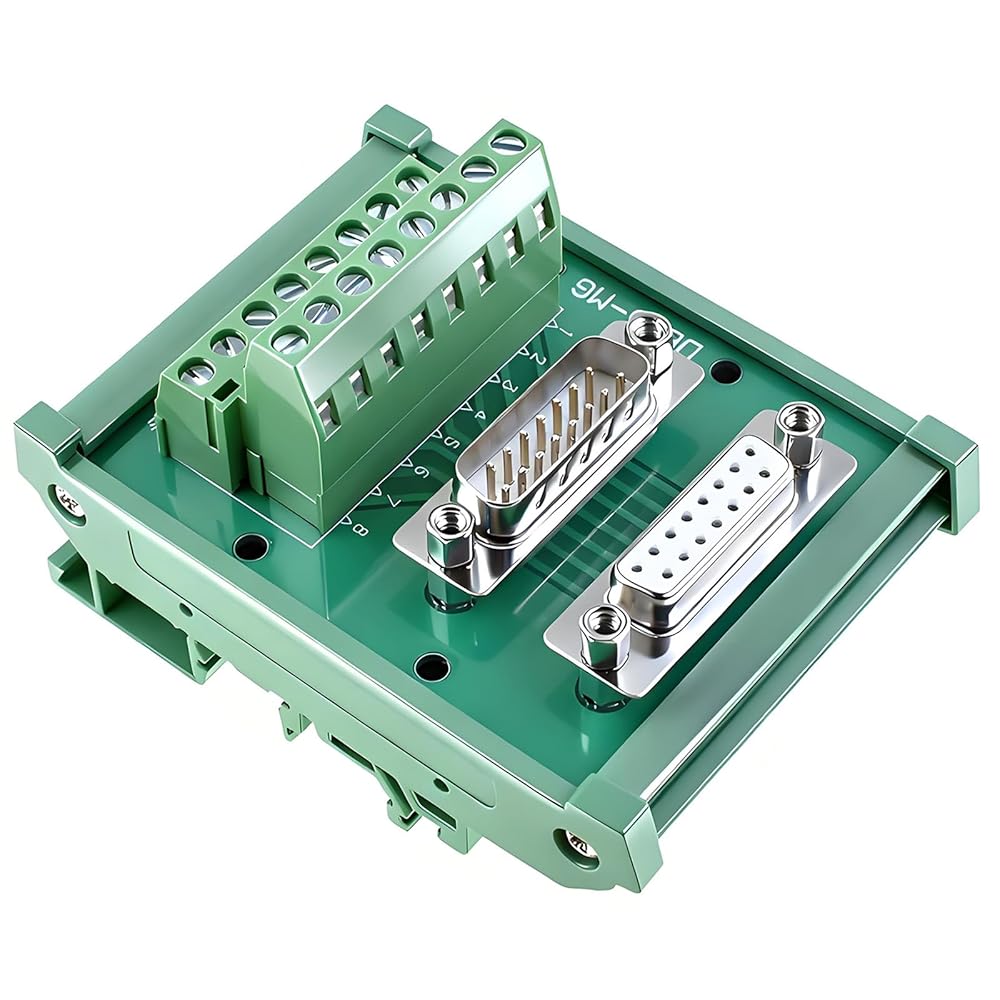

DB15 Male&Female DIN Rail Mount Interface Module, D-Sub 2 Row 15-pin Breakout Board
Special Features

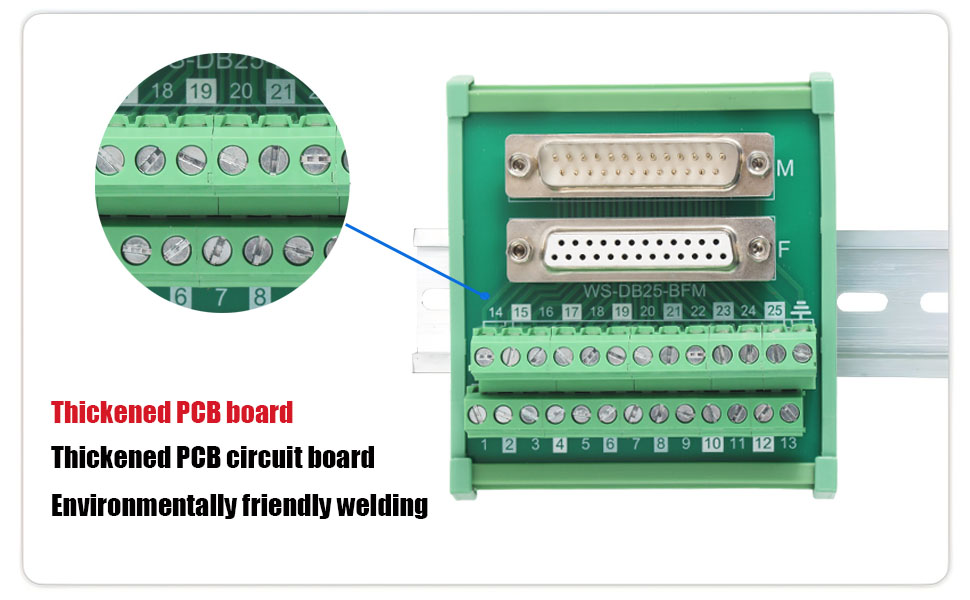

- Standard DB25 Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
- Rated voltage - 300V. Rated current: 10A / per pin. Operating Temperature: -40ºC to 105ºC.
- Terminal block - Pitch 5.08mm/0.2" miniaturization screw terminal block. Wire range - 26-14AWG. Strip length - 4~5mm. Torque - 0.4Nm. Pin material- Tinned Brass.
- FR-4 fiber glass PCB, dual copper layers.

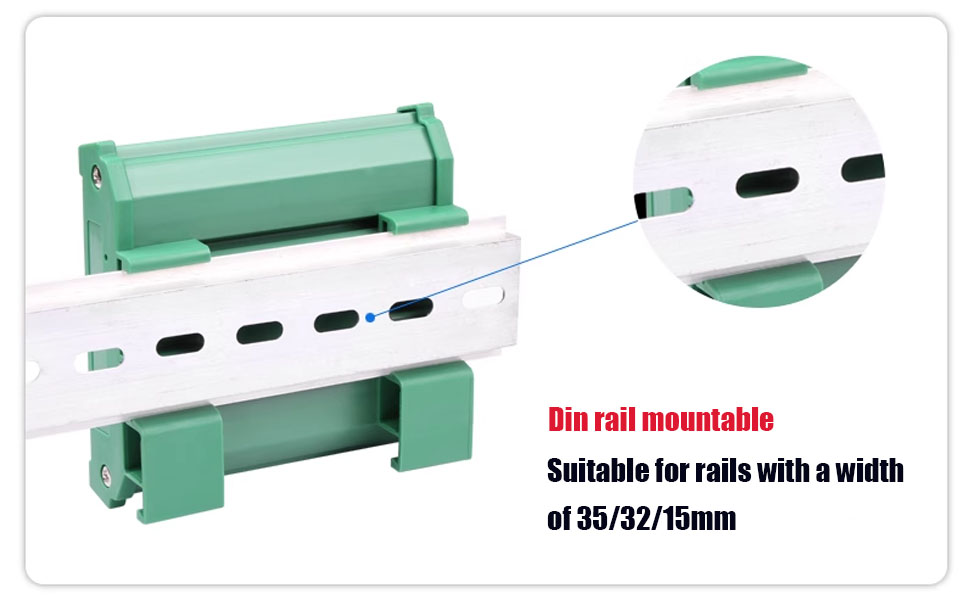

- Din rail mountable - Suitable for width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
