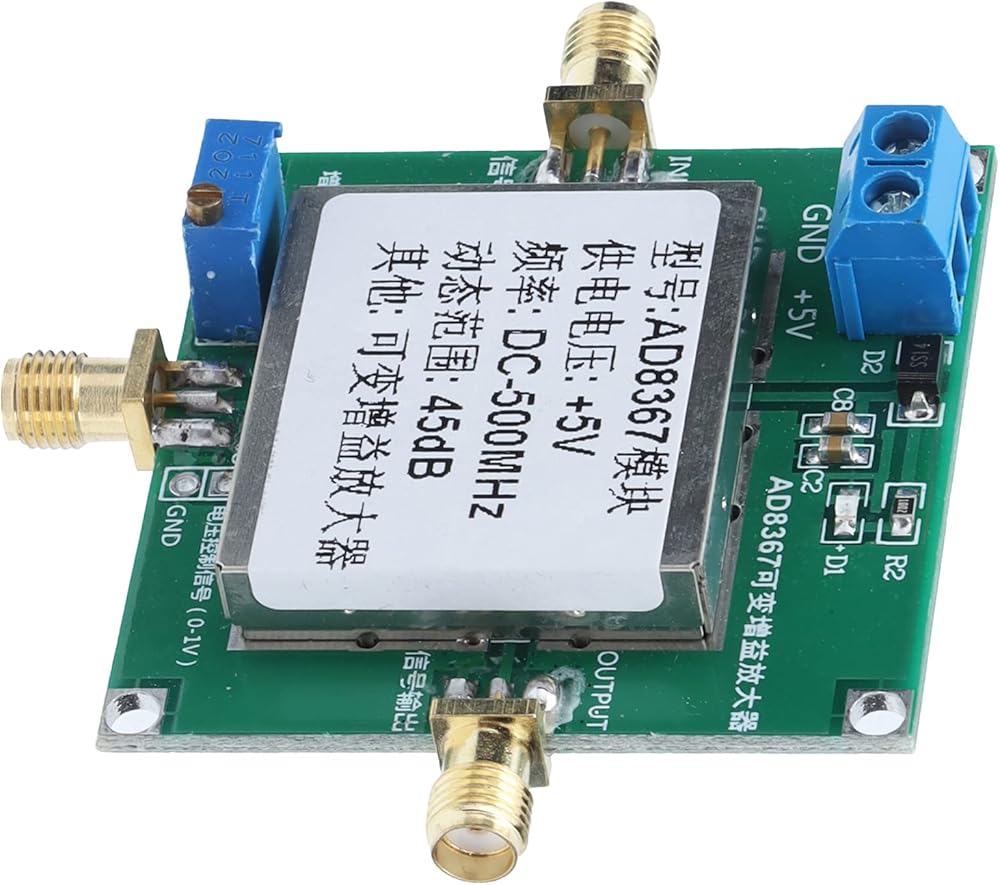

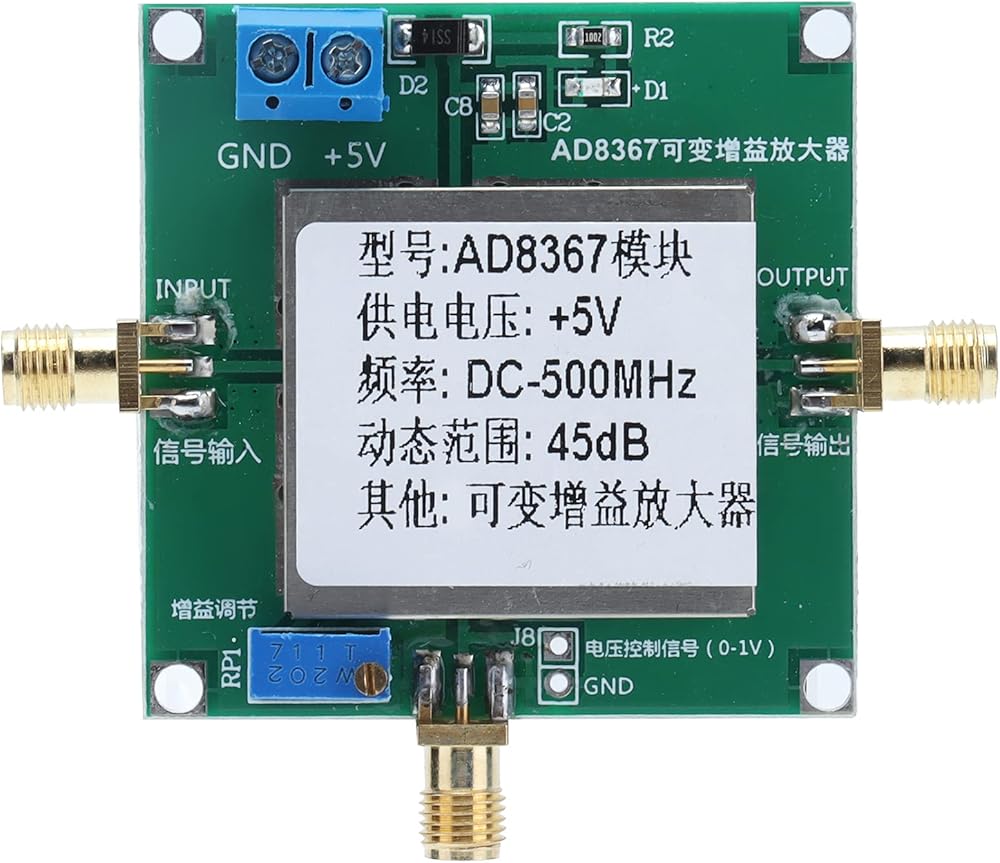

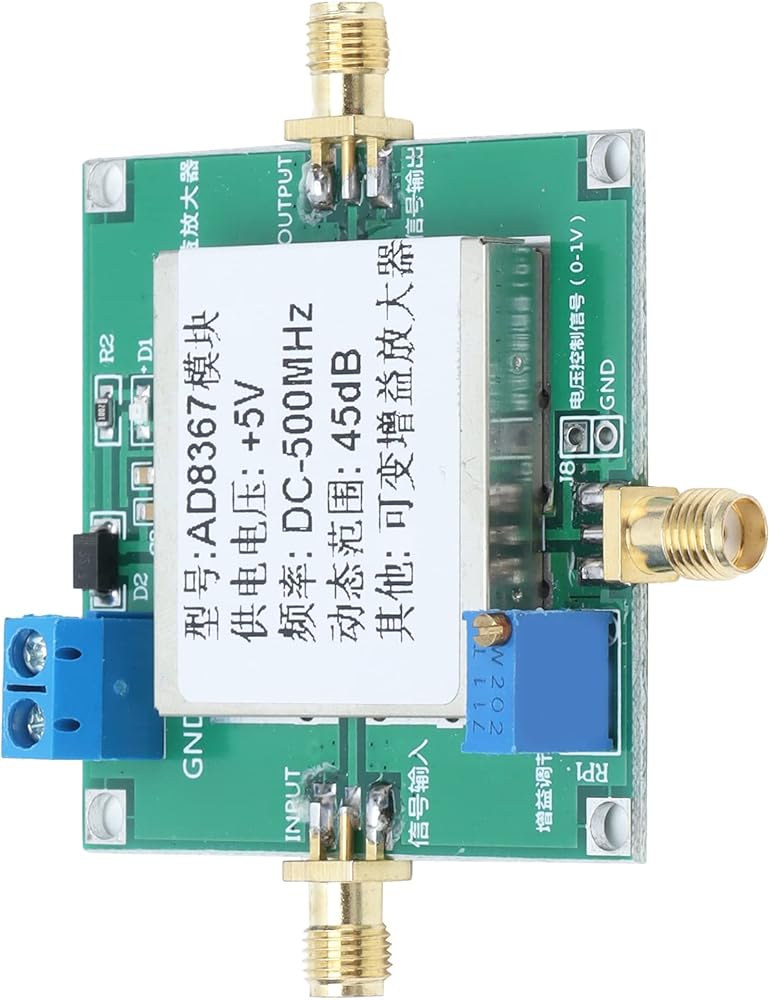

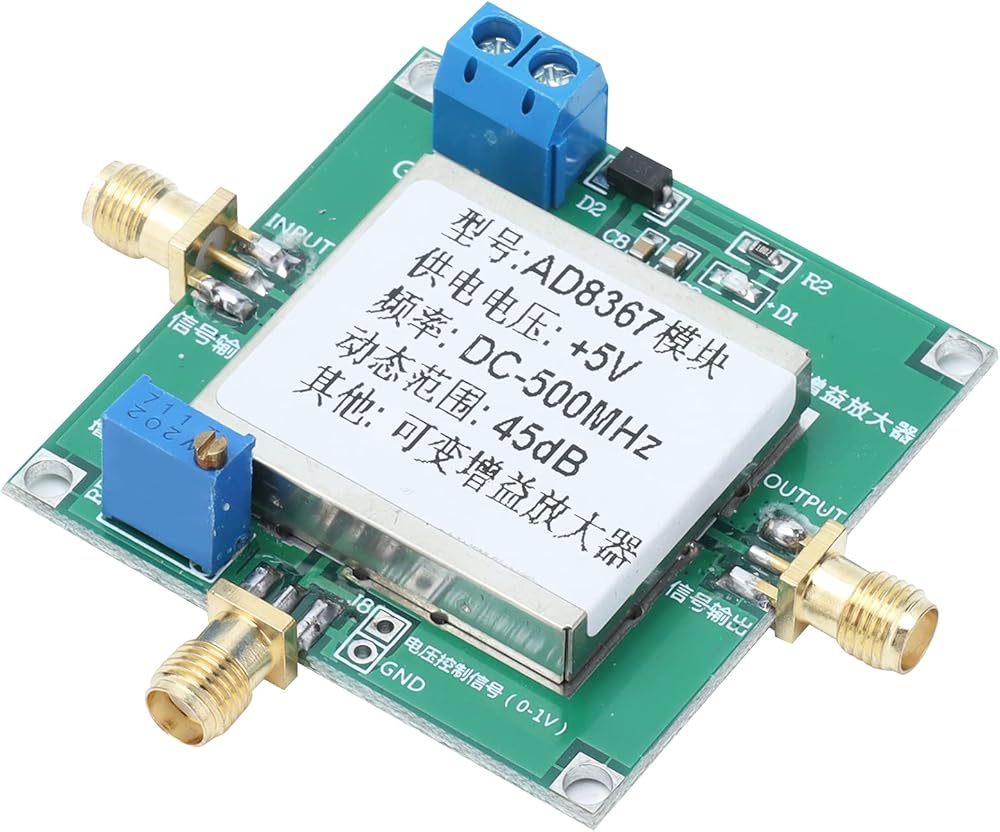

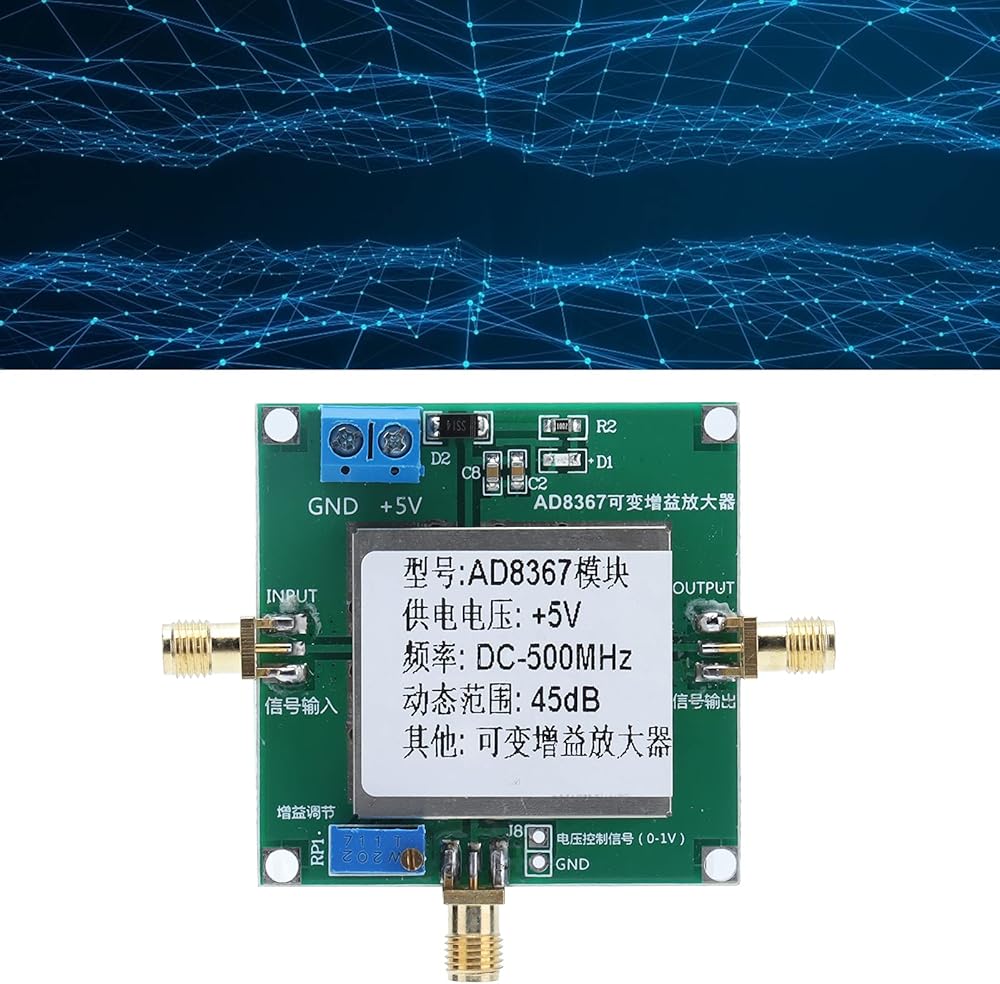

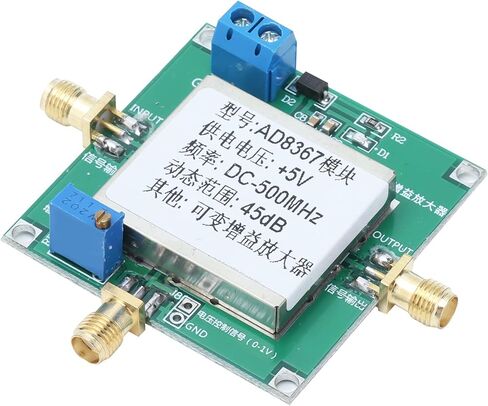

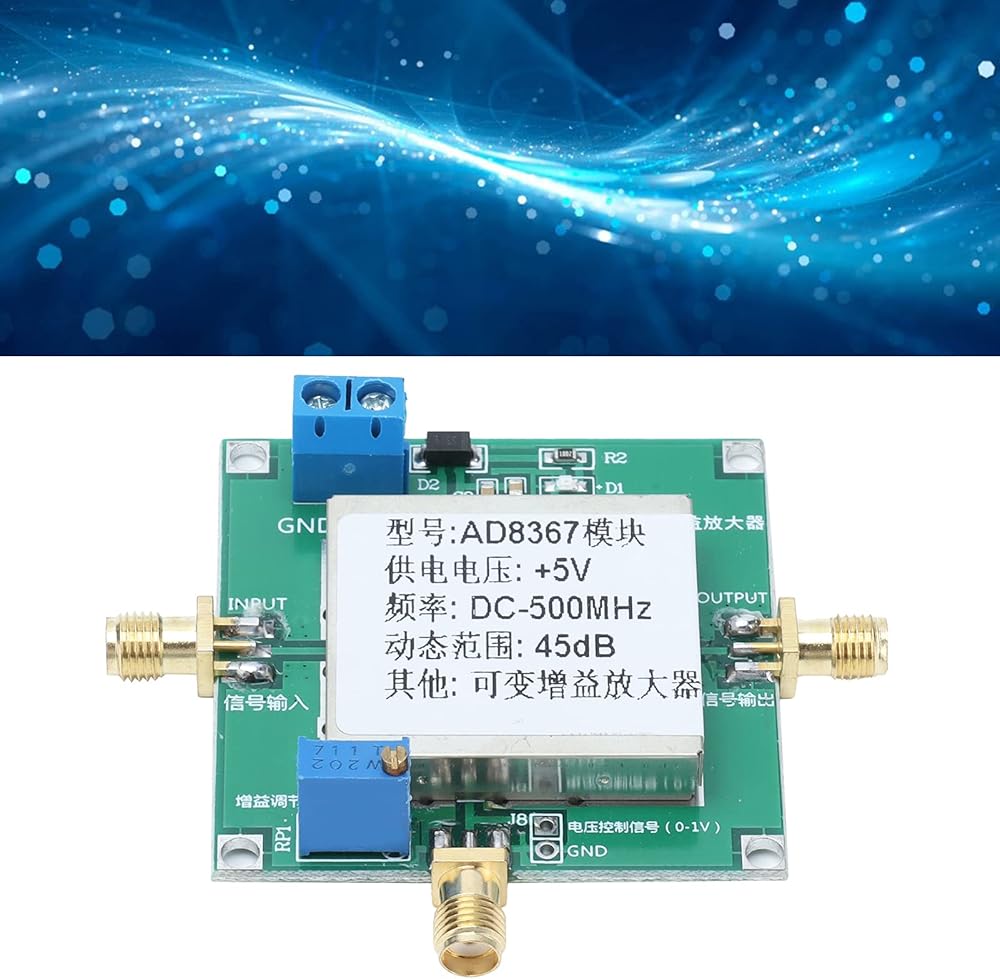

Variable Gain Amplifier Module PCB 500MHZ 45dB DC 5V - Accurate Log Linear Gain Control, Shielded with AGC Circuit, Industrial Electronics

SAR 84
– 1 +

Special Features

  • [Shielded Design]: Features a shielding shell and anti-reverse connection to protect the module and ensure reliable operation under industrial conditions.
  • [Stable AGC Circuit]: Integrates with logarithmic amplifier traits for a stable automatic gain control, allowing consistent performance within various electronic applications.
  • [Precise Gain Control]: Utilizes a 9-order resistance attenuation network and fixed gain amplifier to achieve accurate log linear gain control across a 45dB variable gain range.
  • [Dual Gain Modes]: Offers positive and negative gain modes selectable via MODE terminal, enhancing flexibility for different signal processing requirements.
  • [Wide Frequency & Voltage Range]: Supports working frequencies from DC to 500MHZ with an analog gain control voltage range of 50mV to 950mV, perfect for high-frequency signal amplification.

Description

Item Type: Variable Gain Amplifier Module
Material: PCB
Model: AD8367
Power Supply Voltage: +5V DC (Typical current value 200mA, maximum gain output)
Working Frequency: DC-500MHZ
Input and Output Impedance: 50 ohms
Maximum Output Amplitude: 27dbm (200 ohm)
Variable Gain Range: 45dB

Package List：
1 x Variable Gain Amplifier Module

Note:
Don't overload
