Characteristic:
1 ​ internal clock speed (up to 400 MHz analog output)
Integrated 1 ​, 14-bit DAC
32-bit tuning word
Phase noise ≤ -125 dBc/Hz @ 1 kHz offset (400 MHz carrier)
Excellent dynamic performance with >80 dB narrow-band ​
Serial input/output (I/O) control
Automatic linear or arbitrary frequency, phase, and amplitude sweep capability
8 frequency and phase offset profiles
Software and hardware controlled power-down
100-​k>lead​ TQFP_EP package
Integrated 1024 word x 32-bit RAM
Phase locking loop REFCLK multiplier
Parallel ​ interface
Internal oscillator, can be driven by a single crystal
Phase modulation capability
Amplitude modulation capability
​ synchronization

Applications:
Agile local oscillator (LO) frequency synthesis
Programmable clock generator
FM chirp source for ​ and scanning systems
Test and measurement equipment
Acoustic-optic device drivers
​​ modulator
Fast frequency hopping
Specifications:
Power supply: [email protected]
Size: 62 x 58mm/2.44 x 2.28inch
Weight: 40g

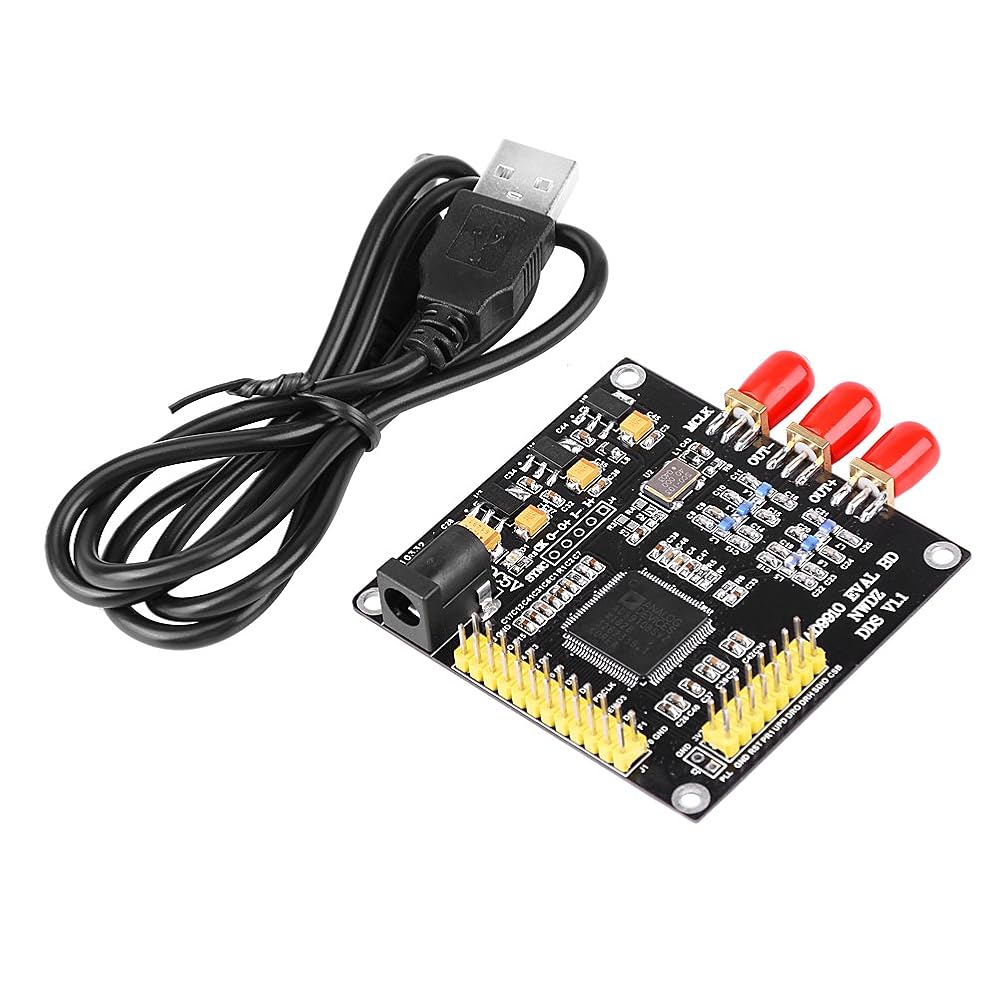

Package Included:

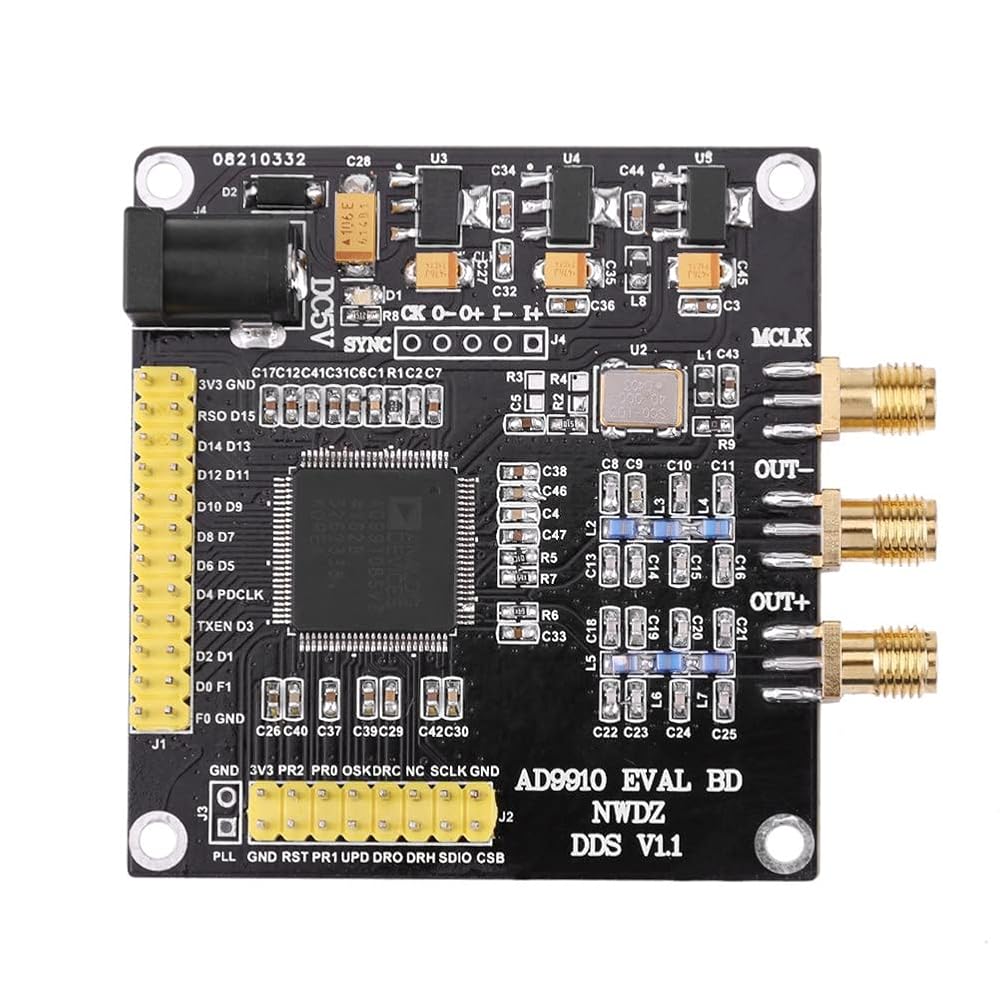

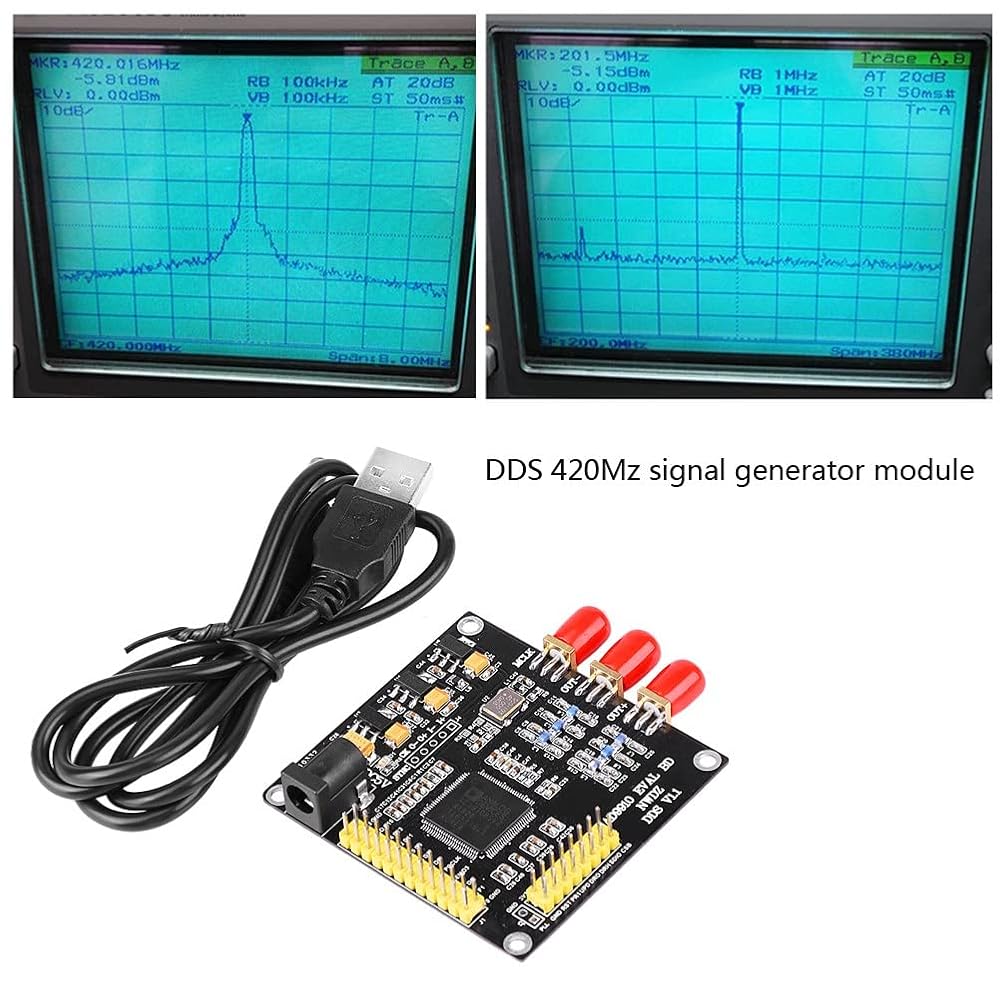

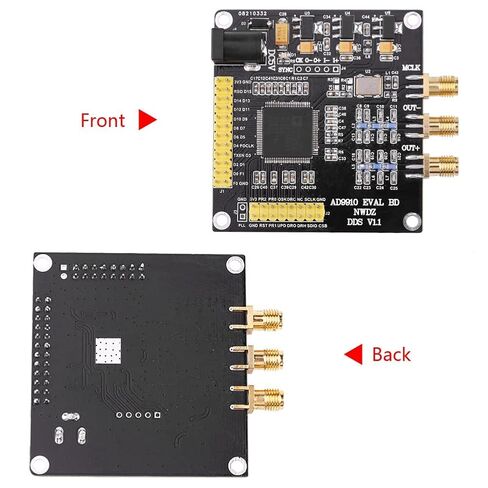

1 x AD9910 DDS Module
1 x USB cable
