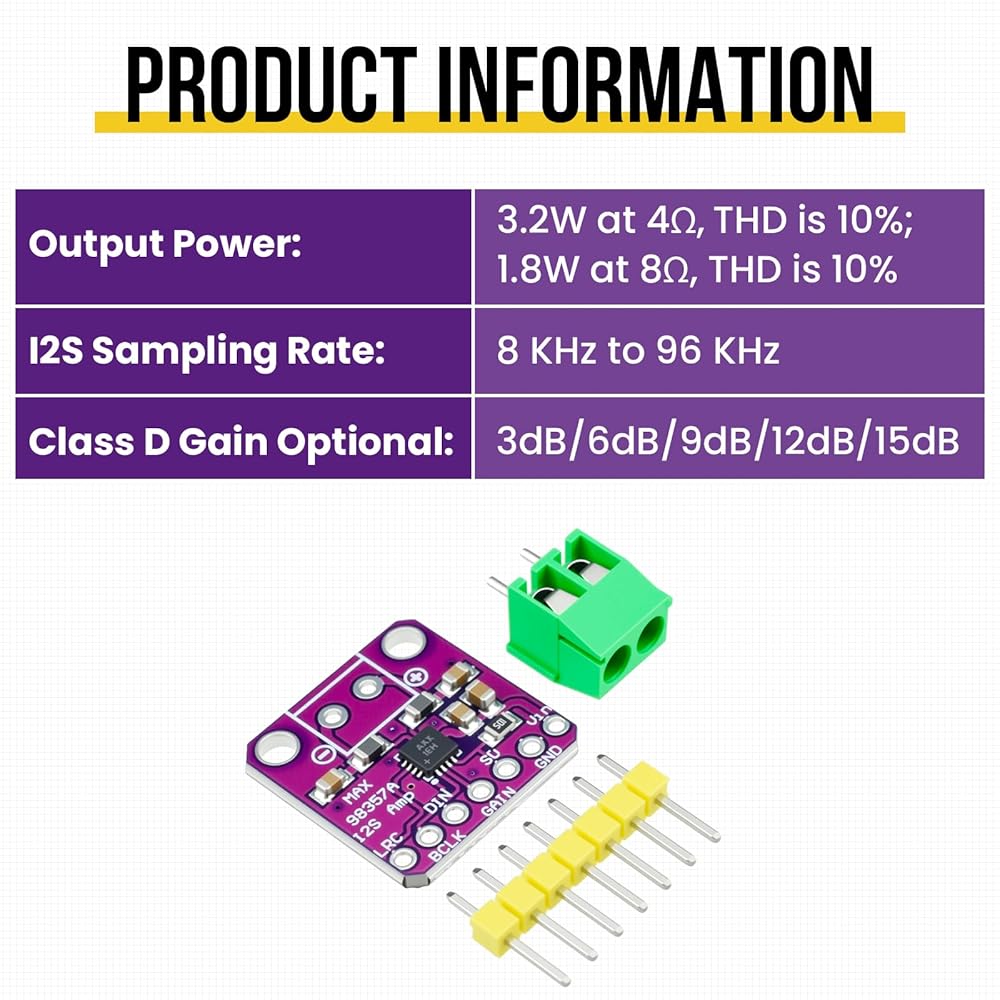

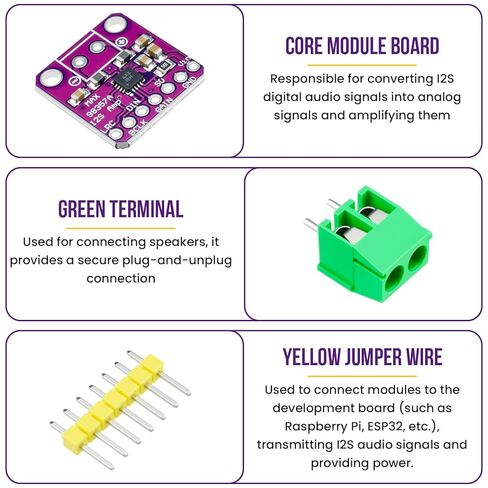

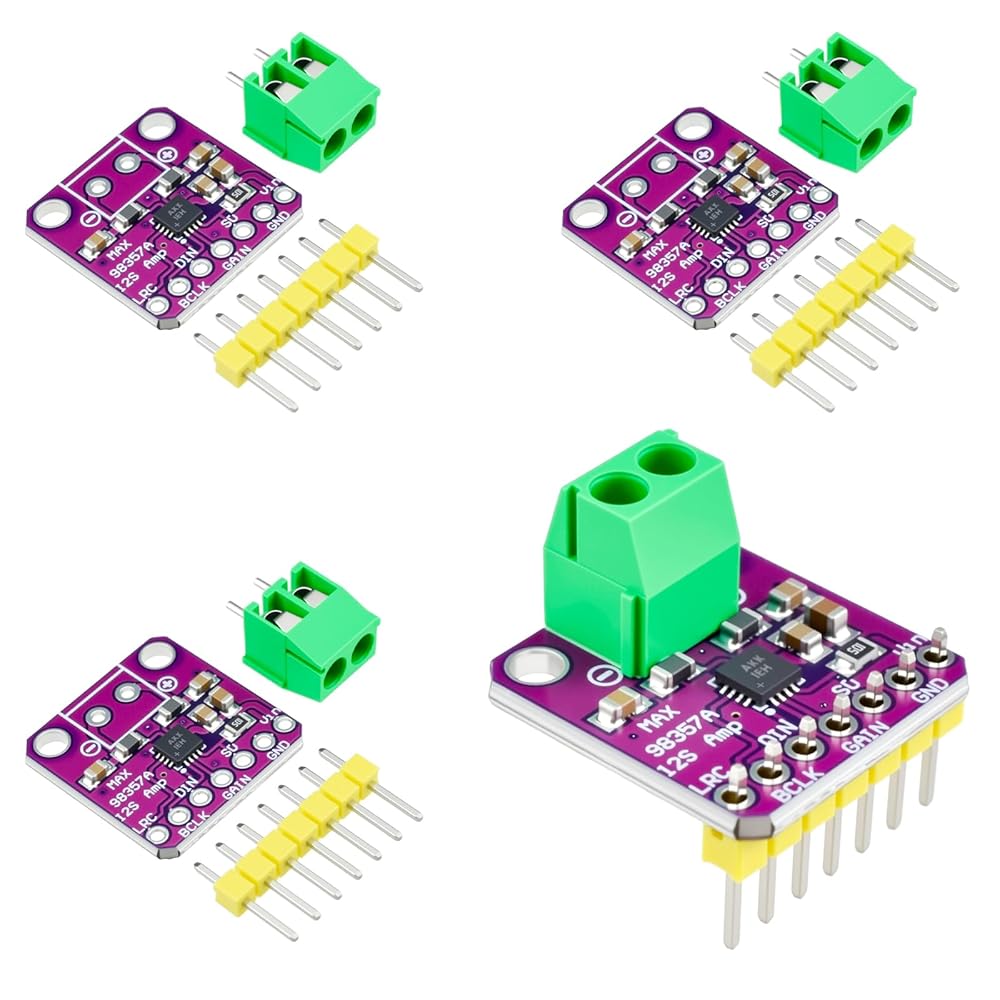

𝐈𝐦𝐩𝐫𝐞𝐬𝐬𝐢𝐯𝐞 𝐏𝐨𝐰𝐞𝐫 𝐎𝐮𝐭𝐩𝐮𝐭: Delivers up to 3.2W output at 4Ω and 1.8W at 8Ω (10% THD, 5V input), featuring bridge-tied 300kHz PWM outputs designed to drive speakers directly, do not ground outputs or feed into another amplifier. Ensure good ventilation for sustained high-power operation
𝐅𝐥𝐞𝐱𝐢𝐛𝐥𝐞 𝐈𝟐𝐒 𝐀𝐮𝐝𝐢𝐨 𝐂𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐢𝐥𝐢𝐭𝐲: Supports I2S/LJ/TDM audio protocols with sample rates ranging from 8kHz to 96kHz, requiring no external master clock (MCLK), delivering up to ≈3.2 W of clear and detailed audio output for a wide range of applications

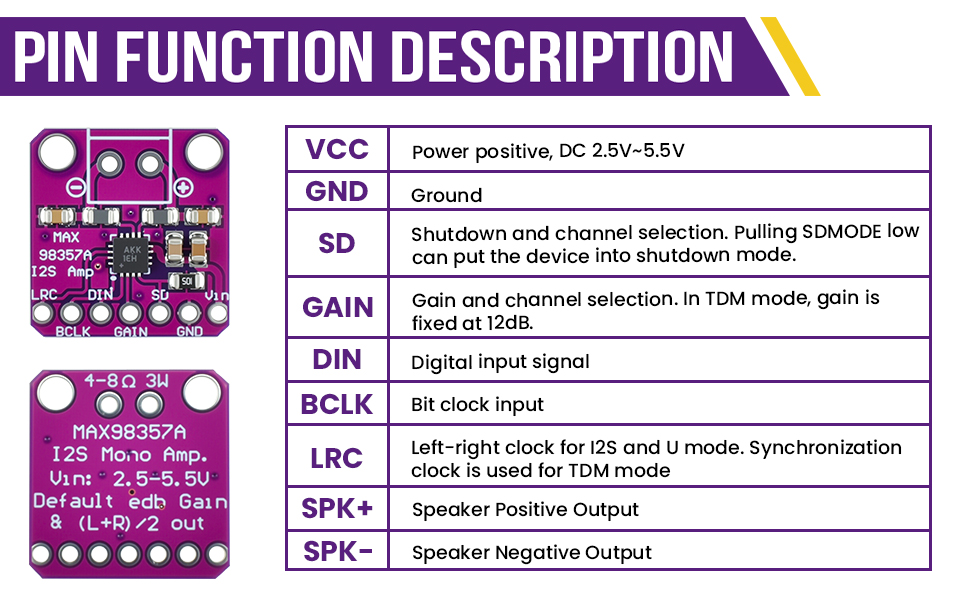

𝐀𝐝𝐣𝐮𝐬𝐭𝐚𝐛𝐥𝐞 𝐆𝐚𝐢𝐧 & 𝐎𝐩𝐞𝐫𝐚𝐭𝐢𝐨𝐧𝐚𝐥 𝐌𝐨𝐝𝐞𝐬: Gain levels are selectable via the GAIN pin (3dB/6dB/9dB/12dB/15dB, default 9dB). The SD/MODE pin enables shutdown mode or channel selection, allowing mono mix (default L+R), left-only, or right-only audio output as needed

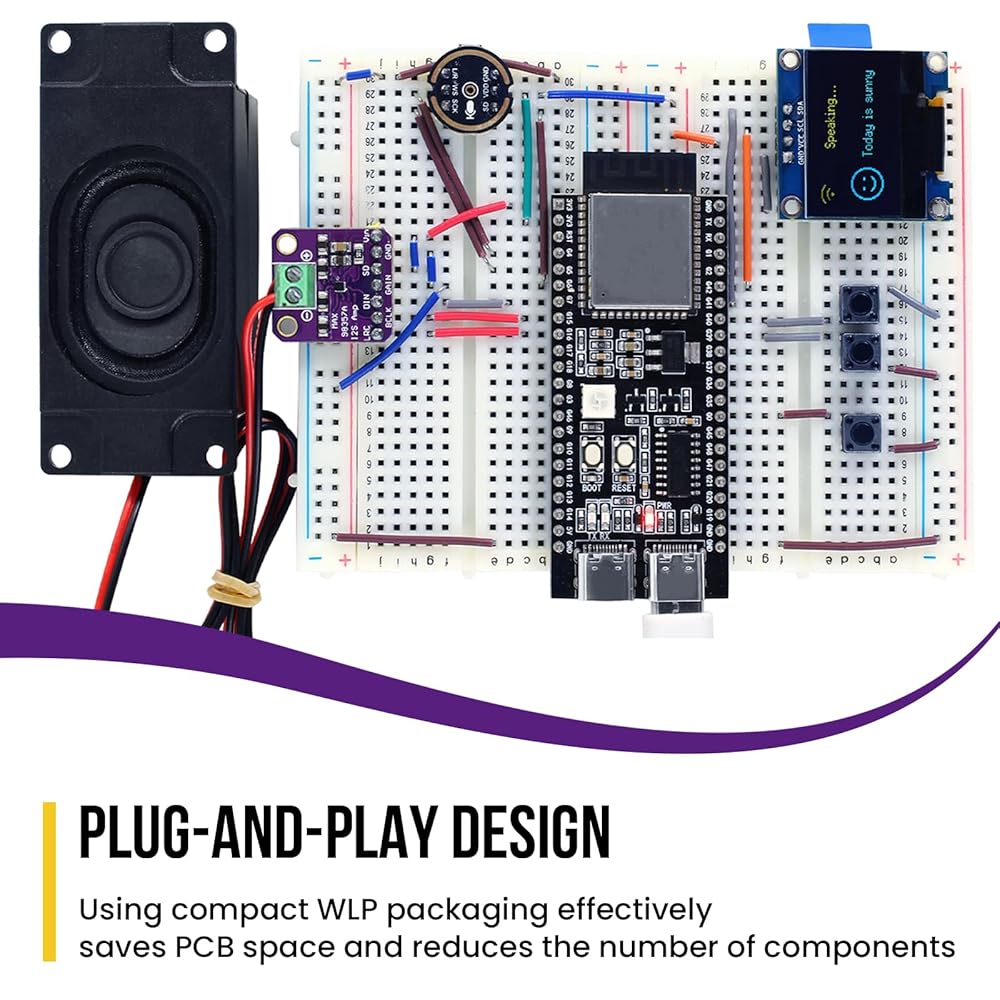

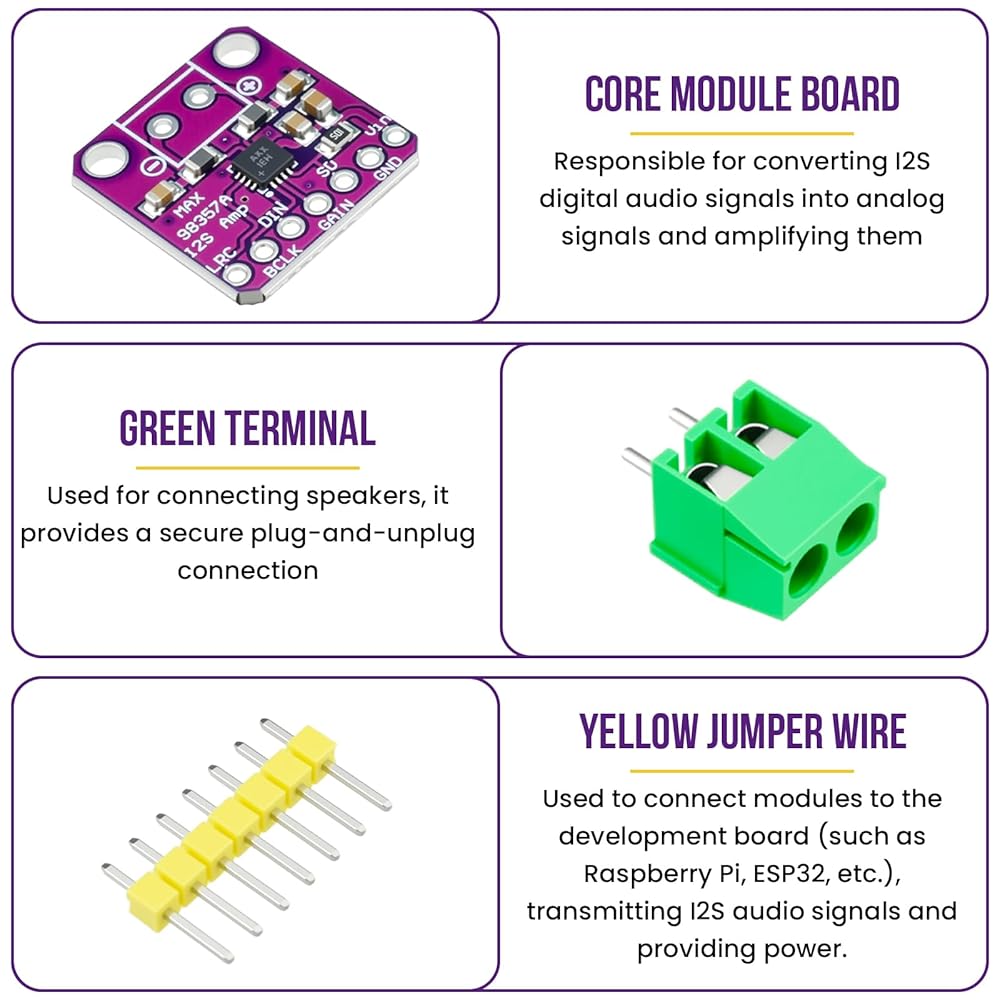

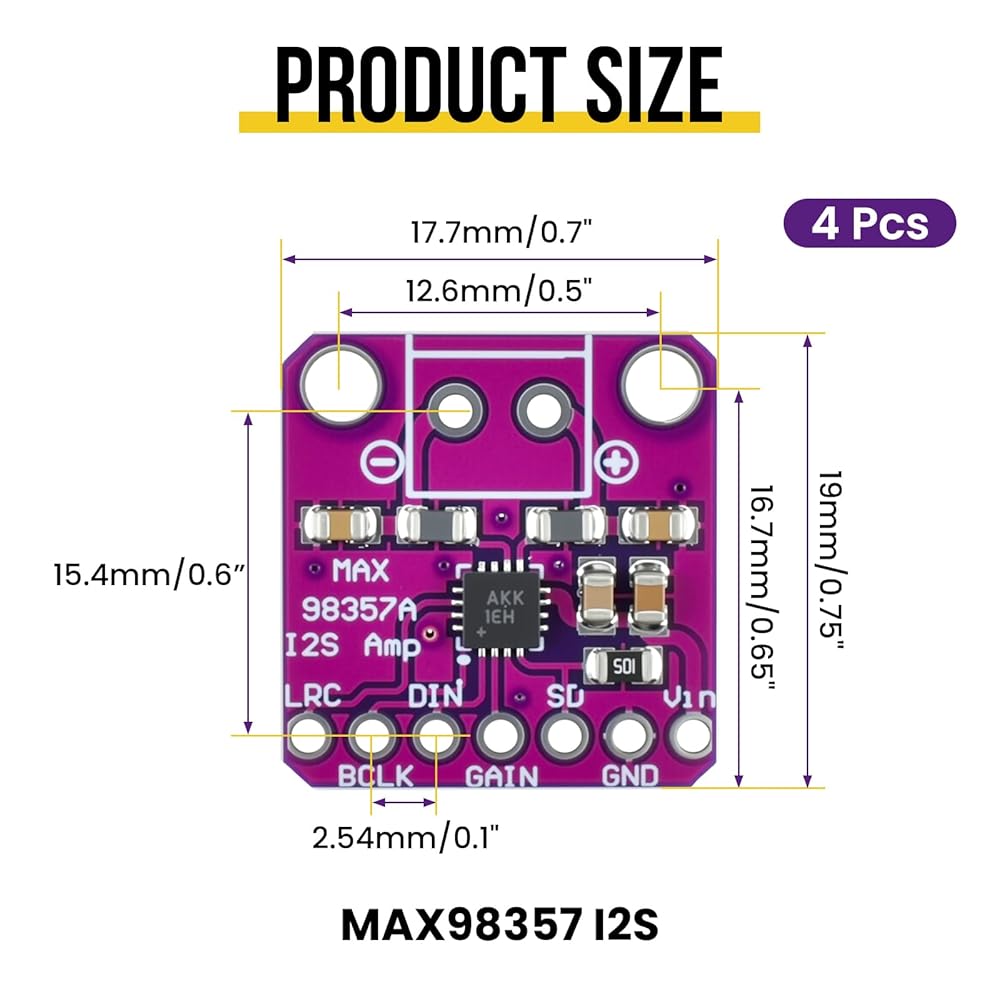

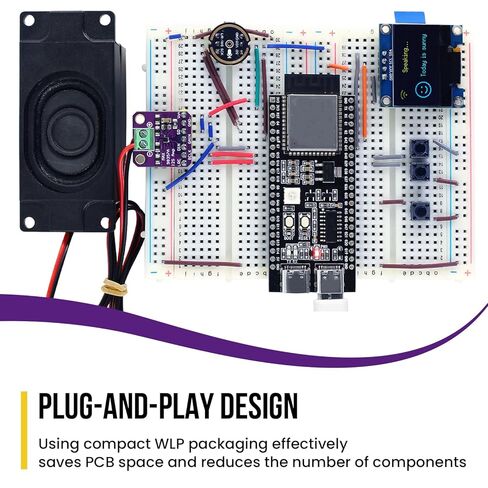

𝐏𝐥𝐮𝐠-𝐚𝐧𝐝-𝐏𝐥𝐚𝐲 𝐃𝐞𝐬𝐢𝐠𝐧: Boasts a compact WLP layout that reduces PCB space and component count, with built-in EMI suppression for long speaker runs without extra filtering. Works seamlessly with mainstream MCUs and development boards for portable projects, classroom electronics, and custom audio prototypes
