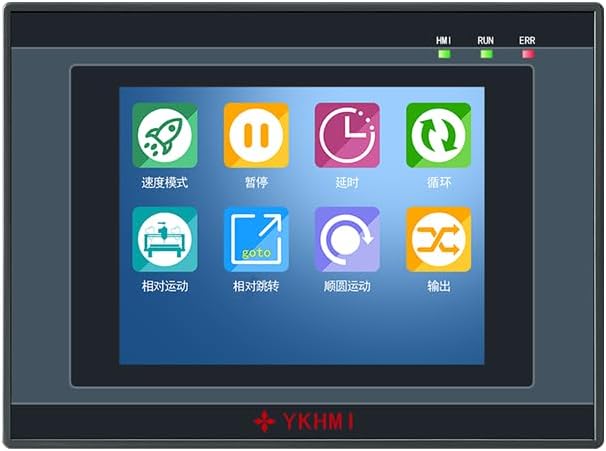

YKHMI PLC HMI Integrated Programmable Logic Controller MM-17MR-4MTS-FE380-FX-B Description:

Please download the User manual / HMI Software / USB Driver / Tutorial / Diagram : https:// drive.google.com/drive/folders/1N4nXlDS_wumzx0K0zZJURaIR--garByl?usp=sharing

MM-17MR-4MTS-FE380-FX-B With built-in analog input 0-10V and 2 analog output 0-10V single, also have 2 Temperature which range from -50 to 150°, the temparature probe use NTC10K, B3435 (B value is 3435)

Attention:
1. pls disconnect the download USB cable when read the value of AD, DA and temparature NTC10K probe value
2. temparature NTC10K probe range is -50 -150 °， B3435 model.
3. HMI Choose FE serials, 380, choose FXCUP in PlC type

Product Description:

1. PLC Type: Fully compatible with FX1S, 10 Input 7 Relay Output. Have additional 4 Transistor Output: 2 for high speed pulse 100KHz (5V pulse single) & 2 for direction, can drive 2 servos or 2 steppers with pulse, have 2 high speed input 100KHz X0 X1 to control encoder also

2. PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming

3. HMI Software: YKBuilder V5.3/7.0 (Pls contact us, we will share it and the video instruction and guidelines), HMI Choose FE serials, 380

4. Cable for download program from PC to PLC/HMI: Use the: mini port – USB cable, pls install HMI & PLC's USB driver first, which we will share.

5. High Speed: 2 high speed counting, 2 high speed output pulse (100KHz) with 5v signal

6. MM-17MR-4MTS-F350-FX-B With 2AD and DA 0-10V single, 2 Temperature NTC10K -50-150, B3435 -- Remark: Pls disconnect the download cable when read the AD DA value

Packing List:
1 X HMI PLC All In One
1 X Cable for PLC and HMI program download
2 X Pulse cable to connect for PLC and Servo or Stepper
4 X Buckles

Pls contact us for HMI sofeware, USB driver, User mannual and instructions, we have whole vidie guidance, thank you!
