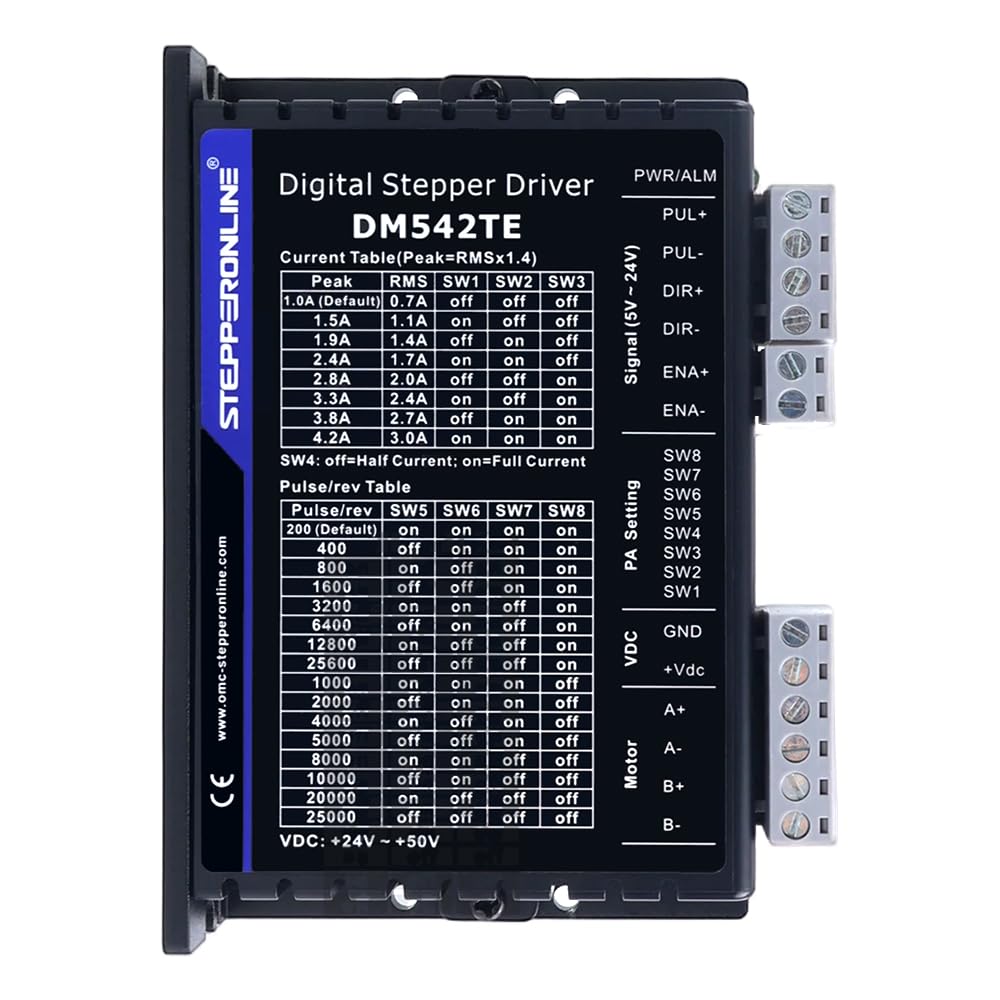

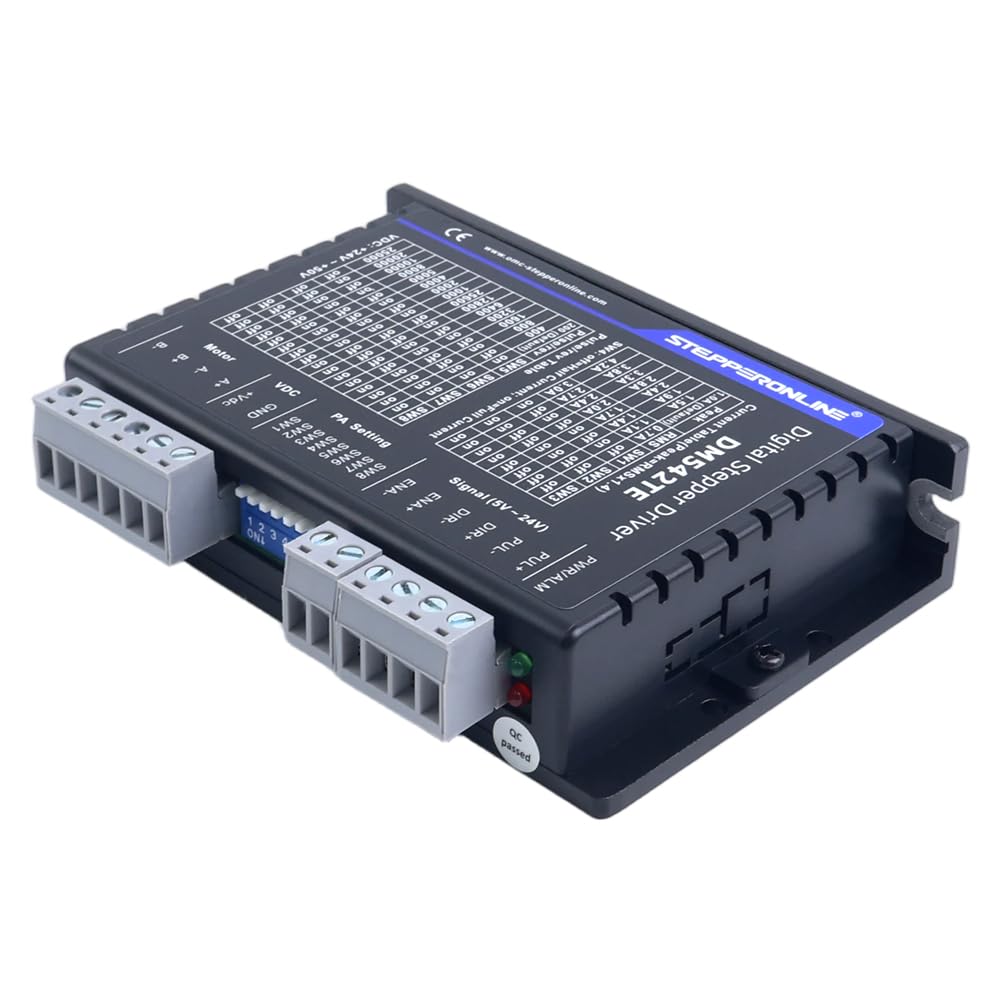

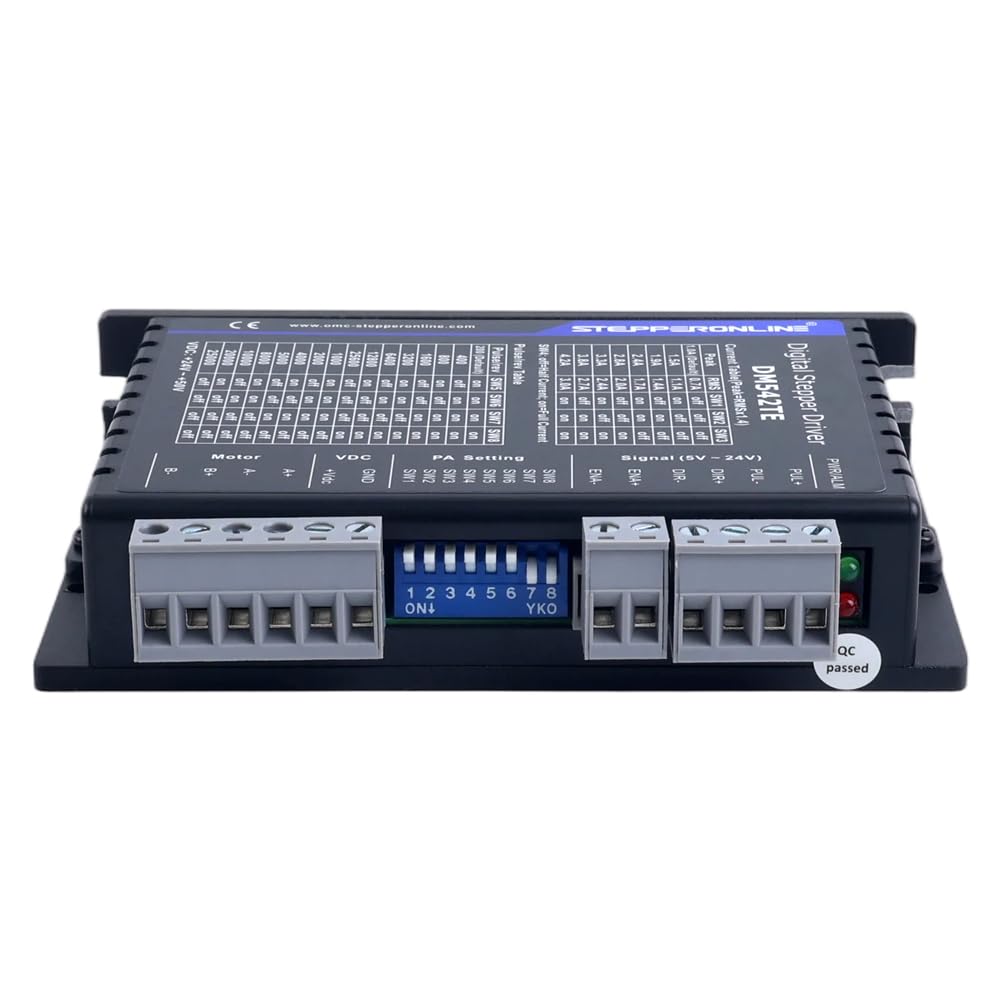

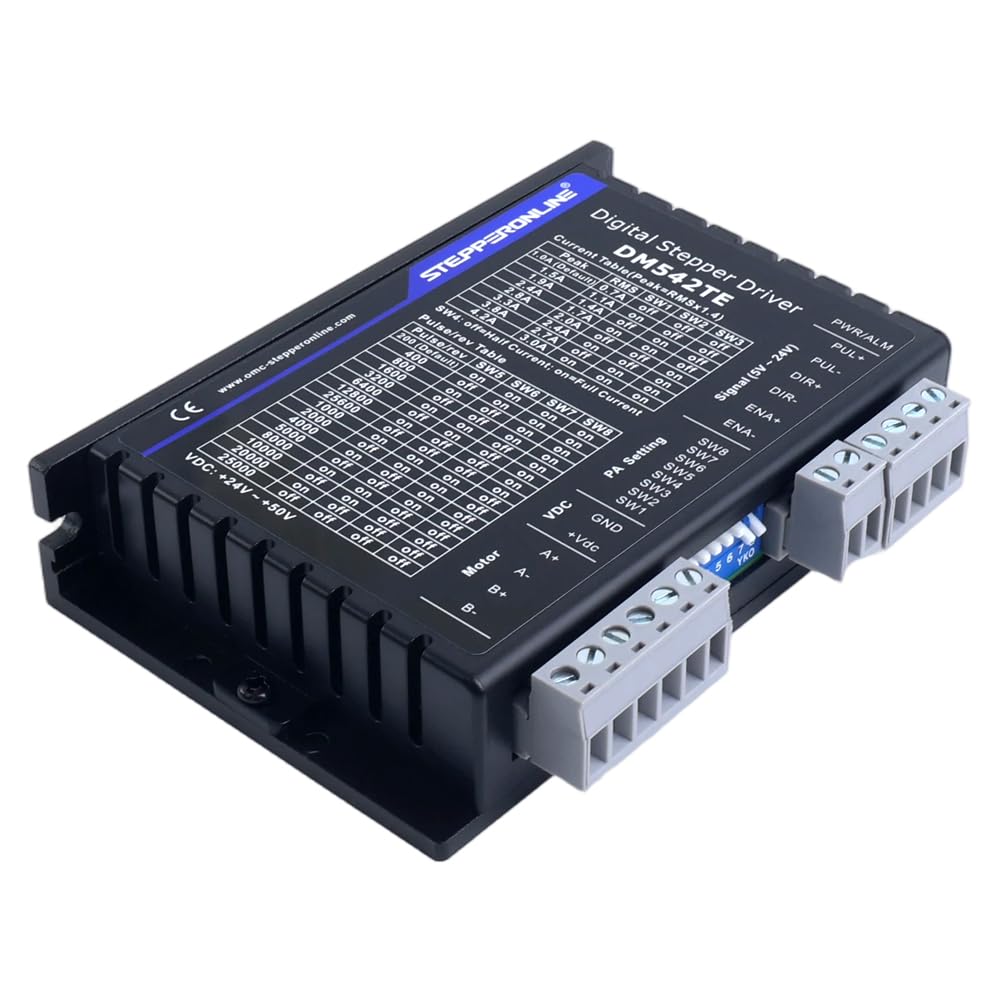

STEPPERONLINE TE Series Digital Stepper Driver 1.0-4.2A 24-50VDC for Nema 17, Nema 23 Stepper Motor

SAR 110
– 1 +

Special Features

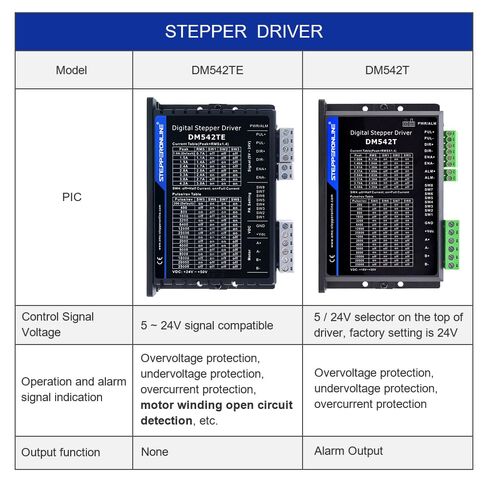

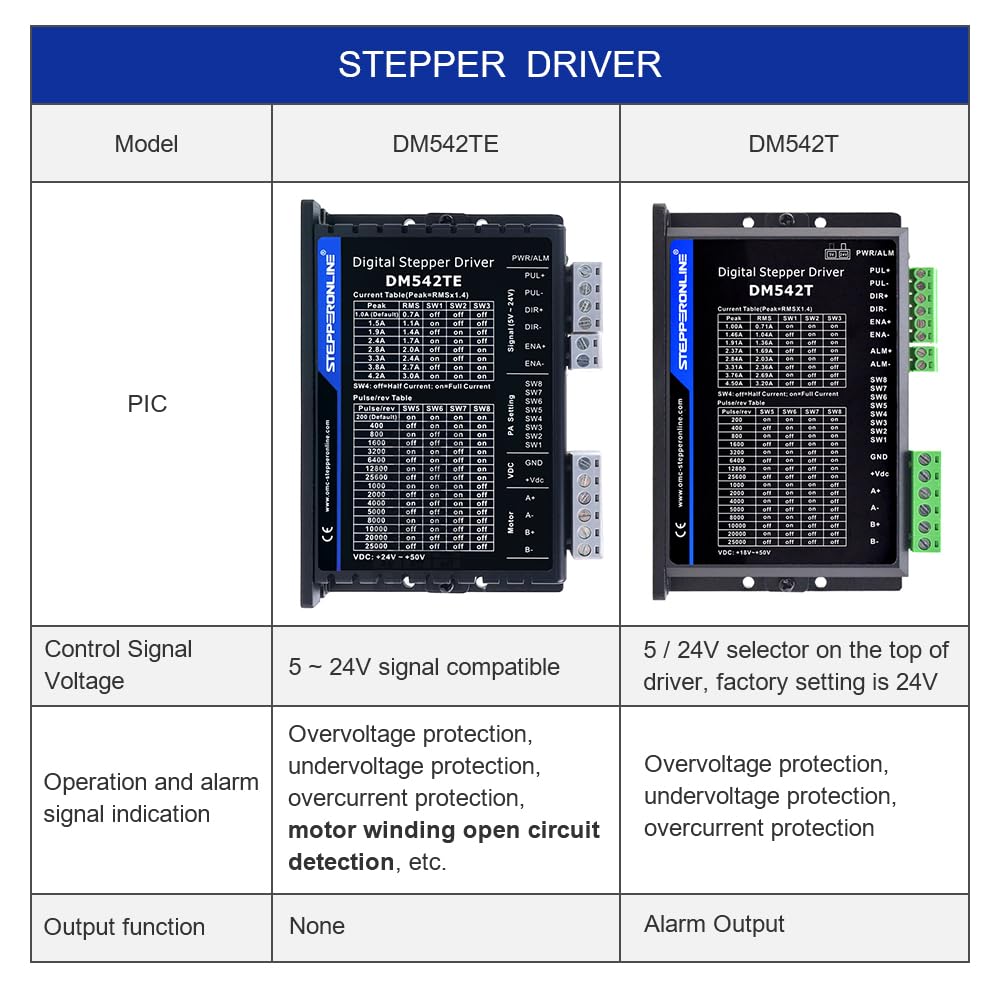

  • The TE Series stepper drivers are upgraded versions based on the T Series, offering exceptional cost-effectiveness. While retaining nearly identical functionality and performance to the T Series, we have significantly reduced the product entry threshold through cost optimization,making high-quality stepper drives more accessible.
  • This is a TE series digital stepper driver with output peak current of 1.0~4.2A and input voltage of 24~50VDC. It is designed for Nema 17, 23 stepper motors with more competitive pricing than DM542T.​
  • Functionally, TE has an exclusive "Motor Winding Open Circuit Detection". This real - time monitoring warns of open - circuit risks, cutting equipment damage and downtime, and boosting reliability. Optically isolated inputs with 5V to 24V enables easy integration with more control systems and simplifying setup. Note that TE series drivers only support single - pulse input.​

Description

Key Features

*Motor winding open circuit detection
*Optically isolated inputs with 5V to 24V
*Only supports single pulse
*Support PUL/DIR mode
*Automatic idle-current reduction
*Over-voltage and over-current protections
*Soft-start with no "jump" when powered on
*Anti-Resonance provides optimal torque and nulls mid-range instability
*Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
*Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver
*8 selectable peak current including 1.00A, 1.50A, 1.90A, 2.40A, 2.80A, 3.30A, 3.80A, 4.20A
*Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
*Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
*16 selectable microstep resolutions including 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

Electrical Specifications

*Output Peak Current: 1.0~4.2A(0.7~3.0RMS)
*Input Voltage: +24~50VDC
*Logic Input Voltage: 5~24VDC
*Logic Input Current: 7~20mA
*Pulse Input Frequency: 0~200kHz
*Pulse Width: 2.5μS
*Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

*Cooling: Natural Cooling or Forced cooling
*Environment: Avoid dust, oil fog and corrosive gases
*Humidity: 40%RH－90%RH
*Operating Temperature: 0℃ － 40℃
*Storage Temperature: -20℃ － 65℃
