[Rapid Signaling Technology] Suitable for various environments such as cement silos and ​ storage facilities, this sensor provides rapid signaling to prevent material overflow or depletion.
[Exceptional Durability] Built with stainless steel, this film level ​ blockage switch offers exceptional durability, reliability, and erosion resistance.
[Customizable Sensitivity] Featuring a five-position sensitivity adjustment, this thin film level meter can be customized to suit materials of varying densities.
[Pressure Relay Mechanism] The innovative design includes a pressure relay mechanism that helps protect equipment from damage caused by improper use or abnormal external forces.
[Accurate Material Level Detection] The film vibration ​ is designed to monitor and control powder and granule material levels, ensuring operational efficiency.

Spec:

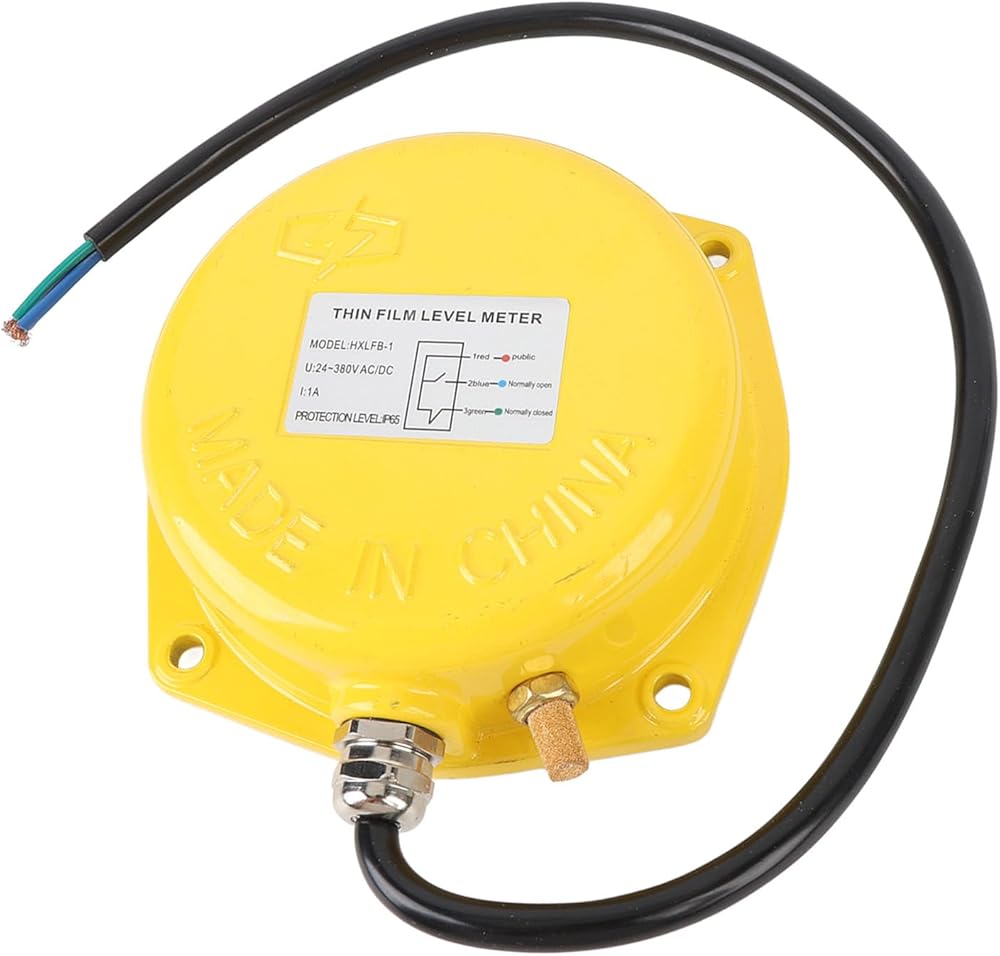

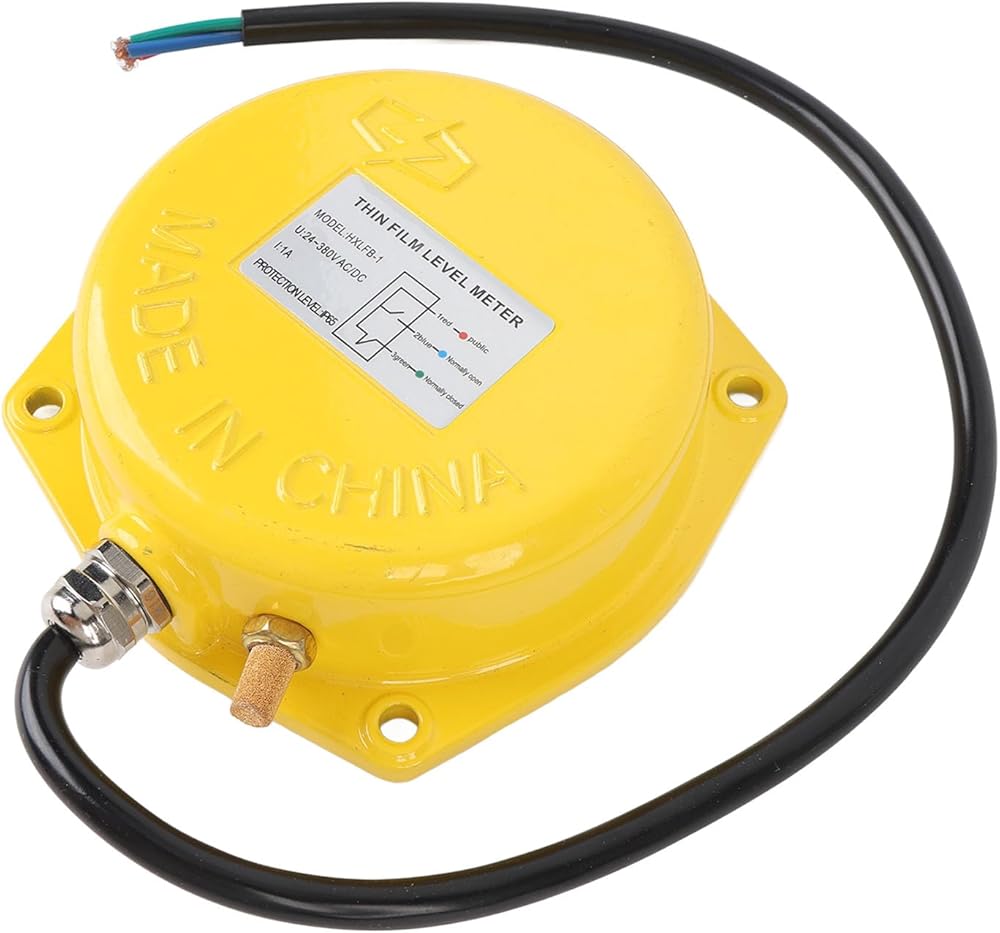

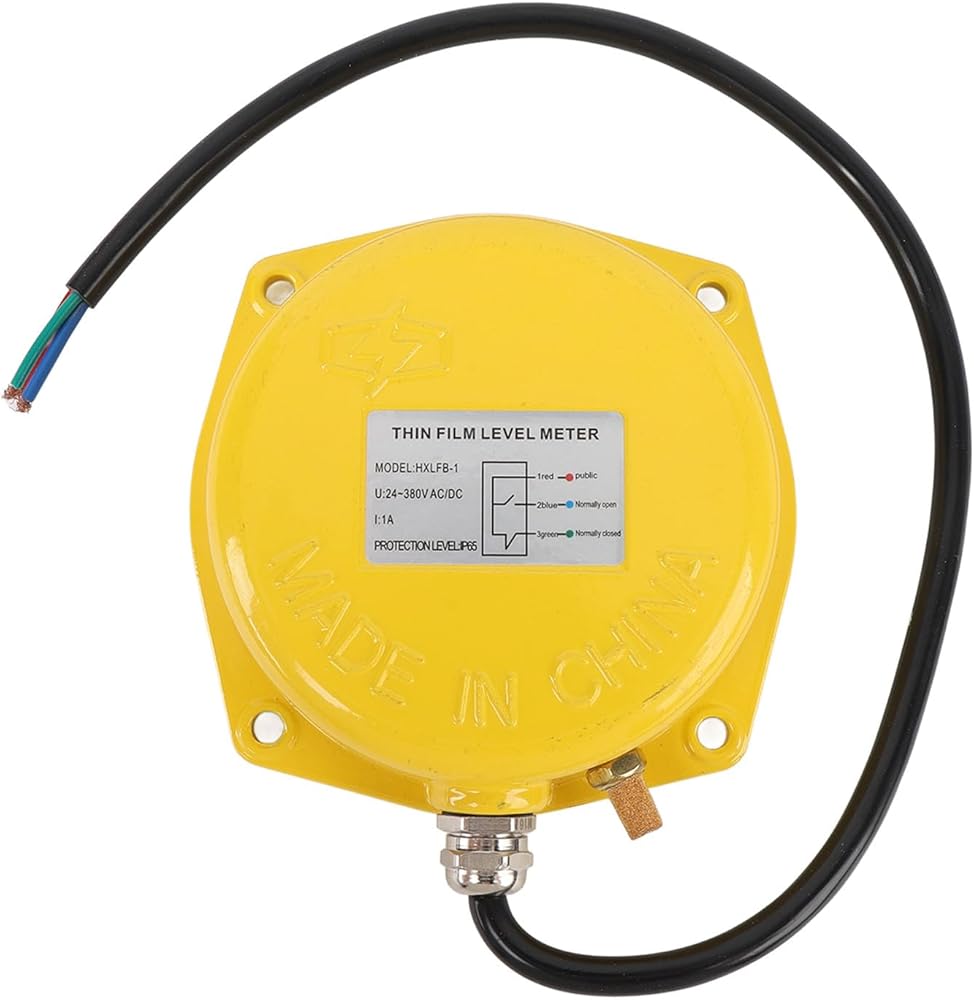

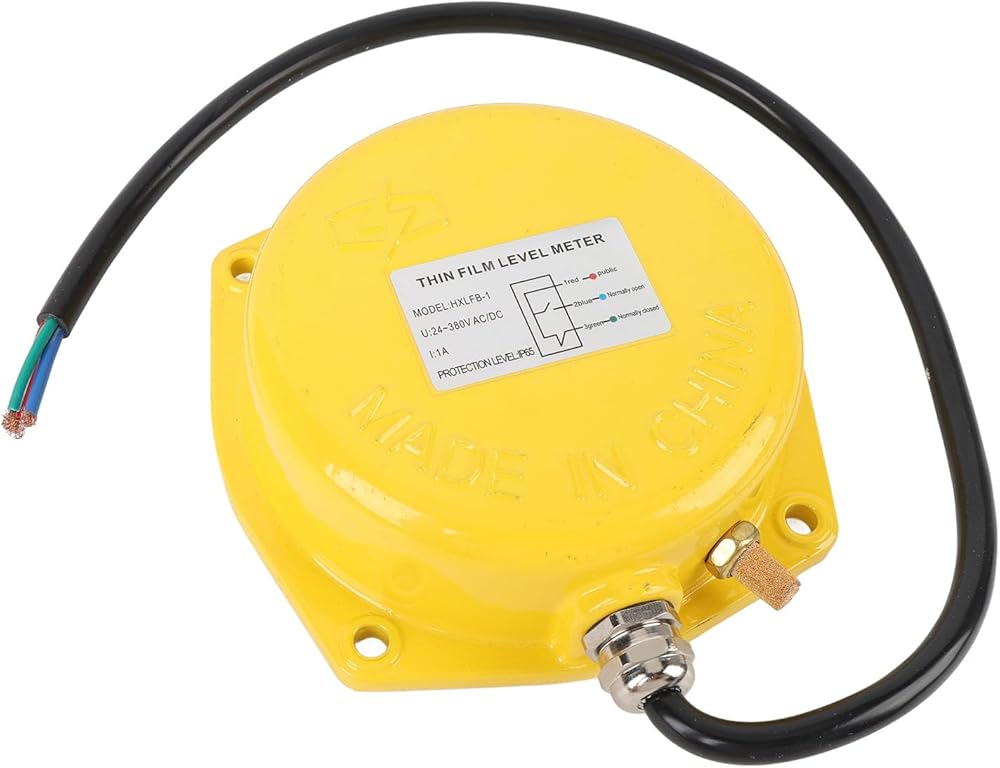

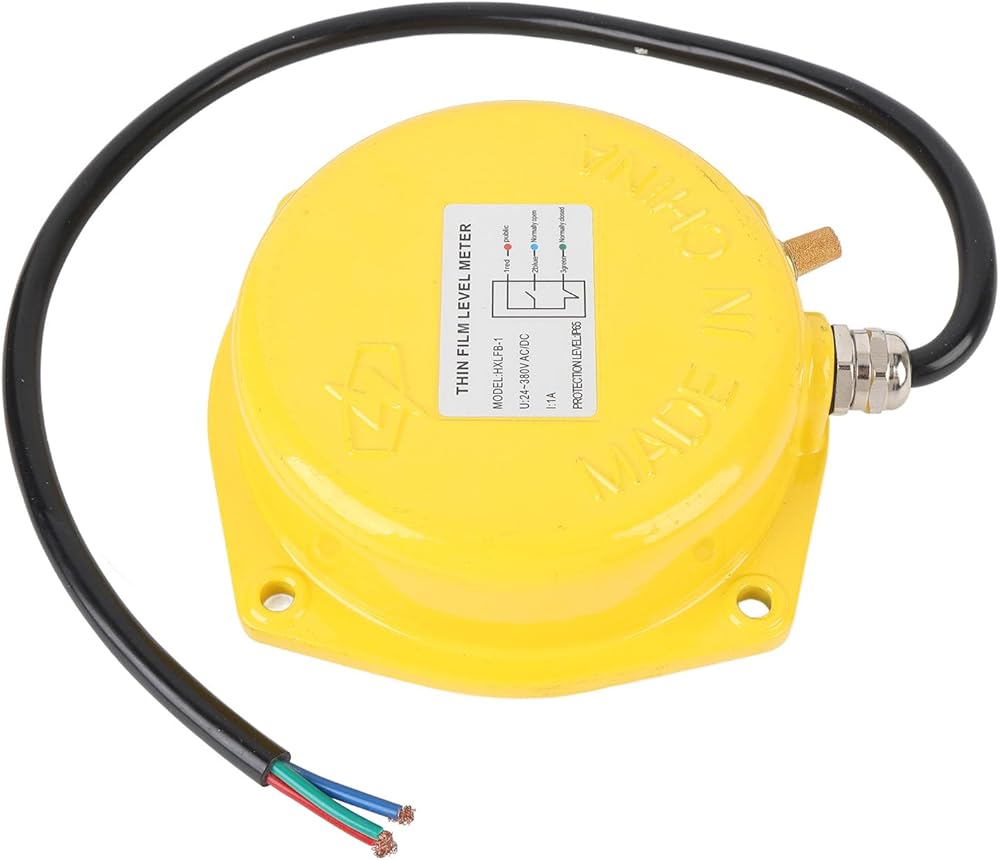

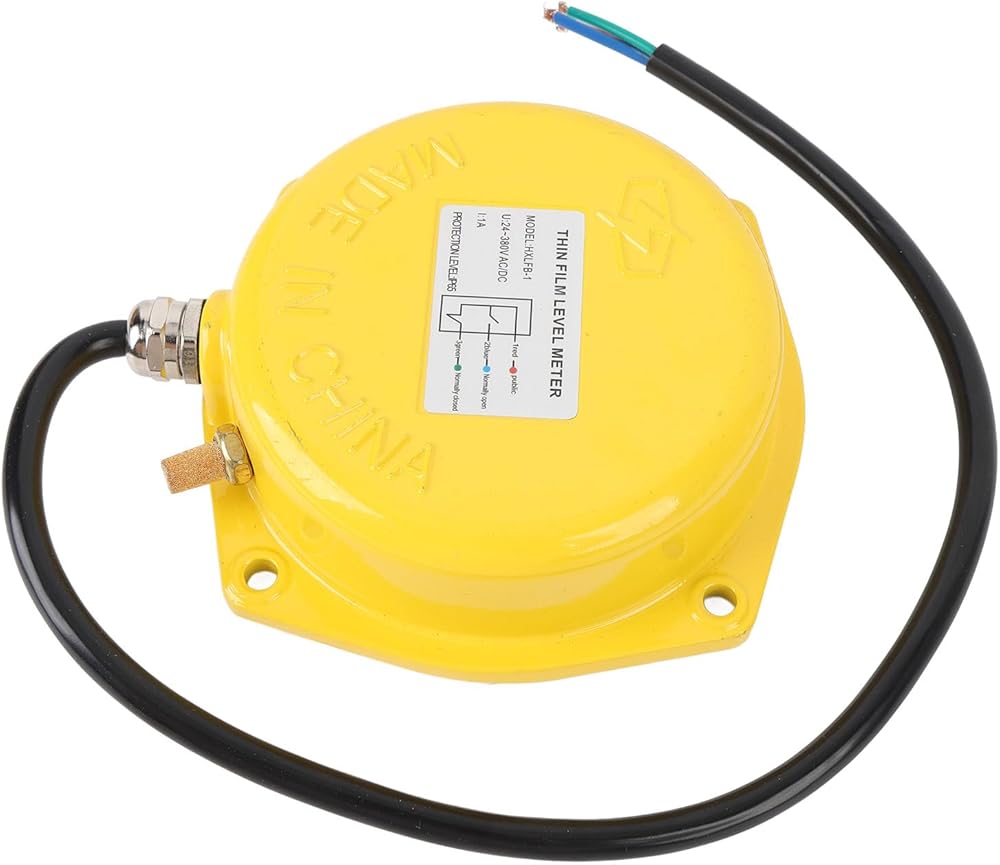

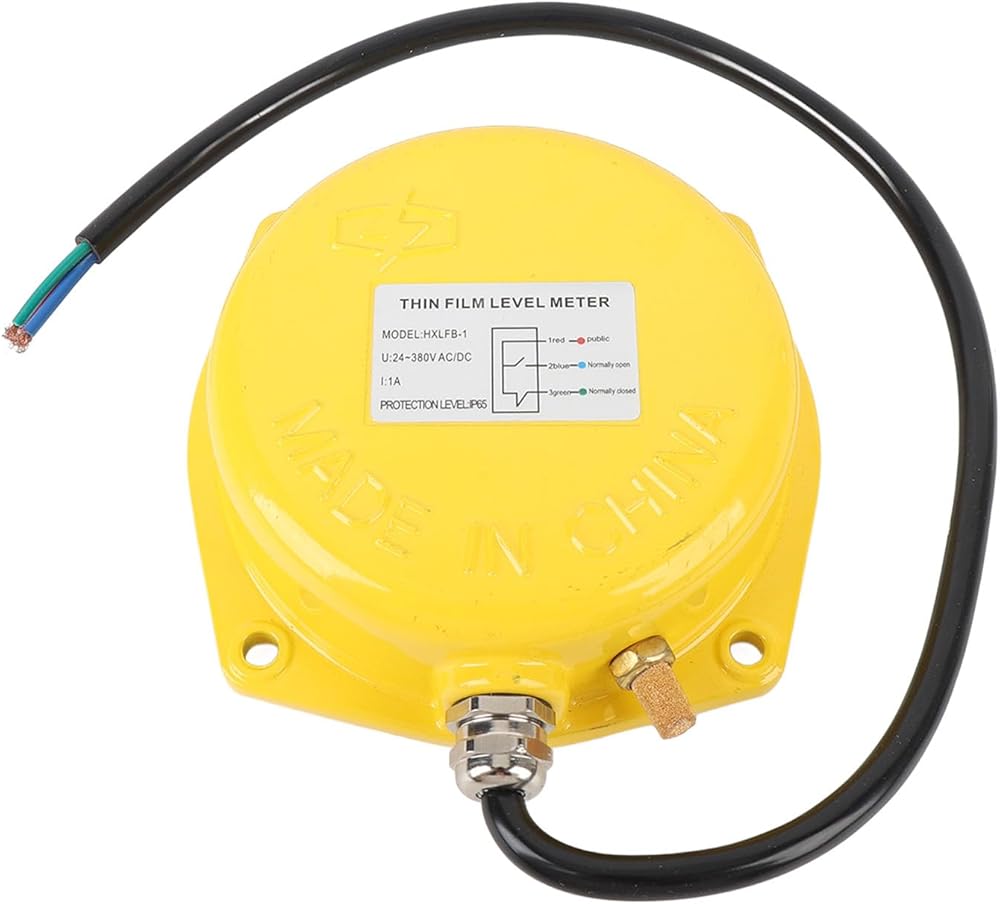

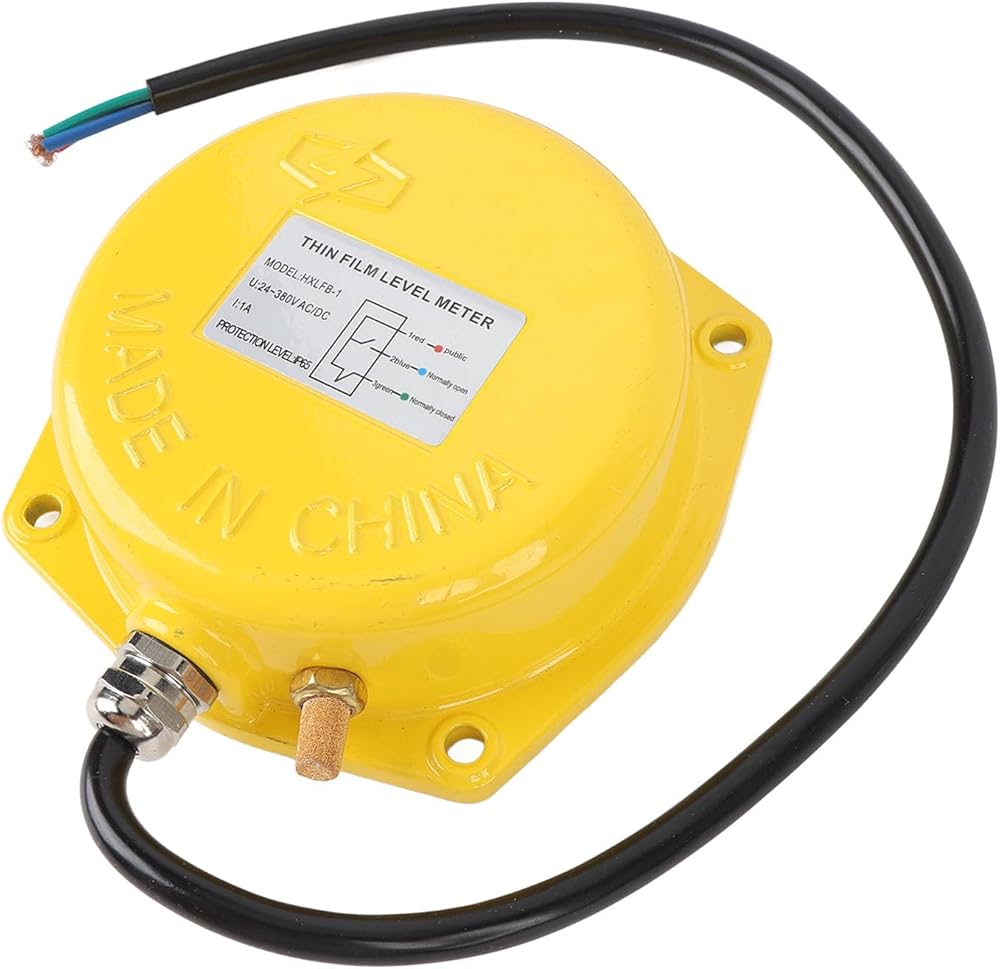

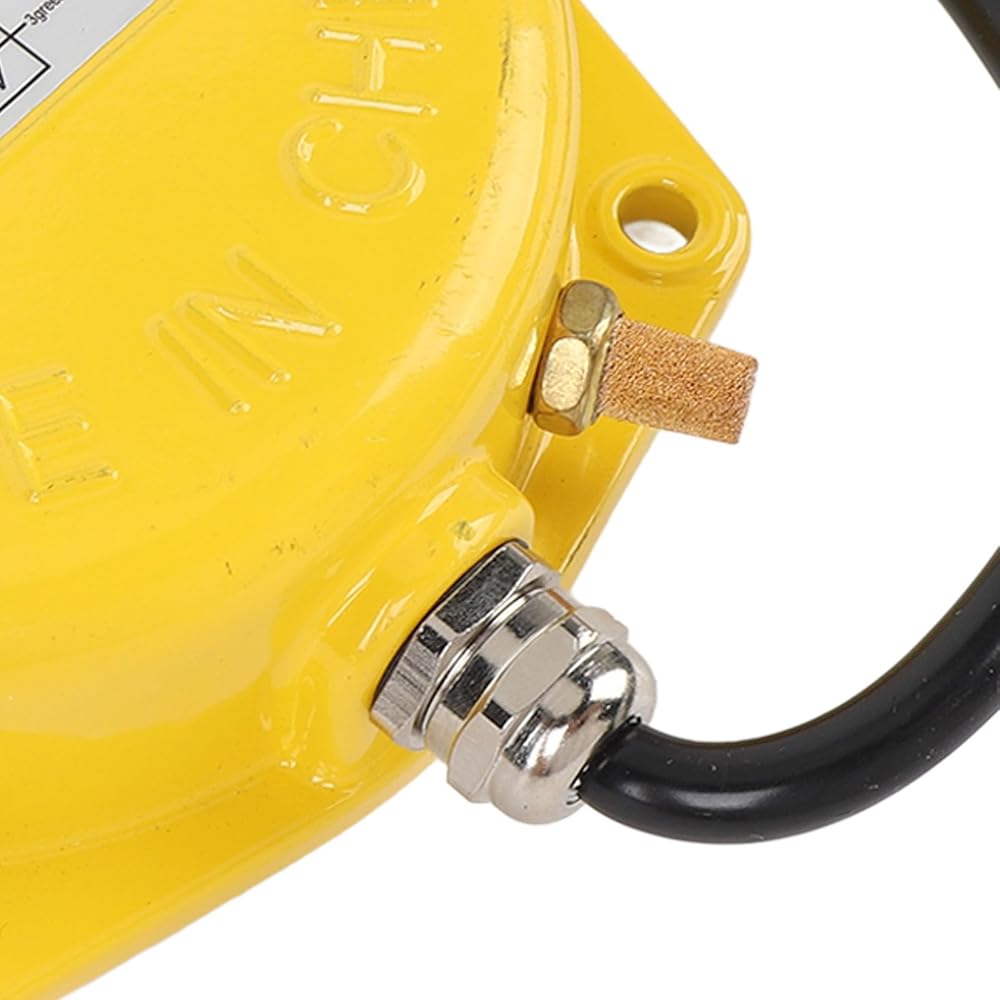

Item Type: Thin Film Level Meter
Material: Stainless Steel
Model: HXLFB-1
Operating Voltage: 24-380V AC DC
Rated Current: 1A
Load Characteristic: Pure Resistor
Operating Range: 80-120g
Reset Pressure: ≥40g
Operating Temperature: ≤100°C
Relative Humidity: ≤85%
Altitude: ≤1000m
Vibration Frequency: 1-55Hz
Acceleration: 5S
Rated Power: 500W
Operating Principle: The ​ film level indicator is a pressure relay type device that is installed on the side wall of a silo, chute, or equipment. It uses the side pressure of the material to press the film on the end cap of the level indicator. This pressure activates the micro switch to close the circuit. When the material level decreases, the side pressure is lost, and the circuit is automatically reset to open or close.
Application: Suitable for a wide range of modern industrial production of various material level positioning and automatic guard of silos, chutes, and equipment.

Package List:
1 x Thin Film Level Meter

How To Use:
Installation and Usage:
