Fits:
1960-1962 Falcon 2.4L 2360CC 144Cu. In. l6
1960-1962 Falcon 2.8L 170Cu. In. l6
1962-1965 Falcon 4.3L 260Cu. In. V8
1965-1965 Falcon 4.7L 289Cu. In. V8
1962 Falcon 3.6L 221Cu. In. V8

1965 Mustang 4.3L 260Cu. In. V8
1965-1966 Mustang 4.7L 4727CC 289Cu. In. V8
1960-1964 Ranchero 2.4L 144Cu. In. l6
1961-1965 Ranchero 2.8L 170Cu. In. l6
1964-1965 Ranchero 3.3L 200Cu. In. l6
1962-1964 Ranchero 4.3L 260Cu. In. V8
1965 Ranchero 4.7L 289Cu. In. V8

1960-1963 Mercury Comet 2.4L 144Cu. In. l6
1961-1965 Mercury Comet 2.8L 170Cu. In. l6
1963-1965 Mercury Comet 3.3L 200Cu. In. l6
1962-1963 Mercury Comet 3.6L 221Cu. In. V8
1962-1965 Mercury Comet 4.3L 260Cu. In. V8
1964-1965 Mercury Comet 4.7L 289Cu. In. V8
1964-1965 Mercury Comet 7.0L 6997CC 427Cu. In. V8

Application: Please check compatibility (Both top hose and bottom hose on Passeger side)
If you need top hose on the Passenger side, bottom hose on driver side, please search B0B8CYNH4X

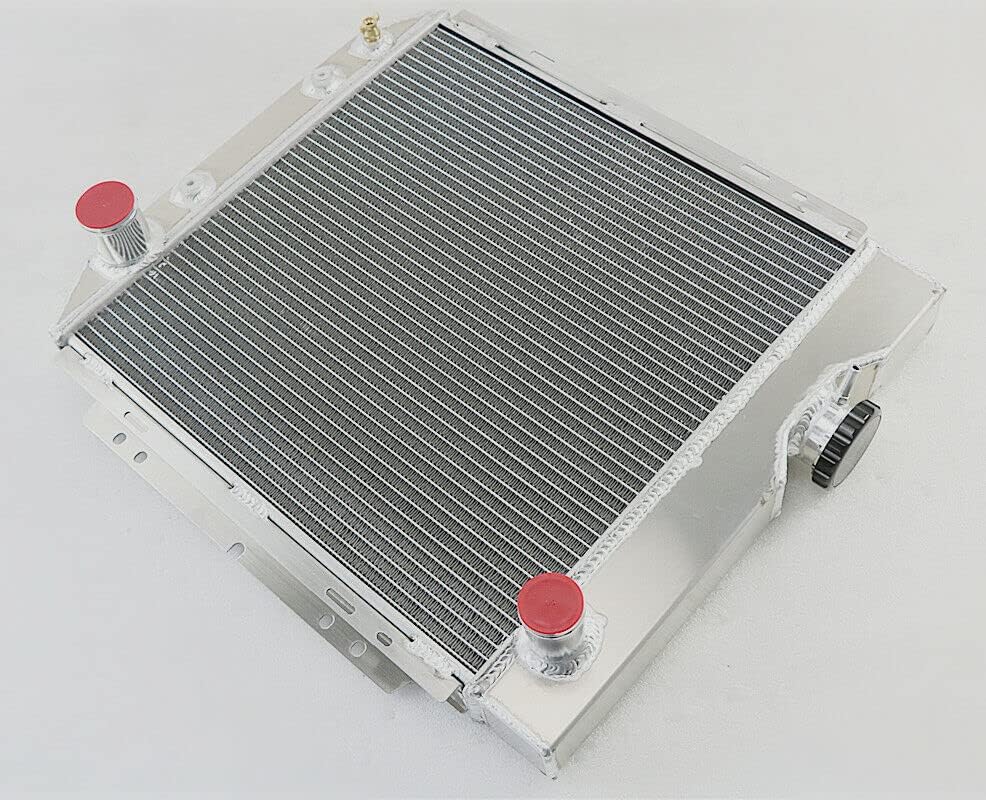

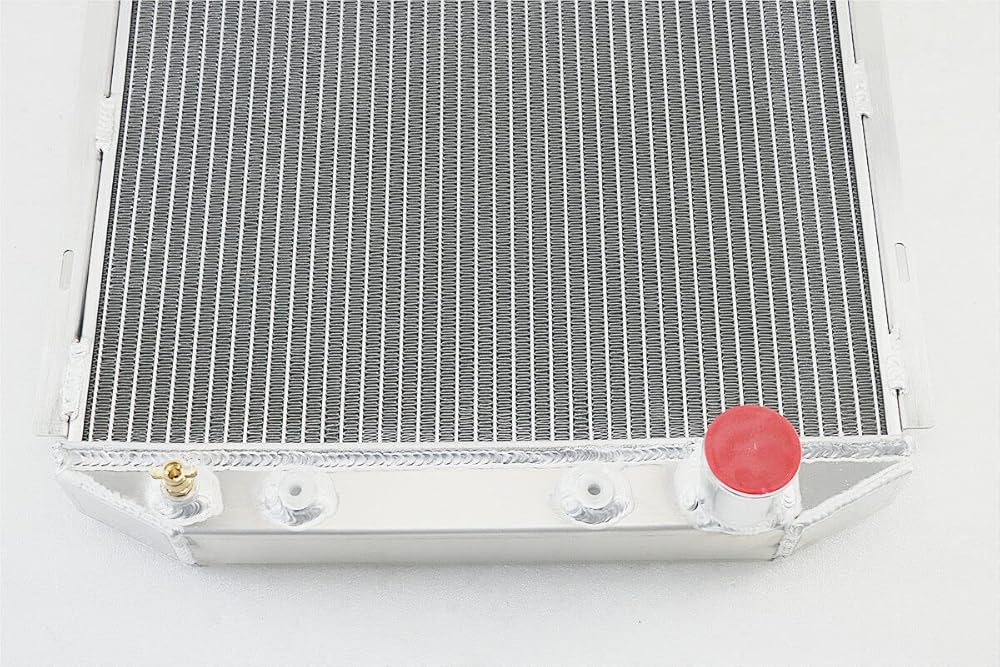

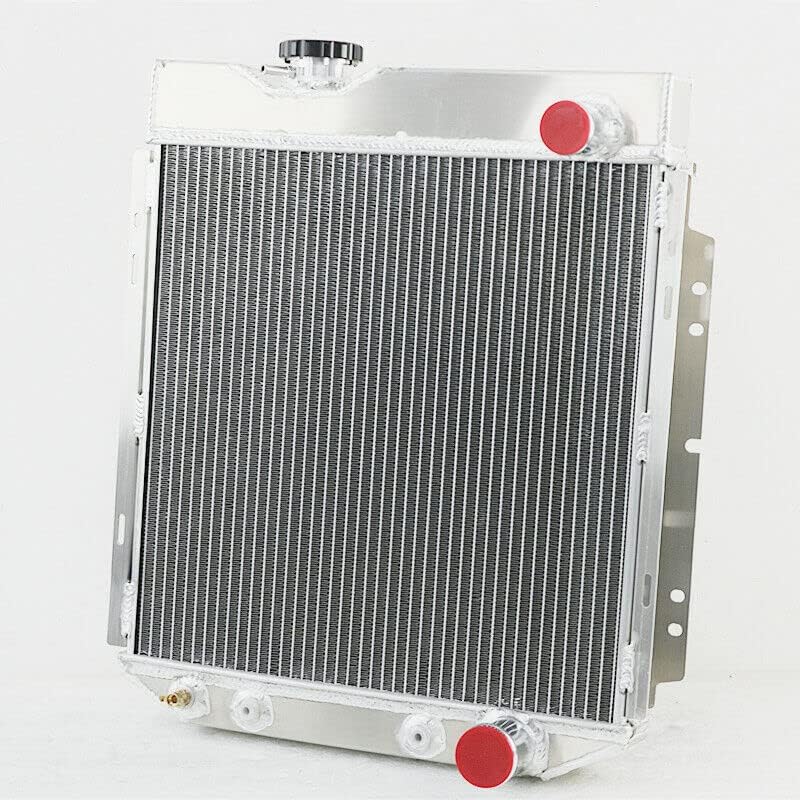

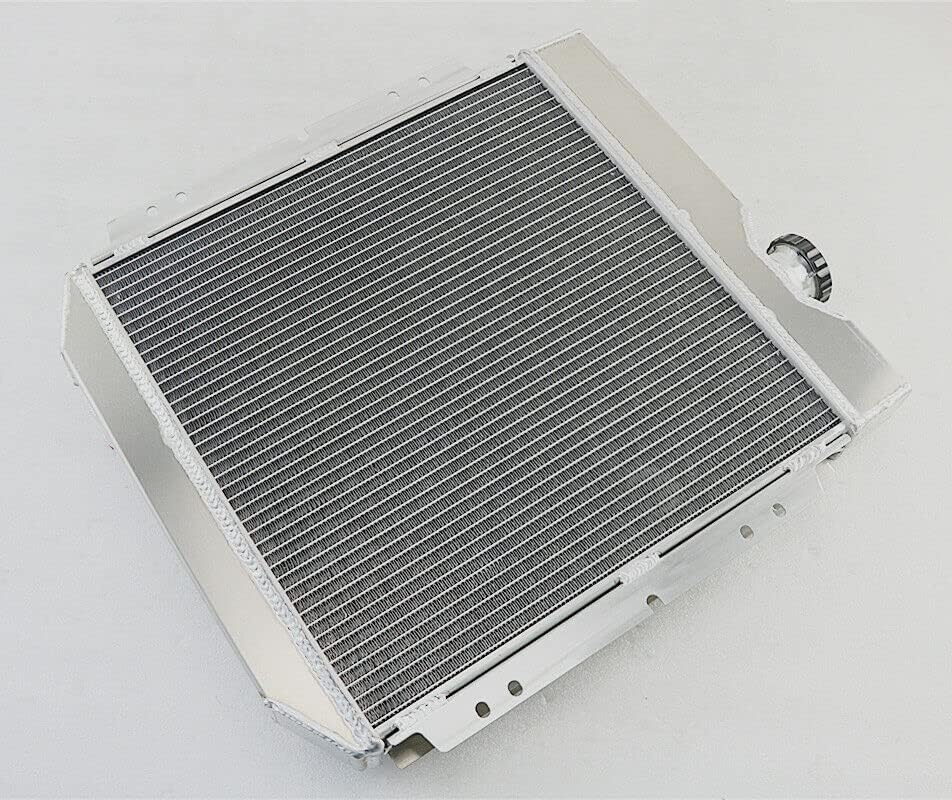

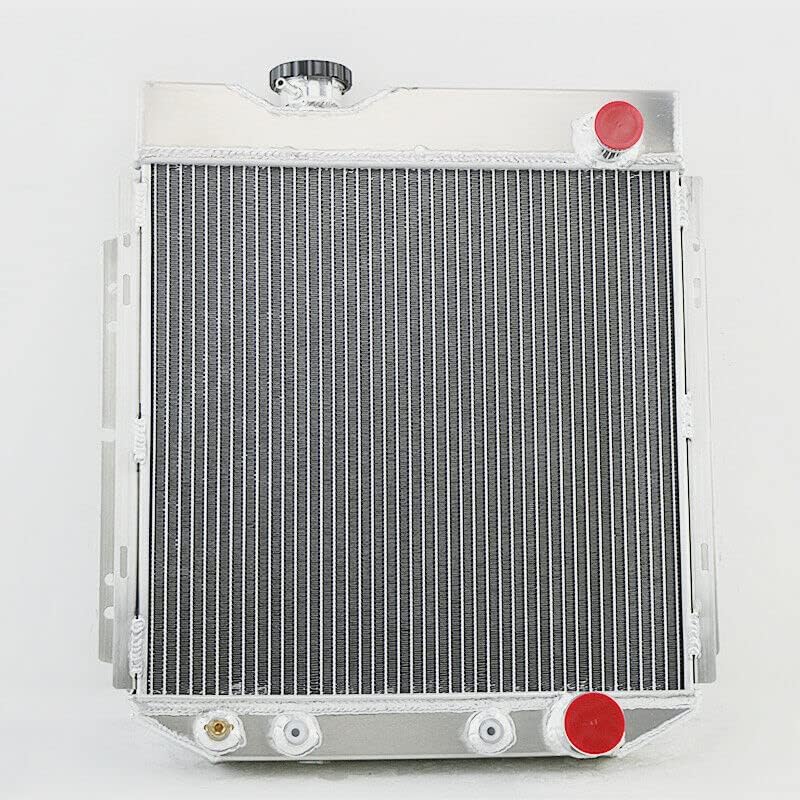

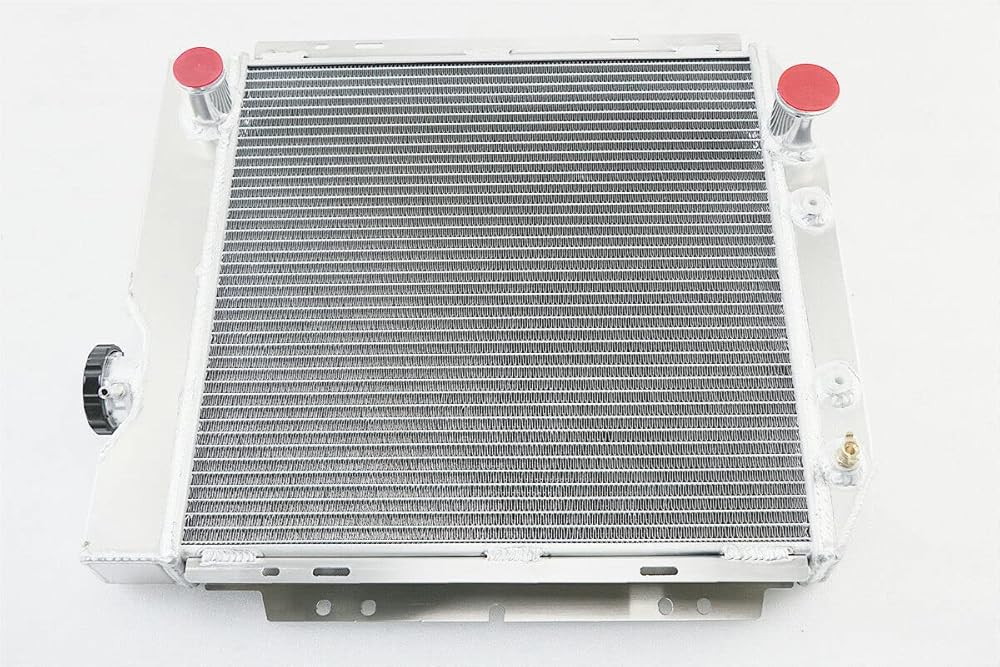

Specifications:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Size: 16-3/8 x 17-1/4 inches
Overall Size: 21-1/2 / 19-5/8 inches
Upper Inlet is: 1-1/2 inches Passenger Side
Lower Outlet is: 1-3/4 inches Passenger Side
Trans Cooler Details are: 1/8-27 NPT
Mounting Type is: Bracket

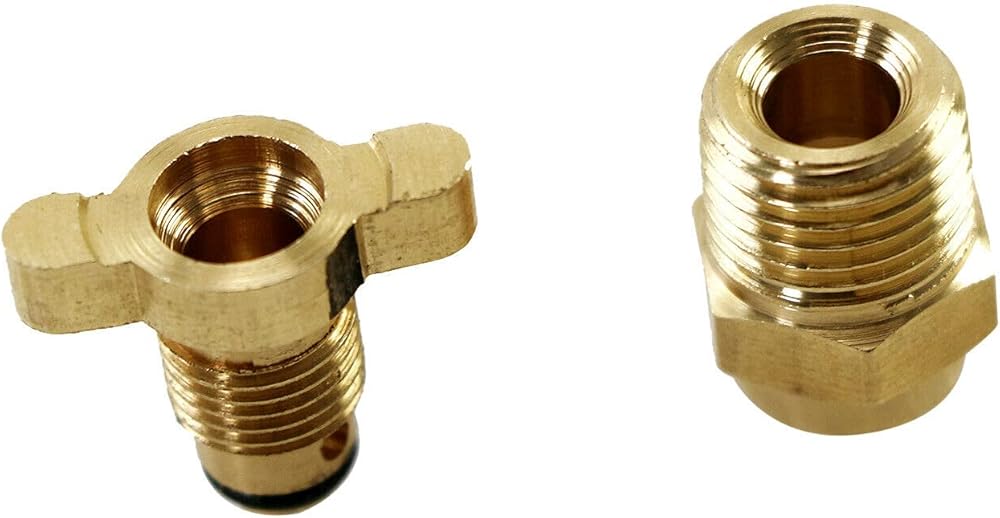

OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!

Part Number
Manufacturer Part Number: CC259 , EC259 , AE259 , MC259, DPI259 , CUC259
Interchange Part Number: DPI259, CU259, 0259AA, RA-SBCF60, 433259, CU130

Description
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality AA5052 Aircraft Grade Aluminum Construction
Full Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.

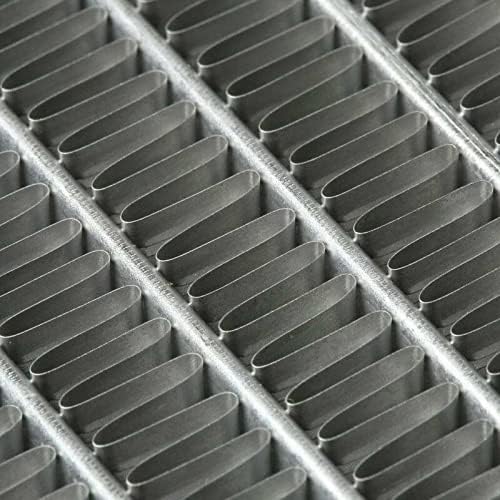

Its light-weight, and high-heat transferring Aircraft Grade Aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This High Quality Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
