RAREELECTRICAL 12V Hull Mount Tilt Trim Motor Pump Reservoir Assembly Compatible With 1983-2006 Mercruiser 377 502 540 575 Bravo Alpha One Oildyne Mercury 14336A15 14336A6 88183A8 in Saudi Arabia RAREELECTRICAL 12V Hull Mount Tilt Trim Motor Pump Reservoir Assembly Compatible With 1983-2006 Mercruiser 377 502 540 575 Bravo Alpha One Oildyne Mercury 14336A15 14336A6 88183A8 in Saudi Arabia RAREELECTRICAL 12V Hull Mount Tilt Trim Motor Pump Reservoir Assembly Compatible With 1983-2006 Mercruiser 377 502 540 575 Bravo Alpha One Oildyne Mercury 14336A15 14336A6 88183A8 in Saudi Arabia

RAREELECTRICAL 12V Hull Mount Tilt Trim Motor Pump Reservoir Assembly Compatible With 1983-2006 Mercruiser 377 502 540 575 Bravo Alpha One Oildyne Mercury 14336A15 14336A6 88183A8

SAR 1,914
Weight
9.1 kg
– 1 +

Special Features

  • Compatible with MERCRUISER, MERCURY. Please verify your OEM part number from your original unit to help ensure fitment.
  • Replaces: Oem Part Numbers: / Mercury Marine: 14336A6 / 14336A8 / 14336A9 / 14336A12 / Mercury Marine: 14336A15 / 14336A17 / 14336A20 / 14336A22 / Mercury Marine: 14336A25 / 14336A28 / 14336A31 / Mercury Marine: 88183A5 / 88183A6 / 88183A8 / 88183A11 / Mercury Marine: 88183A12 / 88183A13 / 88183A25 / Mercury Marine: 865380A03 / 865380A13 / Specifications: / Product Type: Complete Tilt Trim Assembly (Side Hull Mount) / Includes: Motor, Oildyne Pump, Reservoir,
  • Applications: Mercruiser Sterndrive Applications: / Mercruiser Alpha One Gen Ii Sterndrive / Mercruiser Bravo One Sterndrive / Mercruiser Bravo Two Sterndrive / Mercruiser Bravo Three Sterndrive / Mercruiser Bravo X One / X Two / X Three Sterndrive / Mercruiser Bravo Xr One / Xr Sportmaster / Xz One / Mercruiser Blackhawk Sterndrive / Mercruiser Integrated Transom Sterndrive / Mercruiser Tr/Trs (1977-1993) / Mercruiser Mc1 Drives (1983-1987) / Mercury Engine
  • Applications: Engine Applications: / Mercury Alpha One All Drives (1988-1991, 1998) / Mercury Bravo One / X One / Xr One / Xz One (1998) / Mercury Bravo Two / X Two (1998) / Mercury Bravo Three / X Three (1998) / Mercury Bravo Ithp / Sm Lhp / Sm Shp (2002) / Mercury Bravo Mpi / Mpi Dts (1998) / Mercury 377 Bravo (2000-2004) / Mercury 502 Bravo / Bravo One / Carb / Ssm6 / Vi Drysump (1999-2006) / Mercury 540 Bravo / Bravo One (1999-2001) / Mercury 575 Bravo...
  • Trim Motor - Voltage: 12V Source: Aftermarket

Description

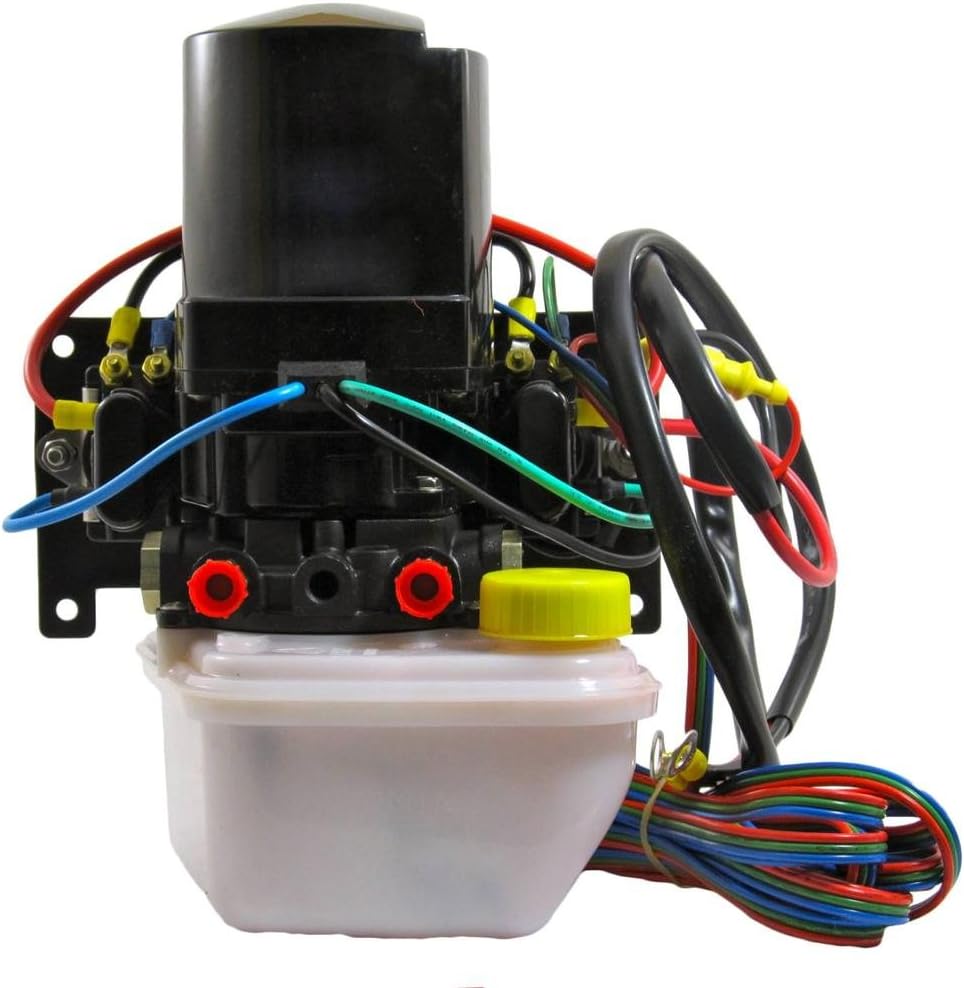

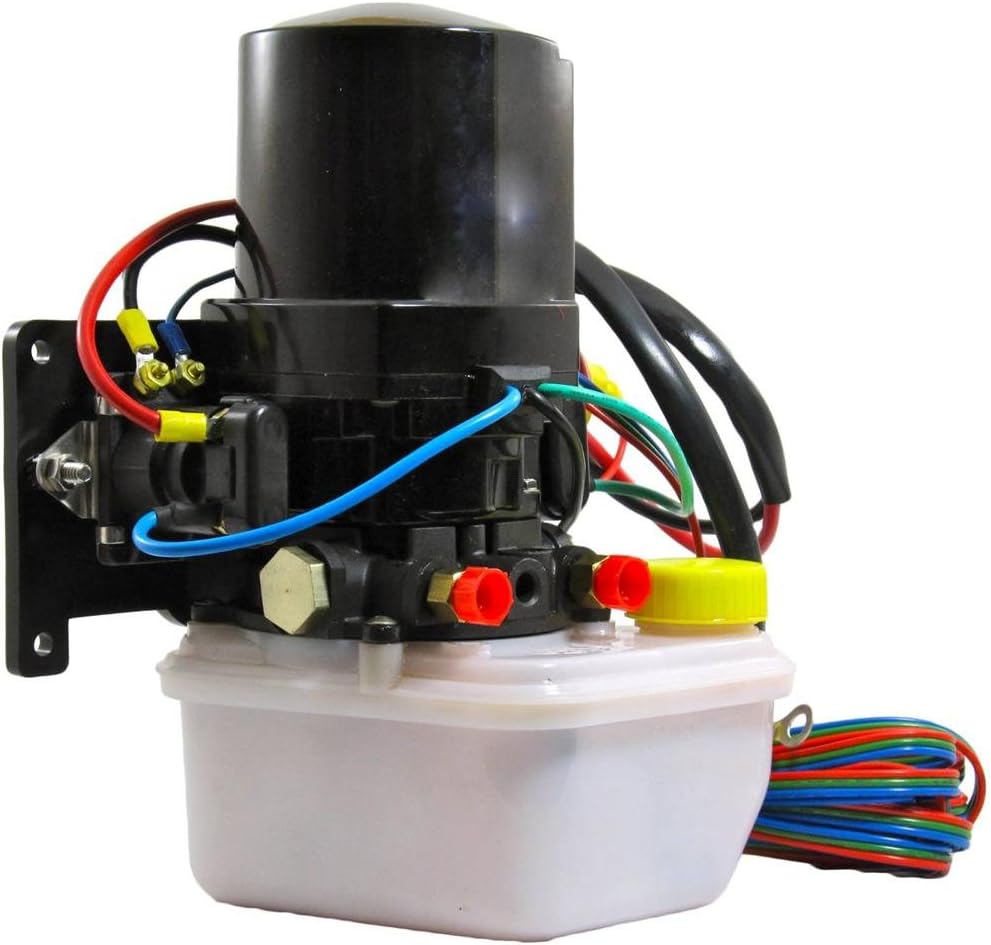

12V Hull Mount Tilt Trim Assembly for MerCruiser 377/502/540/575 Bravo / Alpha One
Complete side hull mount tilt trim motor, pump, and reservoir assembly for MerCruiser sterndrive applications. Includes 12V DC reversible motor, Oildyne pump, plastic reservoir, steel hull-mount bracket, solenoids, wiring cables with ring terminals, junction block, and hardware. SAE J1171 Marine Ignition Protection Certified. 3-wire connection. Fits MerCruiser Alpha One (1983-1998), Bravo One, Two, Three (1998 and later), Mercury 377, 502, 540, 575 Bravo engines (1998-2006). Replaces original square-style motor.

OEM PART NUMBERS:
Mercury Marine: 14336A6, 14336A8, 14336A9, 14336A12
Mercury Marine: 14336A15, 14336A17, 14336A20, 14336A22
Mercury Marine: 14336A25, 14336A28, 14336A31
Mercury Marine: 88183A5, 88183A6, 88183A8, 88183A11
Mercury Marine: 88183A12, 88183A13, 88183A25
Mercury Marine: 865380A03, 865380A13

SPECIFICATIONS:
Product Type: Complete Tilt Trim Assembly (Side Hull Mount)
Includes: Motor, Oildyne Pump, Reservoir, Mounting Bracket, Solenoids, Wiring, Junction Block, Hardware
Mounting: Side Hull Mount
Voltage: 12V DC
Rotation: Reversible (Bi-Directional)
Connection: 3-Wire (Ring Terminal Ends)
Pump Type: Oildyne
Reservoir: Plastic (White)
Bracket: Steel Mounting
SAE J1171 Marine Ignition Protection Certified
Quick Connect Hose Fittings
Condition: New

APPLICATIONS:
MerCruiser Alpha One Gen II Sterndrive
MerCruiser Bravo One / Two / Three and All Variants
MerCruiser Blackhawk / Integrated Transom
MerCruiser TR/TRS (1977-1993)
Mercury 377/502/540/575 Bravo (1998-2006)

⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
