Temp Control Sensor
Type S Platinum Rhodium Thermocouple WRP-100 150/200/300/500mm Probe Temperature Sensor 0-1300 for Muffle Furnace Electric Kiln
Made of 99 corundum tube material, to high temperature, wear, corrosion, and .
It has the features of stable performance, strong oxidation resistance, and the shortterm temperature measurement range can be up to 1600 .
Adopted platinum rhodium wire, 0.12mm wire diameter, heatresistant anticorrosive.
It can directly measure the temperature of gas, liquid, solution and fixed surface in various production processes.
It has the advantages of simple structure, convenient use, high accuracy and long service life.
Specification:
Condition: 100%
Item Type: Thermocouple
Model: WRP-100
Graduation: SType
Material: 99 corundum tube
Resistance Component: Platinum rhodium wire
Wire Diameter: Approx. 0.12mm / 0.004in
Tube Diameter: Approx. 8mm / 0.314in
Measurement Range: 0°F-2372°F (0°C-1300°C)(long term)0-1600 (short term)
Industrial platinum and rhodium thermocouples are also called precious metal thermocouples. They are used as temperature measurement sensors and are usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system to directly measure or control various production processes. The temperature of fluid, steam, gas medium and solid surface within the range of 0-1600.
The platinum rhodium thermocouple is a circuit composed of two different conductors connected at both ends of the circuit. When the temperature of the two junctions is different, a thermal current will be generated in the circuit. If there is a temperature difference between the working end of the thermocouple and the reference end, the display instrument will indicate the temperature value corresponding to the thermoelectric potential generated by the thermocouple.
The thermoelectric heat of the platinum-rhodium thermocouple will increase with the increase in the temperature of the measuring end, and its size is only related to the thermocouple material and the temperature at both ends, and has nothing to do with the length and diameter of the thermoelectrode.

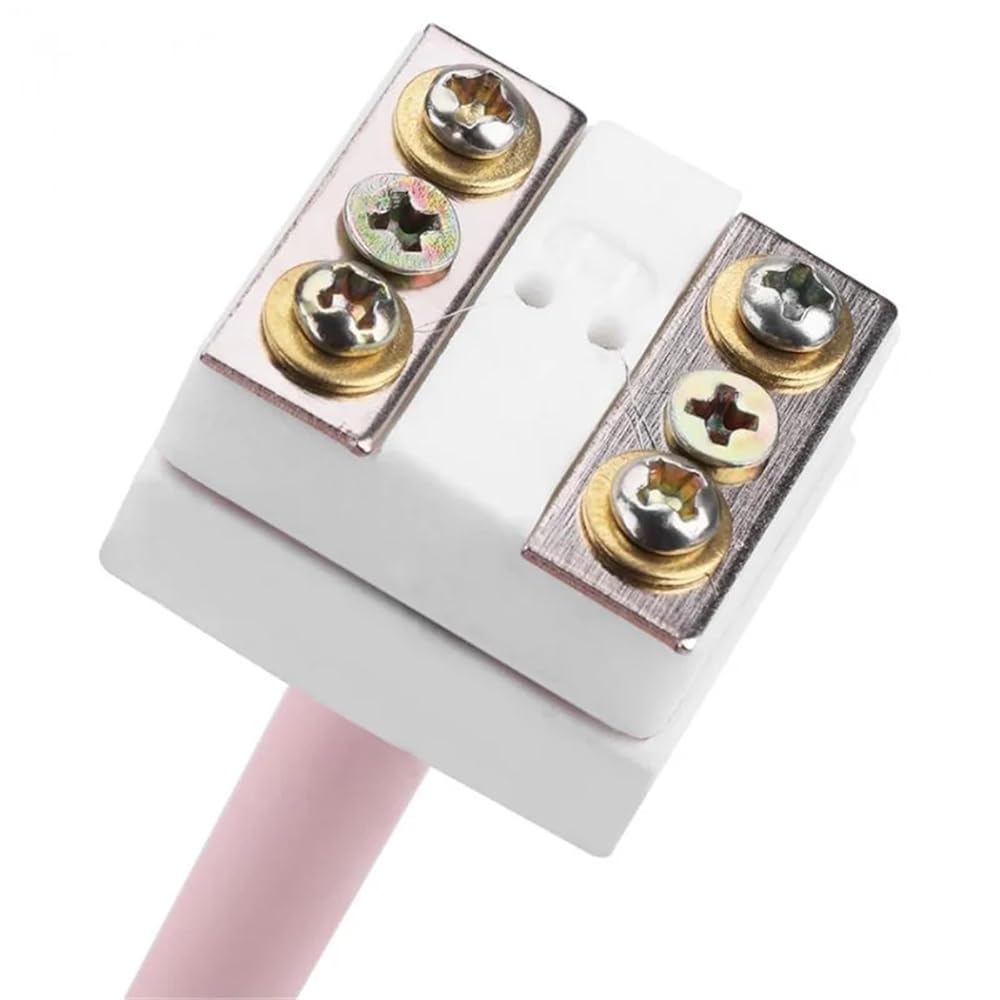

The appearance of various platinum and rhodium thermocouples is often very different due to needs, but their basic structure is roughly the same, usually composed of main components such as a thermode, an insulating sleeve protection tube and a junction box.
Package List:
1 x Thermocouple
Features:
Picture Show:
==========
Battery Included : No
Hign-concerned Chemical : None
Theory : Thermocouple Thermometer
Display Type : Digital
Power Type : None
Certification :
Model Number : Thermocouple
Origin : Mainland
Max Measuring Temperature : 120°C & Above
Style : Handheld
Is Smart Device : No
Display Size : 1.9 Inches & Under
Condition :
Item Type : Thermocouple
Model : For WRP-100
Graduation : S
Material : 99 corundum tube
Resistance Component : Platinum rhodium wire
Wire Diameter : Approx. 0.12mm
Tube Diameter : Approx. 8mm
Package List : 1 x Thermocouple
Feature 1 : Wear corrosion and
Feature 2 : Strong oxidation resistance
Feature 3 : Heat-resistant anti-corrosive
