Description:
Made of metal and plastic material which is durable and can use for a long time.
The high impedance fuel injector has been tested and exactly matches the internal coil resistance and fuel flow rate of OEM fuel injector.

Specification:

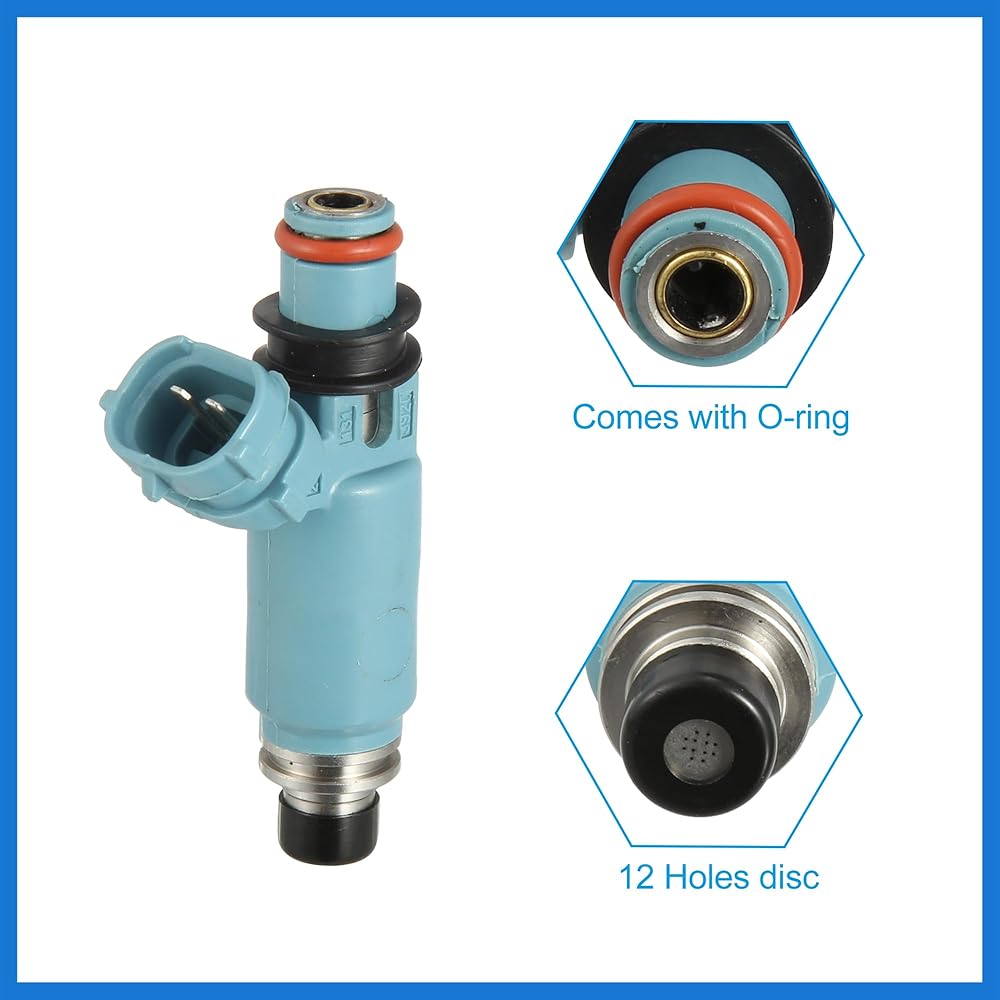

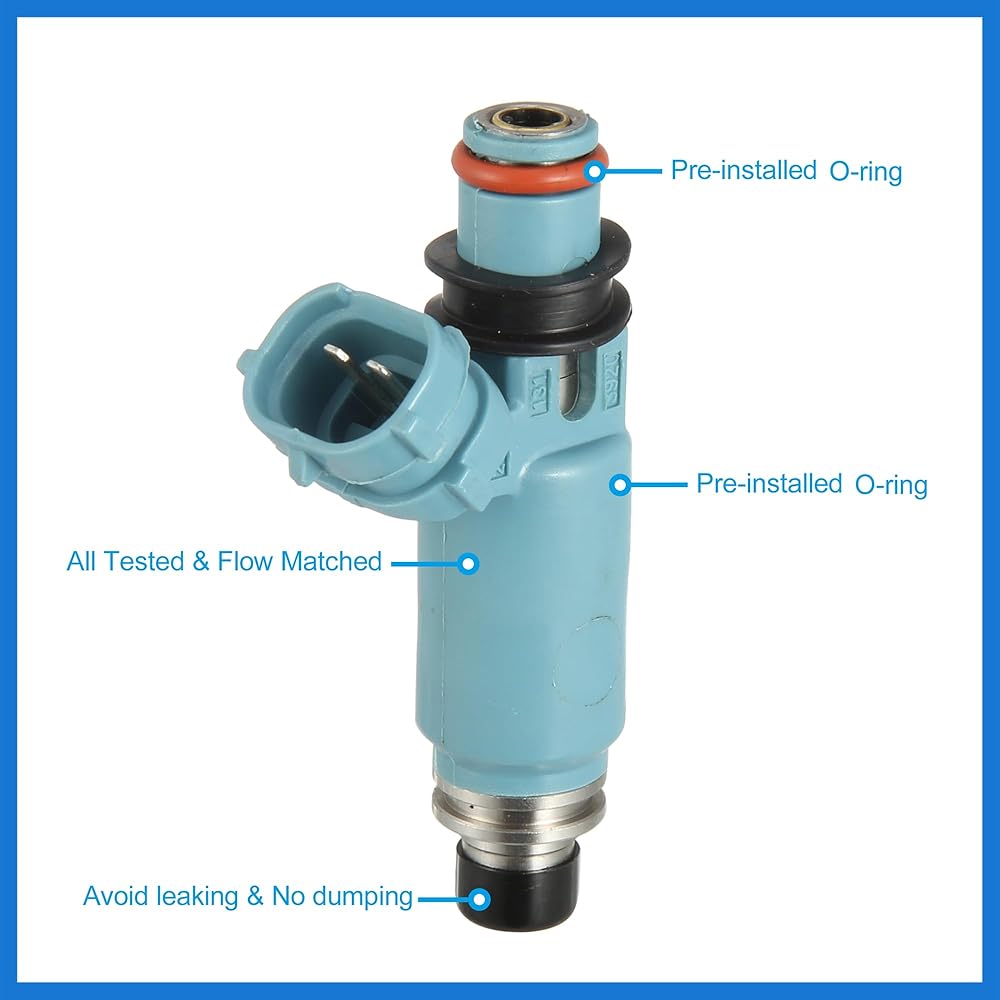

O-Rings Included: Yes, preinstalled
Orifice Type: 12 Holes Disc
Voltage: DC 12V
Material: Metal, Plastic
Color: Blue

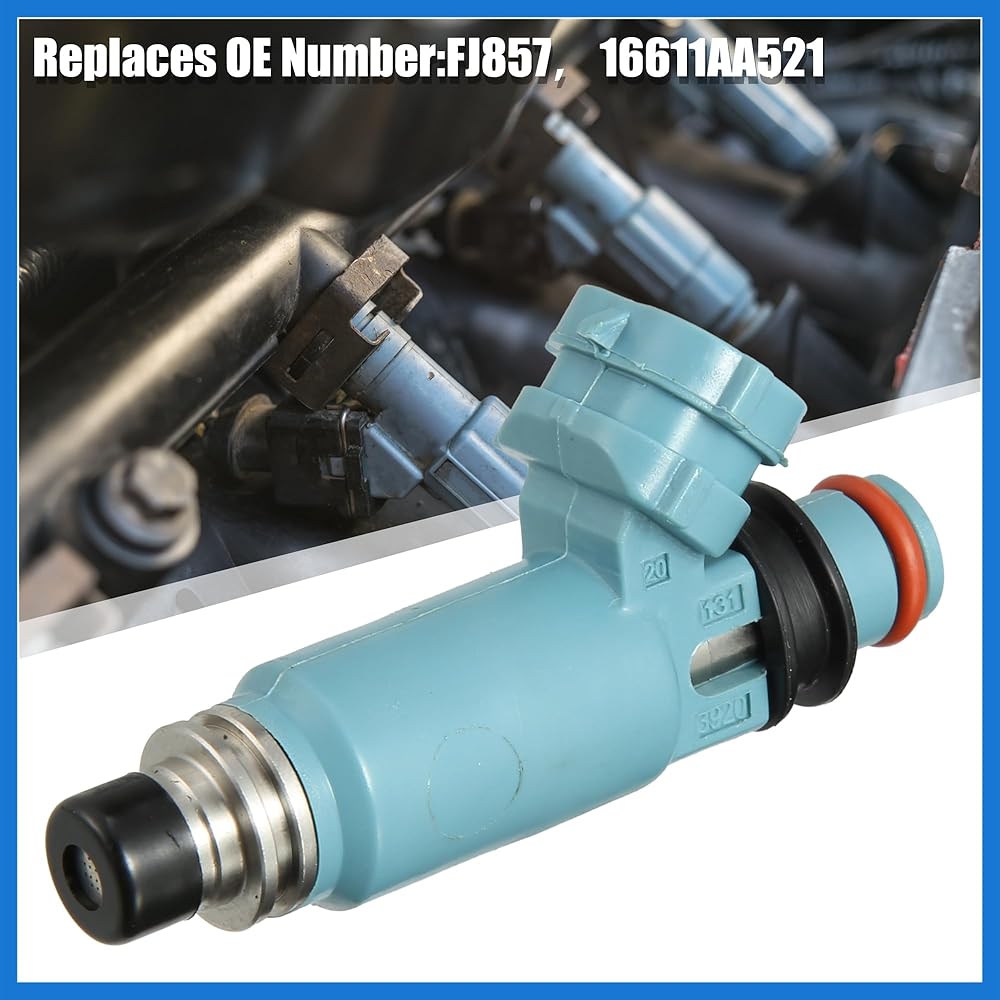

OE Number: 16611-AA521, 195500-3920, 297-0033
Pin Number: 2
Dimension: 63.4x30.1x18.9mm / 2.50"x1.19"x0.74"(L*W*H)
Inner Diameter: 4.2mm / 0.17"
Outer Diameter: 11.5mm / 0.45"
Flow Rate: Same as

Fitment:
for Subaru Impreza 205 WRX 2.0L Turbo 2002-2005
for Subaru WRX 205 2.0L Turbo 2002-2005

Note:
This installation should be done by an experienced mechanic who has access to a factory service manual and all required tools!
This is a non-OEM product, accessory only!

Package Included:

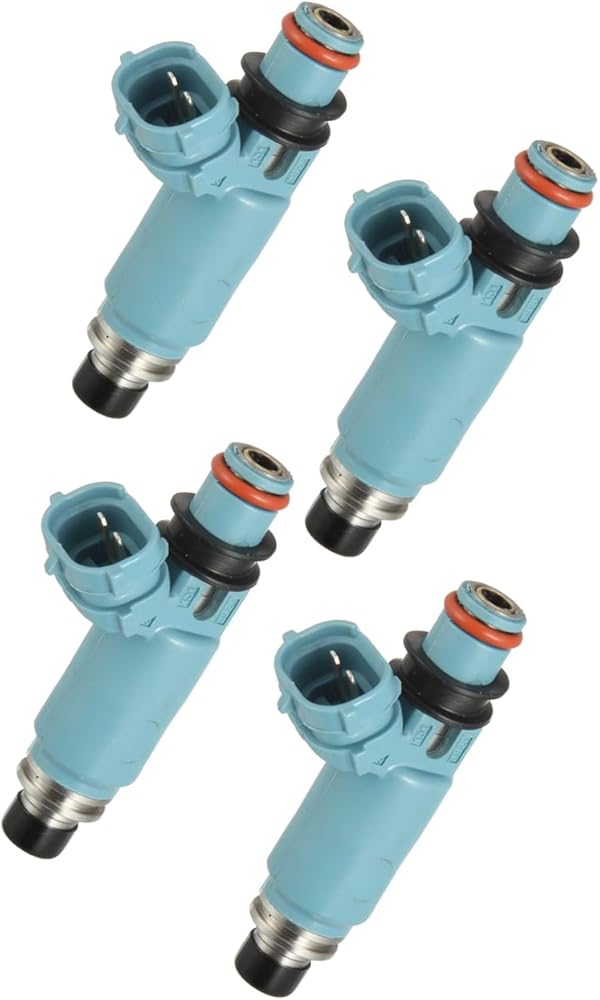

4 x Fuel Injector

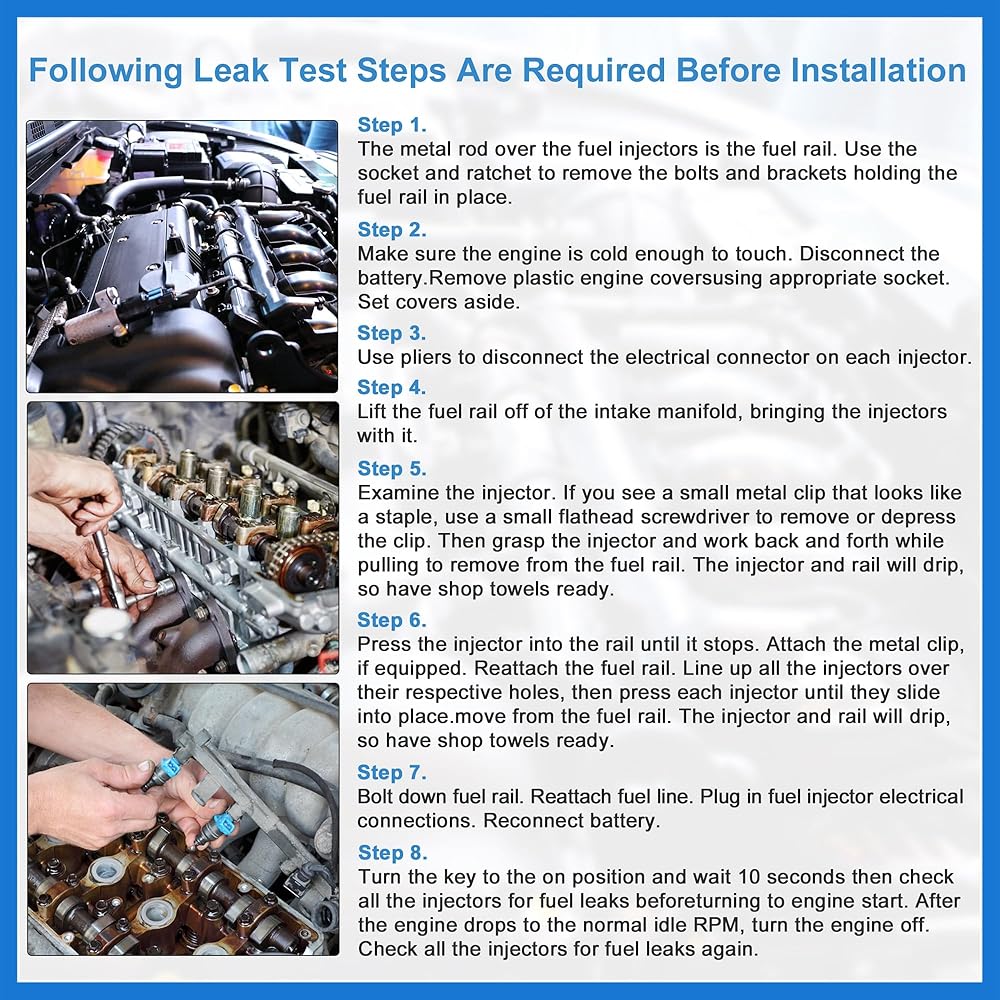

Installation:
Step 1. Make sure the engine is cool down. Disconnect the battery.
Step 2. Remove the bolts and brackets from the fuel rail.
Step 3. Disconnect the plug on each injector.
Step 4. Lift the fuel rail and remove the injector from the fuel rail.
Step 5. Press the new injector into the rail. Reattach the fuel rail and put the injectors in their respective holes.
Step 6. Bolt down fuel rail. Reattach fuel line. Plug in injector connectors. Reconnect battery.
Step 7. Double check for fuel leaks before and after starting the engine.
