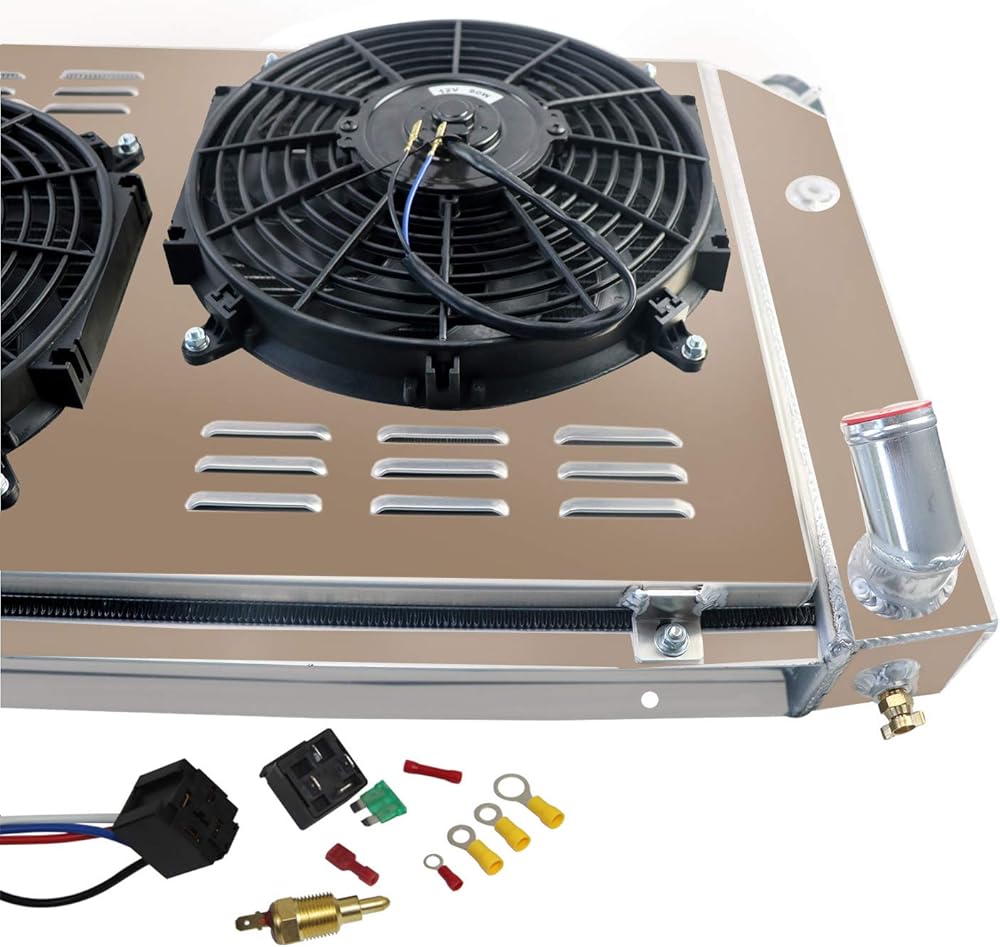

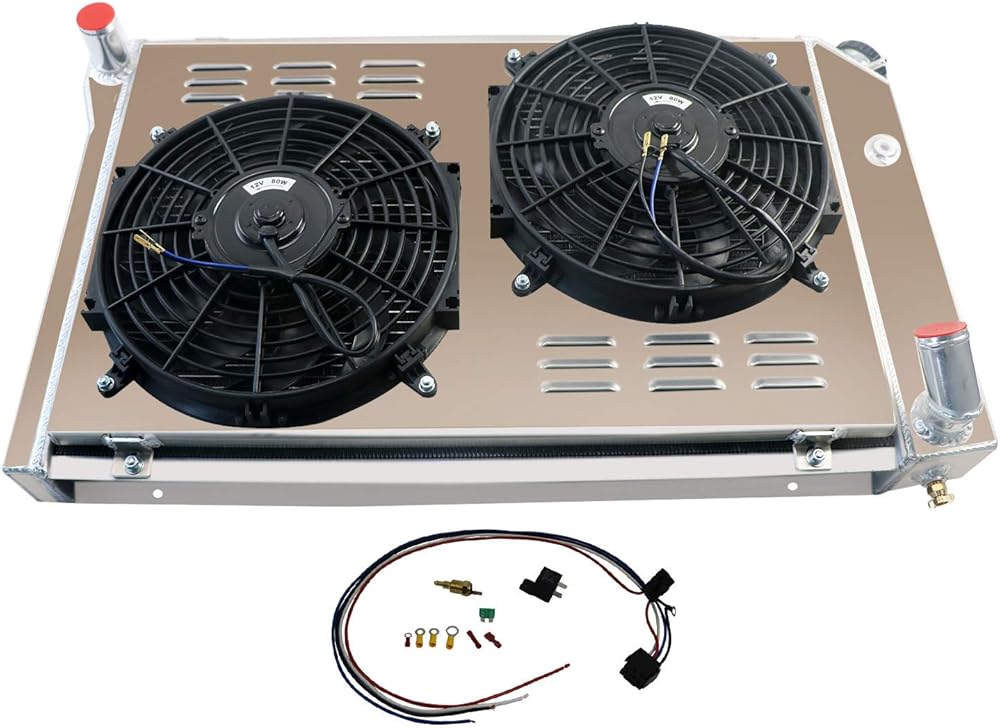

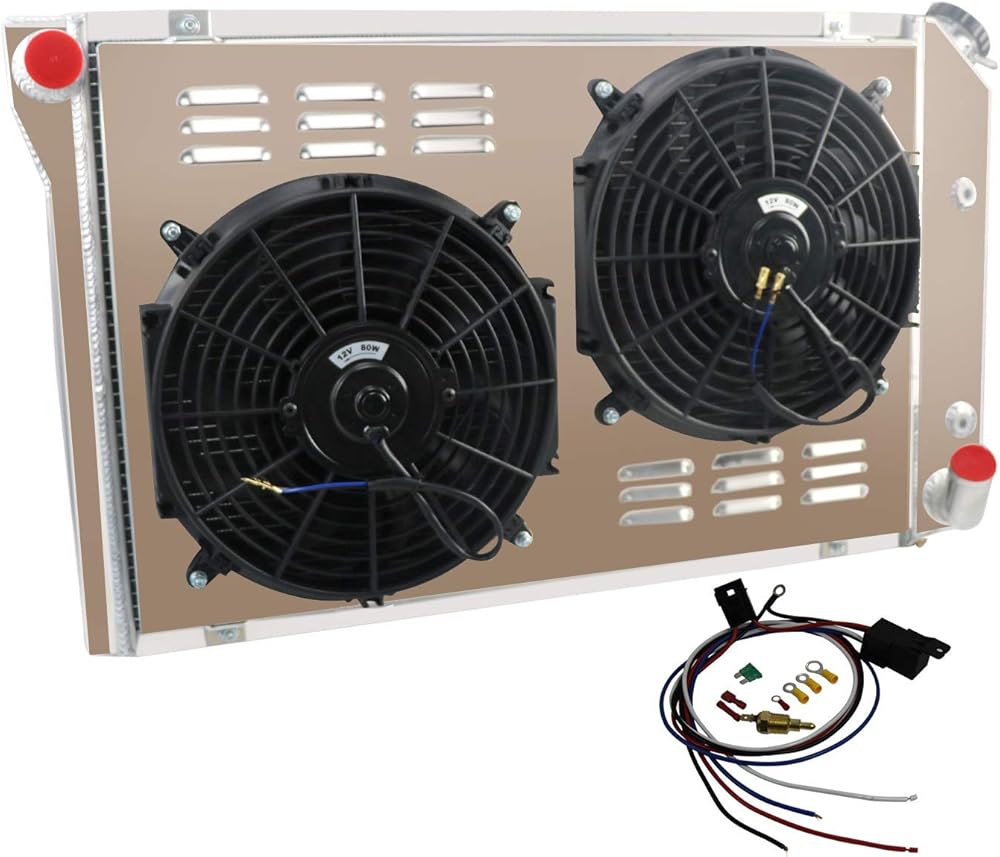

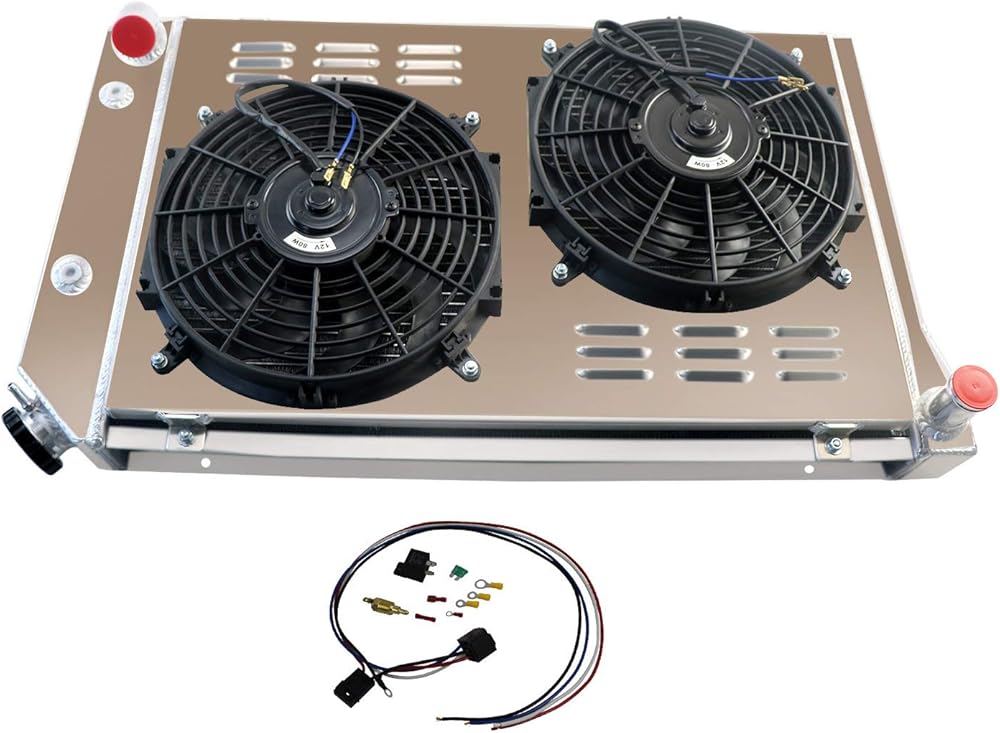

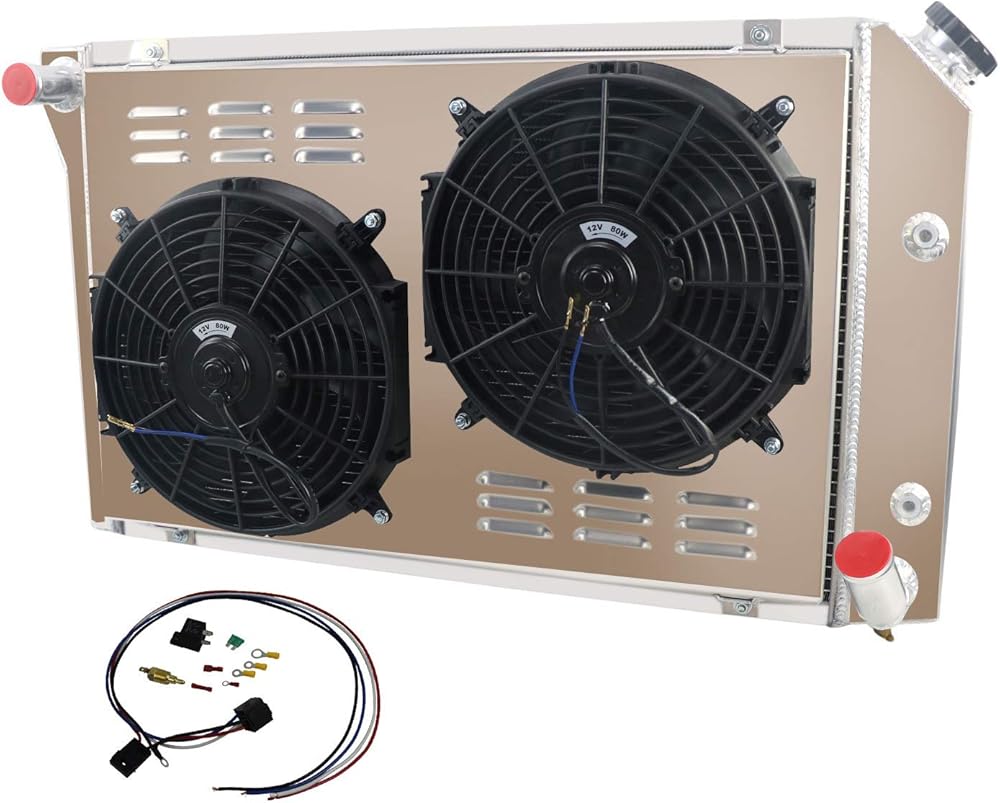

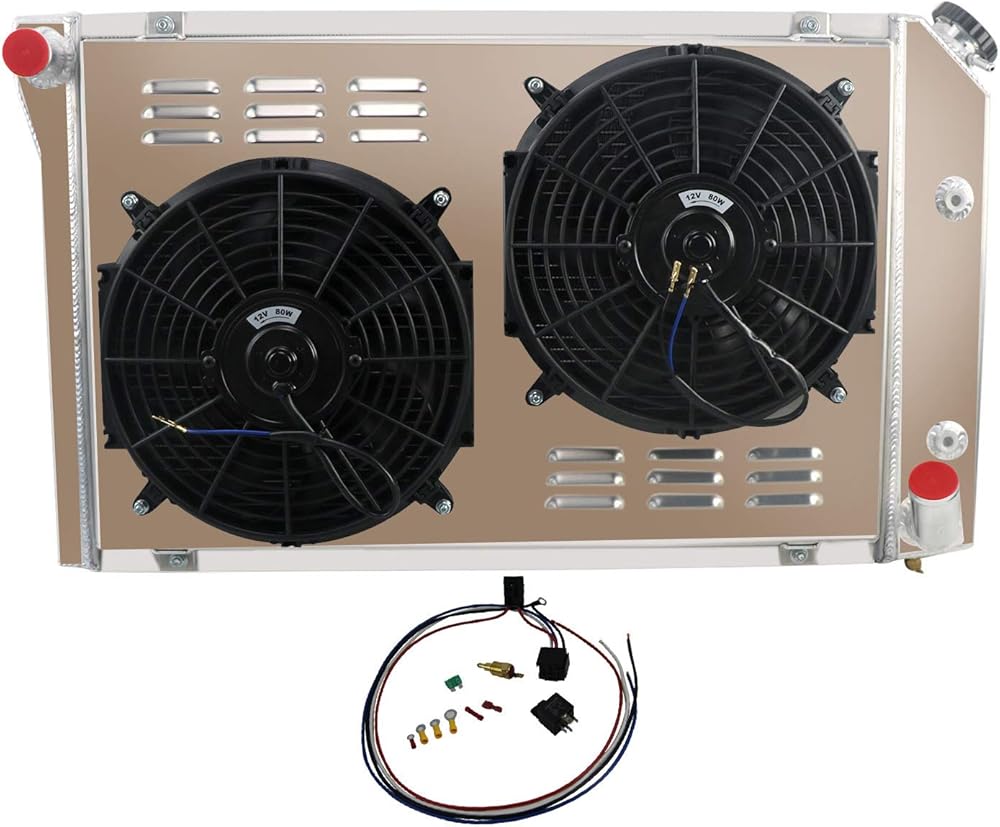

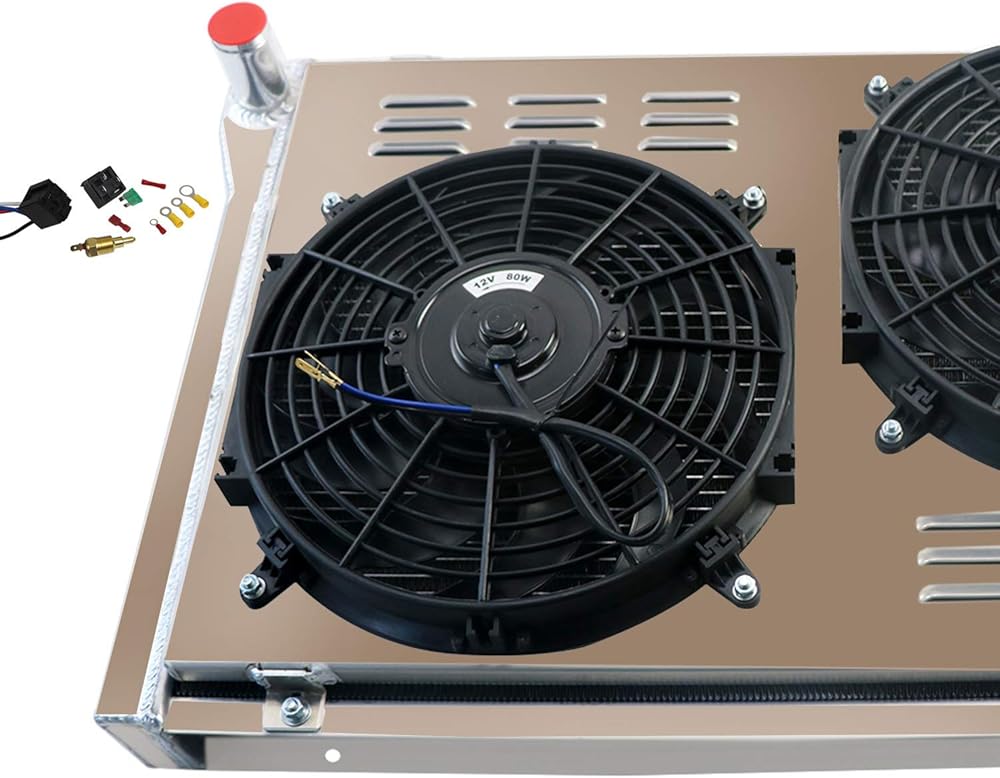

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND 2X12" FANS AND Thermostat Kits!

Radiator Size:
Row: 3 Row-Core
Material: Full Aluminium
Radiator Cap: included
Core and Tank: All Aluminum
Core Size: 16-1/2" H x 26-1/2" W
Overall Size: 18-3/4" H x 32-1/4" W
Upper Inlet: 1-3/8" located on the Driver side.
Lower Outlet: 1-1/2" located on the Passenger side.
Transmission Cooler: Included Saddle Mount

Transmission: Auto and Manual.

Vehicle Fitment:
FOR 77-82 CHEVROLET CHEVY CORVETTE V8
For 77-82 CHEVY CORVETTE 5.0/5.7 V8
For Chevy Corvette C3 350/305 5.7/5.0 V8 77-82
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

Probe typically threads into radiator, water outlet or manifold.
