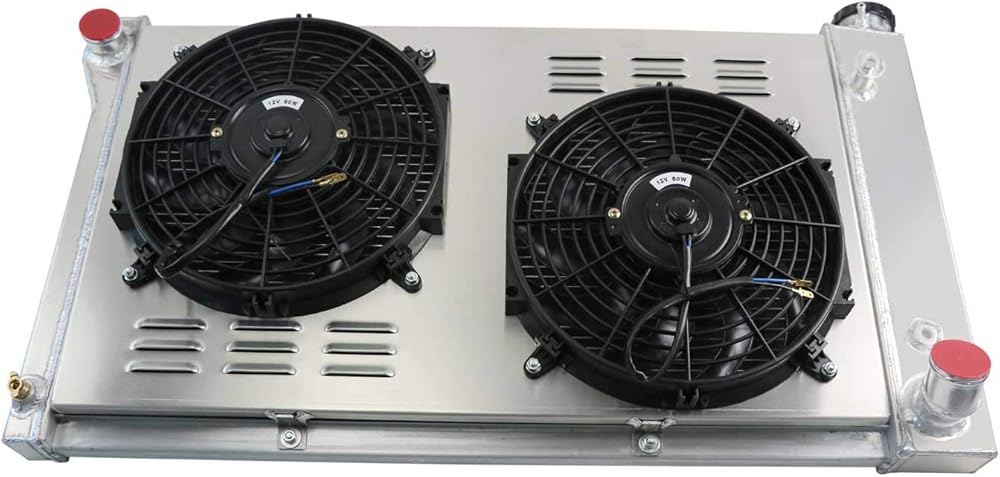

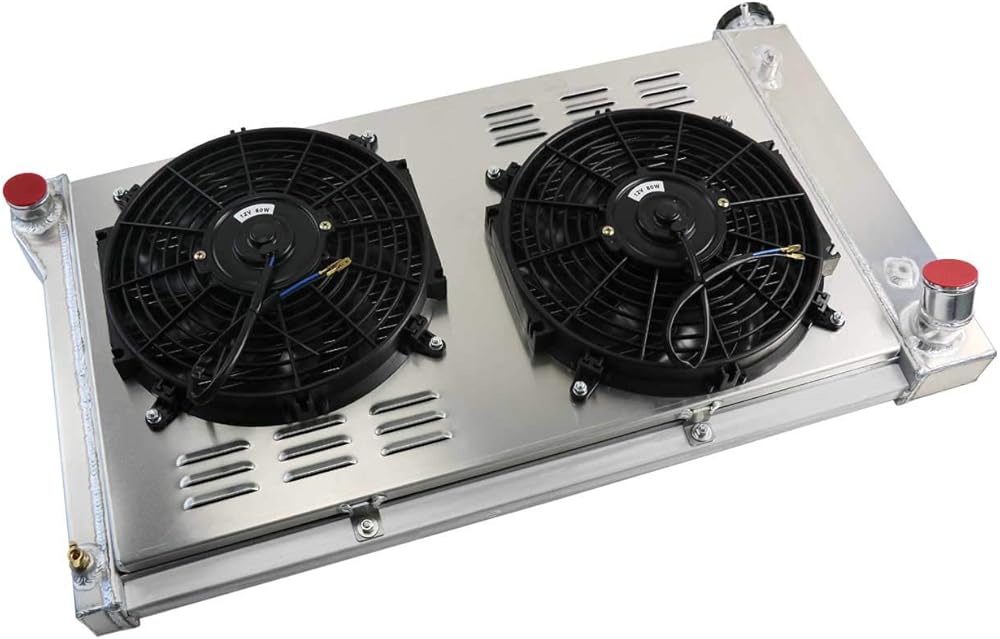

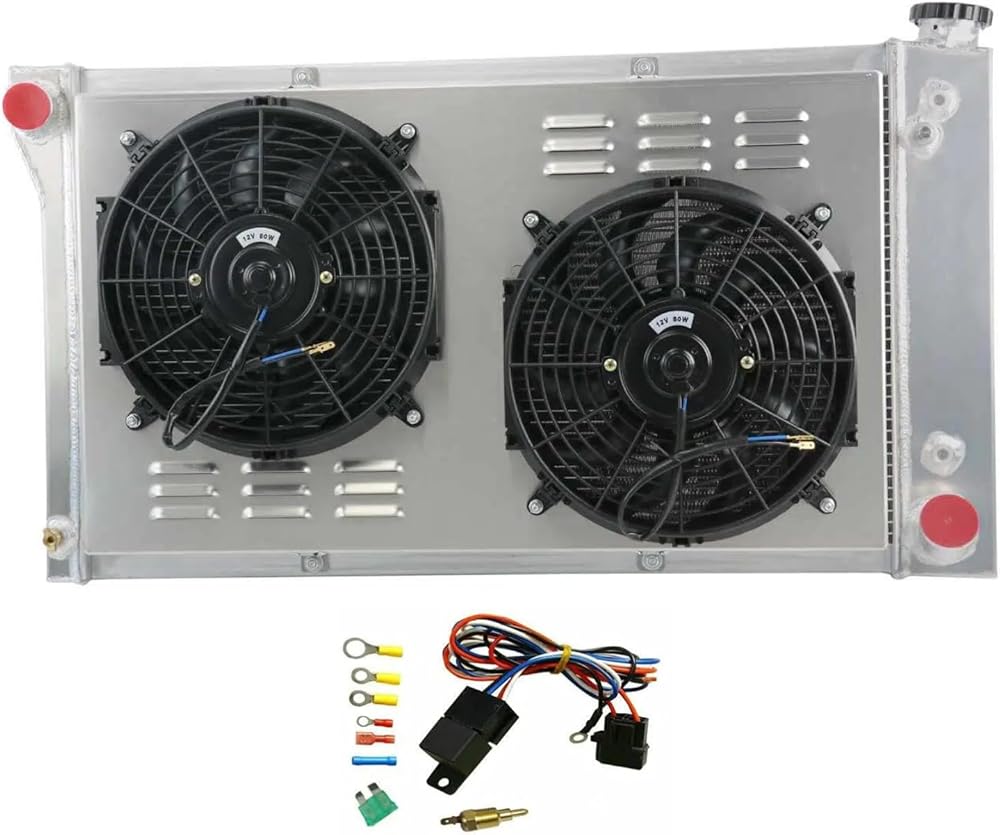

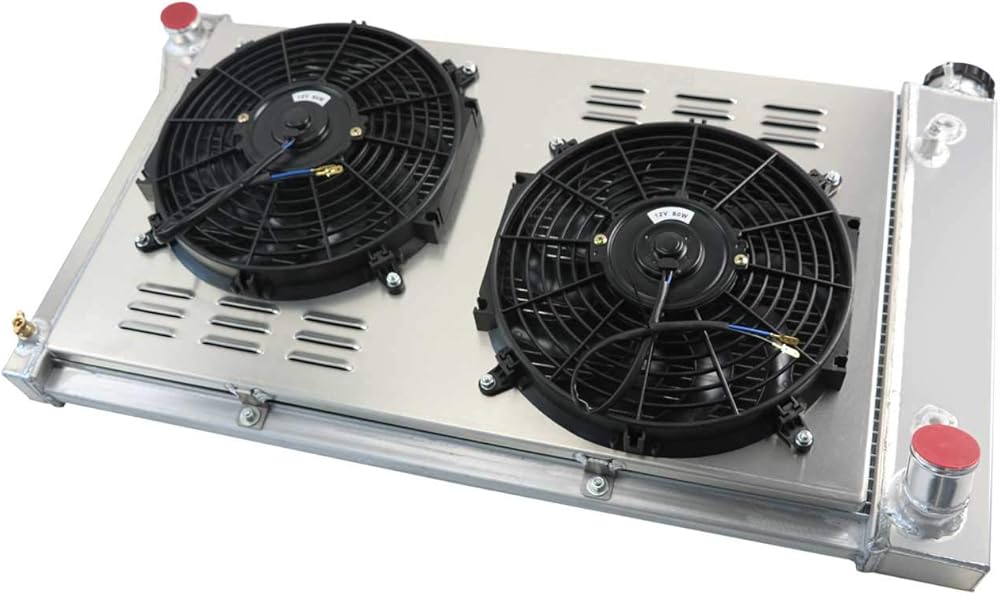

Package Include:
1 X 3-Row AA5052Aluminum Radiator
1 X CNC Machined Radiator Cap

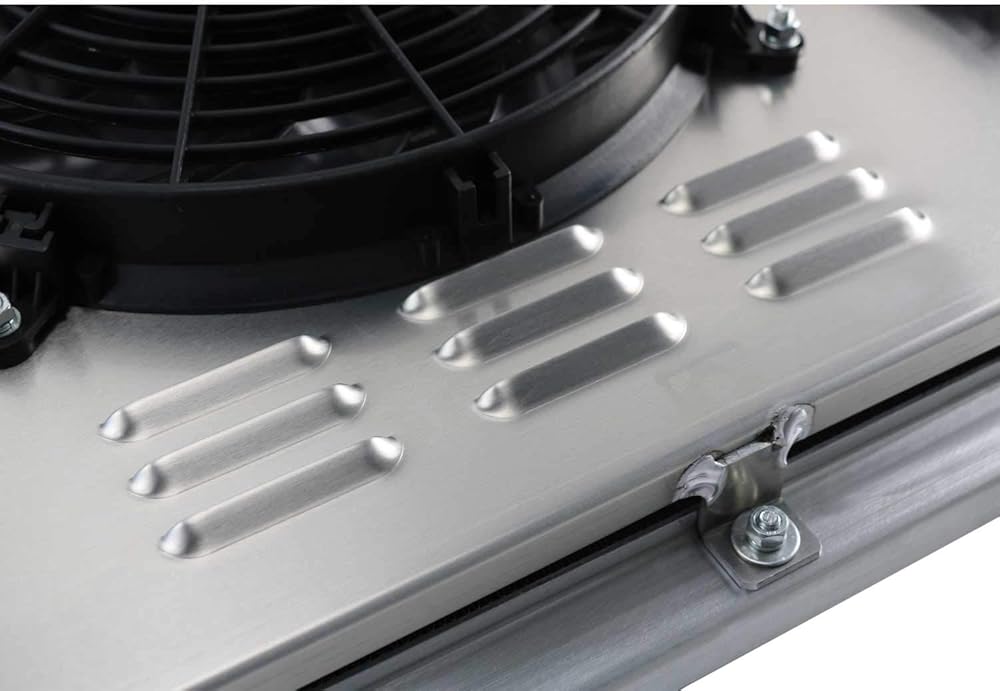

1 X Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Fitment:
Compatible with 67-72 CHEVY C/K SERIES C10/C20/K10/K20 PICKUP
Compatible with Chevy / GMC C/K Series Pickup Suburban Truck 67-72
Compatible with 67-72 CHEVY C10 C/K JIMMY
Compatible with 67-72 CHEVY C10 C/K
Compatible with 67-72 CHEVY C/K SERIES C10/C20/K10/K20 PICKUP V8
Compatible with 67-72 CHEVY G/P/C/K BLAZER/JIMMY
Compatible with 67 68 69 70 71 72 Chevy C10 C20 K10 K20 K30
Compatible with 67-72 Chevy GMC Truck, Blazer

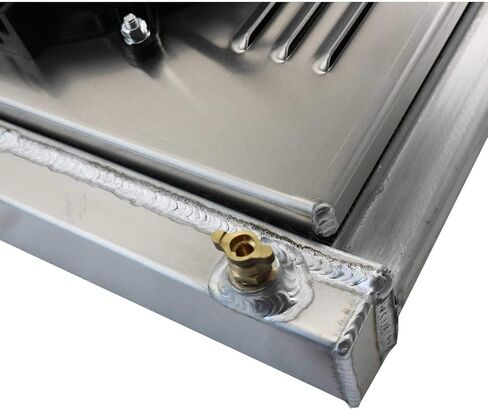

Radiator Configuration:
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum

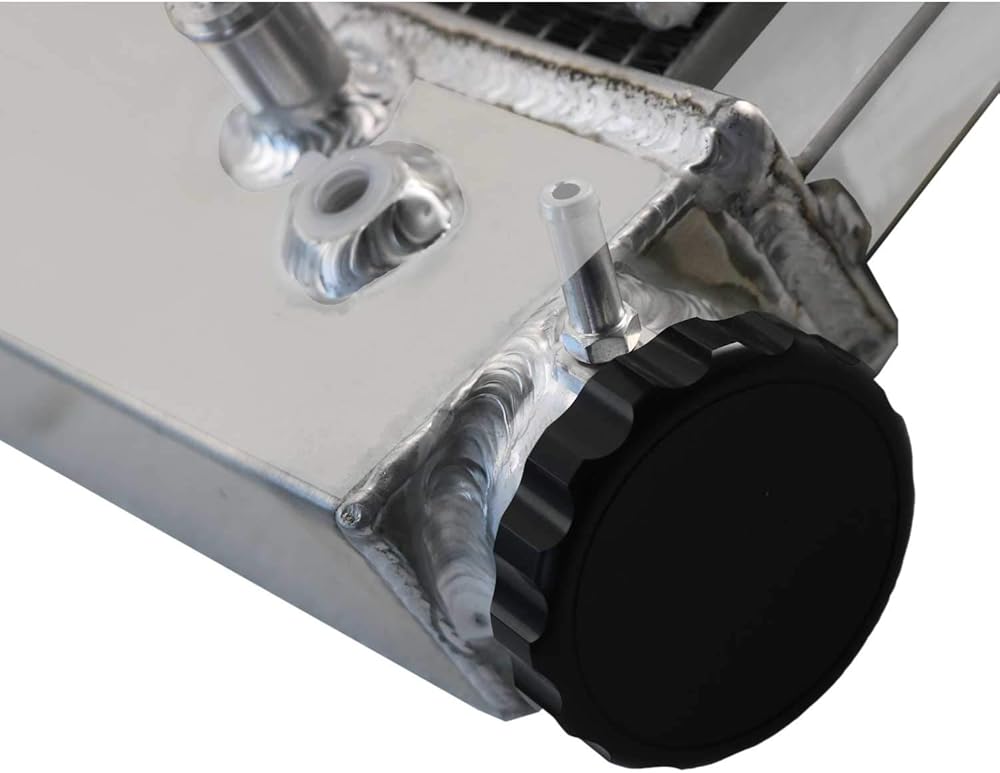

Includes CNC machined filler neck and cap
Core Dimensions: 17" high x 28-1/4" wide x 2"
Overall Dimensions: 19-1/4" h x 33-7/8" w
Upper inlet: 1-1/2" located Driver Side
Lower outlet: 1-3/4" located Passenger Side

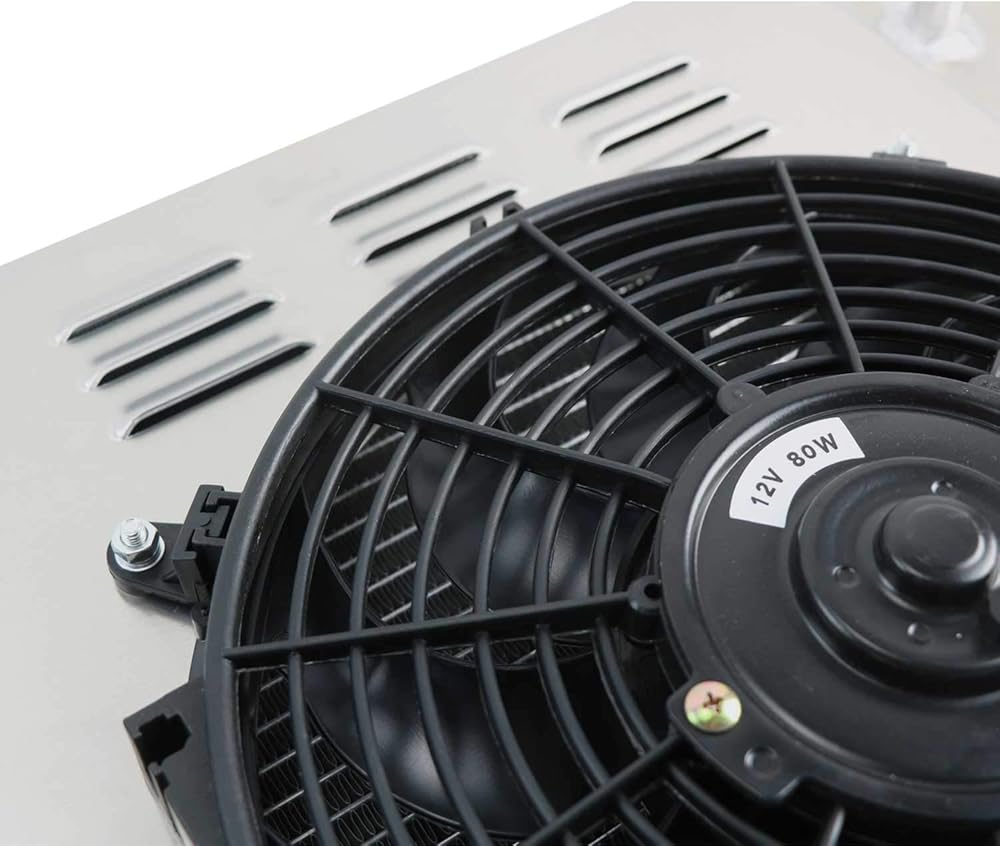

12" FAN SIZE:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
