Compressor parameters:
Rated voltage frequency: 12-24V (DC) Vibration : 0.6m/s²
Working Back Pressure: Low Back Pressure (L.B.P)
Cooling status: natural cooling / air-cooled Throttling device: capillary tube
Evaporating temperature : -35～-10℃
Operating voltage range : 9.6～17/21.3～31.5V
Max. exhaust pressure : 1.86 MPa(abs)
Max. condensing temperature : 65℃
Max. winding temperature : 130℃
Max. case temperature : 95℃
Max. exhaust temperature : 120℃
Starting performance : 12/24V [0.5/0.5MPa(abs)
Oil type: Ester oil Oil filling volume : 150ml±10ml
Diameter of suction pipe (inner diameter) : Φ6.2±0.1 mm
Exhaust pipe diameter (inner diameter) : Φ5.0±0.1 mm
Process pipe diameter (inner diameter): Φ6.2±0.1 mm
Cooling Capacity:
RPM is 2000, cooling capacity is 45W , 38.7 Kcal/h ,153.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 2.9/1.4，input Power is 36W
RPM is 2500, cooling capacity is 55W , 47.3 Kcal/h ,187.7 btu/h,Efficiency COP is 1.25 w/w,electric current is 3.5/1.7,input Power is 44W
RPM is 3000, cooling capacity is 64W , 55 Kcal/h ,218.4 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.1/2.0, input Power is 51W
RPM is 3500, cooling capacity is 74W , 63.6 Kcal/h ,252.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.9/2.4, input Power is 59W

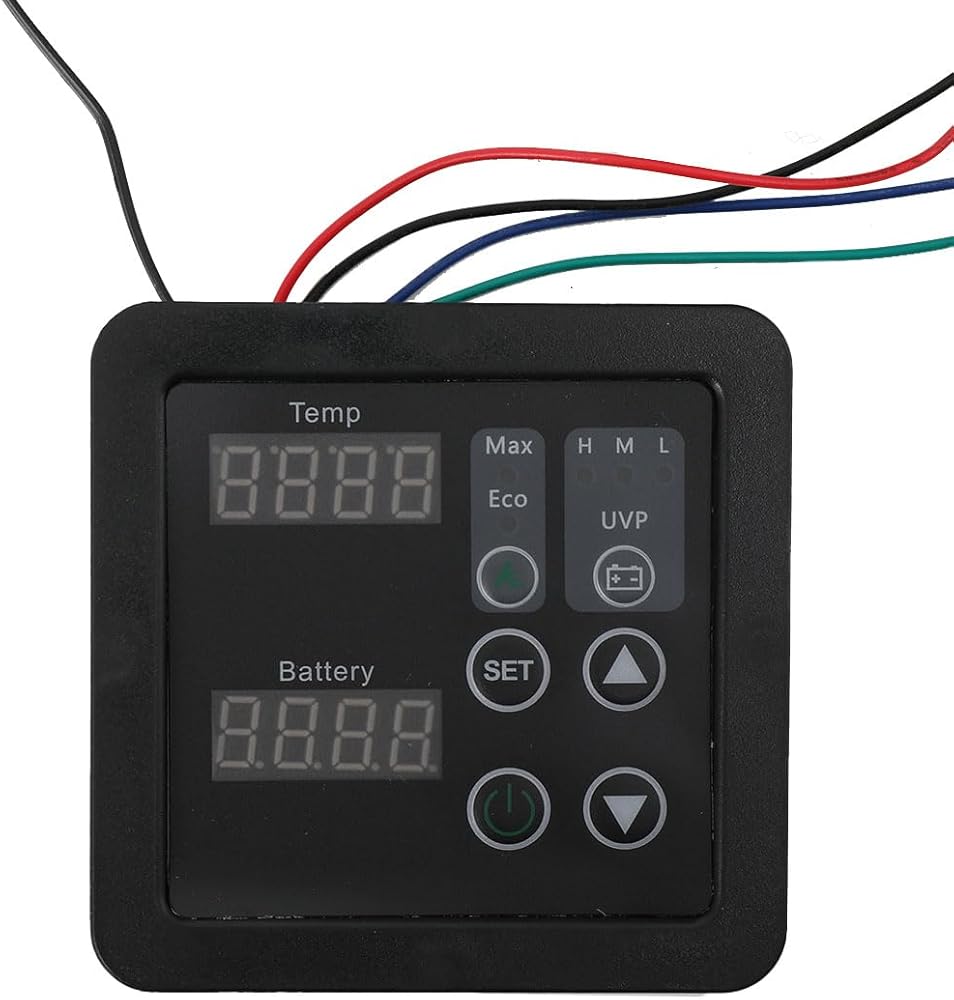

Digital Thermostat Parameters:
Voltage range: DC 12-24V, limit 35V
Operating current: 0.1A
Door Lamp Function: Door lamp voltage follows input voltage
Temperature probe accuracy: ±1℃
Operating ambient temperature: -10℃～60℃, relative humidity 20%～90%

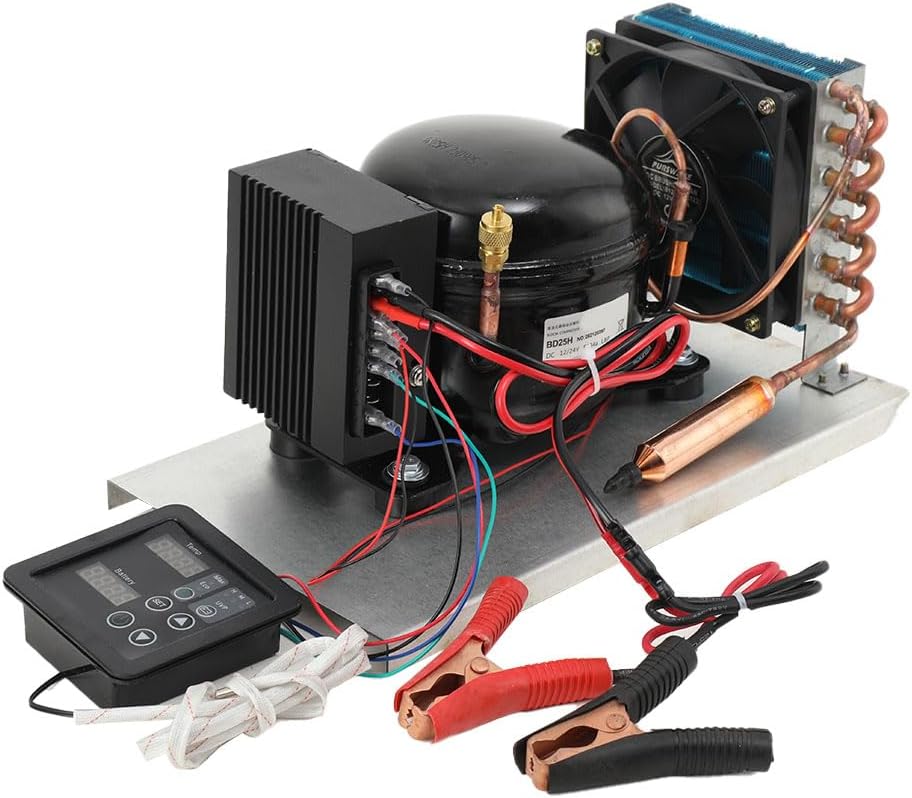

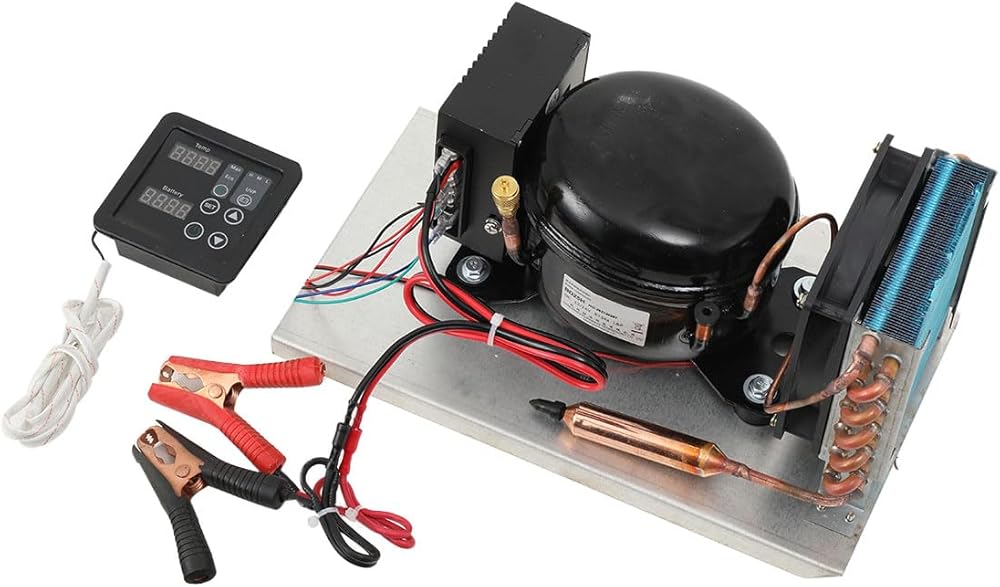

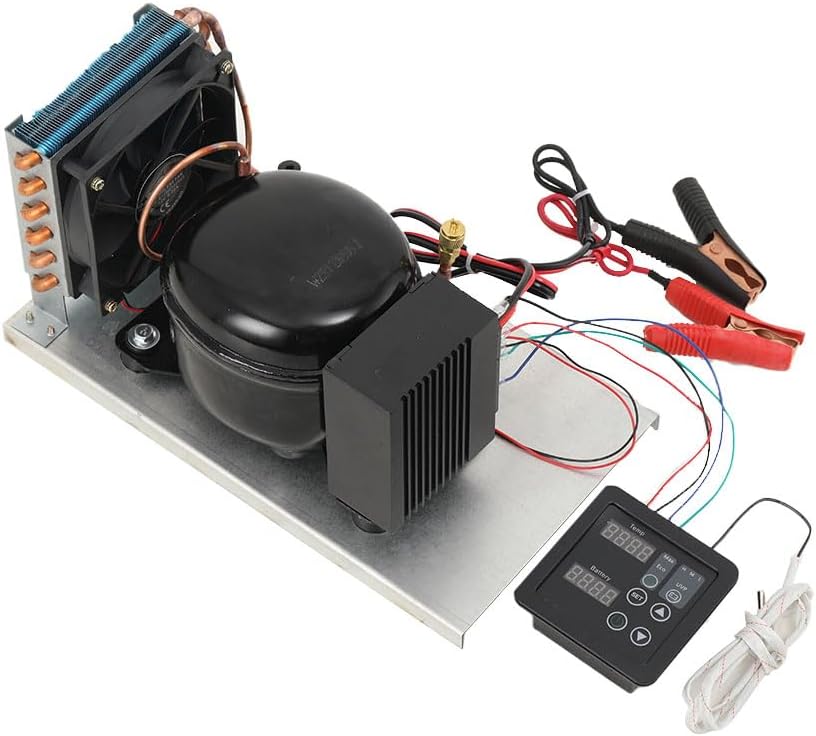

Package Including
1 x Compressor
1×Temperature controller
