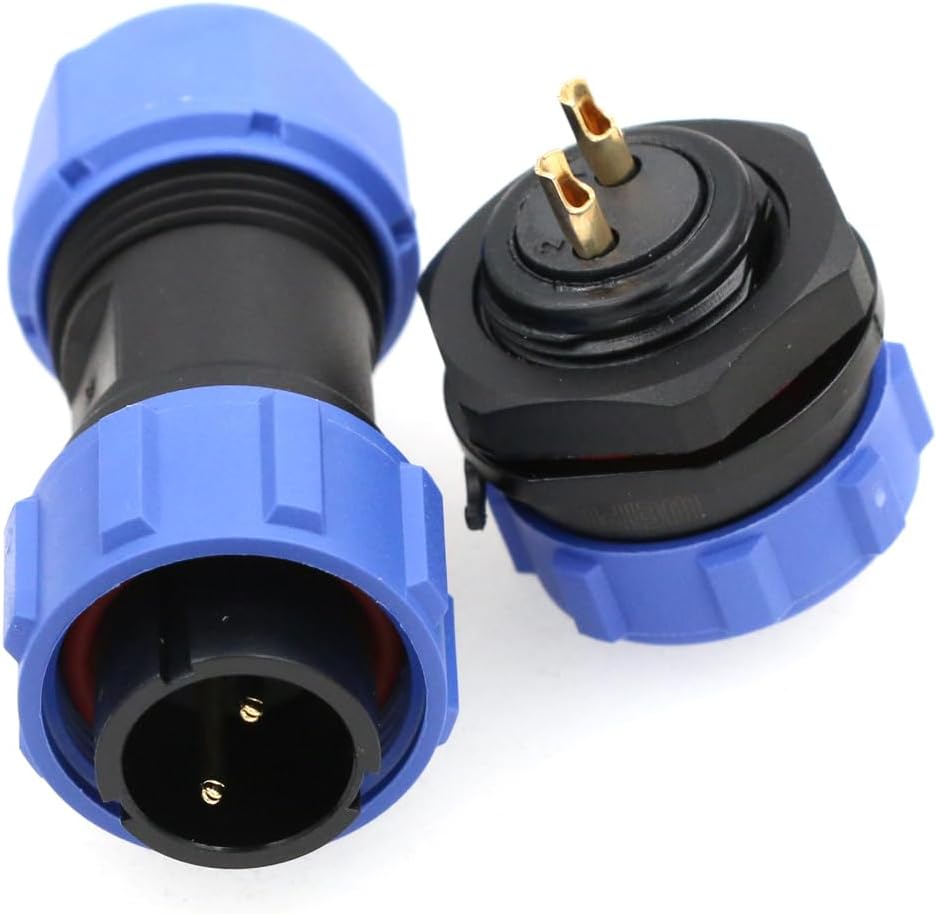

Weipu SP17 Connector 3 Pin Female Male Plug Front Mount Socket Dust Cap SP1710 SP1712 High Voltage Original Electrical Heavy Circular Connector in Saudi Arabia

2 Pin 10A Panel Mount--Plug(male)&Socket(female)

SAR 68
Brand
ZBLZGP
Weight
100 g
ColorPanel Mount--Plug(male)&Socket(female)
Size2 Pin 10A
– 1 +

Special Features

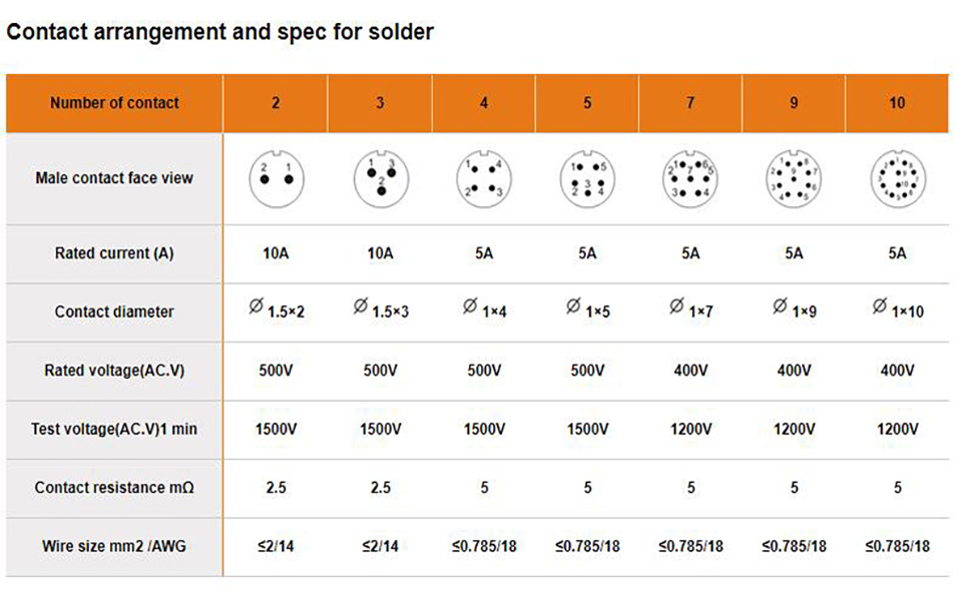

  • Cable Outer Diameter Range: 6-10mm,Rated current:10A, Rated voltage(AC):500V, Withstanding voltage(AC) 1 minute: 1500V.Contact diameter × number: Φ1.5x 3;Contact resistance: 2.5mΩ;Wire specification: <2m㎡/14AWG.
  • Multi-core design styles (2-10 pins), the Panel is mounted with the diversity of industrial demand, compatible signal and power match.
  • IP68 high performance, waterproof.Gold-plated copper pins for quick connection.RMS current rating 5A-15A, AC DC power connector.
  • Weipu SP17 IP68 waterproof aviation connector male plug Gold plated copper pins PPS plastic insert back shell adapter.
  • The SP series of connectors are precision moulded in engineering polymers to give outstanding service in hazardous environments achieved by quality design to meet the IP68 rating, wire connection is by solder terminals (soldering skills need to be good), please pay attention to the voltage and current ratings and make sure any mains connectors are fitted by a competent person.
