PRODUCT SPECIFICATIONS:
AC Input: Standard 110-120 VAC, 60 Hertz (Hz) input(fit 110V household standard)
DC Voltage: 36 volts (Charging output is: 44.1V)
DC Charge Rate: 20 amp
Compatible battery: 36V 160Ah or less then 160Ah

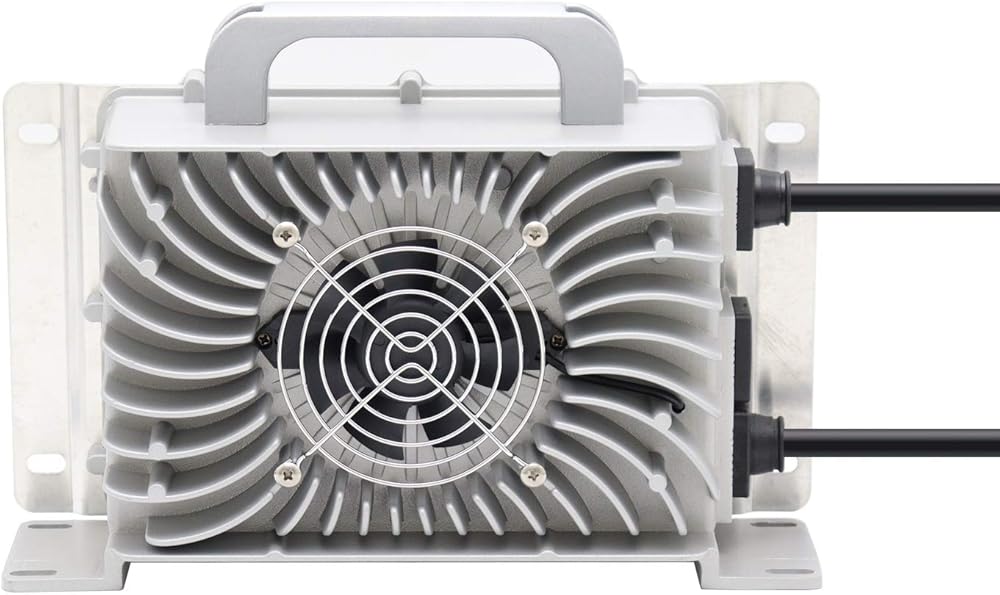

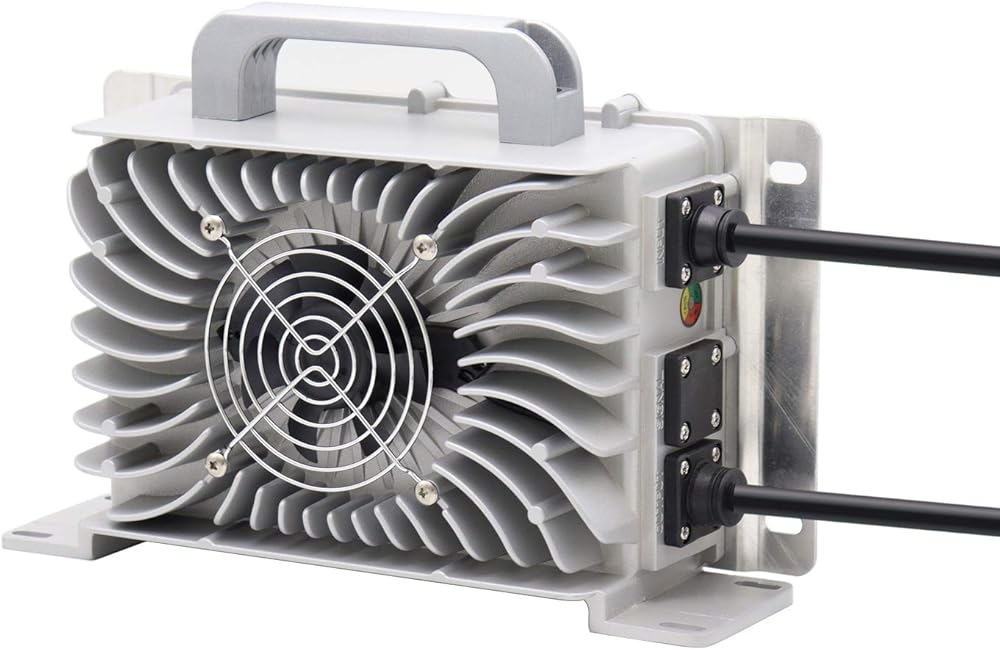

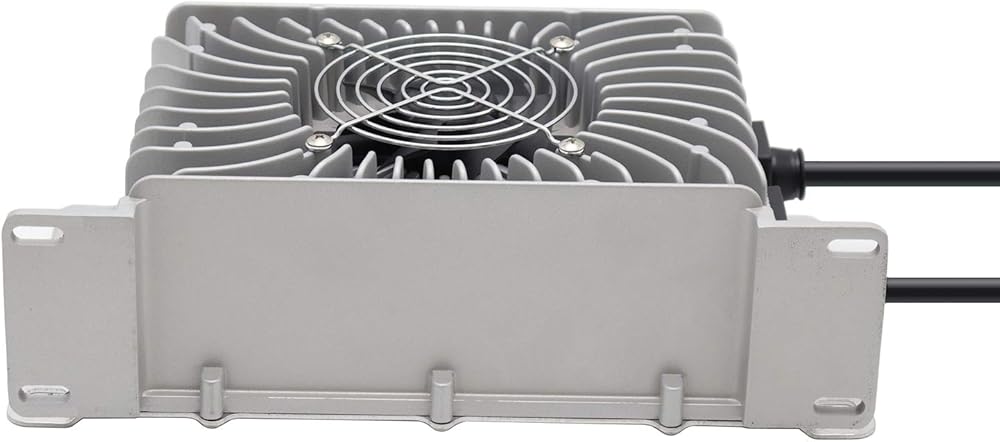

Silver Aluminum with fins design as heat sink
Waterproof: IP68

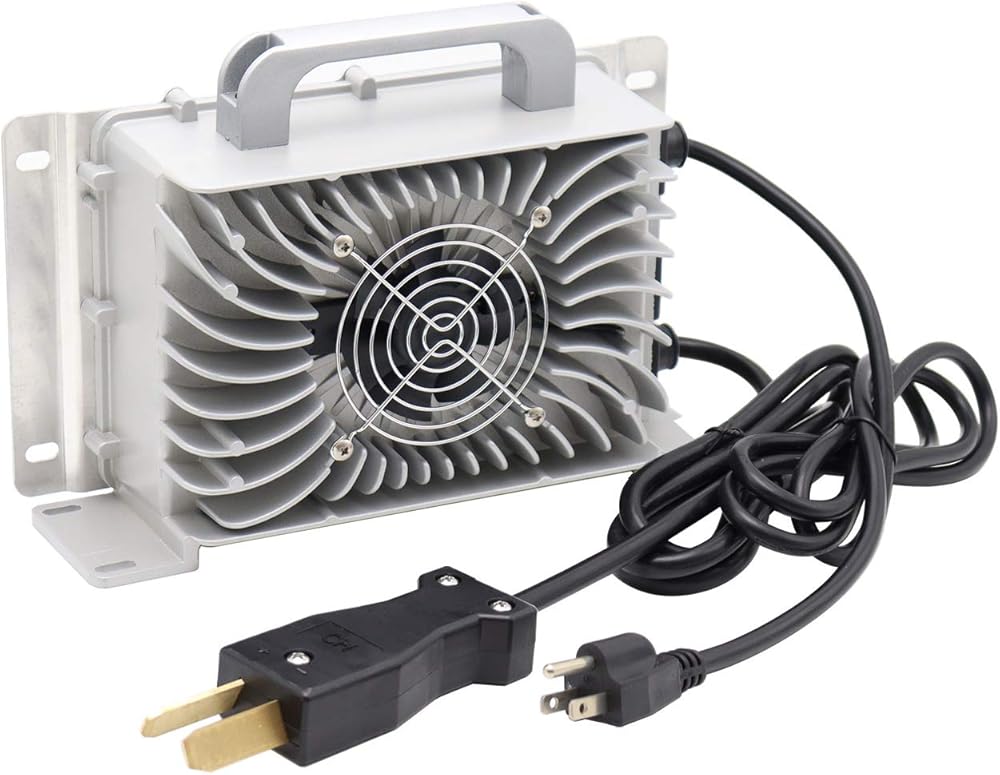

Plug Standard: Crows Foot Style Plug

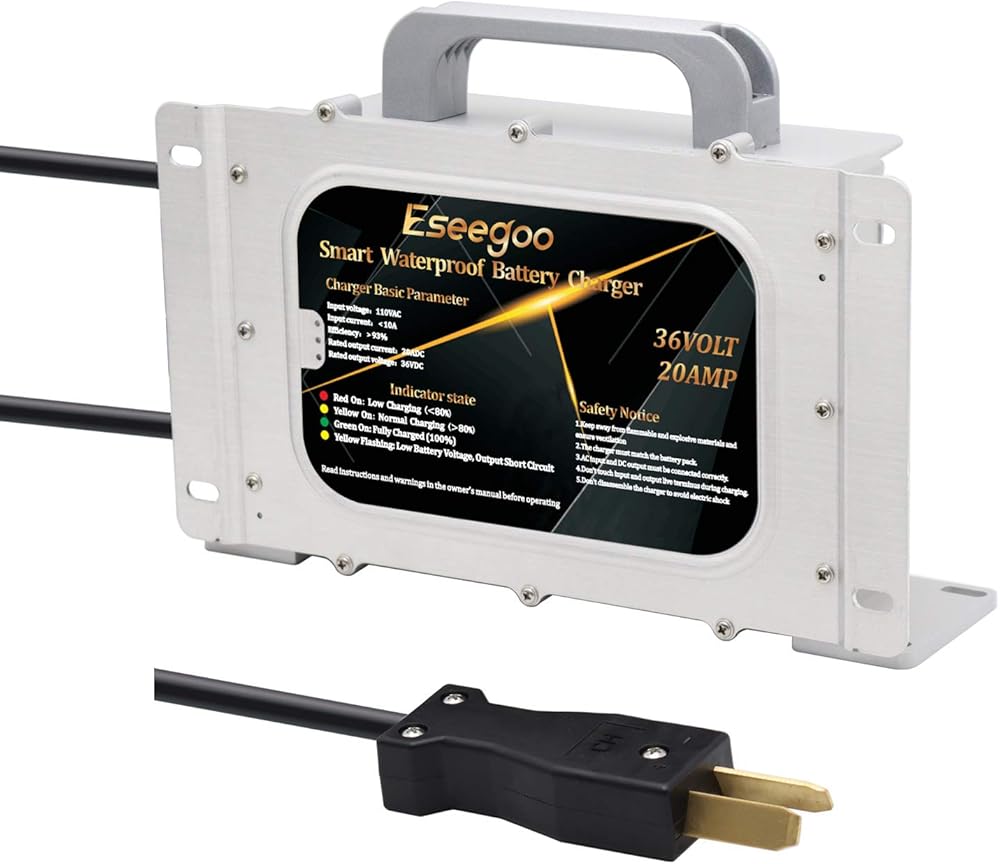

Equipped with LED Light as indicators to show charging status
standby state( connect the ac power, not connect the battery), the green and yellow lights flash alternately
charging, the power charging, the power >80%, yellow light on
Fully charged, green light on
100% full load burnt-in test

Recommended For: All 36 volt golf carts that take the two-blade crowfoot plug

Replaces OEM Part Number:
HD 66499-82, 66499-82, 66500-69A, 66500-75, 66534-83A CC 7445, EZ 16160-G1, 16160G1, 16160-G2, 16160G2, 16160-G3, 16160G3, 16162-G3, 16162G3, 18495-G1, 18495G1, CU 816106, 818211, 818212, 877339, 879958, 880375, 882926, 883830, 884239, 890953, 885963, LE 9611, 2489098, KA 761-36, NO 600-1, TD 79-304-00, 79-332-30, 79-612-00, 79-612-10, ND 70358, 70458, 70548, 70888, A2124B87G01, A2124B87G03, A2421B87G03, A25-000-00, A25-210-00, A25-250-00 A3731C76G01, A7429D51G01, A7429D52G01, A7429D52G03

Replaces:
36V carts with "crowfoot" style plug & Pre 1983 EZGO carts
36V carts from any year from the following manufacturers: Yamaha, Cushman, Melex, Legend, Noland, Nordskog, Karrior, Westinghouse, Pargo,Taylor-Dunn, Hyundai

Before your purchase, please check your original charger and make sure the OUTPUT and CONNECTOR size matches.

PACKAGE INCLUDES:
1x Power Adapter
1x US Mains Lead Cable
