2PCS 896H-1CH-S M01 Automotive Power Relay, SPDT 5-Pin Mini ISO Plug-in, Coil Voltage Verify (12V/24V), High Current Switch for Fuse/Relay Box, in Saudi Arabia 2PCS 896H-1CH-S M01 Automotive Power Relay, SPDT 5-Pin Mini ISO Plug-in, Coil Voltage Verify (12V/24V), High Current Switch for Fuse/Relay Box, in Saudi Arabia 2PCS 896H-1CH-S M01 Automotive Power Relay, SPDT 5-Pin Mini ISO Plug-in, Coil Voltage Verify (12V/24V), High Current Switch for Fuse/Relay Box, in Saudi Arabia 2PCS 896H-1CH-S M01 Automotive Power Relay, SPDT 5-Pin Mini ISO Plug-in, Coil Voltage Verify (12V/24V), High Current Switch for Fuse/Relay Box, in Saudi Arabia 2PCS 896H-1CH-S M01 Automotive Power Relay, SPDT 5-Pin Mini ISO Plug-in, Coil Voltage Verify (12V/24V), High Current Switch for Fuse/Relay Box, in Saudi Arabia 2PCS 896H-1CH-S M01 Automotive Power Relay, SPDT 5-Pin Mini ISO Plug-in, Coil Voltage Verify (12V/24V), High Current Switch for Fuse/Relay Box, in Saudi Arabia

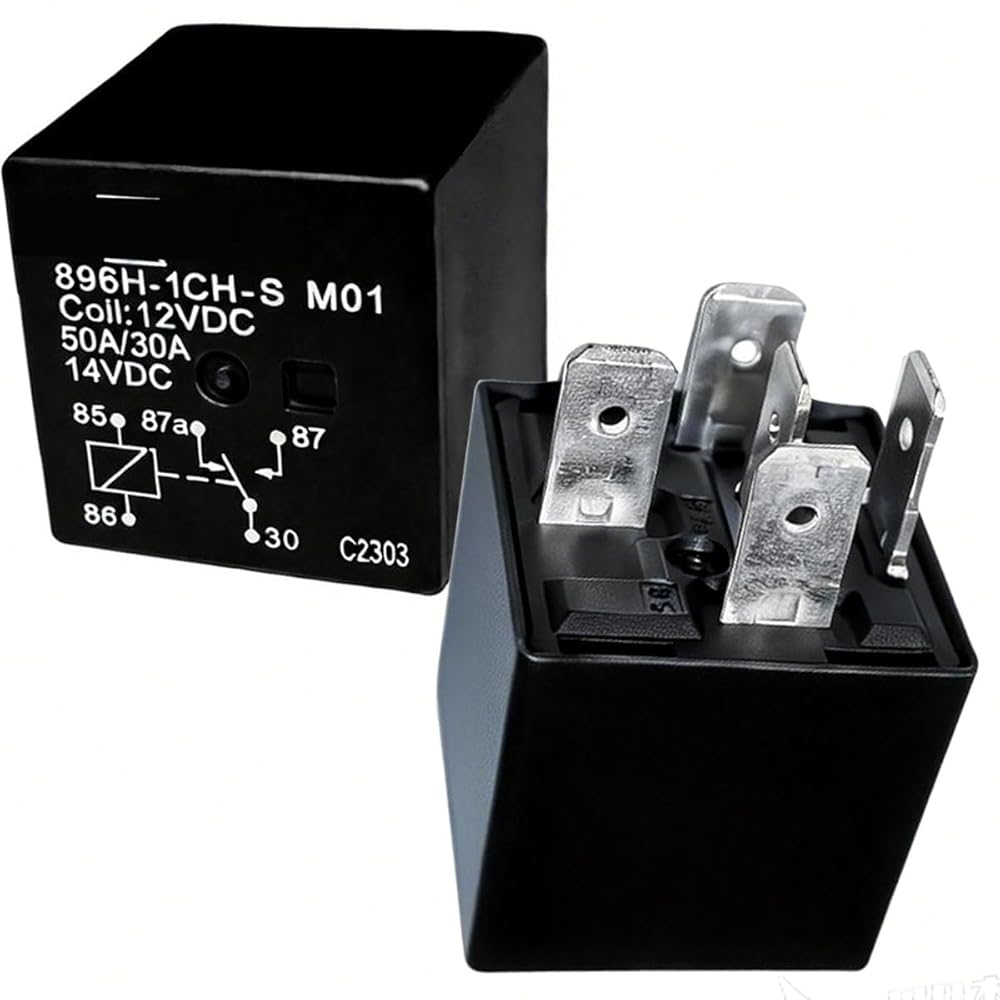

2PCS 896H-1CH-S M01 Automotive Power Relay, SPDT 5-Pin Mini ISO Plug-in, Coil Voltage Verify (12V/24V), High Current Switch for Fuse/Relay Box,

SAR 94
Brand
Kwaich
Weight
5 g
– 1 +

Special Features

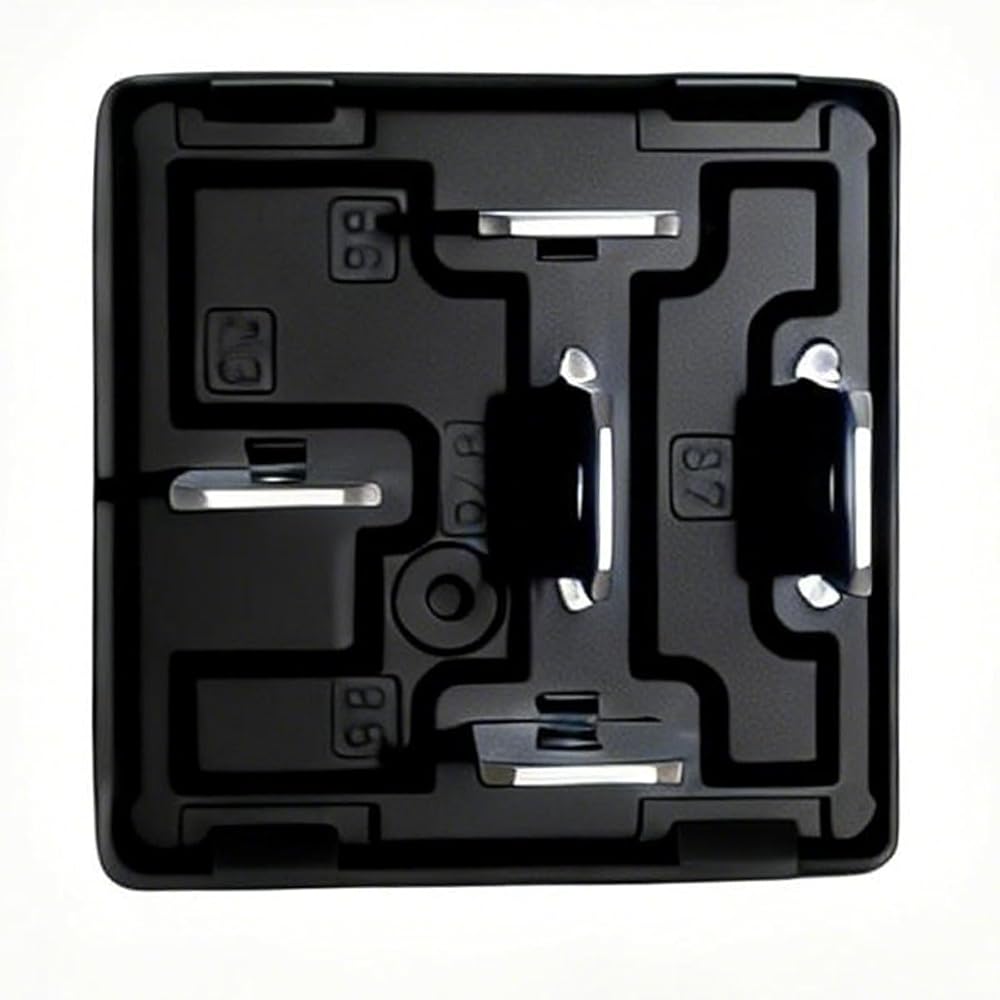

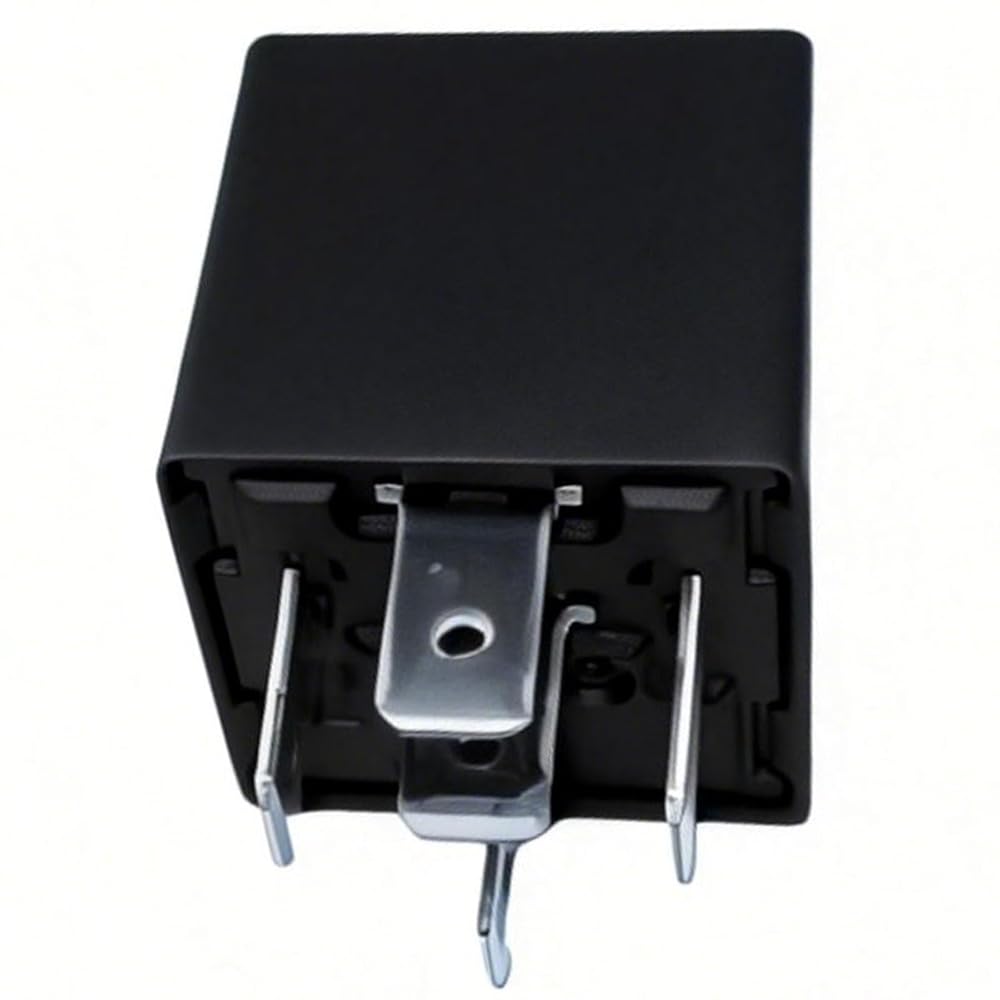

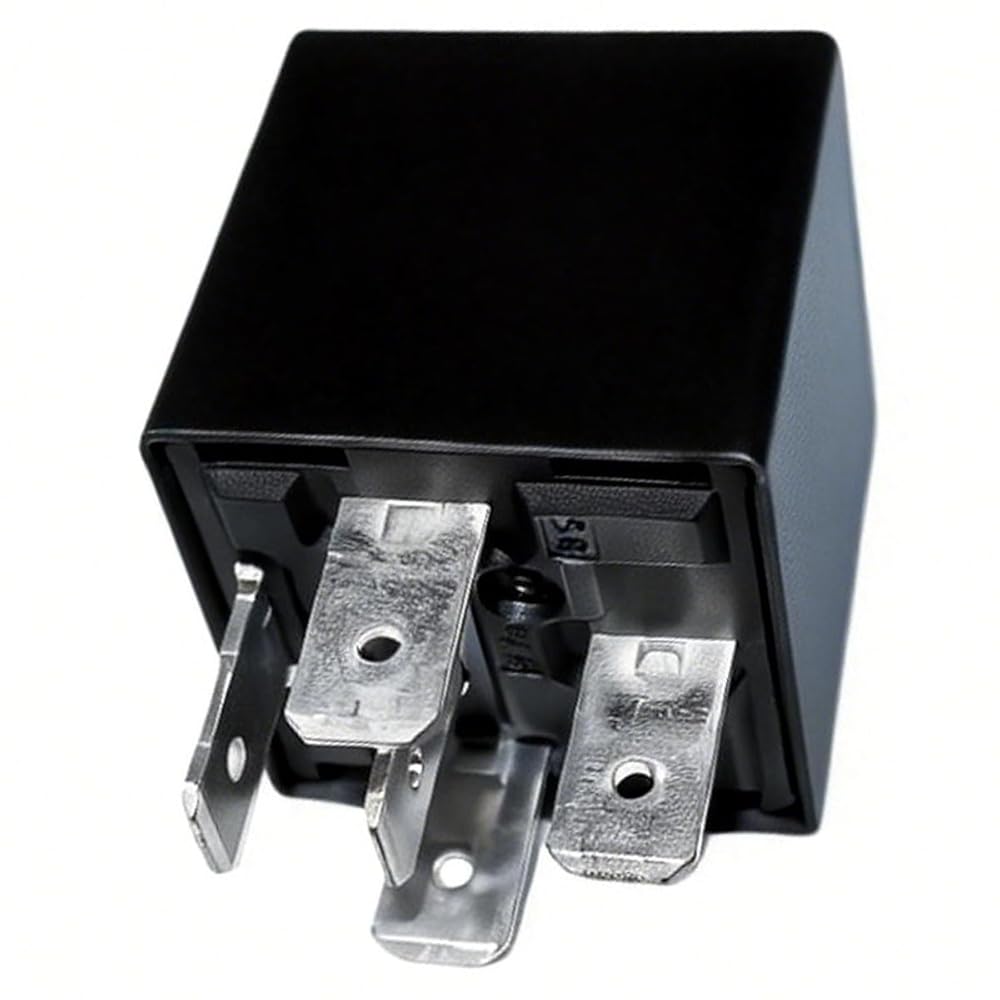

  • Specs & features: Automotive power relay with SPDT / 1 Form C circuitry, 5-pin (5-prong) terminals - mini ISO footprint for many fuse/relay boxes; 0.250 in terminals (verify). Contact rating up to 50A (NO) / 30A (NC) at 14VDC resistive load (896H-1CH-S family); switching voltage up to 28VDC (series spec). Part marking/OE reference: 896H-1CH-S M01. Ref: 896H-1CH-S-12VDC (verify against your original). Coil voltage varies by version (12VDC and 24VDC versions exist) - confirm the voltage printed on your original relay before ordering. Replacement relay for high-current circuits; can help restore stable switching when the circuit is otherwise healthy.
  • Install notes: Disconnect the battery before service. Locate the relay in the fuse/relay box (often under-hood or inside the cabin) and confirm the correct position/function using the vehicle manual or fuse-box diagram. Remove/install by pulling straight to avoid bending terminals; inspect the socket for heat, looseness, or corrosion. Match pin layout and circuitry (SPDT 5-pin) to your removed relay and do not force-fit. If your circuit uses a specific suppression type (plain, resistor, or diode), replace like-for-like. Seat fully, then test the system. Fitment must be confirmed by OE number and original relay markings.

Description

Replacement relay identified by part marking/OE reference 896H-1CH-S M01. Designed for high-current switching in vehicle electrical systems. Confirm fitment by OE number, original relay markings, and your vehicle manual.

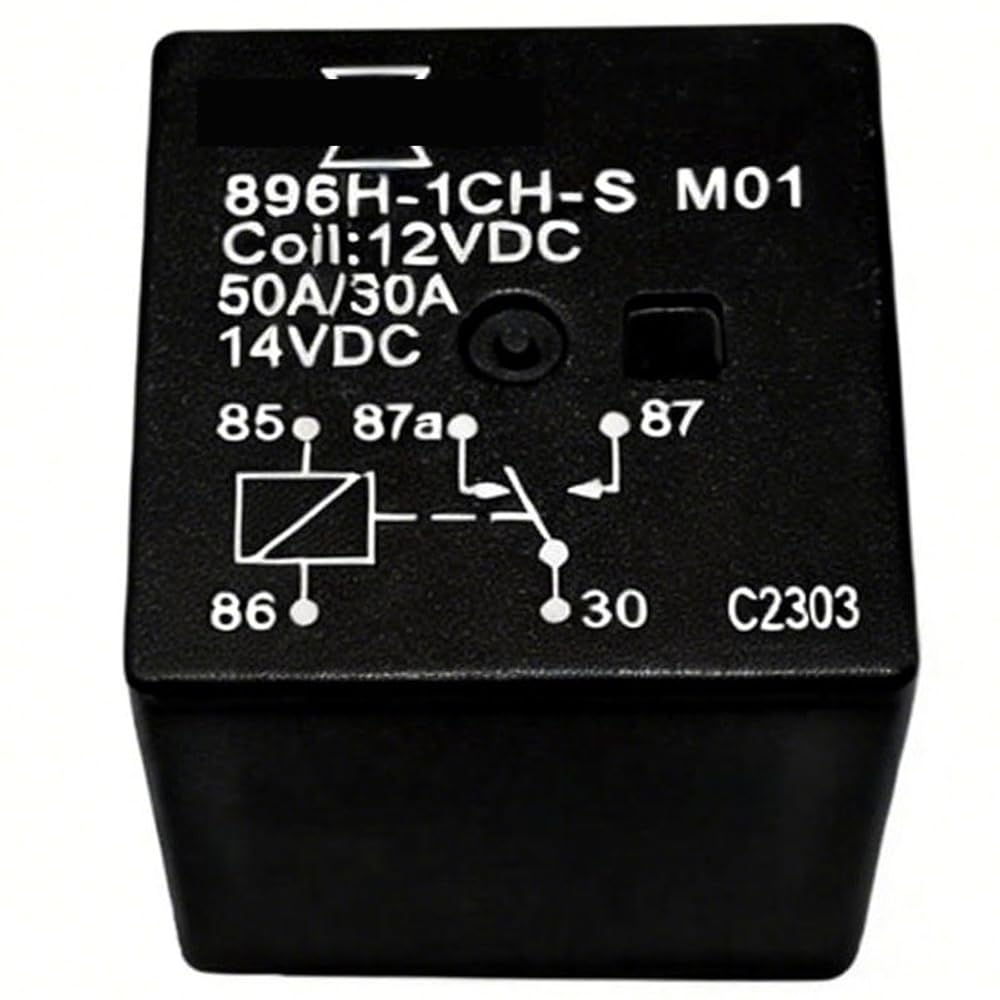

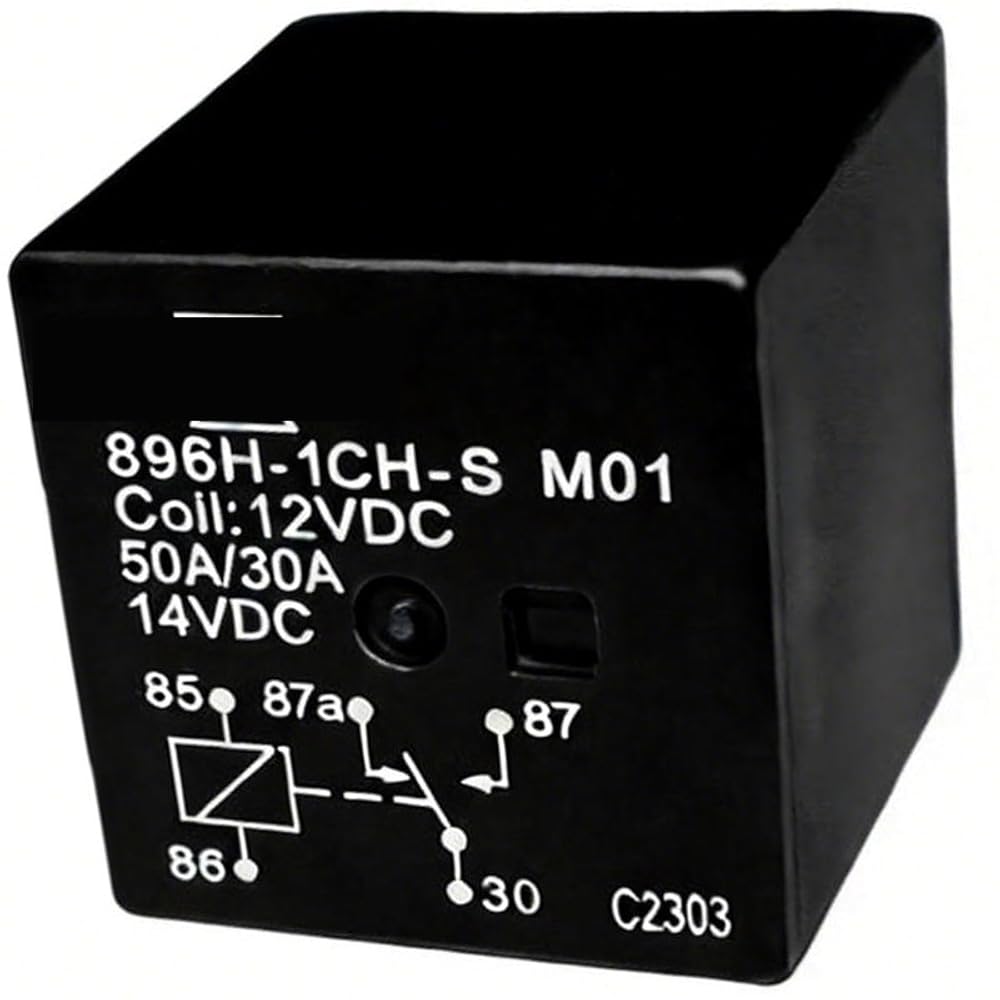

Circuit: SPDT / 1 Form C (5 terminals)
Contact rating: up to 50A (NO) / 30A (NC) at 14VDC resistive load (896H-1CH-S family)
Coil voltage: check the value printed on your original relay (12VDC and 24VDC versions exist in the 896H series)
Form factor: sealed mini ISO style plug-in relay for fuse/relay box sockets
Acts as a controlled switch: a low-current control signal turns a higher-current circuit on/off.
Used in fuse/relay boxes for various vehicle circuits (application depends on vehicle design).
Intermittent or no power to the controlled circuit
Clicking with no output, or no click when commanded (after confirming power/ground)
Heat/discoloration at the relay or socket terminals
Please match OE number (896H-1CH-S M01), pin layout, coil voltage, and suppression type to your original relay. Always refer to the vehicle manual or verified service information for the correct relay location and function.
