Application:

Fits For Ford/New Holland Compact Tractor Models: TC35, TC35D, TC40, TC40D

Fits For Case IH Tractor(s) D35, D40, DX35, DX40

Fits For New Holland OEM nos 86402724, 86401465

Fits For Case IH OEM nos 86401465, 86402724

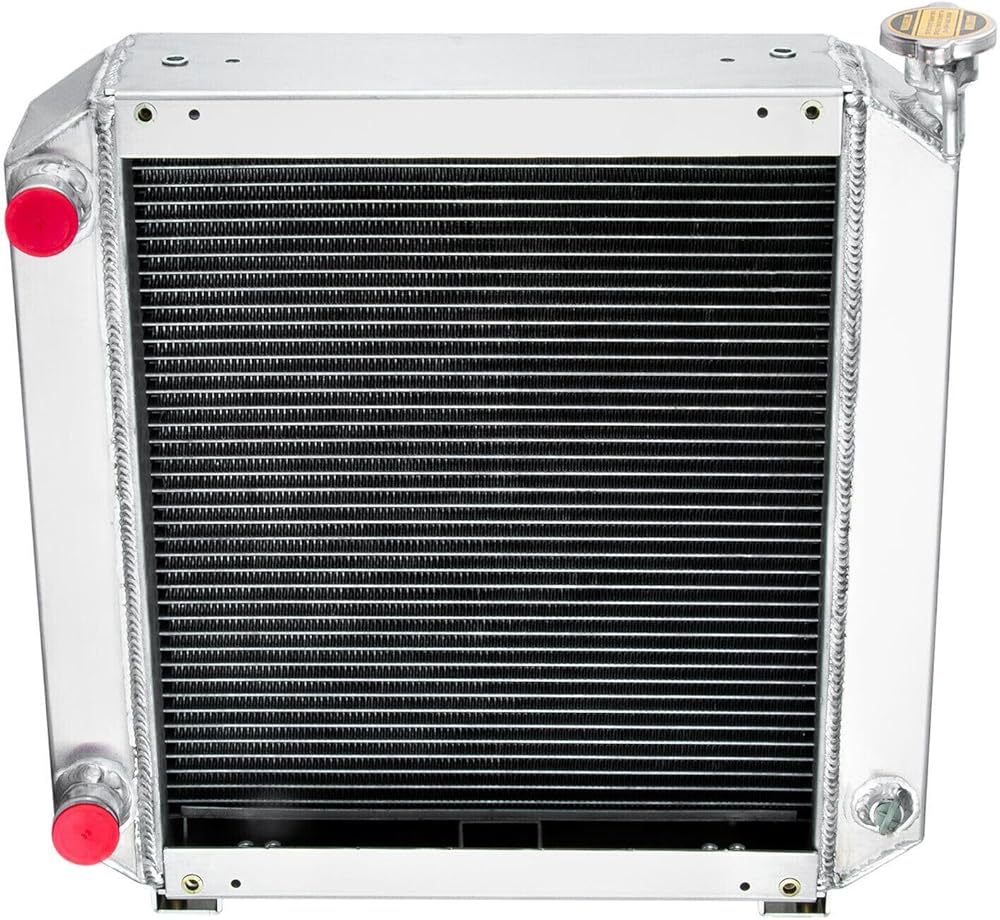

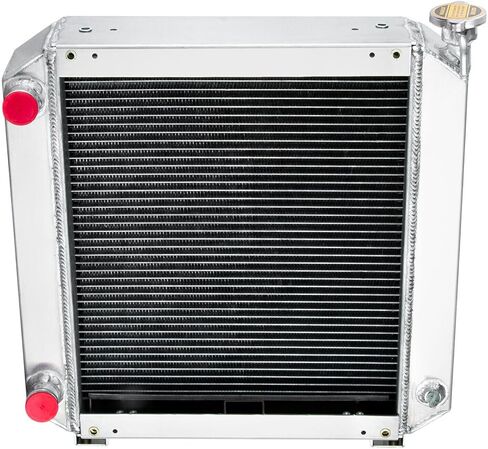

Radiator Configuration:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Core Material: Aluminum

Overall Height: 19-7/8"

Overall Width: 18-3/4"

Core Height: 14-3/4"

Core Width: 17-3/8"

Inlet Size: 1-3/8"

Outlet Size:: 1-3/8"

Features:

1. Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.

2. 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.

Description：

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
