4 Row Core Radiator For 1967 1968 1969 Chevy Camaro/Pontiac Firebird V8 23" Core BIG BLOCK Crossflow Radiators Full Aluminum Radiator with Shroud Fan 67 68 69 Camaro Radiator in Saudi Arabia

3 Rows Aluminum Radiators Compatible For 67-69 Chevy Camaro Pontiac Firebird V8 23''Core Radiators+Shroud Fan Relay Kit 1967 1968 1969 Camaro Radiator

SAR 1,223
Brand
Cubauto
Weight
12.1 kg
Size3 Core Radiators+Electric Shroud Fan +Relay
– 1 +

Special Features

  • ▲4 ROW ALUMINUM RADIATOR + FAN SHROUD KIT + THERMOSTAT KIT! - The Cubauto Aluminum Radiator is made of full aluminum construction, it include 16 inches radiator engine cooling fans and a shroud, all item is 100% inspected and tested for quality assurance.
  • ▲ VEHICLE FITMENT! - 4 Row Designed For Super-efficient Cooling: Core Size: 17"H x 23"W (4 Row Core) / Overall Size: 19-1/4"H x 30-1/4"W; Compatible with 1967 1968 1969 Chevy Camaro Pontiac Firebird V8.Transmission Cooler: ￠26×315×G1/4（Z）; Transmission: Automatic and Manual
  • ▲EXTRA HIGH COOLING CAPACITY! - High performance racing design, improves cooling by 35 -45% Temp.Cubauto 4 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
  • ▲ ADVANCED TECHNIQUE! - Leading-edge welding craftsmanship, CE approval. Innovative engineering, manufacturing technology and quality control ensure that Cubauto radiators exceed the performance of the original equipment they replace.
  • ▲ Note: 100% Leak Tested, Downflow Radiator, Durability Tested;If you have any questions, please feel free to contact us, Cubauto will try our best to help you.Do not hesitate to get one!

Description

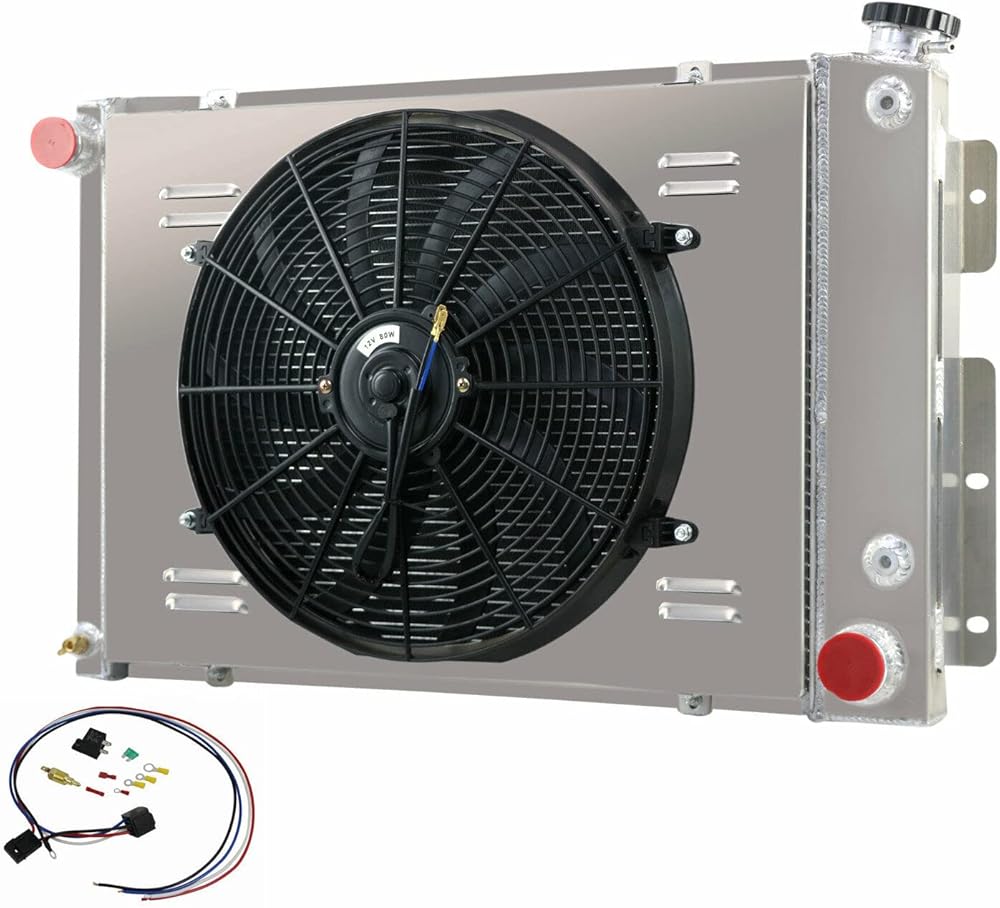

This Listing Is Including:
1 X 4-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 16" Fan (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
MATERIAL: FULL ALUMINUM
ROW/CORE : 4 ROW / CORE
Radiator Flow: CROSS FLOW
Core Size: 17"H x 23"W (4 Row Core)
Overall Size: 19-1/4"H (top of cap) x 30-1/4"W (Incl. Brackets)
Upper INLET: 1-1/2" located on the DRIVER side.
Lower OUTLET: 1-3/4" located on the PASSENGER side.
Mounting System: Bracket
Transmission Cooler: Included

OEM Style Brass Petcoke Drain
CNC machined filler neck and cap
Aircraft 5057 grade aluminum and with raw aluminum finish

Vehicle Fitment:
Compatible with 67 68 69 CHEVY BB Camaro/Firebird/Trams Am 1968
Compatible with 67 68 69 Camaro Big Block 23"core
Compatible with 67 68 69 Camaro/Firebird
Compatible with Pontiac Firebird Big Block
Compatible with 67 68 69 Pontiac Firebird / Trans Am
Compatible with 67 68 69 CHEVY CAMARO BIG BLOCK / FIREBIRD TRANS AM
Compatible with 1967 1968 1969 CHEVY CAMARO/FIREBIRD T/A 5.7L V8
Fit 23" core only
Please Check the Size Before You Buy!

Fans Size:
Maximum Fan CFM: 2000±200 cfm
Fan Diameter (in): 16.050"
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
