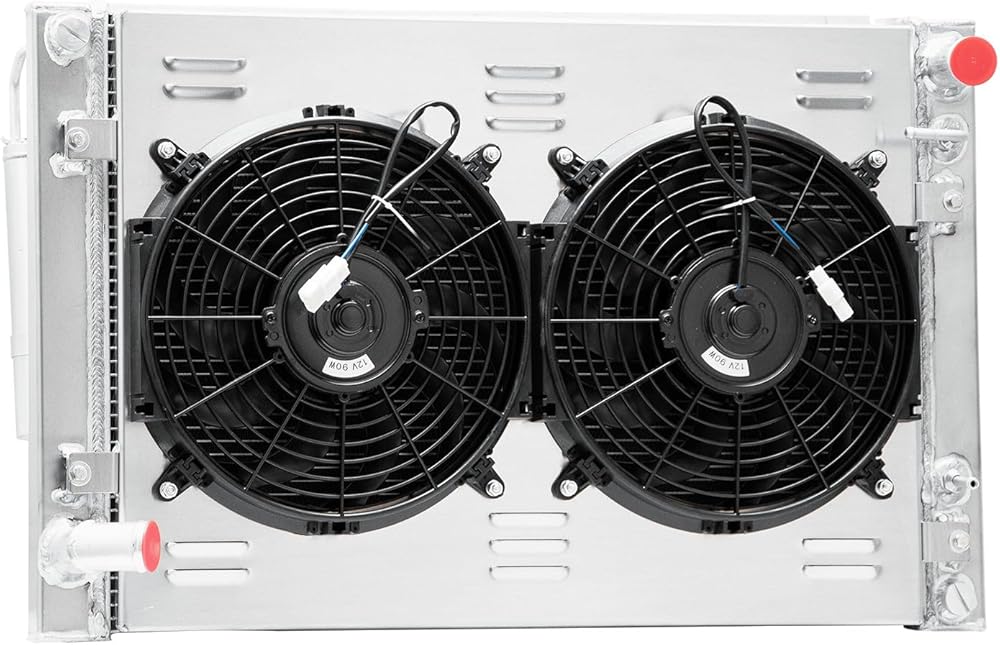

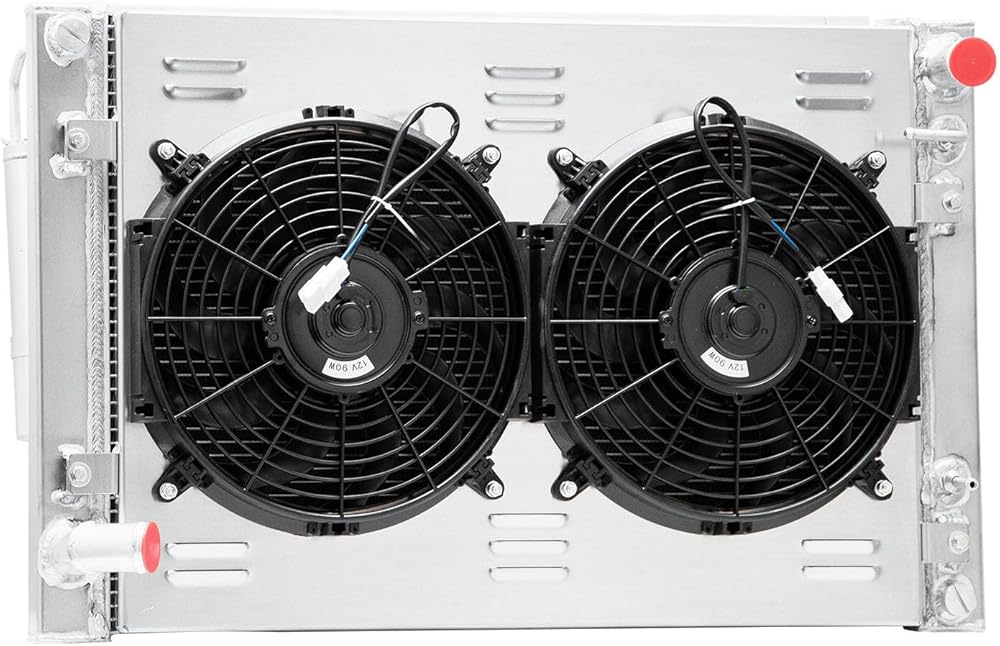

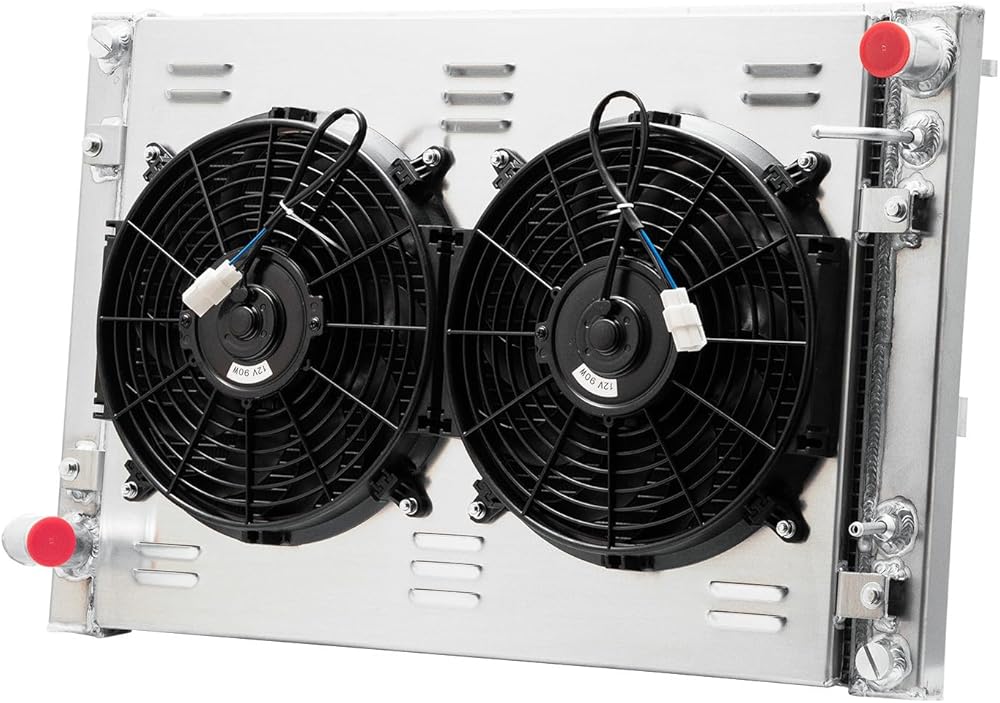

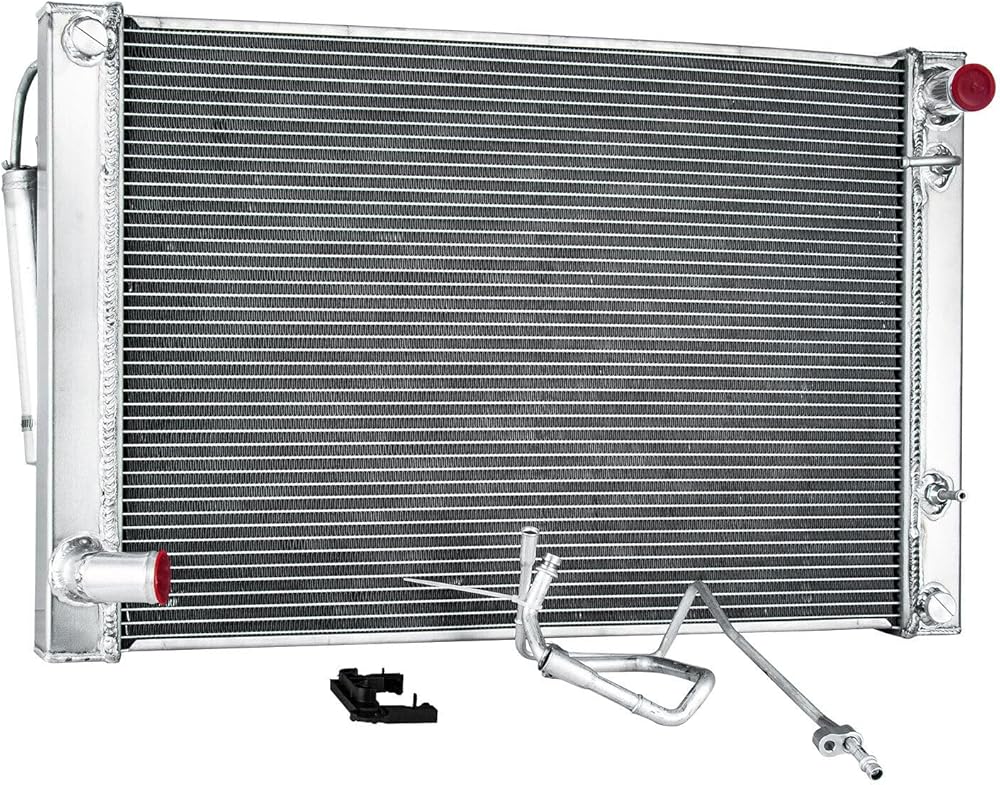

Radiator Size:
High Performance Racing Spec.
Row Count:3-Row of tubes Core Racing Design
Material: High Quality AA5052 Aluminum
Core Height:25 1/8 in.
Core Width:18 in.
Inlet Diameter:1.31in.
Outlet Diameter:1.38in.
Engine Oil Cooler Without Engine Oil Cooler
Part Number:21460-JK90B, 21460JK90B NI3010227 CU13004 21460-JK20A,21460JK20A 21460-JK90A, 21460JK90A 21460-JK20B, 21460JK20B

Vehicle Fitment:
For Infiniti
2011 G25 X Sport
2011-2012 G25 (submodel: Base, Journey, X)
2007 G35 Base Sedan
2007 G35 Sport Sedan, Automatic Transmission
2007-2008 G35 (submodel: Journey, X)
2008 G35 (submodel: Base, X Sport)
2008-2011 G37 Base
2011-2013 G37 IPL Automatic Transmission
2008-2013 G37 Journey
2009-2013 G37 X
2011-2013 G37 X Sport
2015 Q40 Base Automatic Transmission
2014-2015 Q60 Base
2015 Q60 IPL
2014 Q60 IPL Automatic Transmission
2014-2015 Q60 Journey
2014-2015 Q60 Premier Edition
2014 Q60 Premium
2014 Q60 Premium Sport Automatic Transmission
2015 Q60 S Limited Automatic Transmission
2014-2015 Q60 Sport Automatic Transmission
2015 Q60 Sport Limited Automatic Transmission
For Nissan
2010 370Z 40th Anniversary Edition Automatic Transmission
2010-2020 370Z Base Automatic Transmission
2018-2019 370Z Heritage Edition Automatic Transmission
2015-2017,2019-2020 370Z Nismo Automatic Transmission
2015-2020 370Z Sport Automatic Transmission
2019-2020 370Z Sport Touring Automatic Transmission
2010-2019 370Z Touring Automatic Transmission
2015-2018 370Z (submodel: Nismo Tech, Sport Tech, Touring Sport) Automatic Transmission

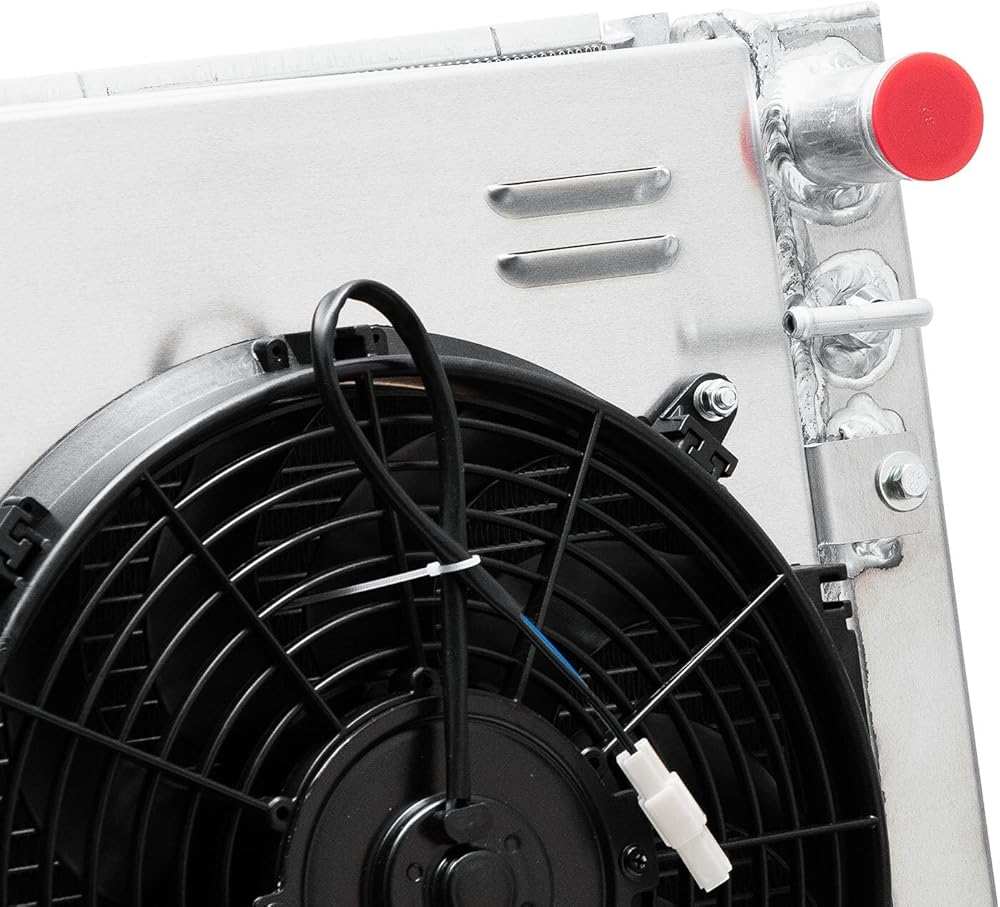

FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

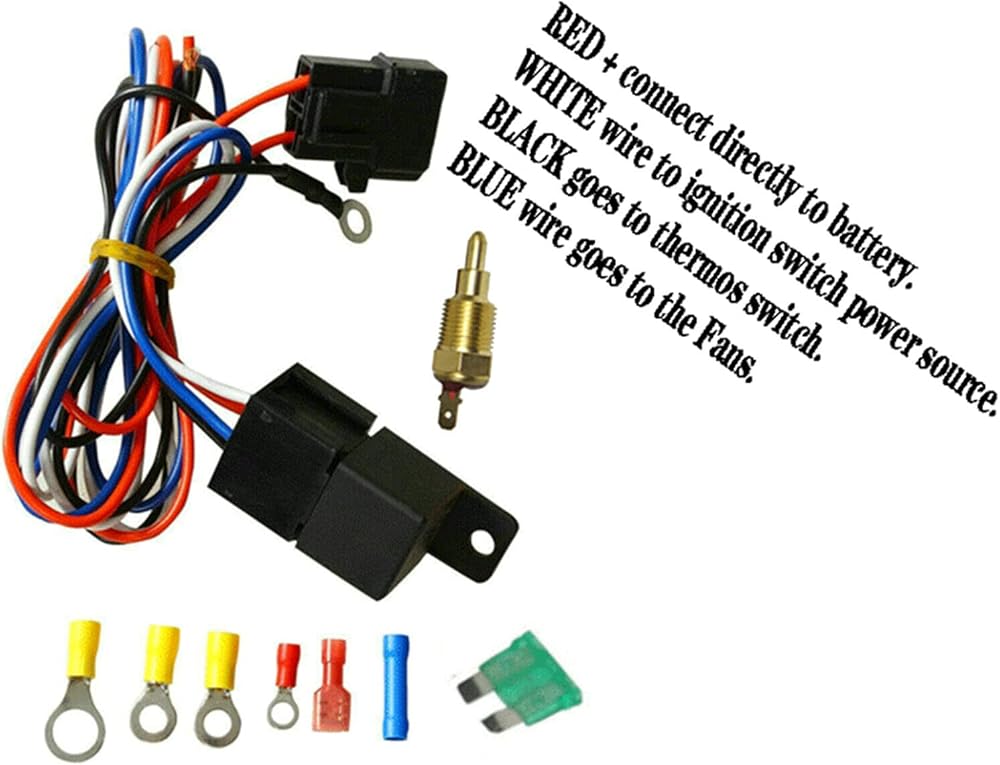

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
