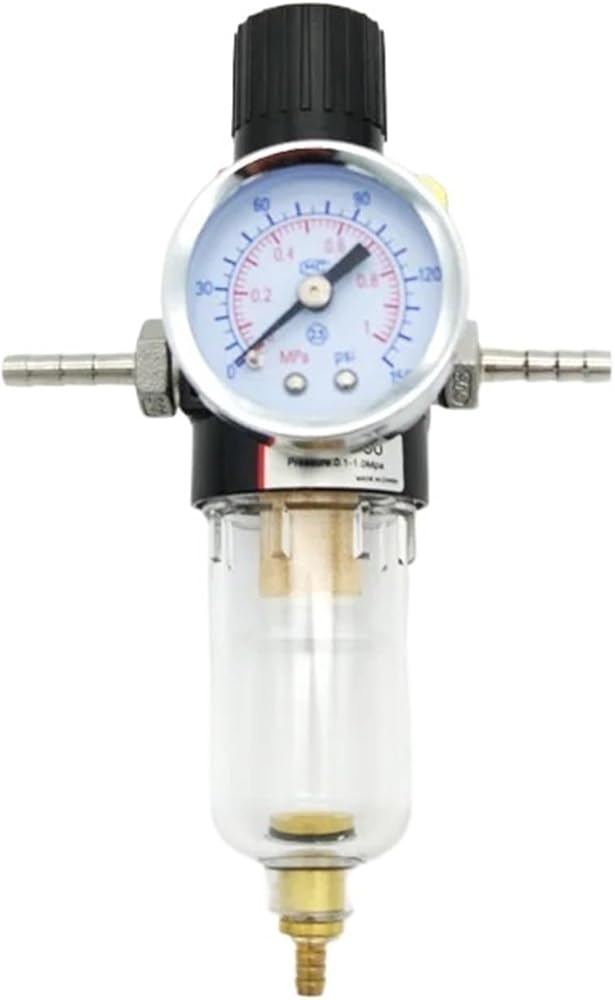

AFR2000 1/4 Air Filter Regulator Air Treatment Oil Water Separator Air Preparation Unit AIRTAC Type
The images shown are not all the actual item and are for your reference only
AllFRLunitswillsendbyrandomlythecolorandfilter,Normallycolorisblack,orange,bluebotton.Normallyfilteriswhite(plastic)orBrass.
A Type FRLhave G thread and PTthread ,our warehouse send to you by Random.If you are care the thread,pls indicate to us about your thread request.
The include the Gauge and Bracket ,CompleteReplace the AIRTACType .
Product Feature
1.The structure is delicate and compact , which is convenient for installation and application .
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere .
3.The pressure loss is low and the efficiency of water separating is high .
4.In addition to standard type , lower pressure type is optional ( The highest adjustable pressure is 0.4 MPa ).
Installation & Usage
1Check whether the components have been damaged during transportation before installing and suing
2Pay attention to whether the flow direction of air Notice direction ) and thread type are correct .
3.Please notice whether installation condition accords with technical requirements (Such as " working pressure " and "applied temperature range " )
4.The medium used or installation environment shall be noticed . The matters with chlorine , carbon compound , aromatic compound and oxidizing acid and alkali shall be avoided to prevent the damage of bowl and oil bowl .
5.Regularly clean or change filter core . Lubricators and regulators shall be in descending order .
6.Keep dust away . The dust cover shall be installed in intake and outlet when the device is dismantled and stored .
Model
AFR2000
Fluid
Air
Port Size
G1/4"
Filtering Grade
40um or 5um
Pressure Range
- auto and automatic drain : 0.15 ~ 0.9 Mpa(20~130Psi)
Manual drain : 0.05~0.9MPa(7~130Psi)
Max. Pressure
1.0MPa(145Psi)
Proof Pressure
1.5Mpa(215Psi)
Temperature Range
-5 ~ 70
Capacity Of Drain Bowl
15CC
Weight
260g
Differential Pressure Type
Manual drain standard
Automatic drain option
Adopting Pressure Differential for automatic drain , drain automatically when the air depletion and make up produce differential
Also placed the left to be differential pressure type
Use float switch valve , drain automatically when water level over the float , close automatically after completely drain
Warning:
Confirm the air line and power in turned off before serving , prevent injury and damage while disassembly for maintenance.
Danger :
Pay attention to the direction of the air while installing, never used in reversed air direction .
High-concerned chemical : None
Motivity Type : Other
Type : Treatment Unit
Model Number : AFR2000
Origin :
Name : Air Filter Regulator
Temperature : 5 ~ 70 C
Fluid : Air
Capacity of drain bowl : 15CC
Pressure : 0.15-0.9Mpa
Material : Aluminium Alloy
Thread : G / PT 1/4"
