Adjusters
Air Preparation Units R 200 G 1/4 Air Regulator Air Treatment Unit Compressed Pneumatic Regulator Valve
Differential Pressure Type
Manual drain standard
Automatic drain option
Adopting Pressure Differential for automatic drain , drain automatically when the air depletion and make up produce differential
Also placed the left to be differential pressure type
Use float switch valve , drain automatically when water level over the float , close automatically after completely drain
Warning:
Confirm the air line and power in turned off before serving , prevent injury and damage while disassembly for maintenance.
Danger :
Pay attention to the direction of the air while installing, never used in reversed air direction .
AllFRLunitswillsendbyrandomlythecolorandfilter,Normallycolorisblack,orange,bluebotton.Normallyfilteriswhite(plastic)orBrass.
High-concerned chemical : None
Motivity Type : Other
Type : Treatment Unit

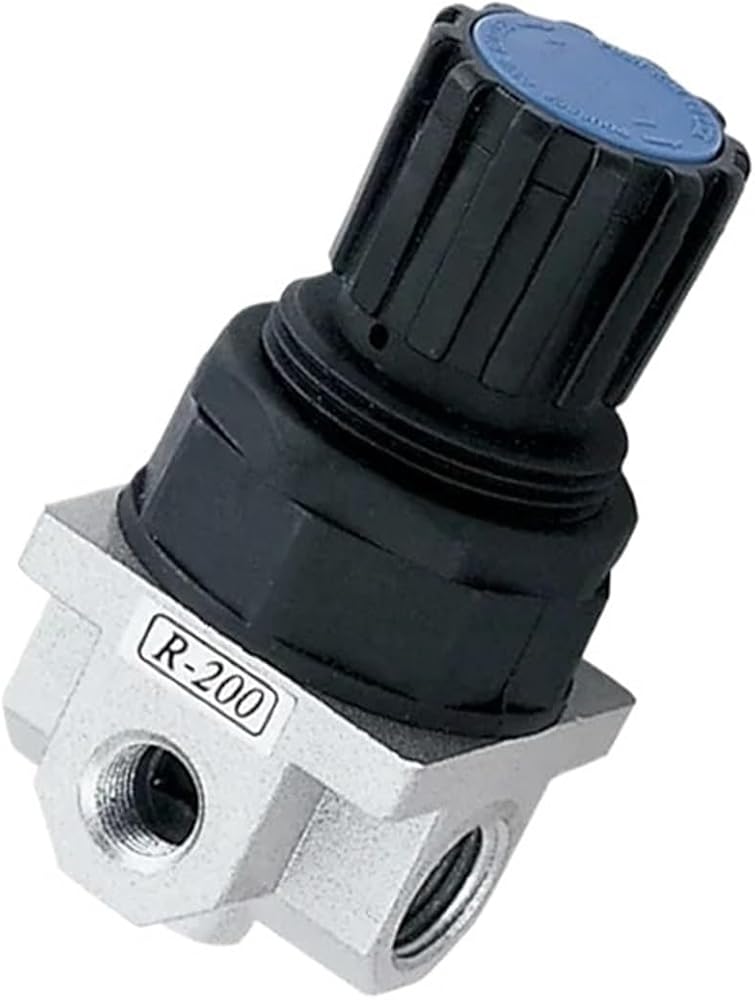

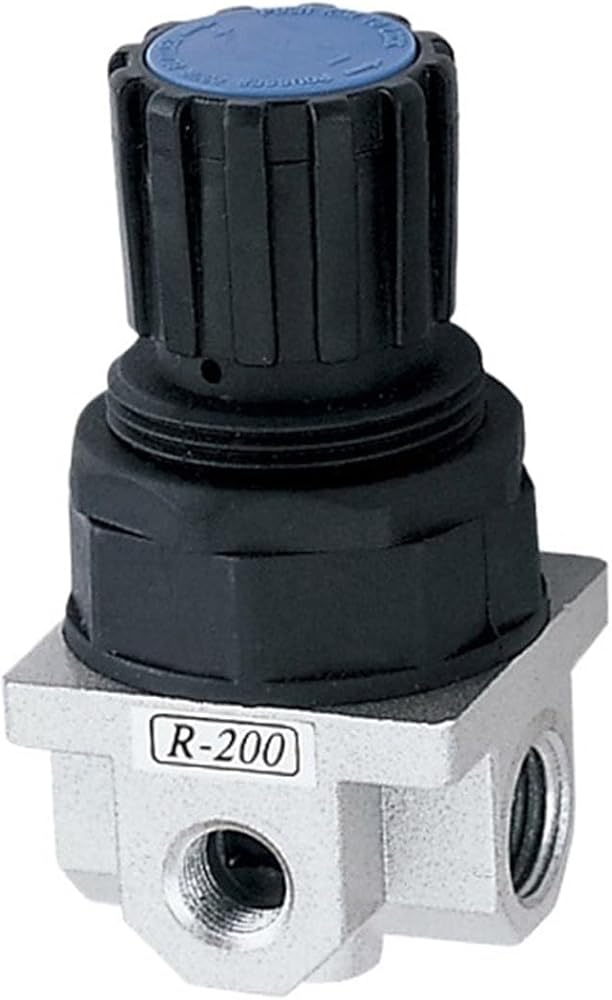

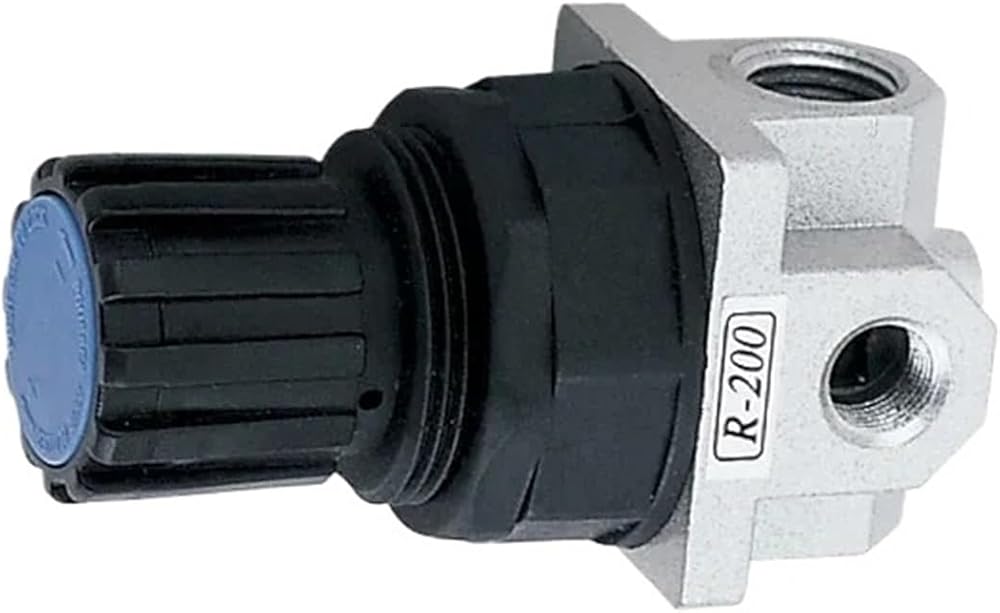

Model Number : R200
Origin :
Air Port Size : 1/4
Gauge port Size : 1/8
Gauge size : 40mm
Medium : Compressed Air
Temperature : -5-60C
Working Pressure : 0.1-0.85Mpa
Thread : G
Material : Aluminum Alloy
