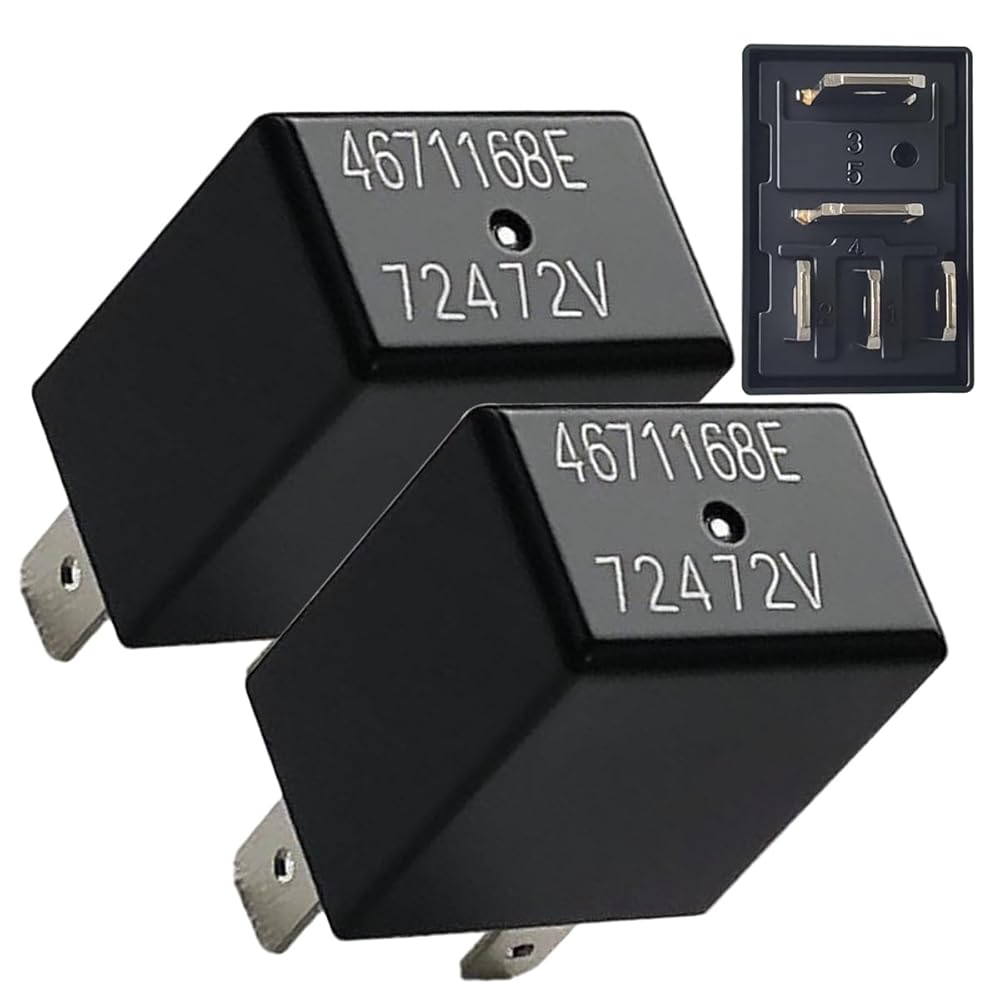

2PCS 4671168E 12V 5-Pin Relay Replaces 04671168/4671168/72472M/72472V – Compatible with Chrysler Dodge Jeep Engine Bay Fuse Box Fuel Pump Starter Headlamp Wiper Fog Horn Door Lock Circuits in Saudi Arabia 2PCS 4671168E 12V 5-Pin Relay Replaces 04671168/4671168/72472M/72472V – Compatible with Chrysler Dodge Jeep Engine Bay Fuse Box Fuel Pump Starter Headlamp Wiper Fog Horn Door Lock Circuits in Saudi Arabia 2PCS 4671168E 12V 5-Pin Relay Replaces 04671168/4671168/72472M/72472V – Compatible with Chrysler Dodge Jeep Engine Bay Fuse Box Fuel Pump Starter Headlamp Wiper Fog Horn Door Lock Circuits in Saudi Arabia 2PCS 4671168E 12V 5-Pin Relay Replaces 04671168/4671168/72472M/72472V – Compatible with Chrysler Dodge Jeep Engine Bay Fuse Box Fuel Pump Starter Headlamp Wiper Fog Horn Door Lock Circuits in Saudi Arabia

2PCS 4671168E 12V 5-Pin Relay Replaces 04671168/4671168/72472M/72472V – Compatible with Chrysler Dodge Jeep Engine Bay Fuse Box Fuel Pump Starter Headlamp Wiper Fog Horn Door Lock Circuits

SAR 47
Brand
Kwaich
Weight
31 g
– 1 +

Special Features

  • Tech & OE Cross-Refs — 12V coil mini relay, 5-pin SPDT (1 Form C) Micro-ISO footprint; terminals 30/85/86/87/87a. Interchanges: 04671168, 04671168E, 04671168C, 4671168, 72472M, 72472V; commonly supplied by TE/Siemens/Tyco. Typical use across fuel pump, starter, fog lamp, horn, headlamp, wiper, and door-lock circuits. Coil ~90 Ω (reference TE-style spec).
  • Install Location & How-To — Seats in the engine-bay power distribution center (under-hood fuse/relay box) or interior junction block depending on vehicle. Identify the cavity by the legend on the fuse cover/owner's manual (often labeled Fog, Horn, Starter, Fuel Pump, Wiper, Door Lock). Push-pull replacement—match pin layout before seating. These circuits are explicitly listed for OE 04671168/4671168 in Mopar catalogs (Fog Lamp, Horn, Wiper, Door Lock, Headlamp, Fuel Pump).
  • Compatibility — Chrysler (Year Model Position Relay) — Compatible with Chrysler 200 2011–2014 Engine Bay Power Distribution Center Relay; Compatible with Chrysler Town & Country 2004–2005 Engine Bay PDC Relay; Compatible with Chrysler 300M 2004 Under-Hood Junction Block Relay; Compatible with Chrysler Concorde 2004 Under-Hood Junction Block Relay. (Verify by VIN/diagram.)
  • Compatibility — Dodge — Compatible with Dodge Avenger 2014 Engine Bay PDC Relay; Compatible with Dodge Caravan 2003 Engine Bay PDC Relay; Compatible with Dodge Grand Caravan 2003 Engine Bay PDC Relay; Compatible with Dodge Durango 2003 Engine Bay PDC Relay; Compatible with Dodge Intrepid 2003–2004 Engine Bay PDC/Junction Relay.
  • Compatibility — Jeep (SUV) — Compatible with Jeep Wrangler 2000–2006 Engine Bay PDC Relay; Compatible with Jeep Grand Cherokee 2005 Engine Bay PDC Relay; Compatible with Jeep Commander 2006–2010 Engine Bay PDC Relay; Compatible with Jeep Liberty 2012 Engine Bay PDC Relay; Compatible with Jeep Compass 2011 Engine Bay PDC Relay; Compatible with Jeep Patriot 2011 Engine Bay PDC Relay; Compatible with Dodge Nitro 2009 Engine Bay PDC Relay.
  • Common Symptoms This Replaces — No-start (starter circuit), intermittent/no crank (starter control), engine stalls/no prime (fuel pump), inoperative fogs/headlamps/horn, wipers or door locks failing to energize. These are the exact circuits Mopar catalogs attribute to 4671168/04671168 relay (Fog Lamp, Horn, Headlamp, Wiper, Door Lock, Fuel Pump).
  • Fitment Assurance — OE-style footprint and ratings for 2001–2014 Chrysler/Dodge/Jeep applications that call specifically for 4671168/04671168. Always match the cavity label and compare pinout before installation. (This relay is shown in multiple OEM catalogs as the specified mini relay for the listed models/years.)
  • Complementary Items (sold separately) — For a clean fix of PDC-related intermittent faults, consider replacing other relays used alongside this part when your vehicle calls for them: Compatible with Mopar 4727370AA (mini relay used on related circuits in the same fuse/junction blocks), and check PDC/junction-block condition. These parts commonly live in the same module with 4671168 per Mopar catalog groupings

Description

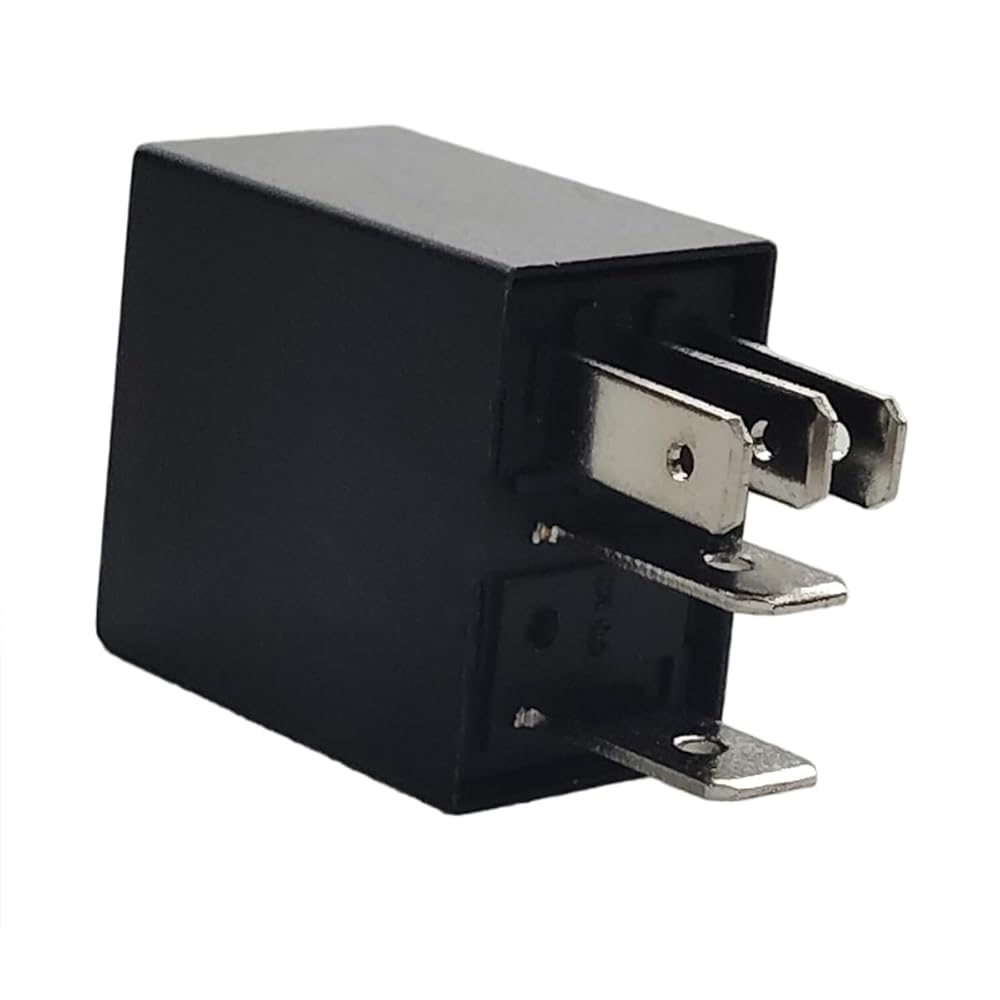

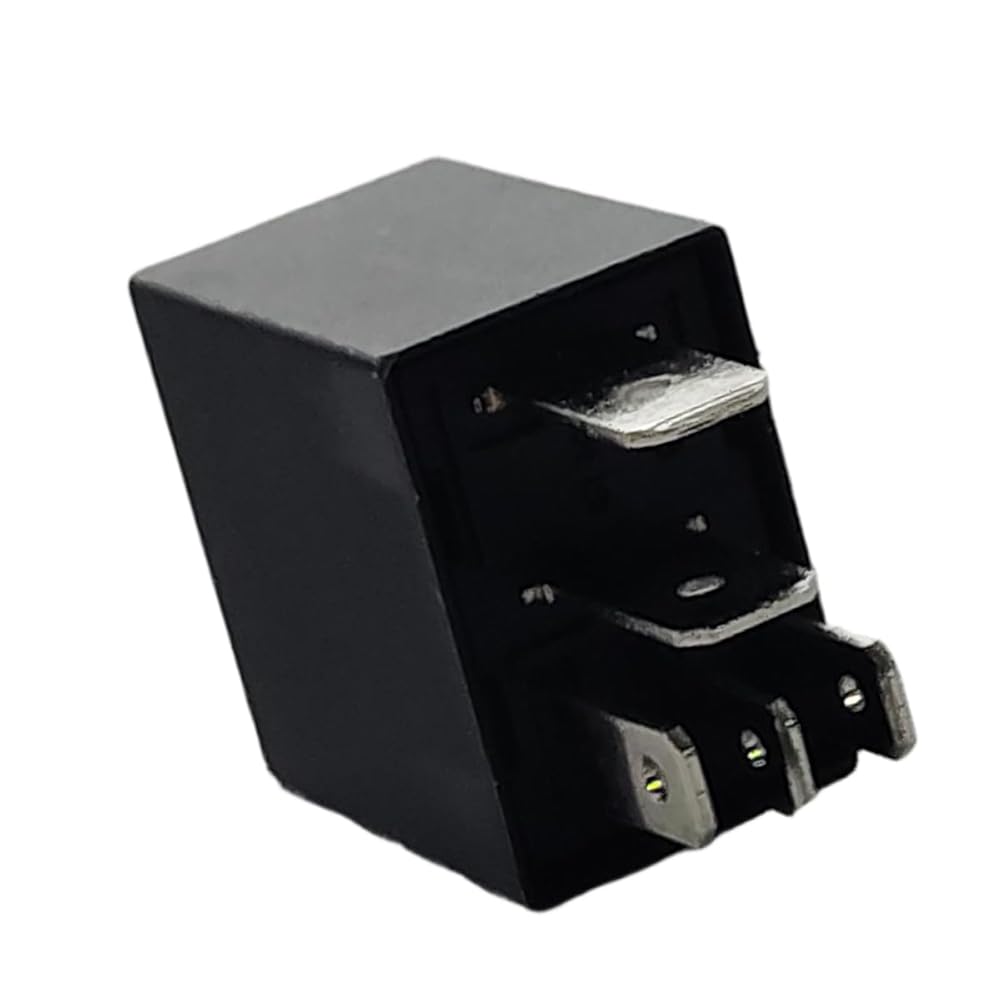

4671168E Mini Relay (12V, 5-Pin SPDT, Micro ISO)Direct-fit replacement for the OE mini relay used across multiple Chrysler, Dodge, and Jeep applications calling for 4671168 / 04671168. Built to OE form and pin layout for reliable switching of high-current automotive loads.

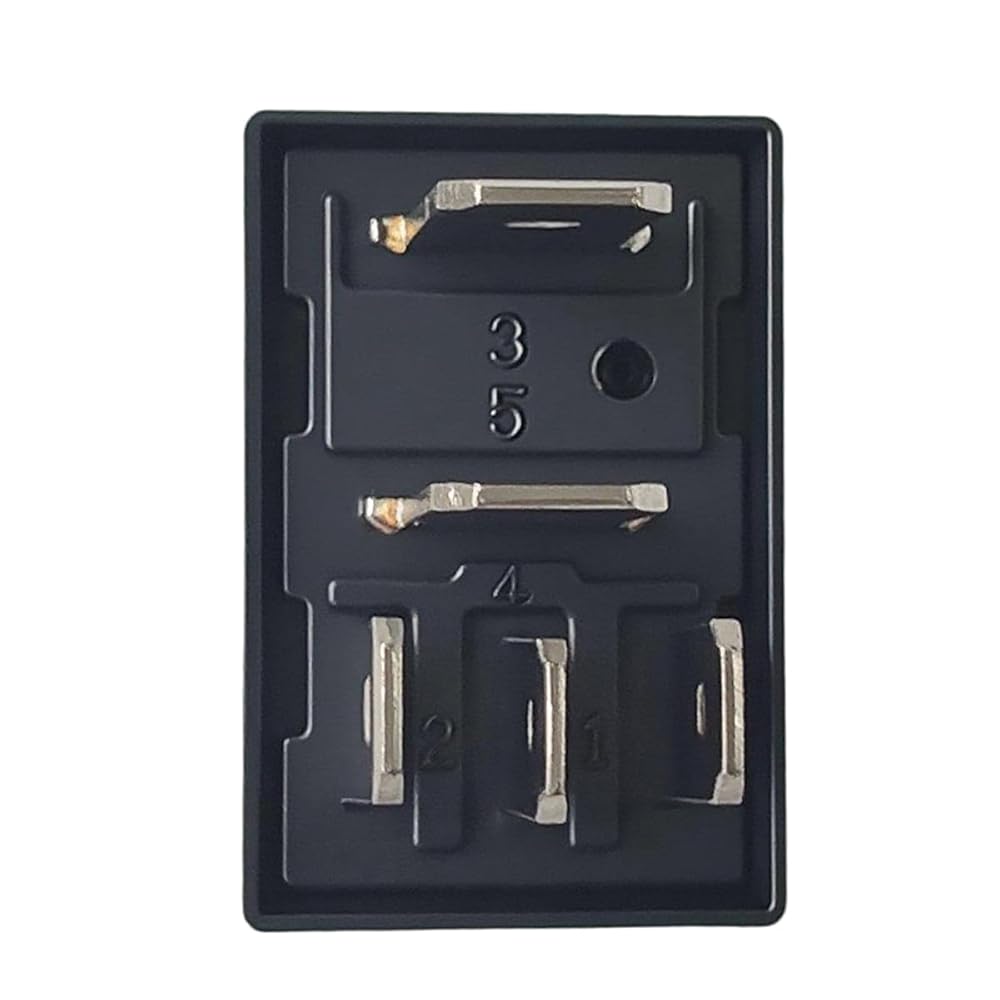

Type: Mini (Micro ISO) relay, 5-pin SPDT (1 Form C), terminals 30/85/86/87/87a
Coil: 12 VDC (approx. 90 Ω coil resistance)
Typical Uses: Fuel pump, starter control, fog lamp, horn, headlamp, wiper, door lock
Housing: Plug-in blade type for engine-bay power distribution center or interior junction block
Replaces OE Numbers: 4671168, 04671168, 04671168E, 04671168C, 72472M, 72472V
Location: Engine-bay fuse/relay box (Power Distribution Center) or interior junction block; exact cavity is labeled on the fuse cover/owner's manual
Install: Remove old relay, align 5-pin footprint, and press fully into the labeled socket
Troubleshooting: Useful for no-start/no-prime, inoperative fogs/headlamps/horn, wiper or door-lock power loss when the original relay has failed
Used on numerous North American models that specify OE 4671168/04671168, including:
Compatible with Chrysler 200 (2011–2014), Town & Country (2004–2005), 300M (2004)
Compatible with Dodge Avenger (2014), Caravan/Grand Caravan (2003), Durango (2003), Intrepid (2003–2004)
Compatible with Jeep Wrangler (2000–2006), Grand Cherokee (2005), Commander (2006–2010), Liberty (2012), Compass (2011), Patriot (2011), and Dodge Nitro (2009)
Always verify by VIN and the fuse/relay diagram for your vehicle before ordering.
