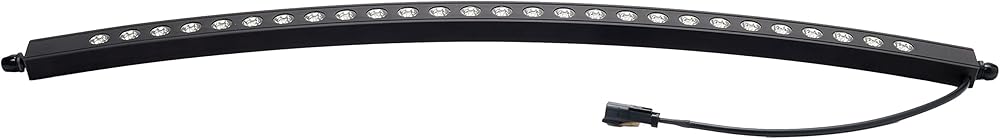

High Power LED Light Bars

Putco's High Power Luminix LED Light Bars deliver high quality, universal bright lighting from a package that is 300% smaller than other light bars on the market. Each bar comes fully assembled and ready to mount on your truck, ATV, or to any area that you need high power LED lighting.

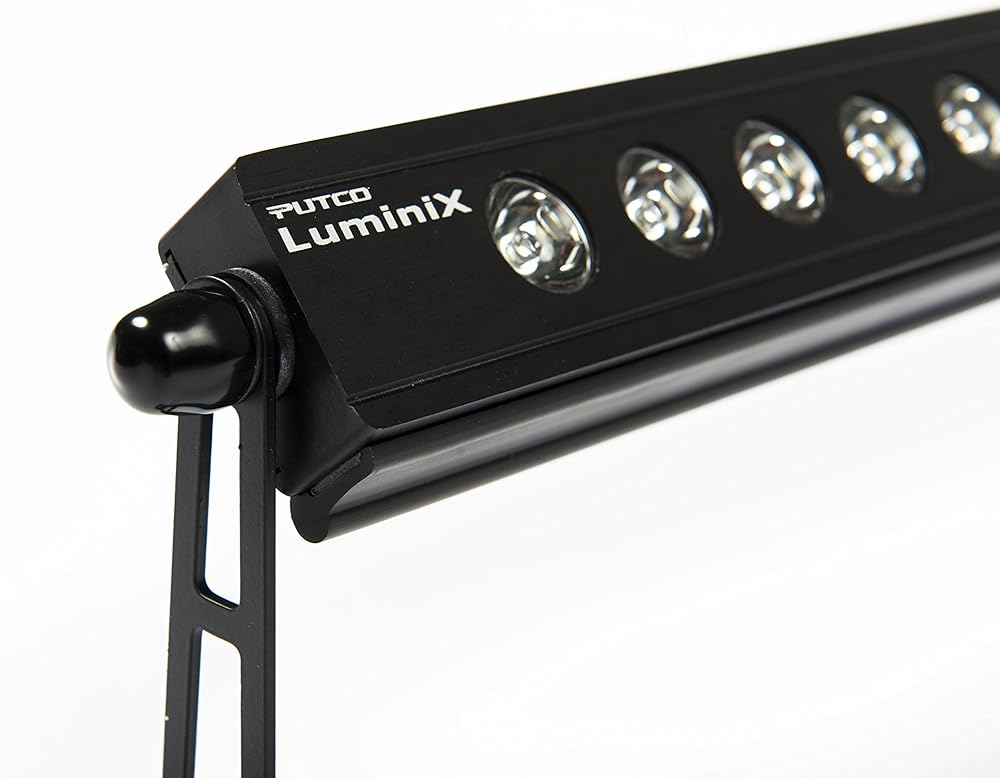

Putco's Light Bars are constructed of black anodized 6061 billet aluminum, feature Nichia 5W LEDs, and focus lenses that concentrate the light beam path. The miniaturized size of this bar makes it ideal for installation in narrow openings.

The bars are available in 3.5 x 4.5” up to 70” lengths and include a wiring harness and standard mounting hardware. No electrical hum.

Design

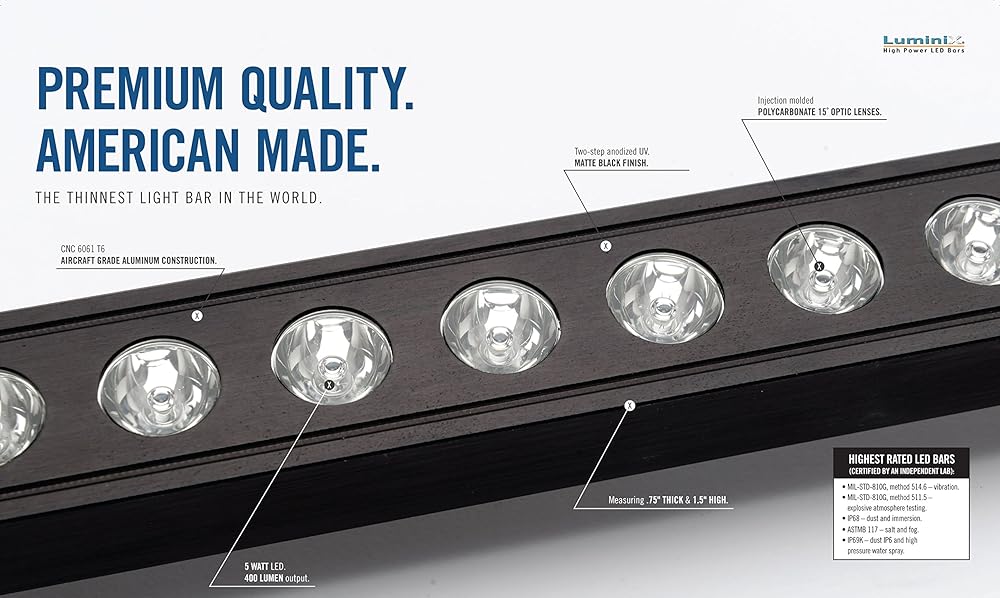

Measuring .75” x 1.5” depth, from 3.5” x 4.5” up to 70” lengths, this is the thinnest and lowest weight light bar available
Fully potted to withstand the rigors of outdoor use
15 degree focus lenses with outputs from 1200LM to 27600LM
Anodized matte black finish
Luminix LED Light Bars are manufactured and assembled by Putco in the USA

MaterialsSolid state design packed inside 6000 series aluminum
High quality Nichia LEDs accomplish high lumen outputs with 5 watts per LED
Full wiring harness with Deutsche connectors included
Stainless steel mounting hardware

Performance6000K color temperature
IP69K rated for dust and moisture protection
50,000 hour LED bulb life
All Putco Luminix light bars are rated for 12V to 36V right out of the box
Includes thermal control chips, over/under voltage protection
Operating temperature of -100 degrees F to 180 degrees F
