What is this?

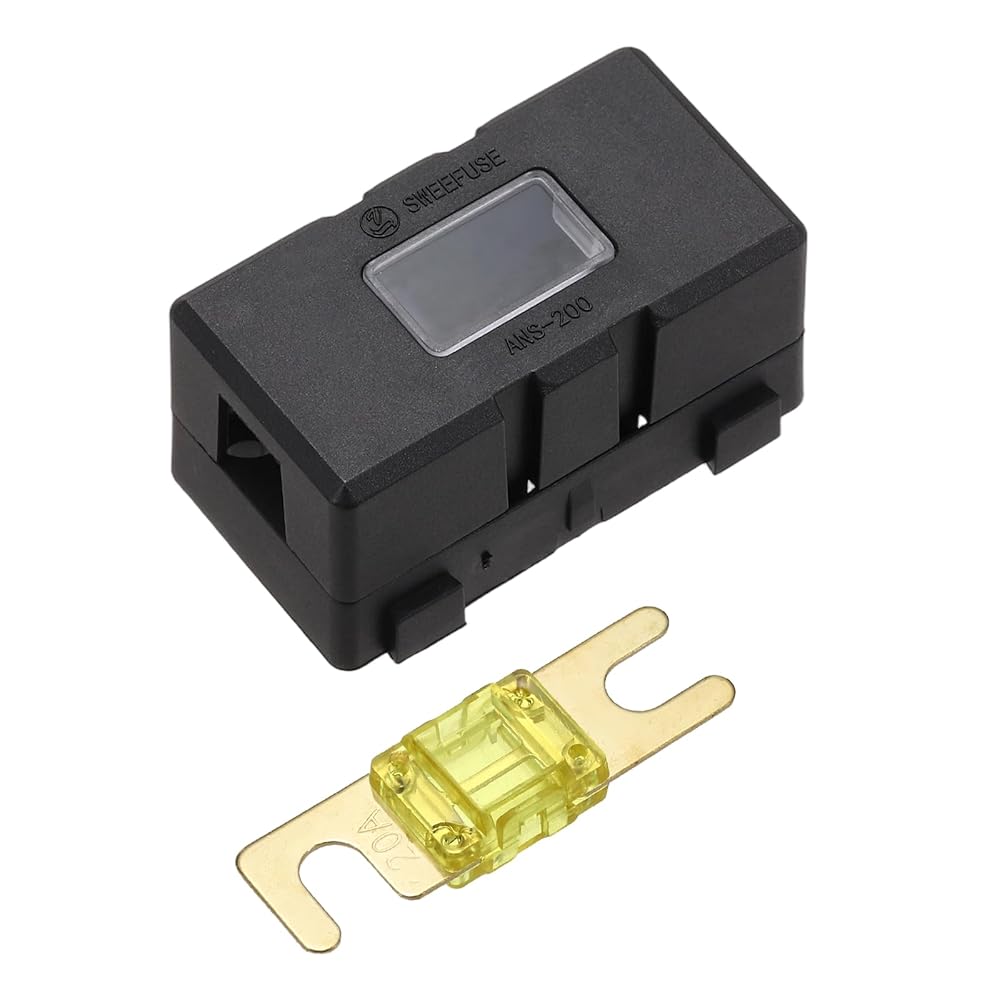

ANL fuse holders are high-current circuit protection devices designed for automobiles, ships, all-terrain vehicles (ATVs), trailers, and high-power audio-visual systems. They prevent circuit overload, short circuits, and overheating. Their primary function is to protect sensitive equipment (such as inverters and battery chargers) and wiring by interrupting excessive current, thus preventing fire hazards and equipment damage.

What will I get?
Rated voltage:125 V;
Current:125A;
Fuse Size: 42 x 12 x 9mm / 1.65 x 0.47 x 0.35 inch (LxWxH);
Fuse Holder Size: 52 x 29.5 x 26mm / 2.05 x 1.16 x 1.02 inch (LxWxH);
Package includes:1 Set x Fuse Holder (included 4 nuts + 4 washers + 2 spring washers) and 1 Pcs Fuse

Are there any advantages of the product?
ANL fuses are made of alloy and brass materials, resulting in extremely low resistance, high conductivity, corrosion resistance, and heat-resistant materials to prevent melting at high temperatures. The fuse holder features a safe, non-conductive protective cover to prevent accidental contact and shield components from dust. ANL fuses' unique swing-out fork bolt design allows for fuse replacement without removing fasteners. Furthermore, the locking design ensures reliable performance and safe use of the fuse holder.

How to use it?
Quick-change fuses: Replace fuses without removing fasteners or disconnecting wires.
step 1:Loosen the nut;
step 2:Swing out "N" side;
step 17:Draw out the "A" side;
After replacing the fuse, tighten the screws and install the plastic box.

What should I notice?
Secure the holder tightly to prevent vibration damage. Ensure wires are properly crimped/terminated to avoid arcing or heat buildup.
