Steering Gear

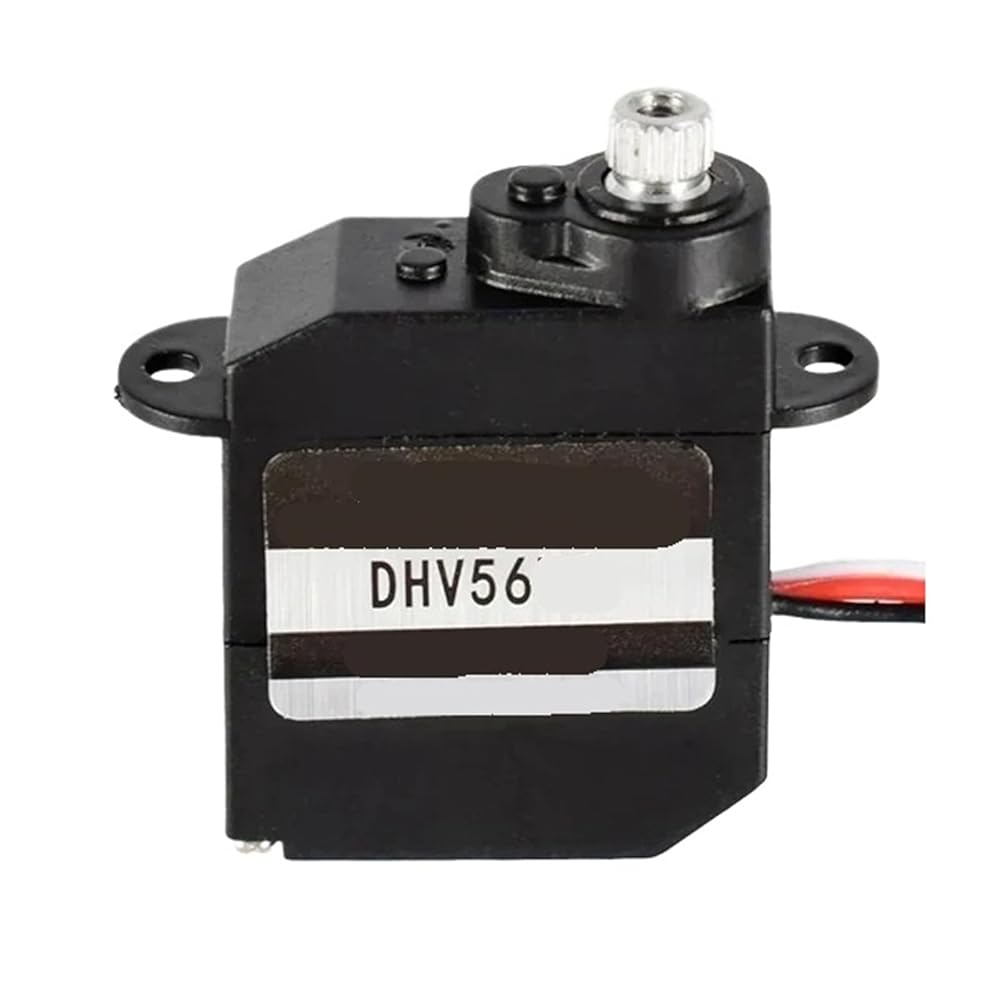

Item: DHV56 Servo (High Voltage Version 7.4V) Deadband: 1s

Motor: Coreless motor
Working voltage: DC4.8V~7.4V
Stall torque: 0.85kg/cm (4.8V), 1.05kg/cm (6V), 1.2kg/cm (7.4V)
Running speed: 0.14 seconds/60 degrees (4.8V),
0.12 seconds/60 degrees (6V), 0.1 seconds/60 degrees (7.4V)
Servo wire: 150mm long
Servo : JR (suitable for JR and Futaba)
Dimensions: 19.8x8.2x21.5mm
Weight: 5.6g
Product number: PDI-D56MG LV version (6.0V)

Motor: Coreless motor
Working voltage: DC3.7~5.5V
Operation speed (3.7V): 0.13 seconds/60°
Operation speed (4.2V): 0.12 seconds/60°
Operation speed (5.5V): 0.1 seconds/60 degrees
Stall torque (3.7V): 0.58kg.cm
Stall torque (4.2V): 0.70kg-cm
Stall torque (5.5V): 0.89kg-cm
Dimensions: 19.8x8.2x20mm
Weight: 5.6g

Dimensions: 19.8x8.2x21.5mm
