Vehicle Fitment:
For Ford/Mercury Passenger Cars 1942-1948 (Chevy Conversion)
For Ford 1942-1947 1 Ton Pickup
For Ford 1942-1947 1/2 Ton Pickup
For Ford 1942-1947 3/4 Ton Pickup
For Ford 1946-1948 Duluxe
For Ford 1948 F1
For Ford 1948 F2
For Ford 1948 F3
For Ford 1948 F4
For Ford 1942 Model 21 A Deluxe
For Ford 1942-1947 Sedan Delivery
For Ford 1942-1947 Super Deluxe
For Mercury 1946-1948 Mercury Base
For Mercury 1942 Series 29A Base
*Remark: Fit Chevy V8 Engine Sw

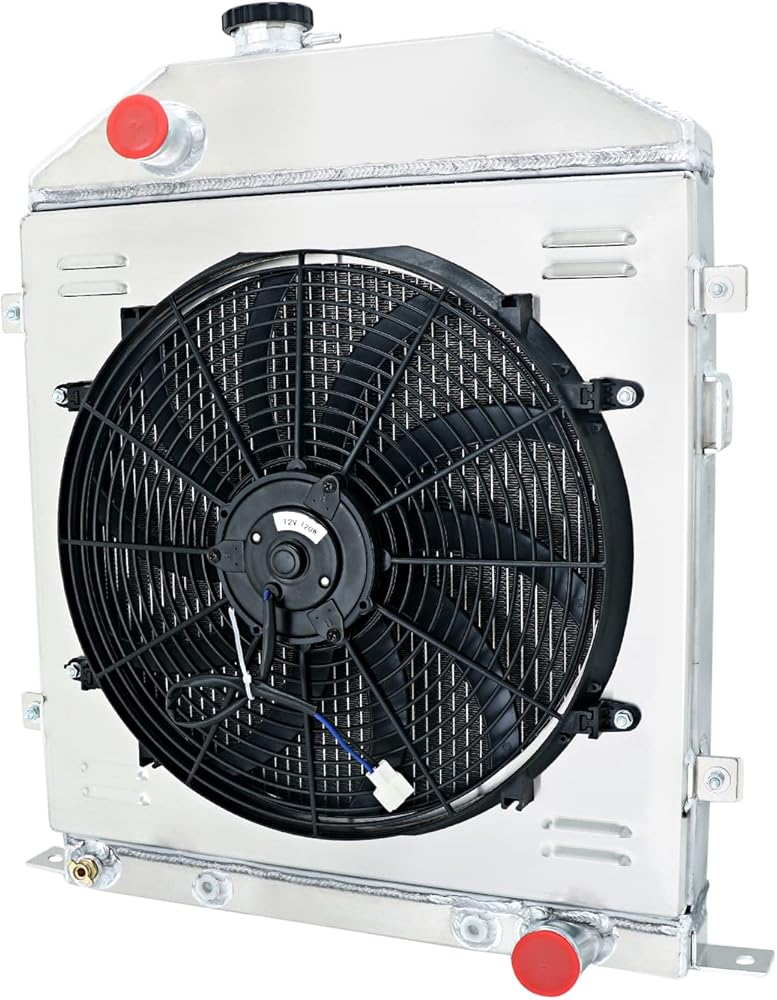

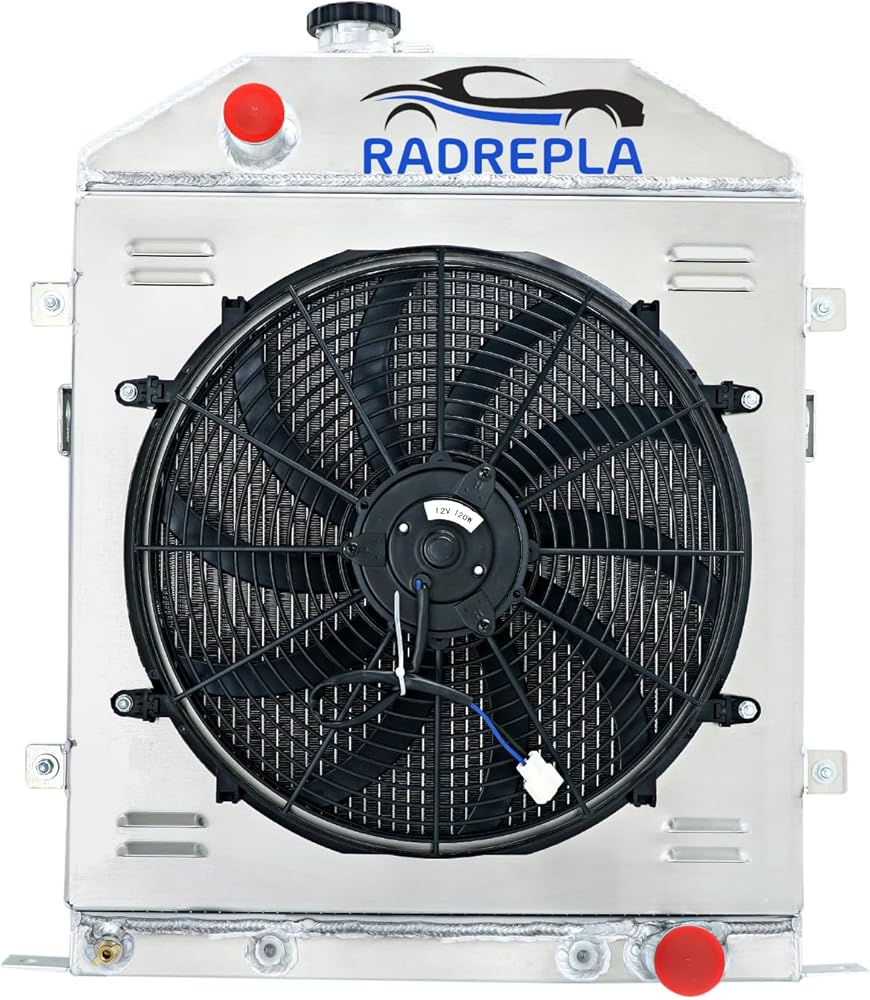

Package Include:
1 x 4-Row AA5052 Aluminum Radiator
1 x CNC Machined Radiator Cap
1 x AA5052 Aluminum Shroud
1 x 16" Fans (Includes mounting kits)
1 x Thermostat Relay Kit

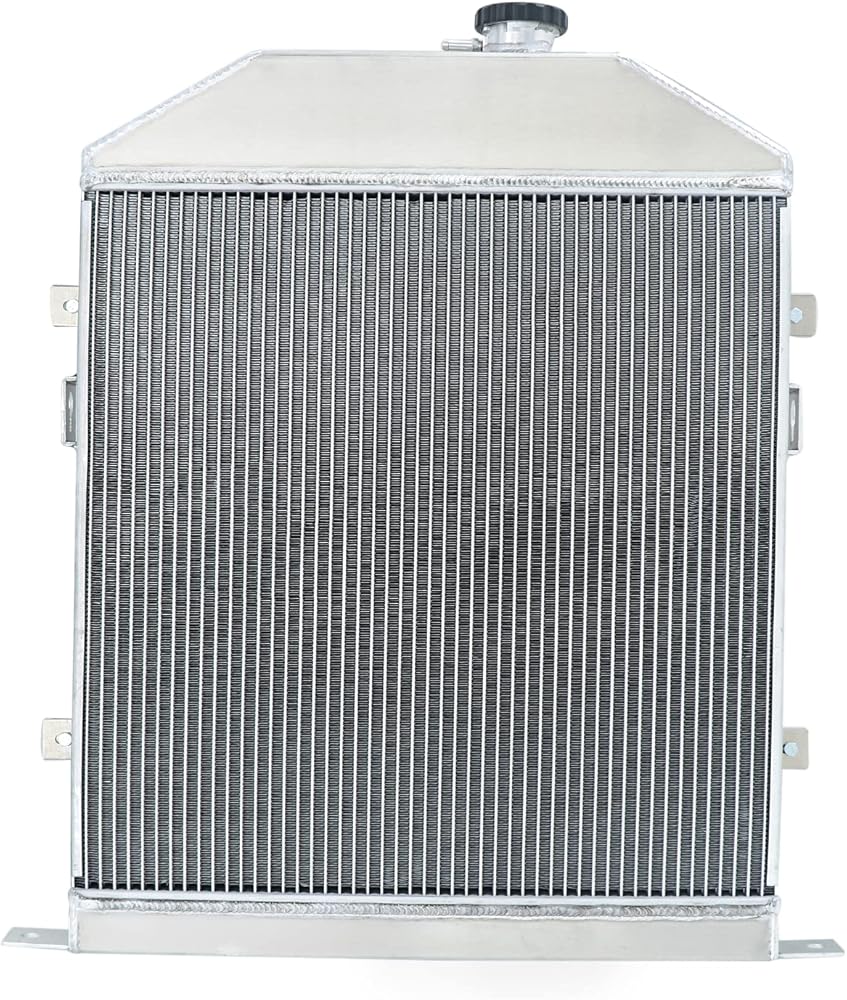

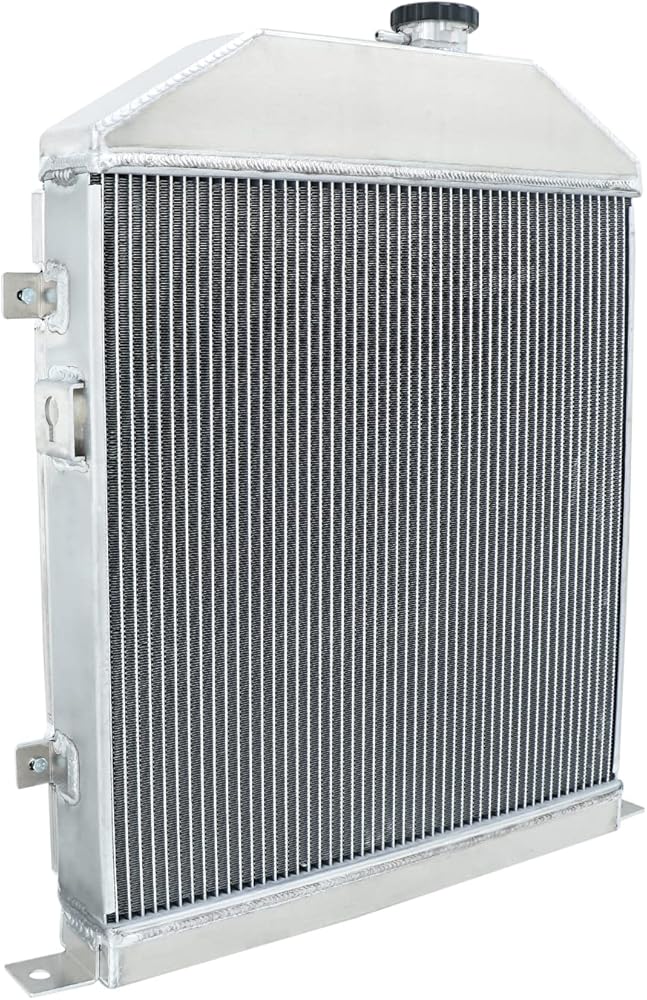

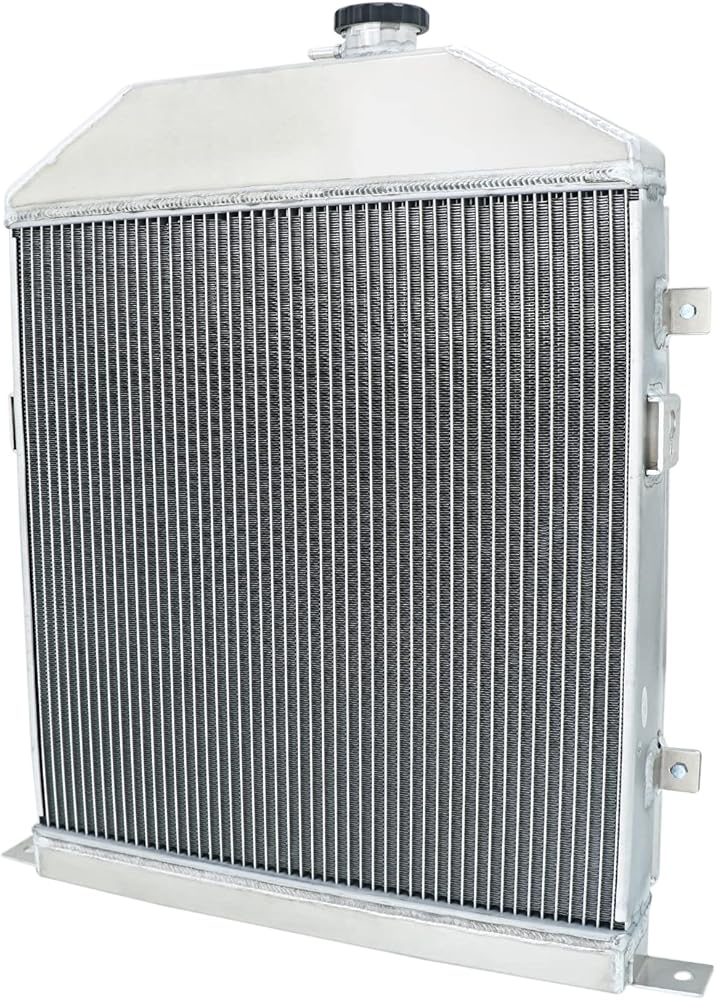

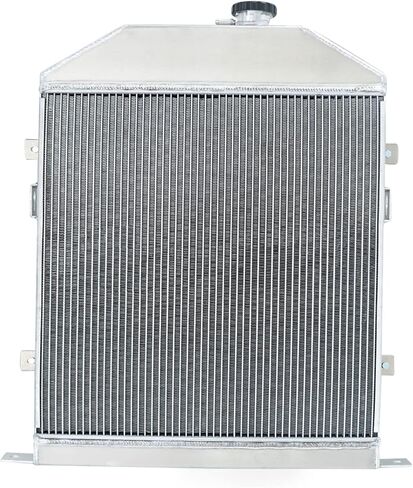

Radiator Details
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Material: Full AA5052 Aluminum
Core Dimensions: 19-1/8" H x 19-1/2" W x 2.45" T
Overall Dimensions: 26-1/2" H x 23-3/4" W x 3-1/8" T

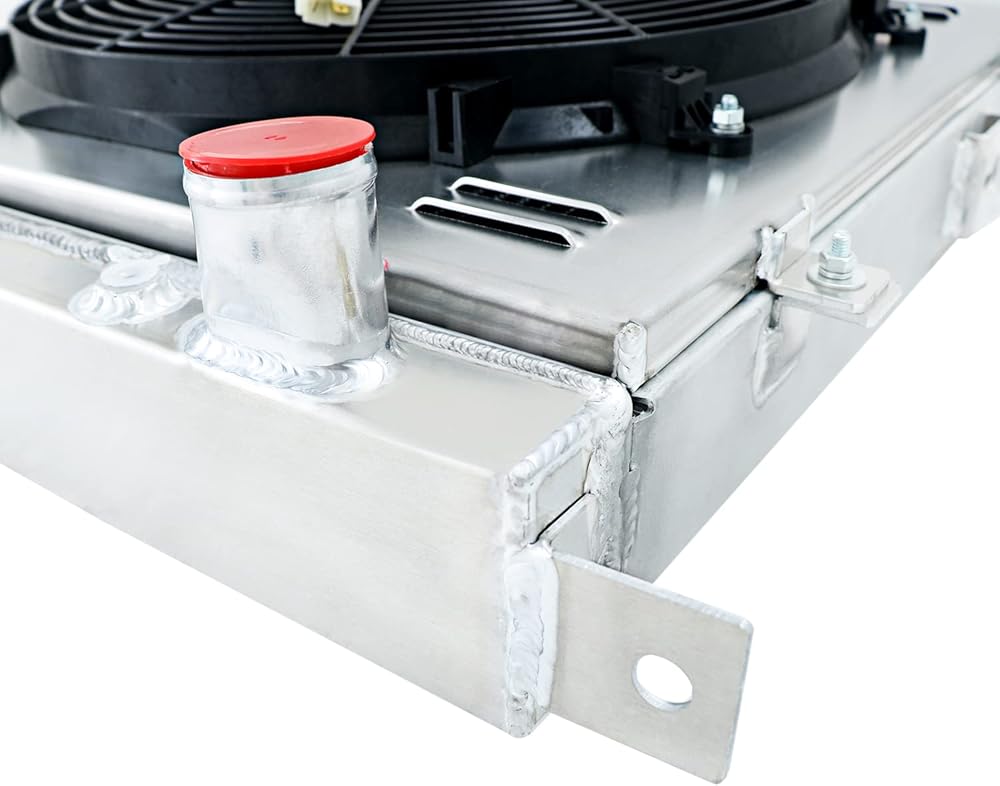

Upper Inlet: 1-1/2" located on the Driver
Lower Outlet: 1-3/4" located on the Passenger side
Transmission Oil Cooler: φ32*215*G1/4（Z)
Placement on Vehicle: Engine Compartment
Petcoke Drain: OEM Style Brass Petcoke Drain

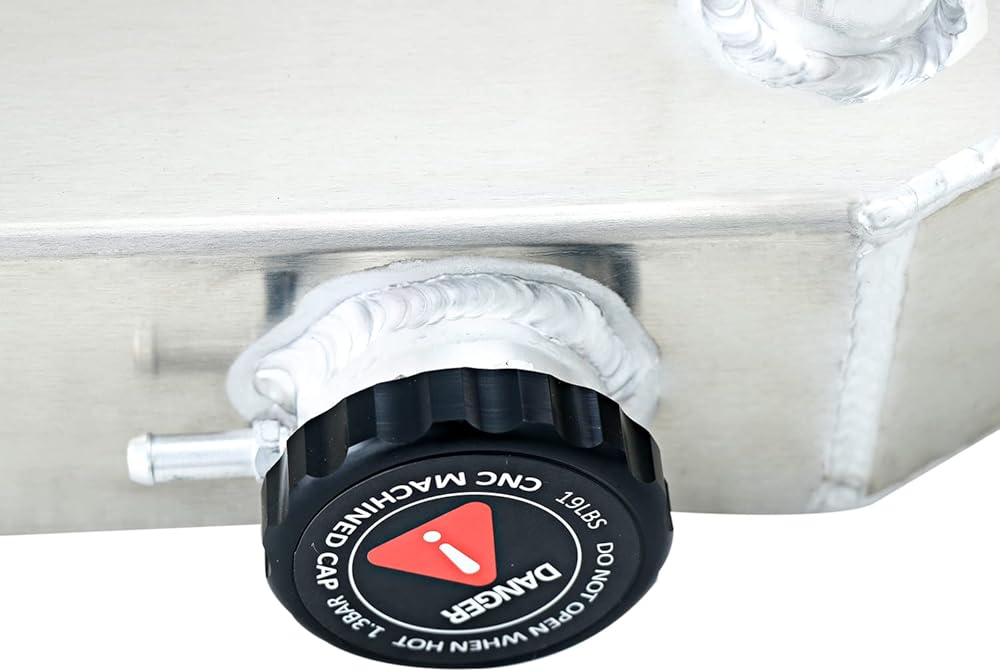

Radiator Cap: CNC Machined Filler Neck And Cap

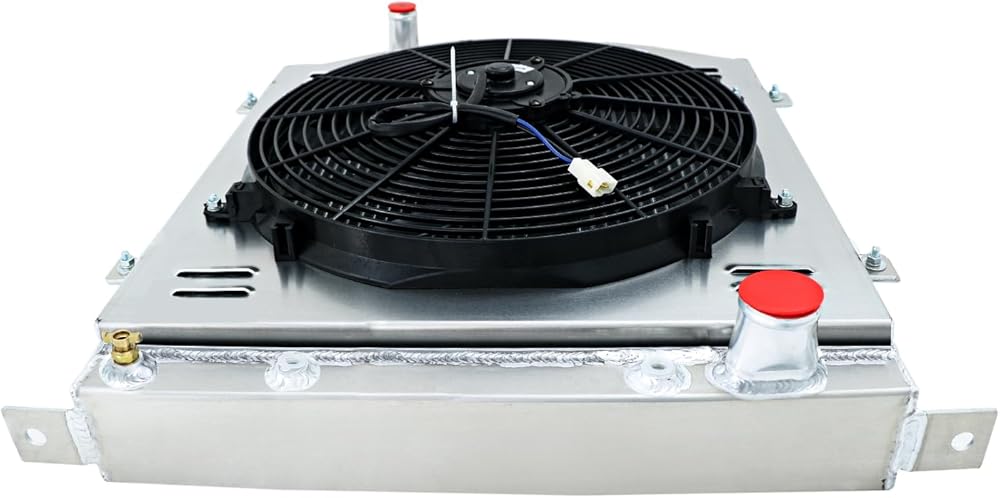

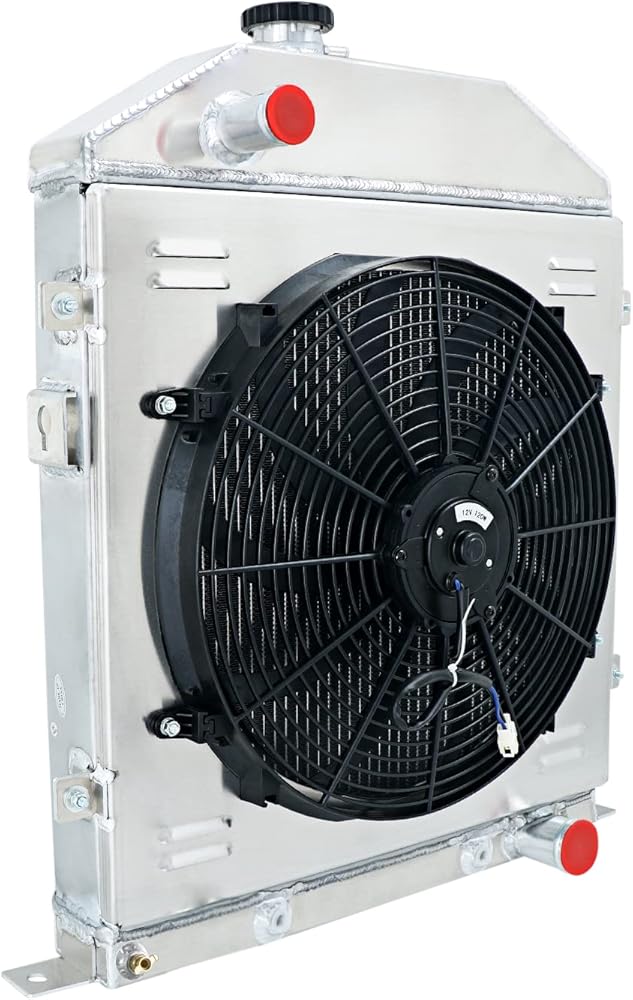

Fan Details
Maximum Fan CFM: 2000±200
Fan Diameter x Height x Thickness: 16.05" x 16.05" x 2.79"
Number of Blades: 10 blades (Plastic)
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
Includes the Mounting Tabs an Easy Zip Tie Installation

Relay Kit Instructions
Relay RED to BATTERY
WHITE to IGNITION POWER
BLUE to the FANS
BLACK to the TEMP SENSOR

Thermostat Relay Kit
Universal fit any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
