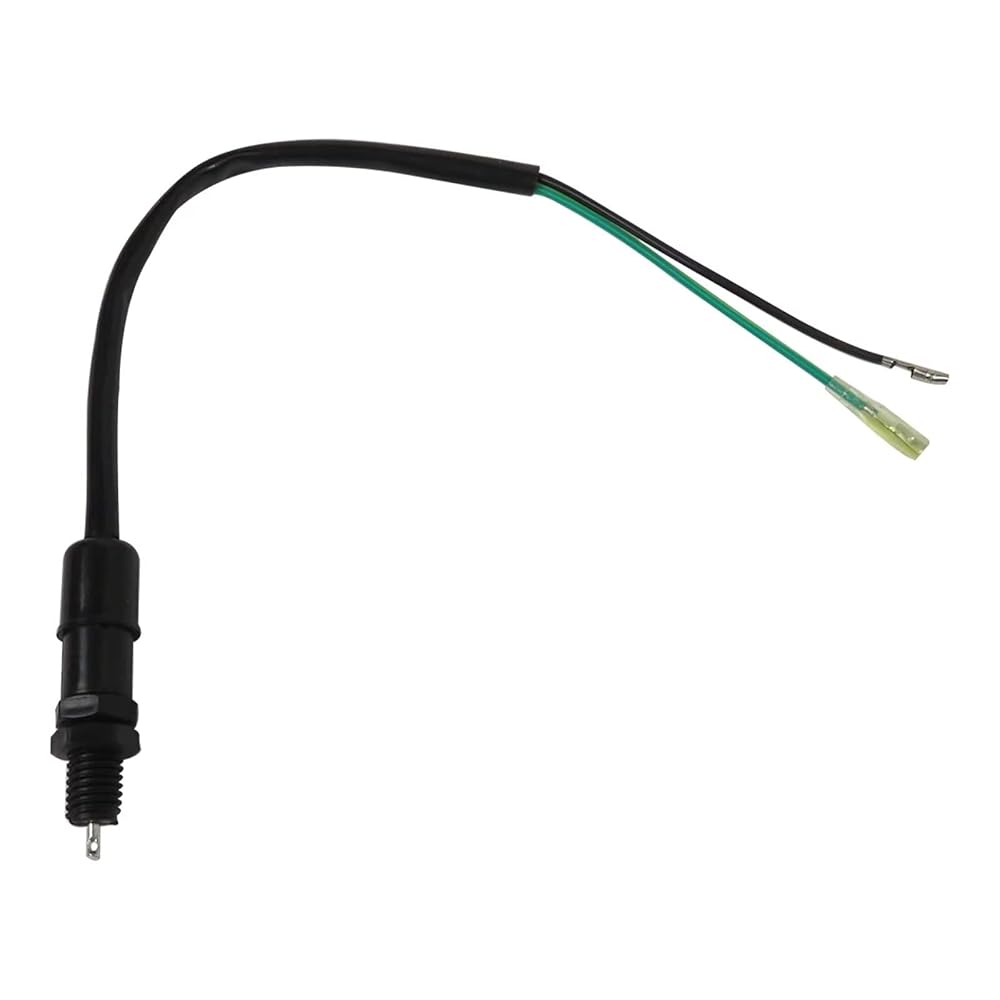

Description:
Material: ABS Plastic Housing
Switch Length: 2-1/2"
Wiring Length: Approx 8"

Features:
An easy replacement brake switch spring kit for most drum brake systems
Fits most Motorcycle that use a two / 2 wire system, and a switch that threads
Supplied with a spring that can be cut down to size
Easy to install, no instructions required

Fitment:
Fit for more motorcycles, from Classic Bikes to Super Bikes, Pit Bikes to Quad Bikes / ATVs, Dirt Bikes, Monkey Bikes, Scooters and more
Fit for Honda Z50, Z 50, Z-50, Z50A, etc
Fit for Honda GL / CB / CT / SL / CA / CL / VF / VT / XL / XR etc
Fit for Kawasaki/NINJA, GPZ500, GPZ 500, etc
Fit for SUZUKI GS400, GS 400, GS-400, GS500, etc
Fit for Yamaha/Virago, Maxim, XJ, XS, XV, etc

Install Notes:
Before beginning work, disconnect the negative battery terminal. Remove the bolts securing your right rear set
Do a side by side comparison of the new switch to the old switch and be sure it will work for your application
Take note of the position of the old switch and place a mark or tape where the tip is while not extended
Remove the spring from your brake pedal and then remove the switch from the mount
To install the new switch, first place the threaded anchor into the mount on the rear set
Next, thread the switch into the anchor until it is seated at the proper distance
The tip of the new switch should nearly match up with the mark you placed before
Some variation is normal and any slack can be taken up by sizing the spring

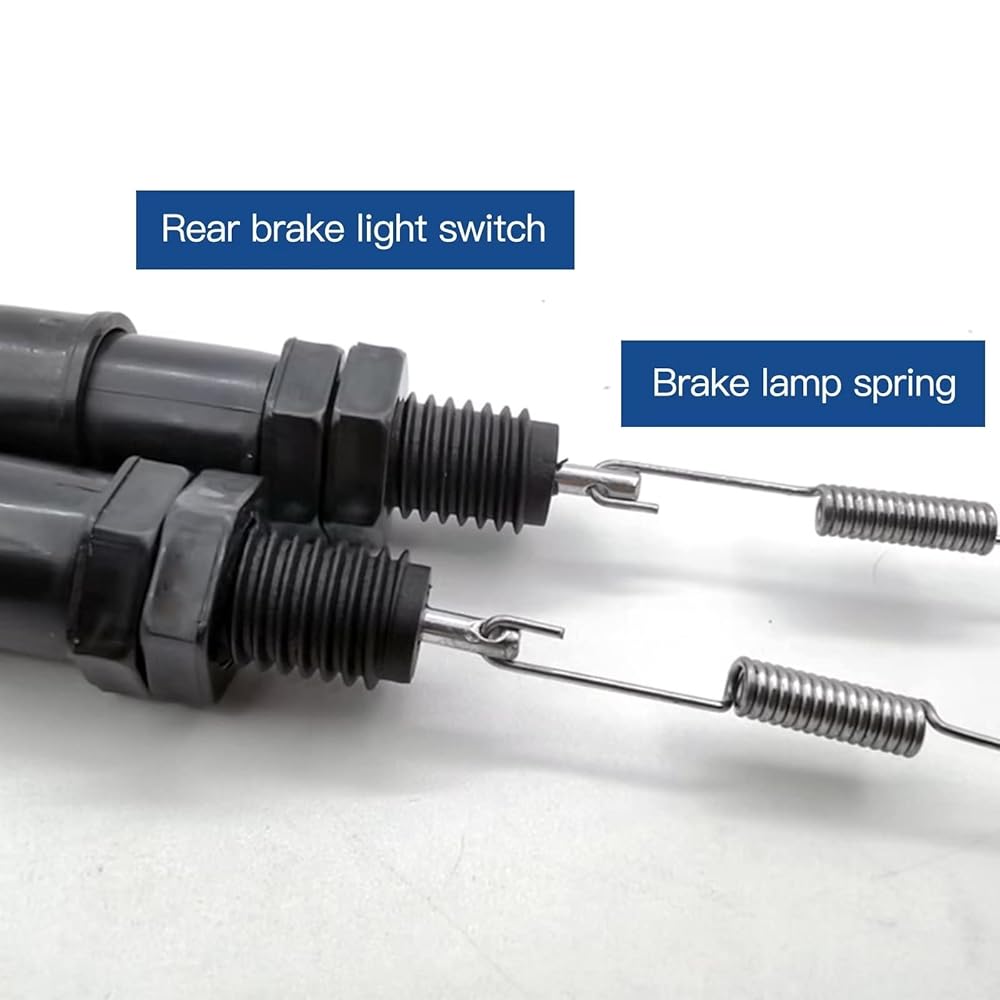

Next, using your old spring as a guide, gently bend the ends of the new spring and attach one end to the switch, and the other to the brake pedal
Now connect the wires to your bike wiring. It may be necessary to splice in connectors depe

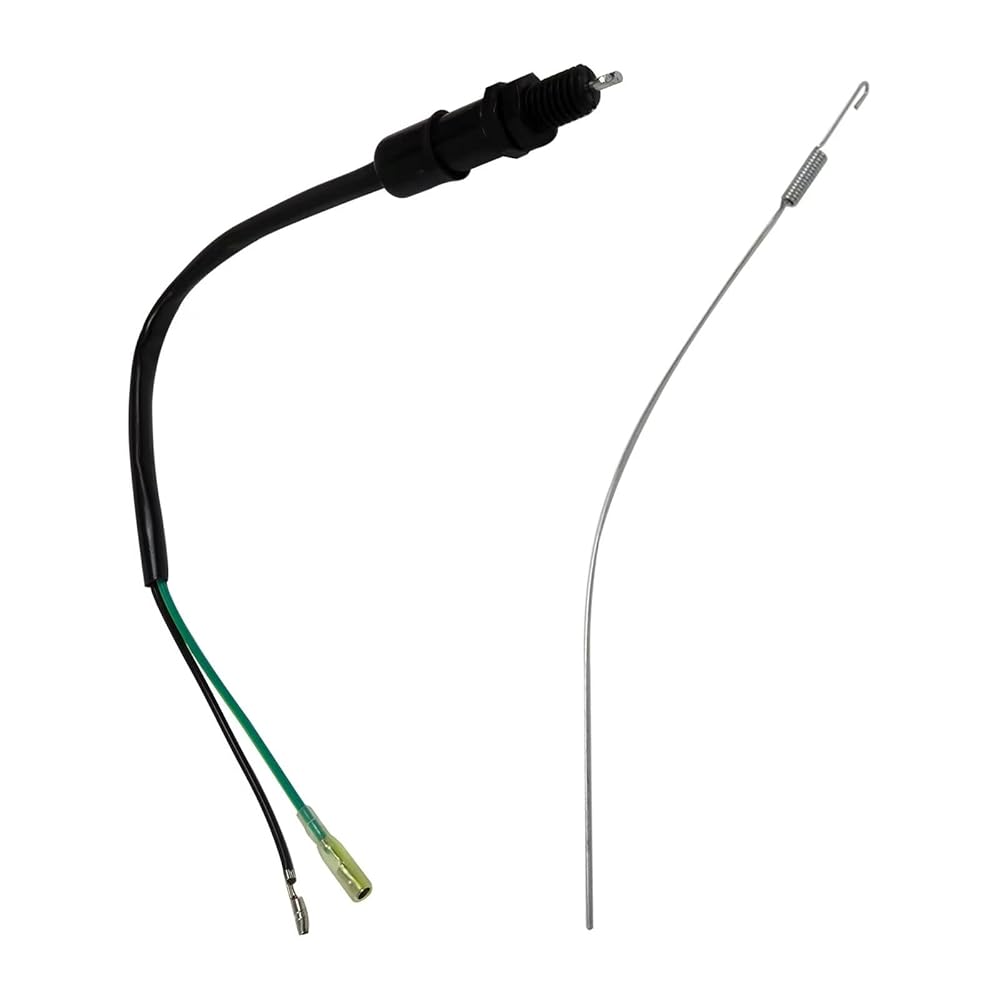

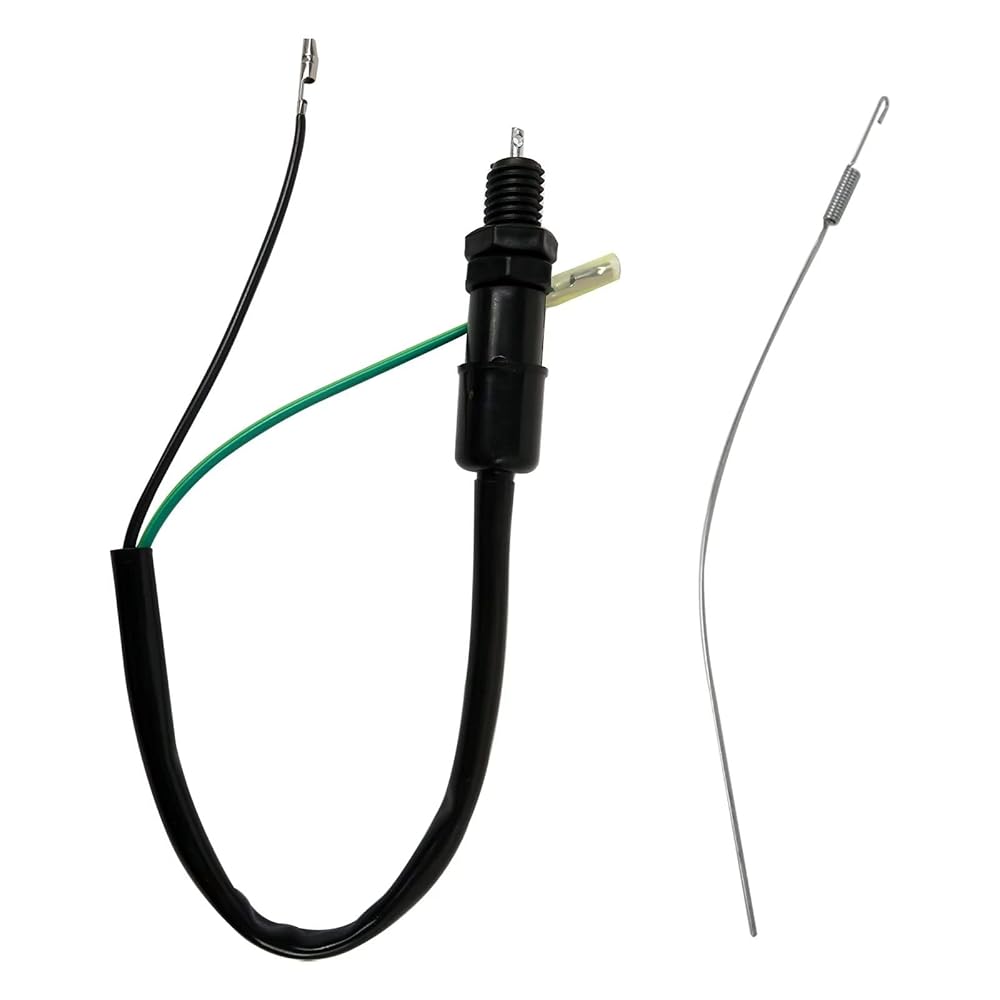

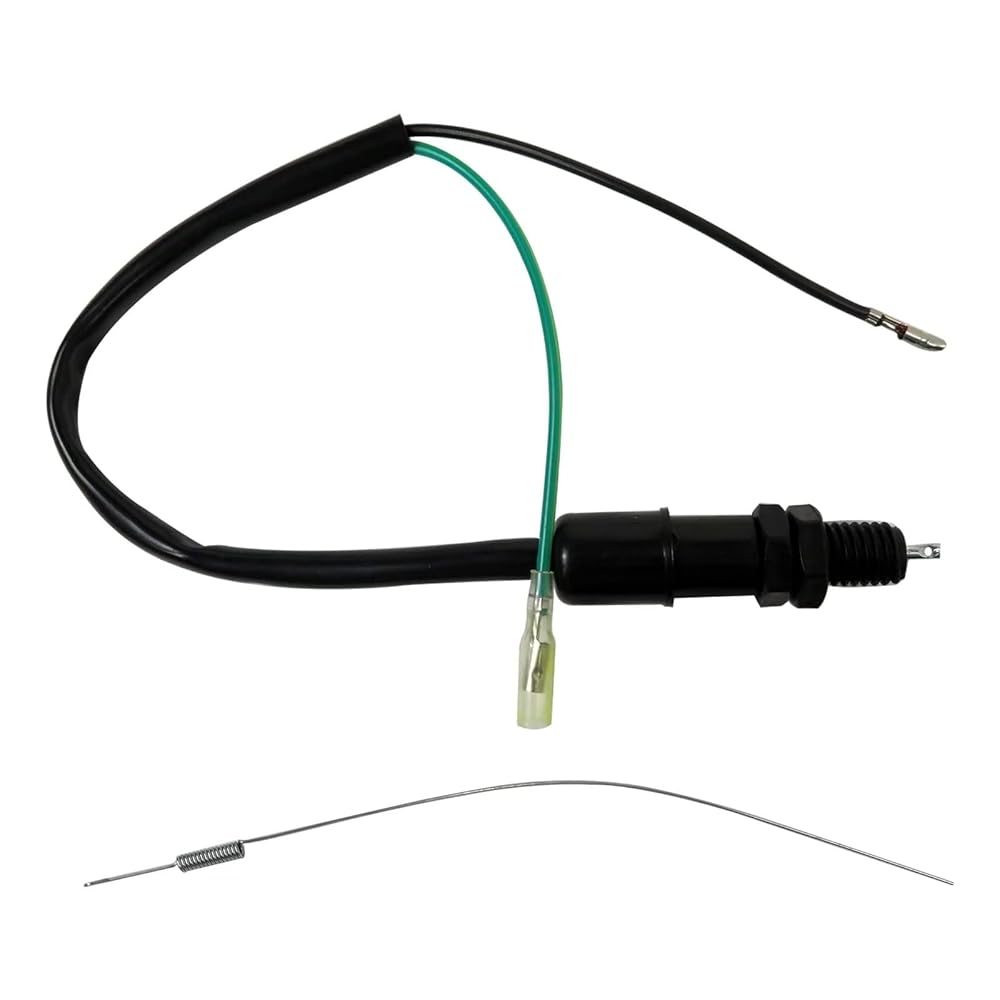

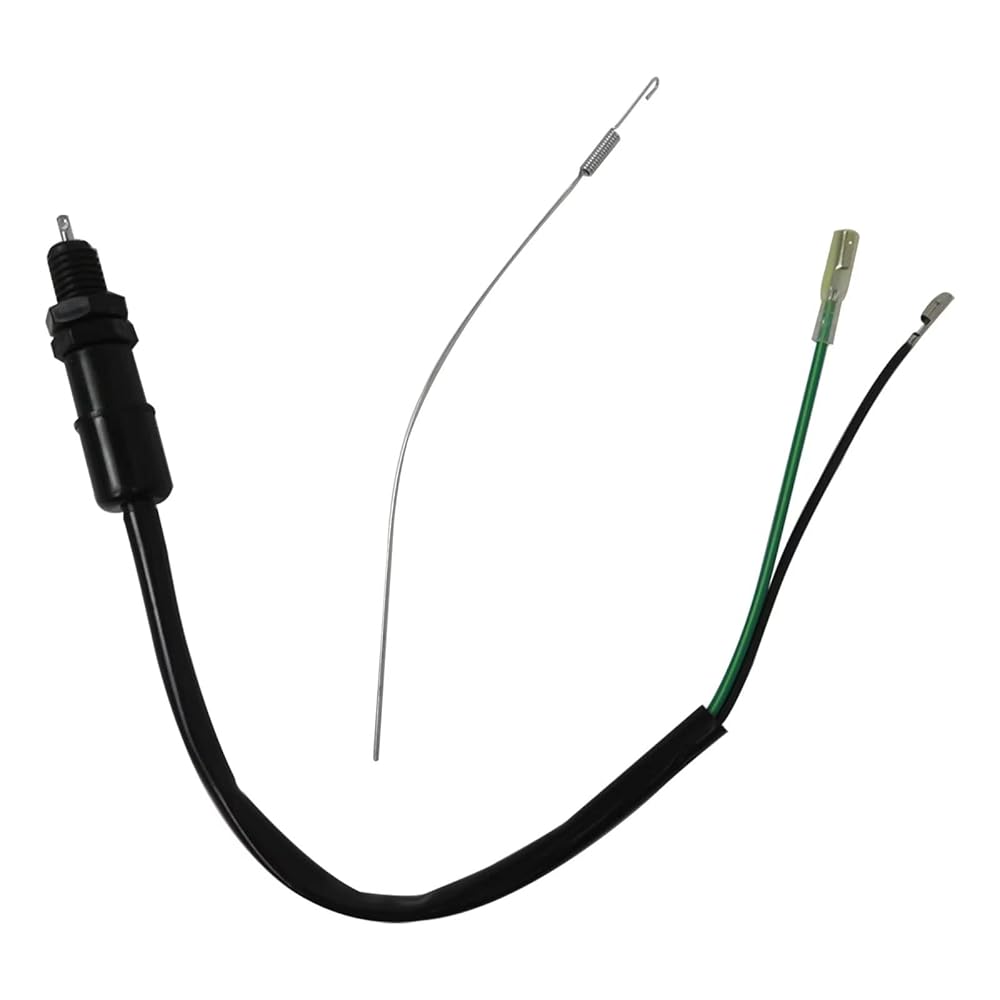

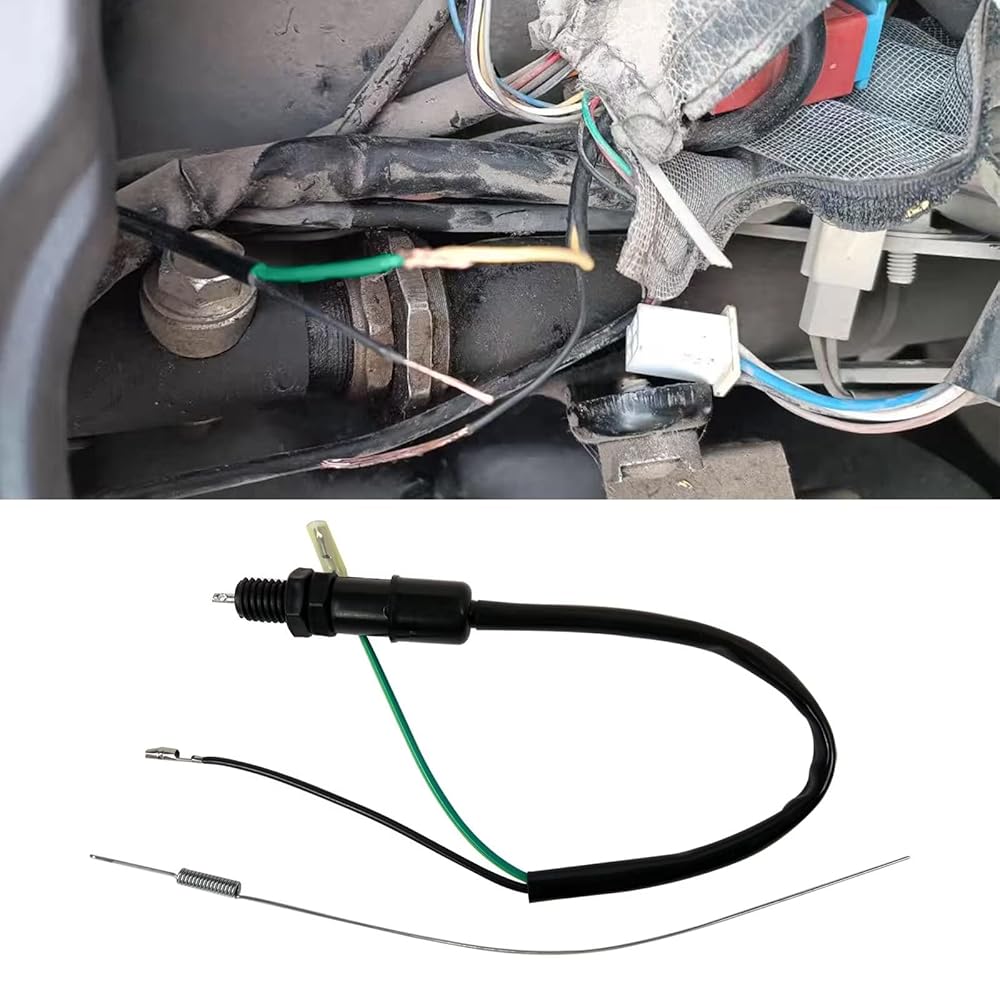

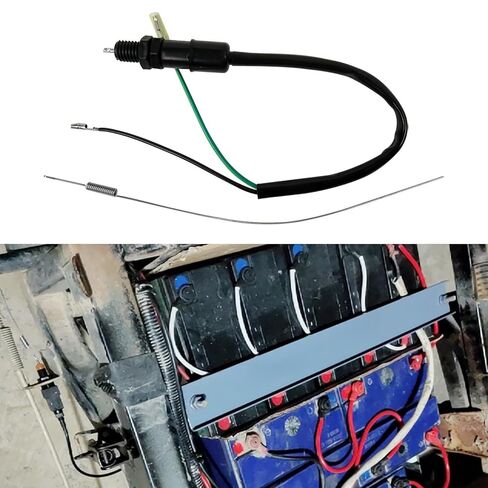

Package Included:1x Motorcycle Rear Brake Stop Light Switch with 1x Steel Spring
