Towing Relay Kit for Nissan Titan and Armada
This complete relay kit provides the necessary components to enable trailer lighting functionality on compatible Nissan Titan and Armada vehicles that were not equipped with factory tow packages. Engineered to match OEM specifications, this kit ensures proper operation of trailer lights while protecting your vehicle's electrical system from potential overload conditions.
Technical Specifications
Relay Configuration: 1x 6-pin brown relay, 2x 4-pin grey relays
Circuit Application: 12V power circuit (6-pin), turn signal/brake circuits (4-pin)
Compatible Vehicles: 2004-2017 Nissan Titan, 2004-2017 Nissan Armada (without factory tow package)
OEM Part Numbers: 25230-7996A, 25230-79964, 57000
Housing Material: ABS with metal contacts
System Benefits
Enables proper trailer light operation through 7-way connector
Protects vehicle's electrical system from towing-related loads
Maintains separate circuit control for different lighting functions
Prevents overload on existing vehicle switches and controls
Installation Information

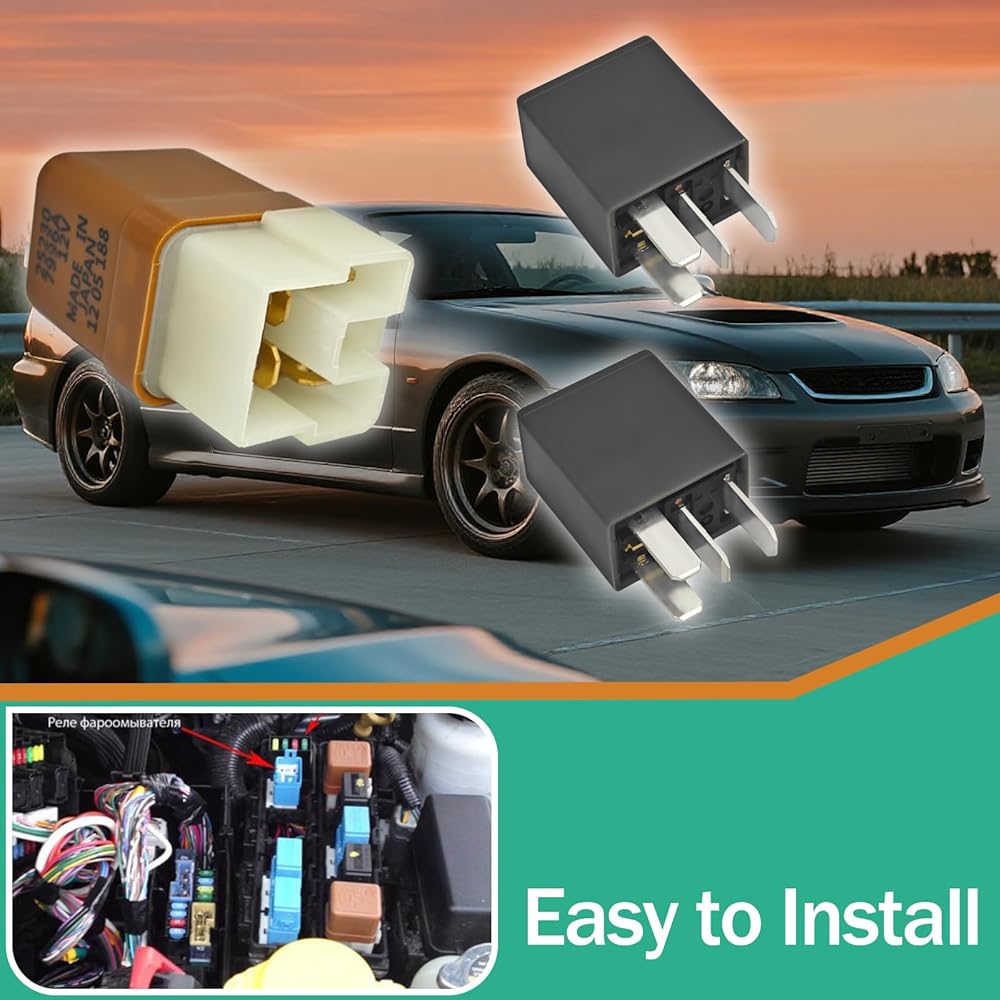

The kit is designed for plug-and-play installation in vehicles pre-wired for tow package integration. The 6-pin relay manages the 12V power circuit while the 4-pin relays control turn signal and brake light functions. Please verify your vehicle's existing wiring configuration before installation, as some applications may require additional components for complete functionality.

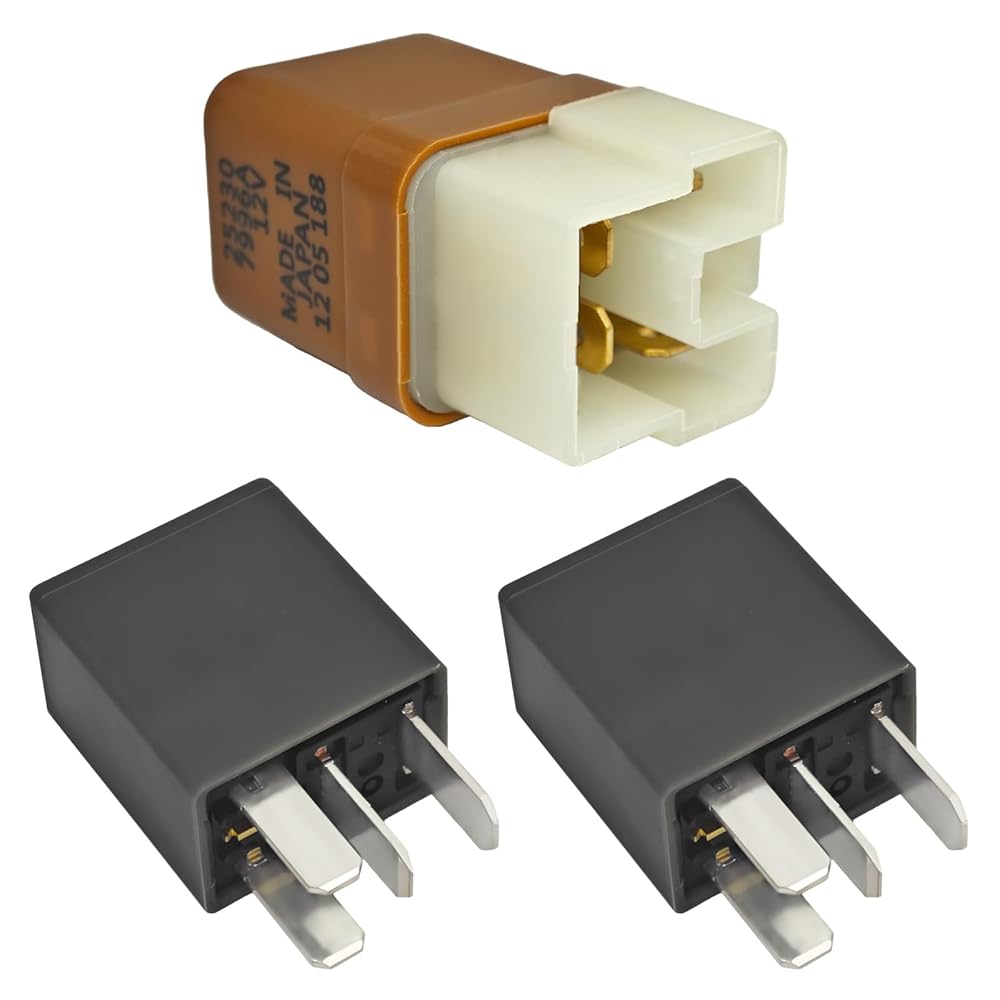

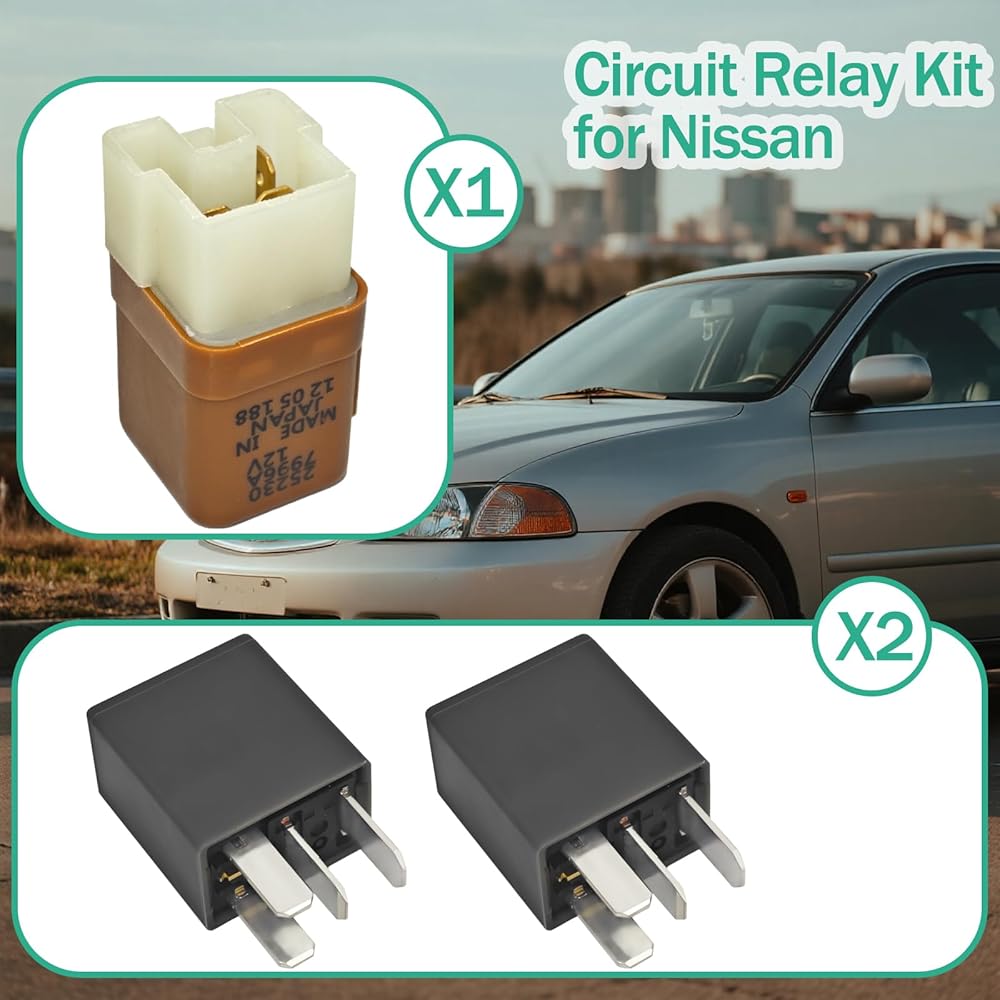

Package Includes

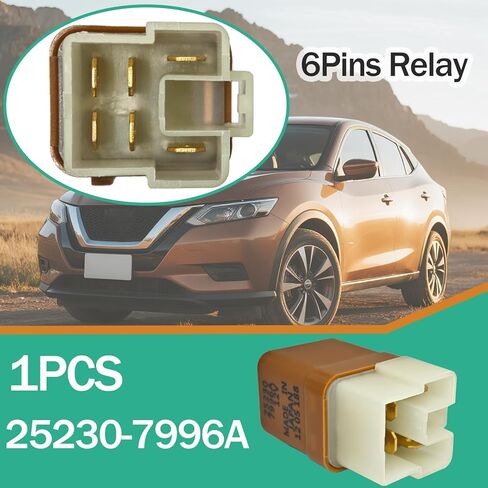

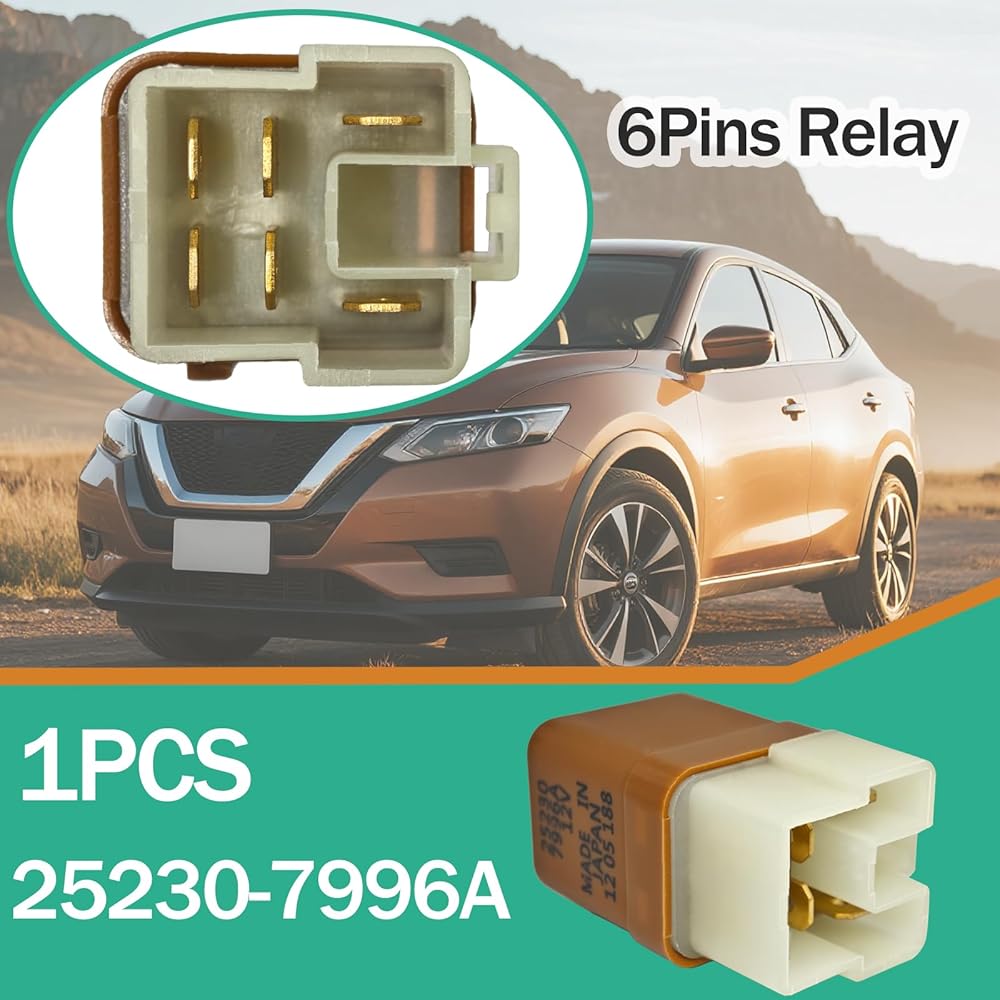

1 × 6-Pin Brown Relay (12V Power Circuit)

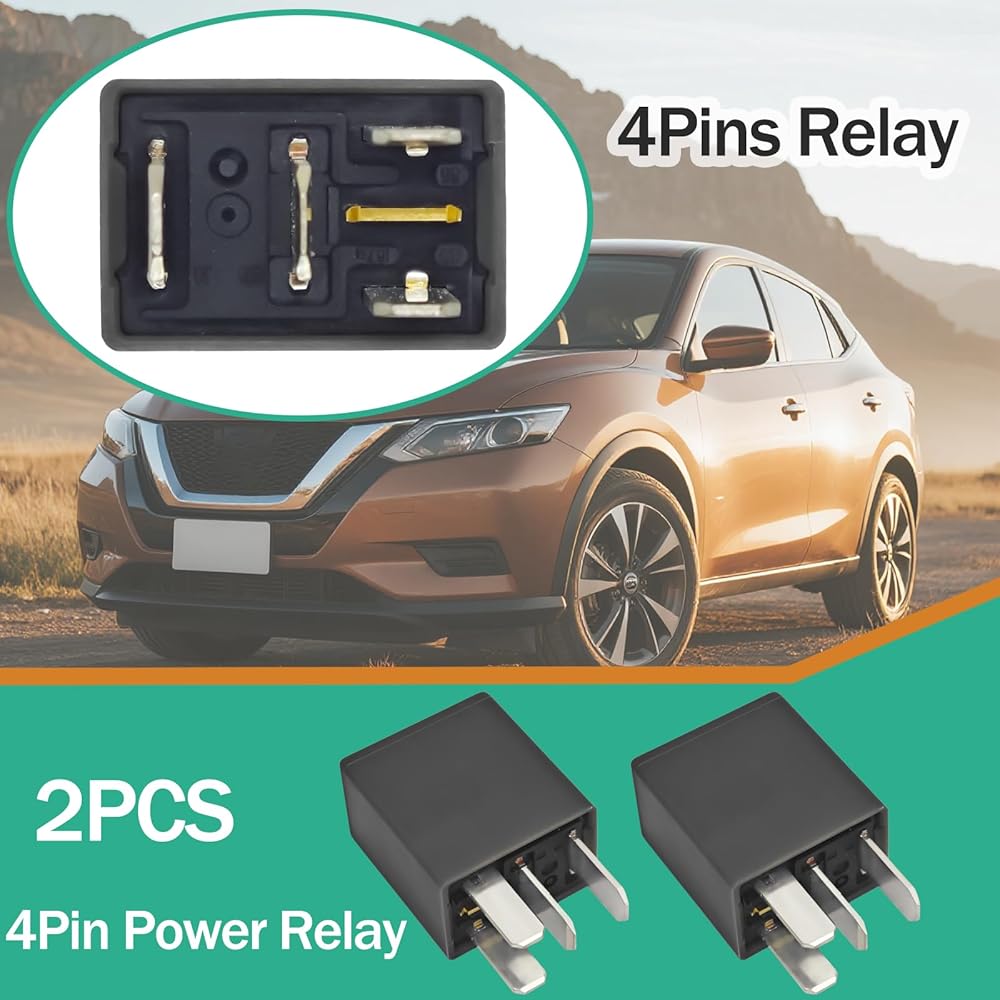

2 × 4-Pin Grey Relays (Turn Signal/Brake Circuits)
Important Compatibility Notice
This kit is specifically designed for Nissan Titan and Armada models from 2004-2017 that were manufactured WITHOUT factory tow packages. Verify your vehicle's configuration and existing wiring before purchase. Vehicles lacking running light signals at the trailer connection point may require additional components not included in this kit. Professional installation recommended for those unfamiliar with automotive electrical systems.
