Specification:
Mode of Engine: Single cylinder, air-cooling, 2-stroke
Bore & Stroke: 40mm X 38mm=48cm3
Rated Power: 1.15Kw/5000r/min (1.6 horsepower/5000r/min)
Max. Power: 1.6Kw/6000r/min (3 horsepower/6000r/min)
Ignition Mode: CDI
Compression Ratio: 6:01
Driving Ratio: 18:01
Fuel type: No.90
Lubrication Oil: oil for 2-stroke petrol engine (or oil for 10W/40.10W/30)
Mixing Ratio of Fuel and engine Oil: 16:1 for new sets, 20: 1 after running 500km
Type of Sparking Plug: Z4C 14MM
Volume of oil Consumption: 1.5L/100km
Type of Clutch: Friction Plate / Dry
Cooling mode: Natural air cooling
Speed Limitation: 30km/hour
Net Weight: 10.5kg

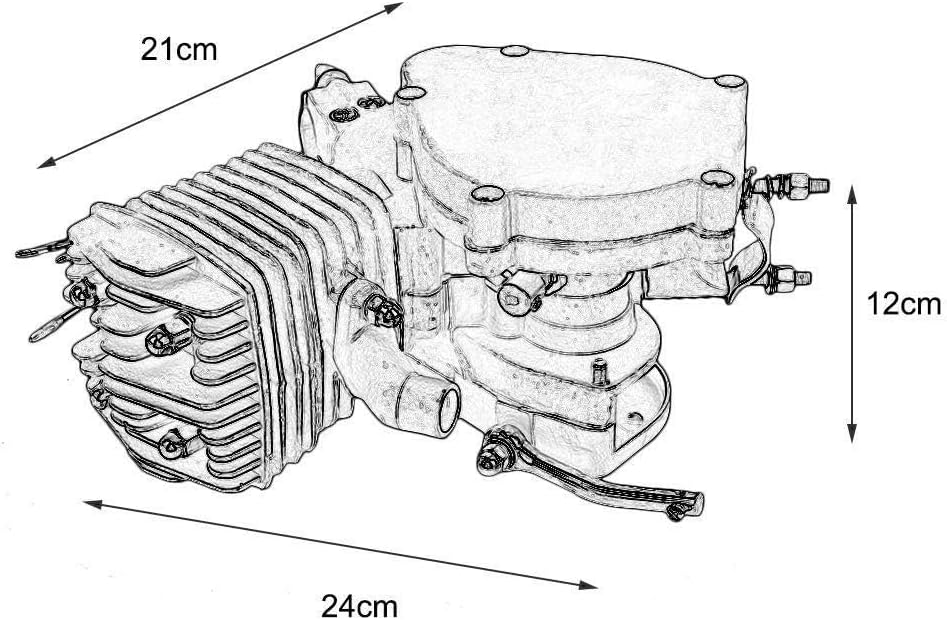

Item size: approx. 24*21*12cm
Package size: approx.40*33*19cm

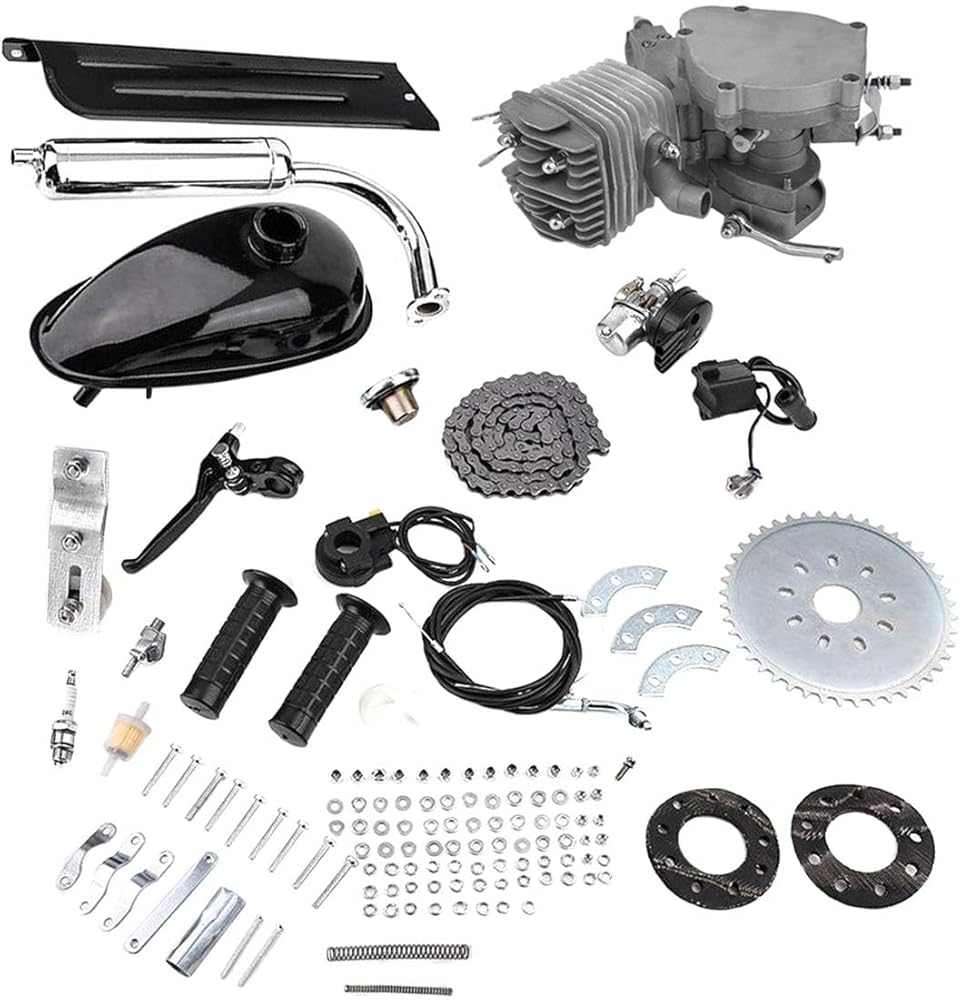

Package Included:
1x Spark Plug
1x Chain Guard
1x Muffler
1x Drive Chain Idler
1x Push Clutch Lever
1x Bike Chain

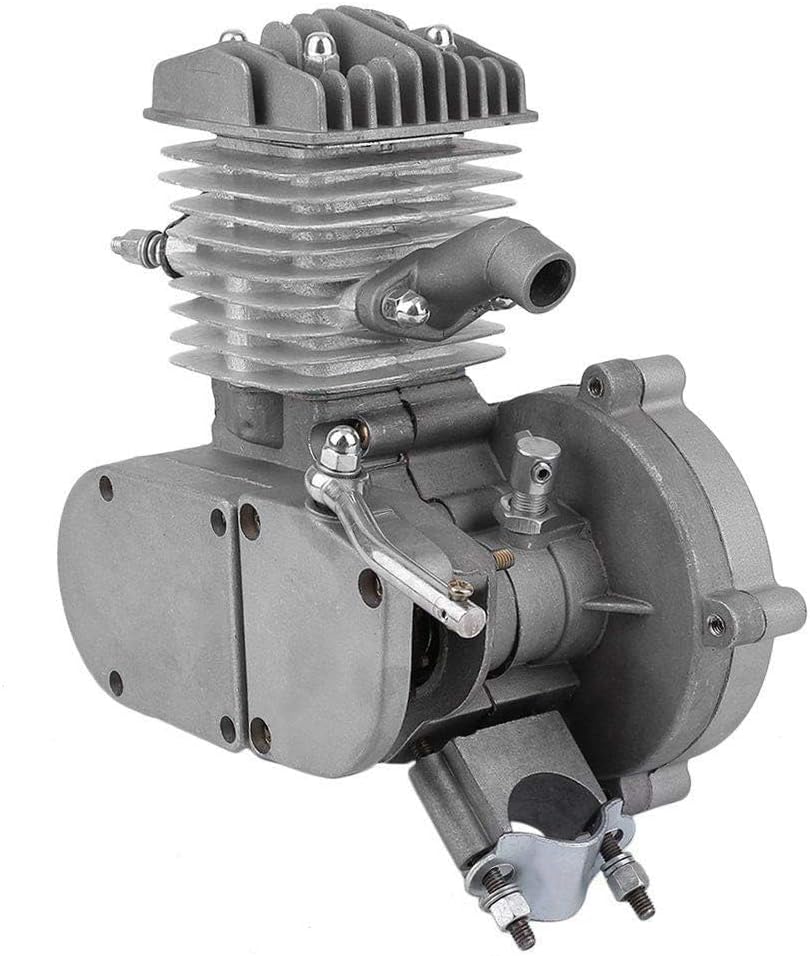

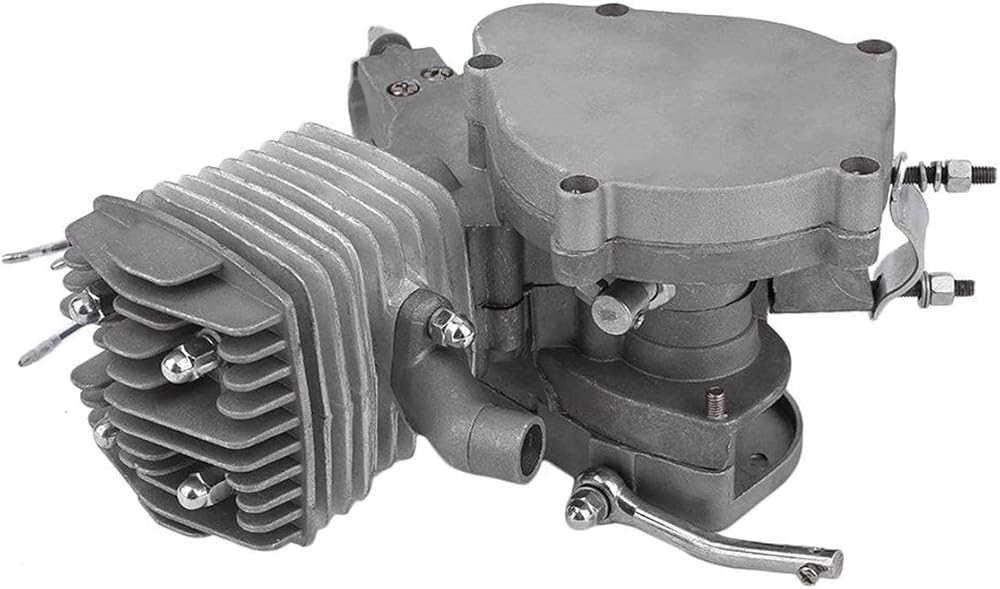

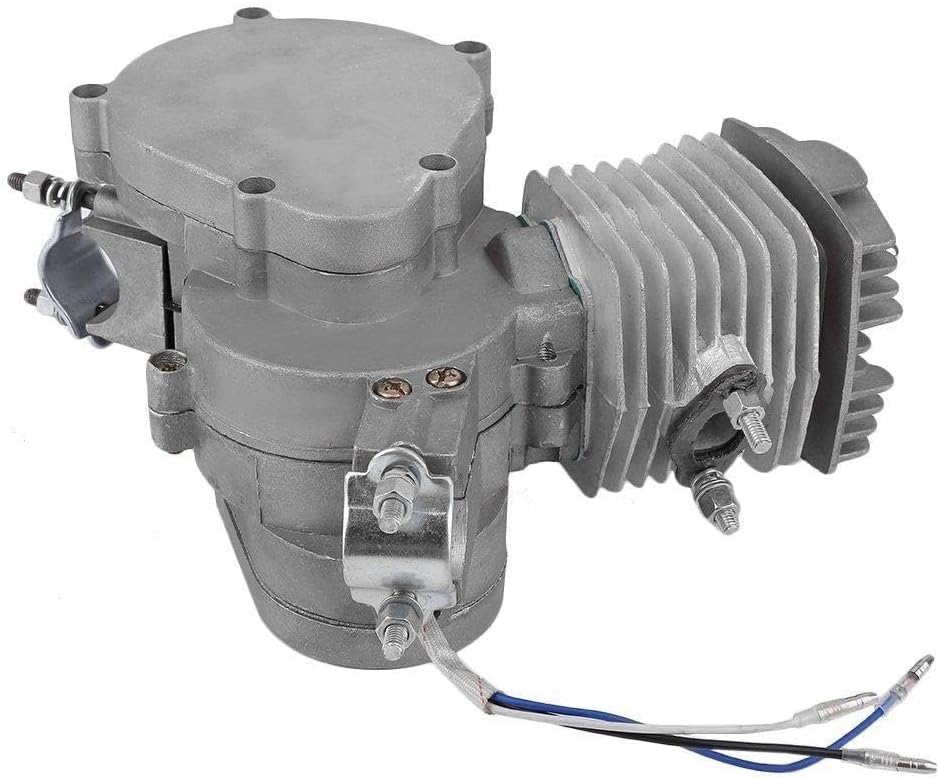

1x Engine
1x CD Ignition Assembly
1x Main Bearings

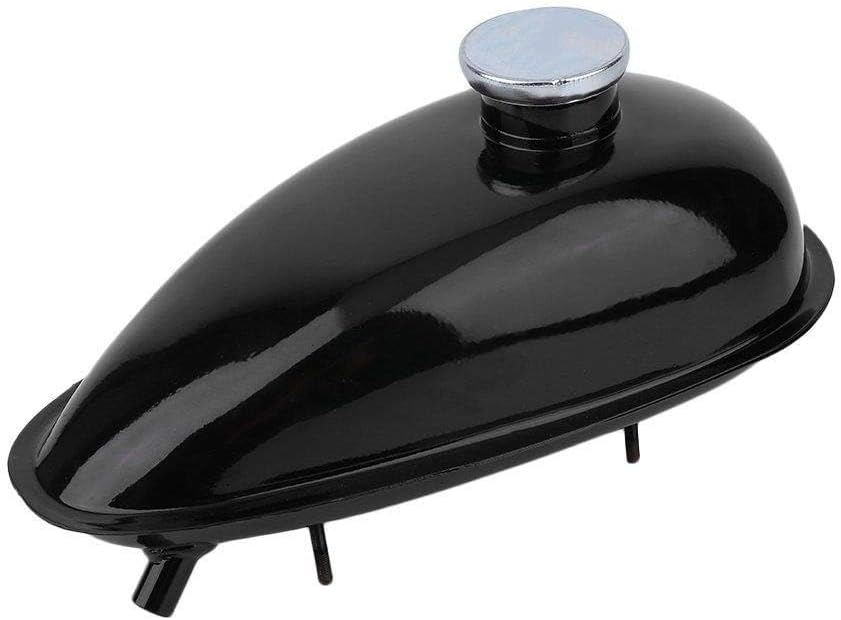

1x Gas Tank
1x Carburettor Assembly
1x Magneto With Kill Switch (on throttle)
1x 44 Tooth Chrome Sprocket With 9 Holes
1x Twist Throttle And Cable With Matching Grip
1x All necessary mounting brackets, gaskets, and hardware

Tips:
1. Before you install the engine, to lubricate the inner components and make the cylinder bore have a longer lifespan, you should pour some lubricating oil into the cylinder bore from the spark plug hole, then drain off the lubricating oil and install the engine.
2. Unleaded petrol / oil mixture is necessary. Use only synthetic 2 stroke fuel to insure proper engine lubrication.
3. To start, move the choke lever
