Product Application

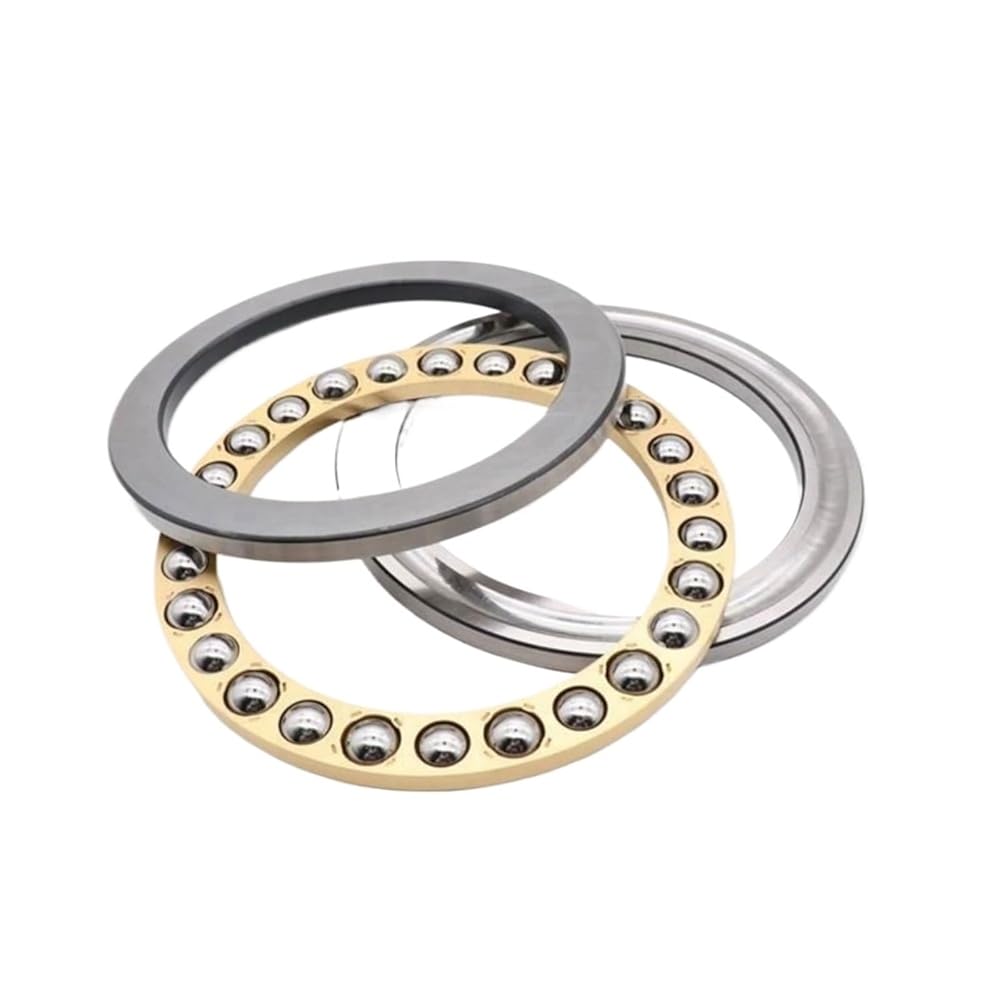

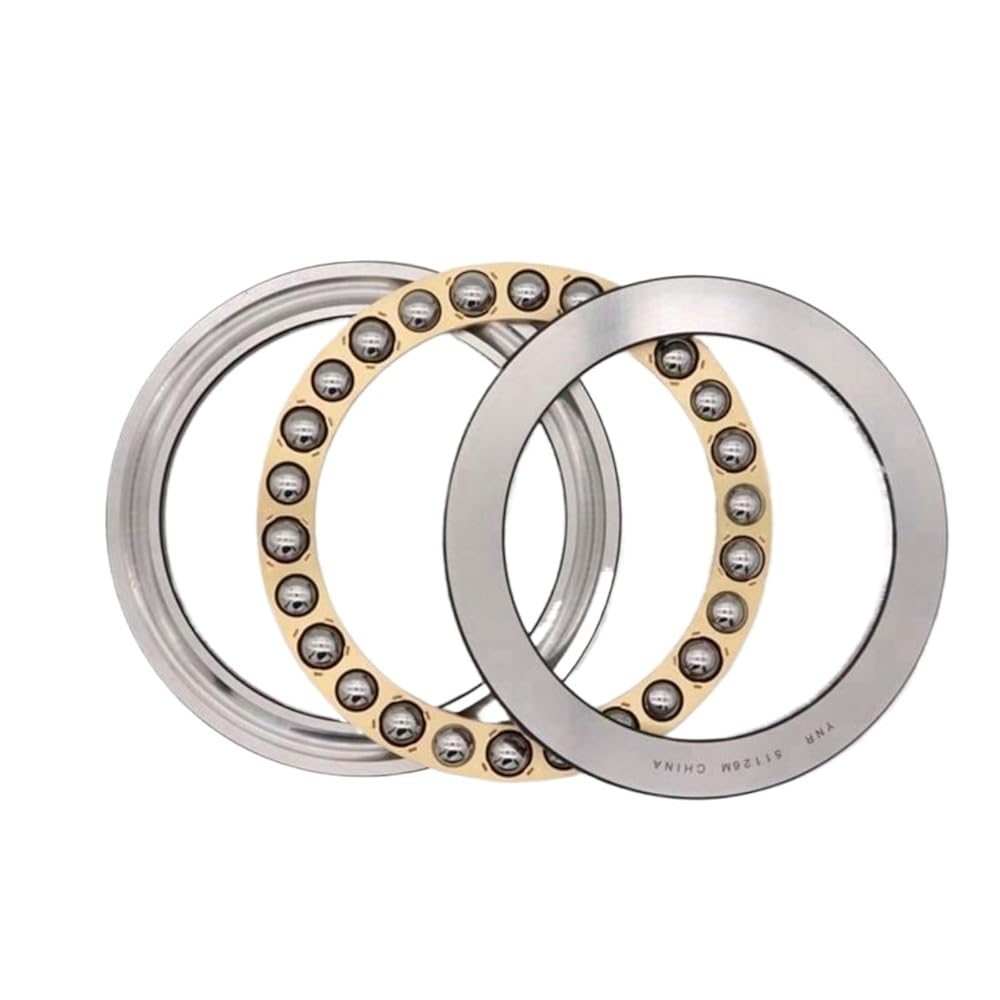

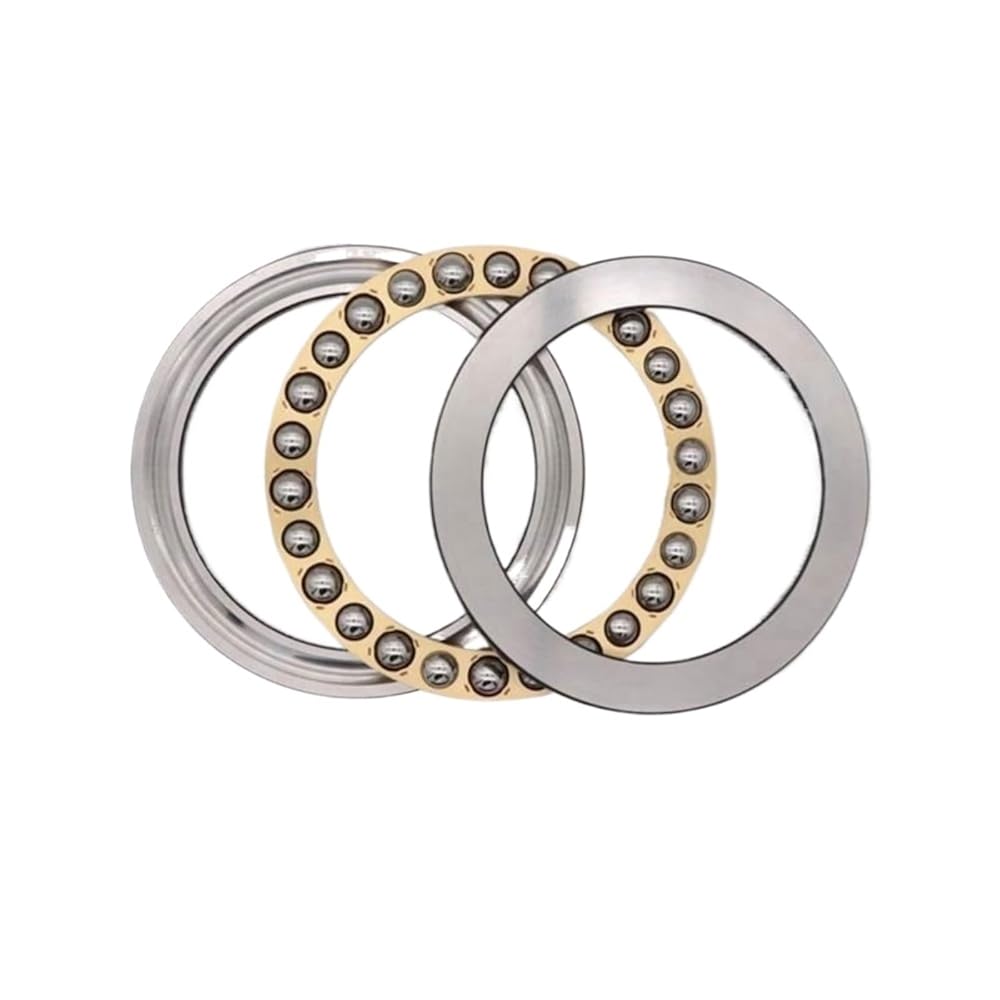

The single direction thrust ball bearing consist of a shaft washer, a housing washer and a ball and cage thrust assembly.
F8-16M bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.
The types: bearings with a flat surface on the housing washer, bearings with a sphered surface and bearings with a sphered housing washer can be used together with a sphered washer
F8-16M bearing can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.
Type
thrust ball bearing
Model
8TAM16

YNR/OEM
d (mm)
8mm
Material
Chrome steel
D (mm)
16mm
Seal type
Open/seal
B (mm)
5mm
Precision rate
P0, P6, P5, or as requested
Weight(g)
3.6288g
==========
is_customized : Yes
Material : Bearing Steel
Model Number : 8TAM16
