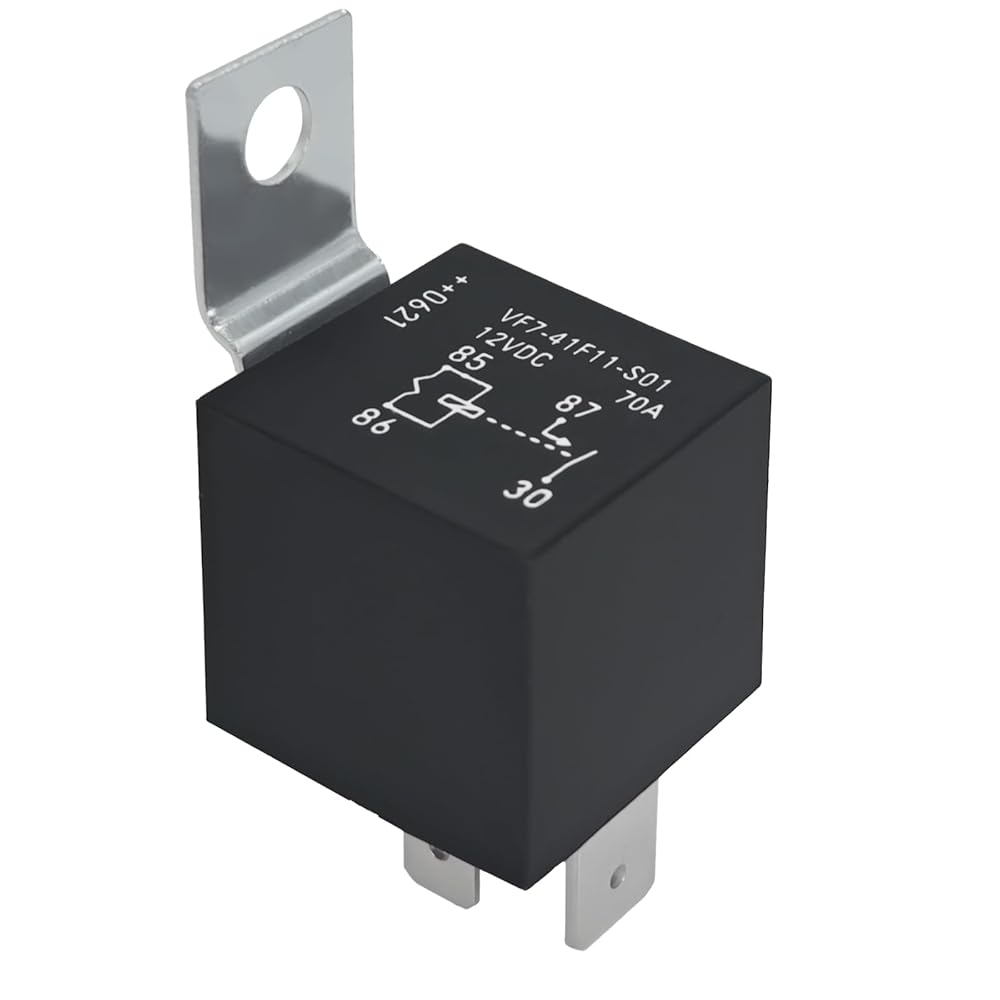

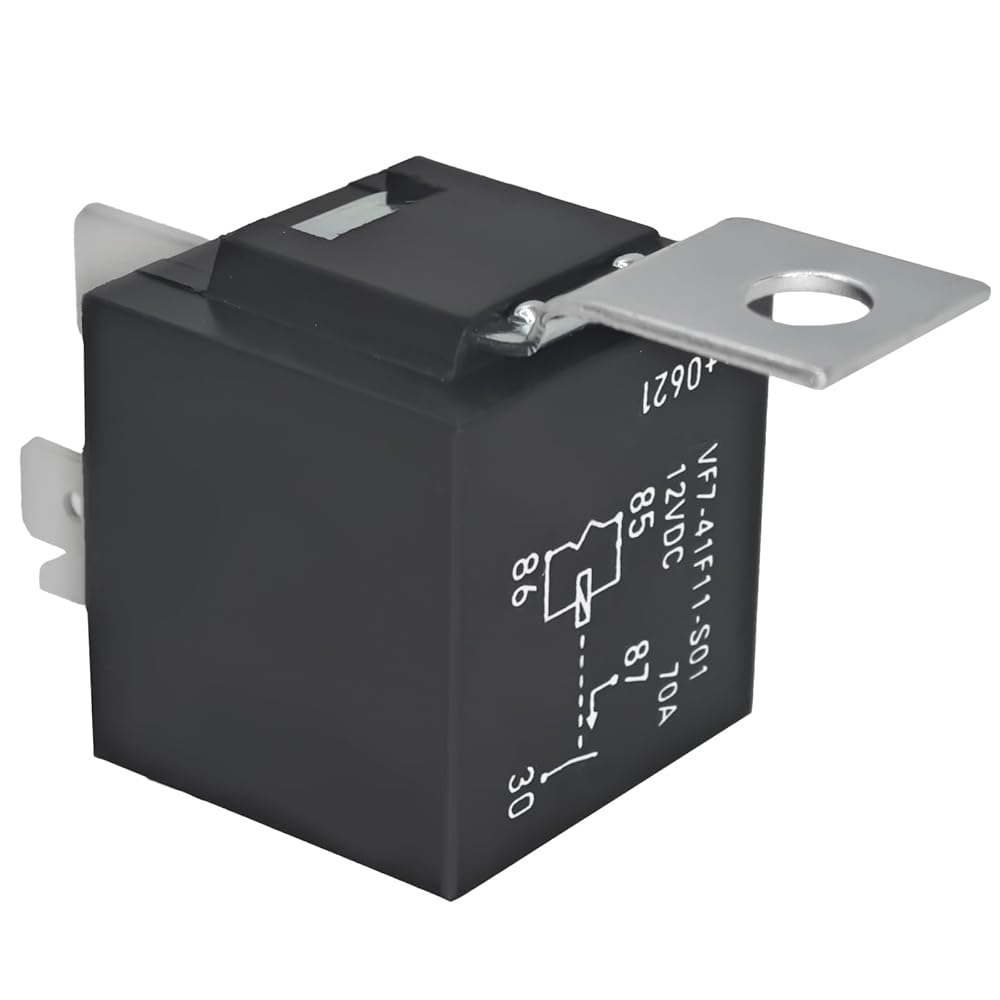

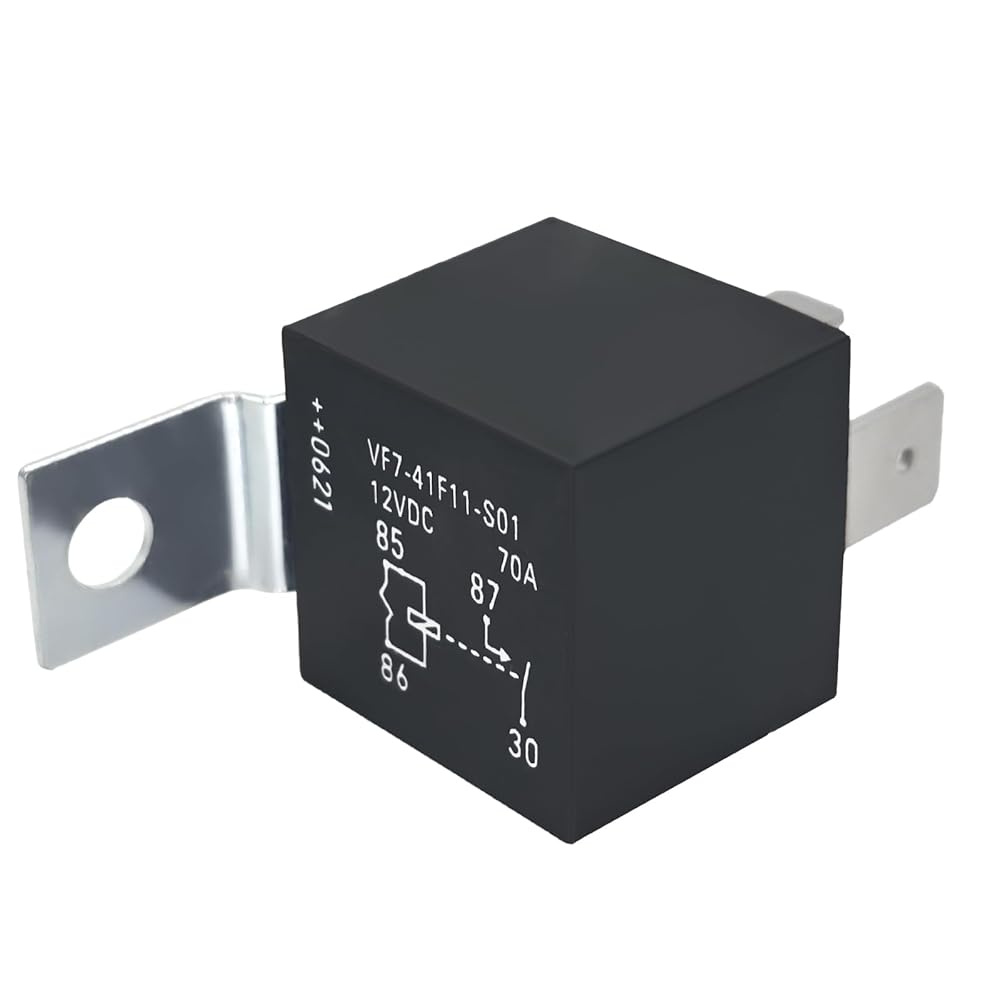

70A Automotive Relay with Mounting Hardware
This VF7-41F11-S01 relay provides high-current switching capability for 12V DC automotive electrical systems, featuring SPST-NO (Normally Open) contact configuration.

 Technical Specifications:
Coil Voltage: 12V DC ±15%
Contact Rating: 70A resistive @ 14V DC

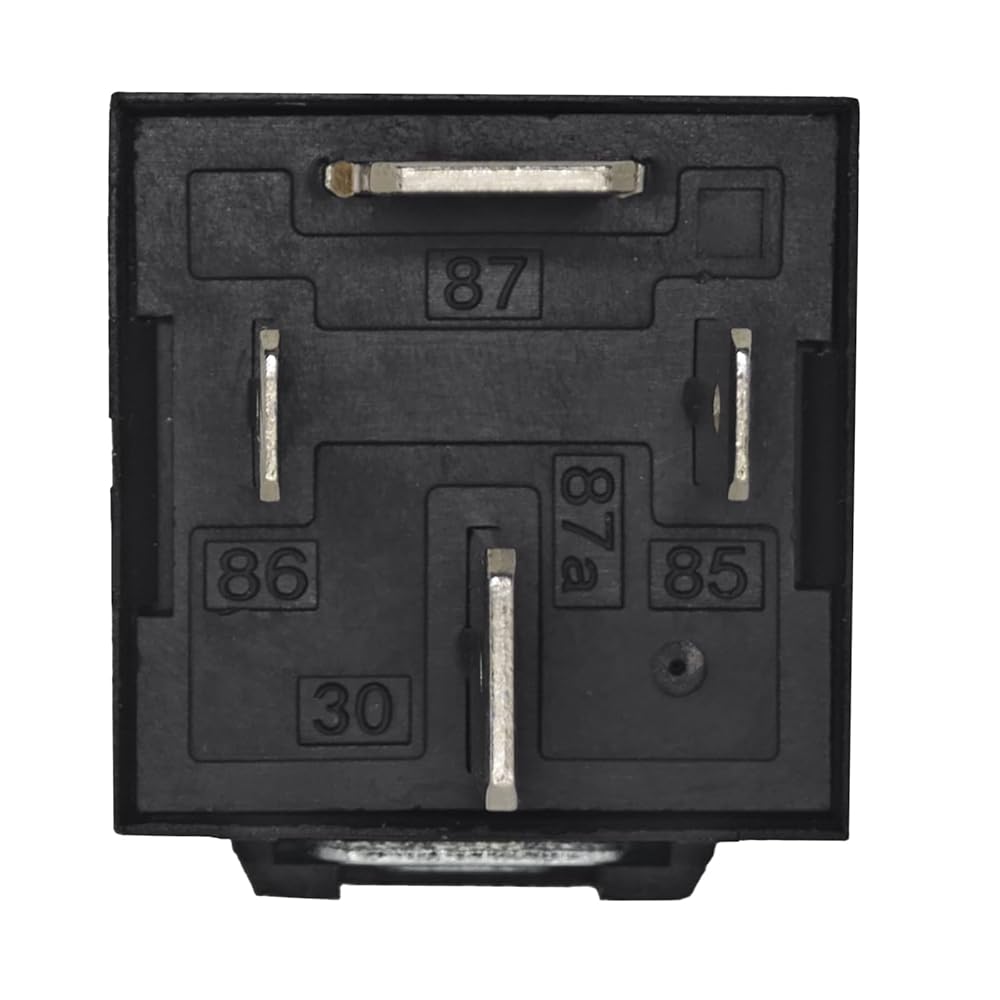

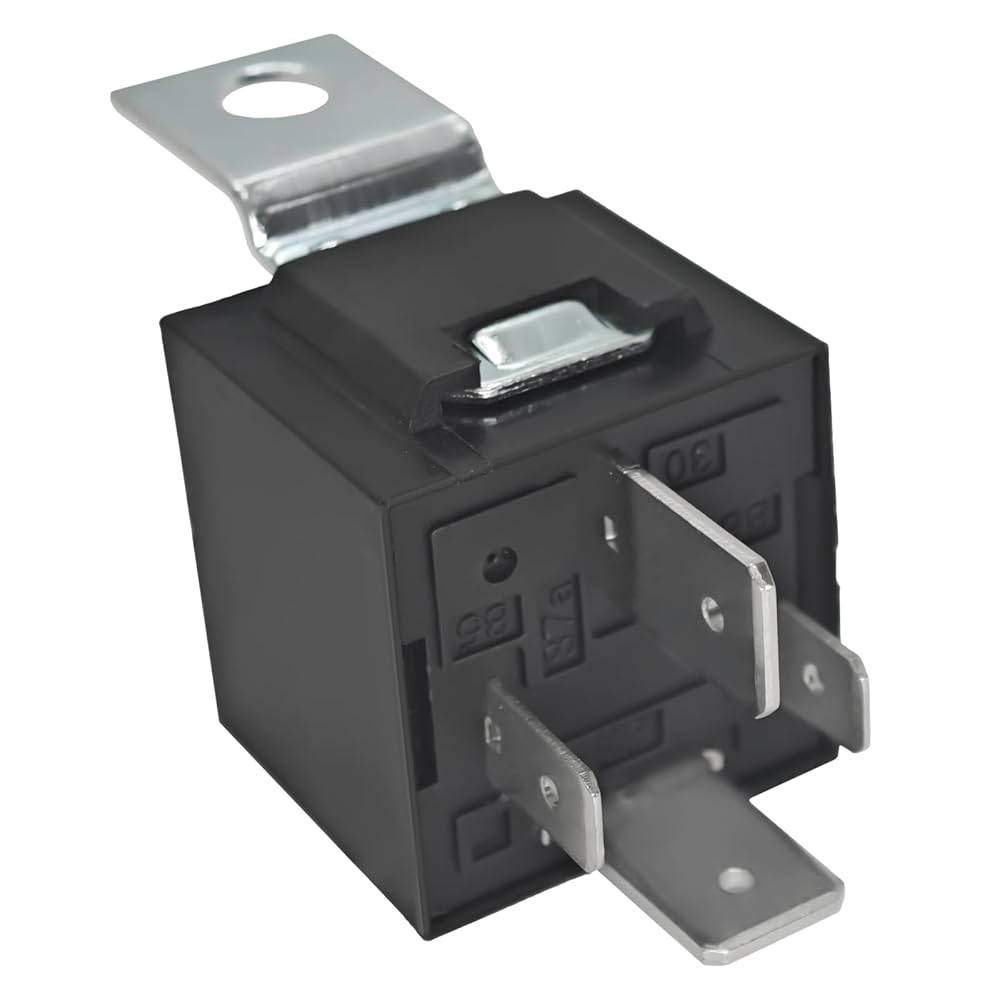

Terminal Type: Blade plug-in (ISO 7588-1)
Insulation Resistance: 100MΩ min (500VDC)
Dielectric Strength: 1000VAC @ 50Hz for 1 minute

 Compatible Applications:
 Headlight/fog light systems
 Fuel pump circuits
 Air compressor controls
 Aftermarket accessory installations

 Kit Contents:

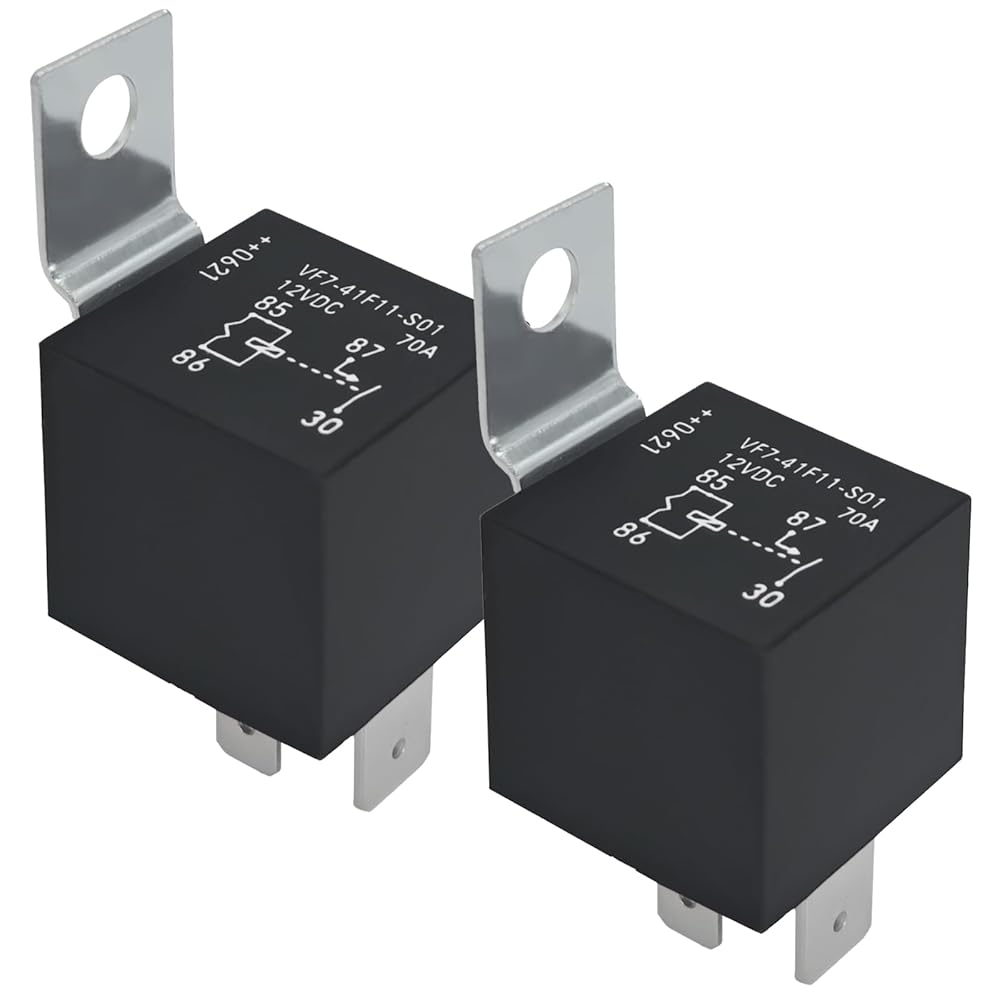

2 × VF7-41F11-S01 Relay

 Installation Requirements:
 Disconnect negative battery terminal before installation
 Mount relay vertically with terminals facing downward
 Maintain 10mm clearance from heat sources
 Use 10 AWG minimum wire gauge for high-current circuits
 Apply dielectric grease to terminals
