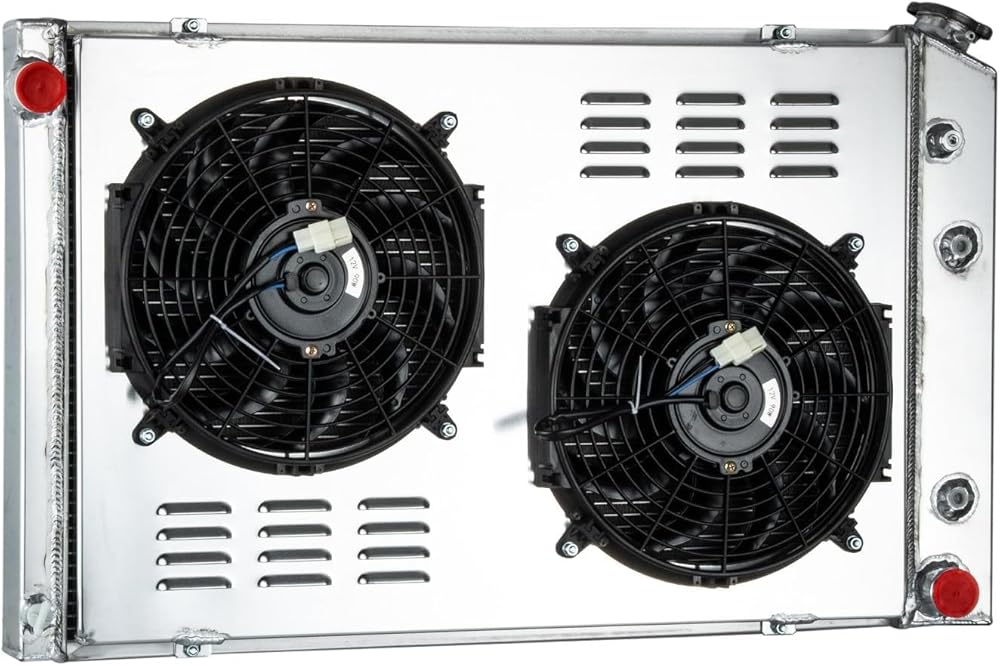

Package Includes:
1 X 3-Row Aluminum Radiator
1 X Aluminum Shroud
2 X 12" Fans
Vehicle Fitment:
Note: not for 1977 Chevy C10 350 engine
For Chevy
1987 Blazer 5.0L V8 GAS
1987-1991 Blazer 5.7L V8 GAS
1987-1991 Blazer 6.2L V8 DIESEL
1981-1984 C10/ C20/ K10 4.1L l6 GAS
1985 C10/ C20/ K20 4.3L V6 GAS
1981-1985 C10/ C20 5.0L V8 GAS
1982-1985 C10 5.7L V8 GAS
1981 C10 5.7L V8 DIESEL
1982-1985 C10/ C20 6.2L V8 DIESEL
1988-1990 C1500/ C2500 4.3L V6 GAS
1988-1990 C1500/ C2500 5.0L 5.7L V8 GAS
1988-1990 C3500 5.7L V8 GAS
1988-1990 C1500/ C2500/ C3500 6.2L V8 DIESEL
1988-1990 C3500 7.4L V8 GAS
1990 C1500 7.4L V8 GAS
1981-1985 C20 4.8L l6 GAS
1981-1985 C20 5.7L V8 GAS
1981-1985 C20 7.4L V8 GAS
1982-1986 C30 3.8L l6 GAS
1982-1986 C30 5.7L V8 GAS
1982-1986 C30/ K10/ K20/ K30 6.2L V8 DIESEL
1982-1986 C30 7.4L V8 GAS
1985-1986 K10 4.3L V6 GAS
1981-1986 K10 5.0L 5.7L V8 GAS
1981-1986 K20/ K30 5.7L V8 GAS
1981-1986 K20/ K30 4.8L l6 GAS
1985 K20 5.0L V8 GAS
1981-1986 K30 7.4L V8 GAS
For GMC
1982-1984 C1500/ C2500 4.1L l6 GAS
1985-1989 C1500 4.3L V6 GAS
1982-1989 C1500 5.0L 5.7L V8 GAS
1982-1989 C1500 6.2L V8 DIESEL
1979-1980 C1500 Suburban 4.1L l6 GAS
1982-1984 C1500 Suburban 5.0L V8 GAS
1979-1981 C1500 Suburban 5.7L V8 DIESEL
1979-1984 C1500 Suburban 5.7L V8 GAS
1982-1984 C1500 Suburban 6.2L V8 DIESEL
1979-1980 C1500 Suburban 7.4L V8 GAS
1985-1990 C2500 4.3L V6 GAS
1982-1986 C2500 4.8L l6 GAS
1982-1990 C2500 5.0L 5.7L 6.2L V8 GAS
1982-1986 C2500/ C2500 Suburban 7.4L V8 GAS
1982-1984 C2500 Suburban 4.8L l6 GAS
1982-1986 C2500 Suburban 5.0L 5.7L V8 GAS
1982-1986 C2500 Suburban 6.2L V8 DIESEL
1981-1986 C3500 4.8L l6 GAS
1986 C3500 5.0L V8 GAS
1981-1990 C3500 5.7L V8 GAS
1982-1990 C3500 6.2L V8 DIESEL
1981-1990 C3500 7.4L V8 GAS
1973-1982 Jimmy 4.1L l6 GAS
1973-1974 Jimmy 4.8L l6 GAS
1973-1987 Jimmy 5.0L V8 GAS
1973-1991 Jimmy 5.7L V8 GAS
1982-1991 Jimmy 6.2L V8 DIESEL
1975-1979 Jimmy 6.6L V8 GAS
1973-1976 Jimmy V8 GAS
This Radiator Size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Size: 18.82" H x 28.23" L x 2.44" W
Overall Size: 20.87" H x 33.66" L x 6.5" W
Upper Inlet: 1 1/2" located on the driver side
Lower Outlet: 1 1/2" located on the passenger side
100% Aluminum Construction (no epoxy).
Great Strength & High Cooling Efficiency.
Improves Cooling by 35% to 45% Temperature.
Fan Specification:
12" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 80 Wattage
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
