Check Valves
Parameter description
3-Wire Two Control

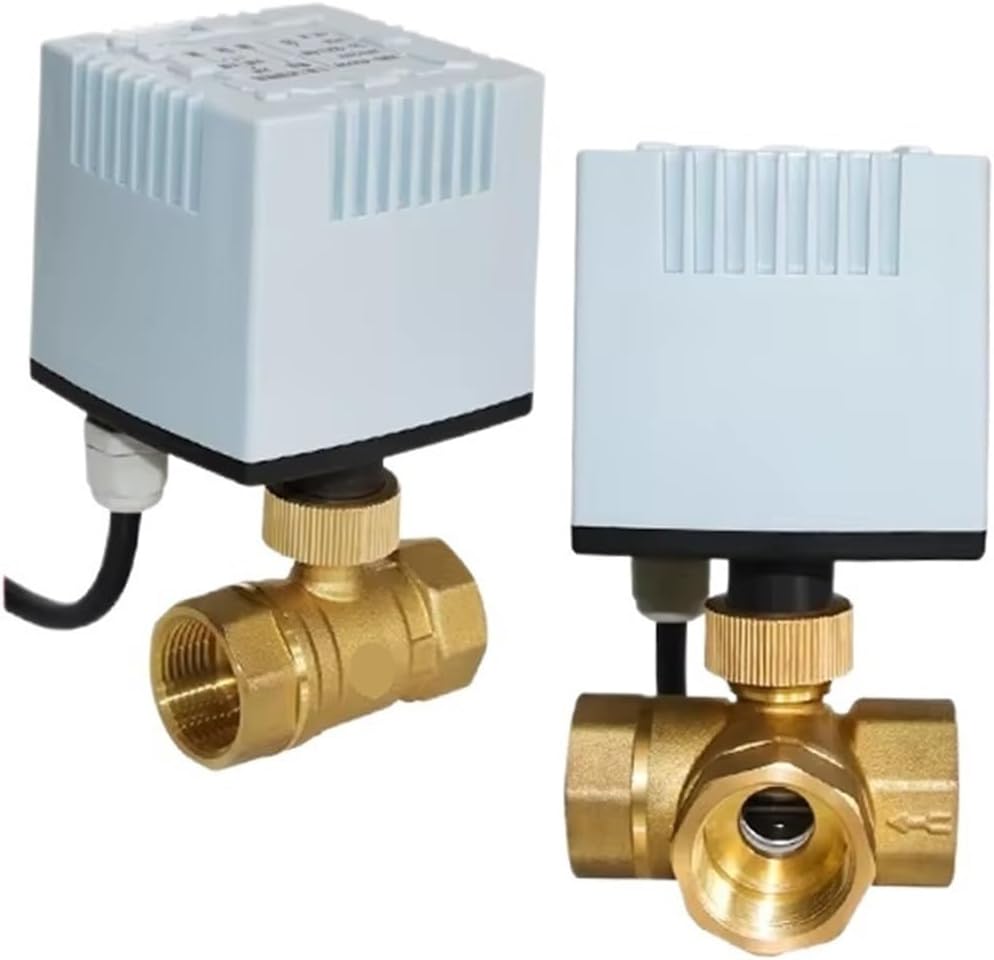

Way:2Ways /3Ways (3Ways is T type)
Open/Close Time: 10 seconds
Torsion:8NMaxmum
Working Pressure: 1.6 MPa / 232psi;
Voltage: AC220V 50/60 Hz Available DC12-24V 50/60 Hz Available
Power: Max is 3W
Operation: Motor and hand(with manual switch function)
Life Time: 100000 times;
Material: Brass,ABS plastic
Seal material: EPDM & PTFE;
Enviroment Temperature: 0 ° ~ 65 ° in Celsius;
Medium Temperature: 0 ° ~ 95 ° in Celsiu
Protect Class: IP 67

High-concerned chemical : None
Structure : Ball
Media : Water
Material : Brass
Temperature of Media : High Temperature
Standard or Nonstandard : Standard
Pressure : High Pressure
Power Source : AC
Voltage : AC 220V,DC 12-24V
Ball valve dimensions : DN 15/20/25/32
Waterproof rating : IP67
Medium temperature : ~90
Body material : Brass
