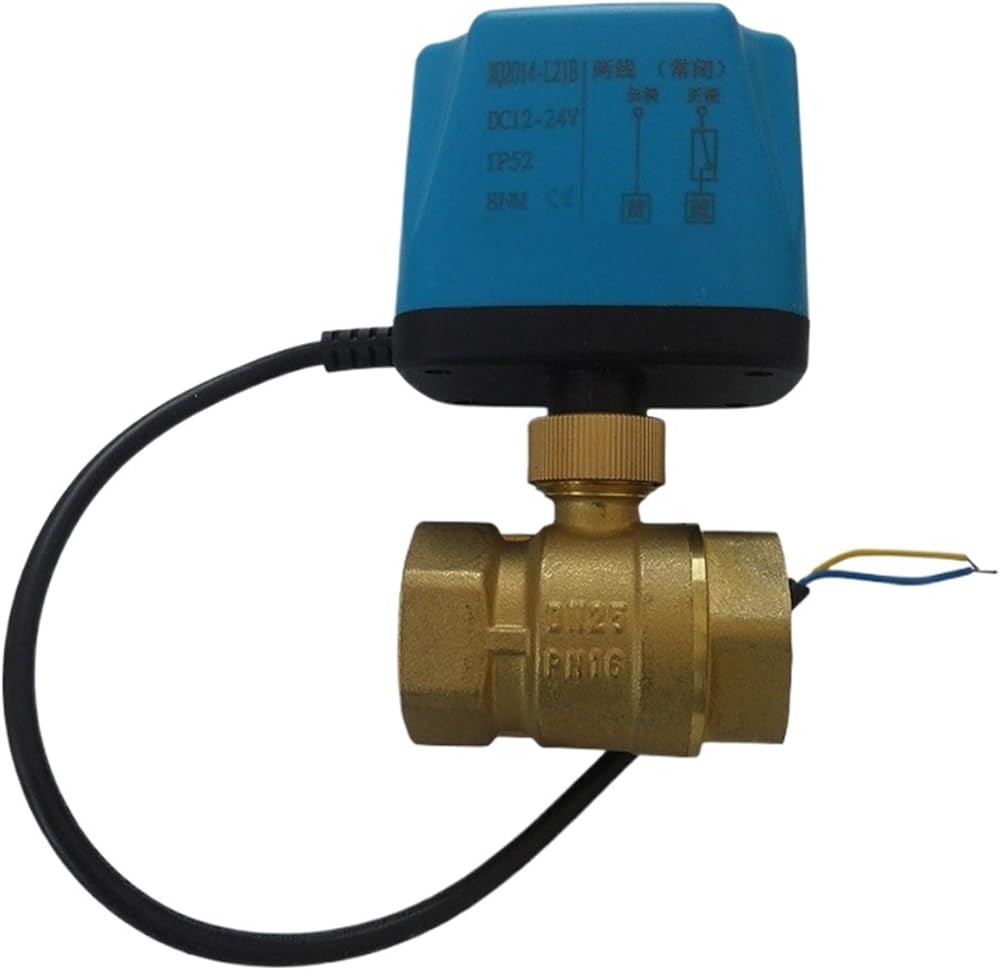

DN32 , DN40 , DN50 NC/NO Motorized Ball Valve DC12V 24V 2-Wire Brass Electric Ball Valve Replace Solenoid Valve
Product's detials:
Materiall:
Valve body: Brass CW617N
Ball: brasschrome-plated
Stem: Brass
Seal: EPDM+PTFE
Size: DN32(1-1/4"),DN40(1-1/2"),DN50(2")
Voltage: DC12V 24V for choose
Torque output: 8Nm
Working Pressure: 0-1.6MPa
Temperature: -20 to 90 degree celsius
Open/Close time: less than 15 seconds
Number of Wires: 2 wires
Product life:100,000times

Actuator Mode : Without Manual And Instruction
Structure : Ball
Port Size : DN32 , DN40 , DN50
Media : water,gas,oil,ect
Material : Brass
Temperature of Media : High Temperature
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : BAB256
Working Temp : -20 to 90 degree celsius
Connection: : Female Thread
Test: : 100% Leakage Testing
Control: : three-wire two control
Medium: : cold/hot water/heat gas/oil
Power supply: : DC12V 24V
Standard or Nonstandard: : Standard
is_customized: : Yes
Body material: : Brass CW617N(Europe standard|)
